Piston Rings: The Key to a Long and Healthy Engine Life

Piston rings are small metal rings that fit around the pistons and seal them to the cylinder walls. They are the unsung heroes of engine performance, as they perform many vital functions that affect your engine’s power, fuel economy, and durability.

Have you ever wondered what makes your car engine run smoothly and efficiently? You may think of the pistons, the cylinders, the spark plugs, or the fuel injectors. But there is another important part of your engine that you may not know about: the piston rings. In this article, we will explain what piston rings are, where they are located, what they do, how they are made, how they are installed, how they can fail, how they can be maintained, and what the future holds for them.

What are piston rings?

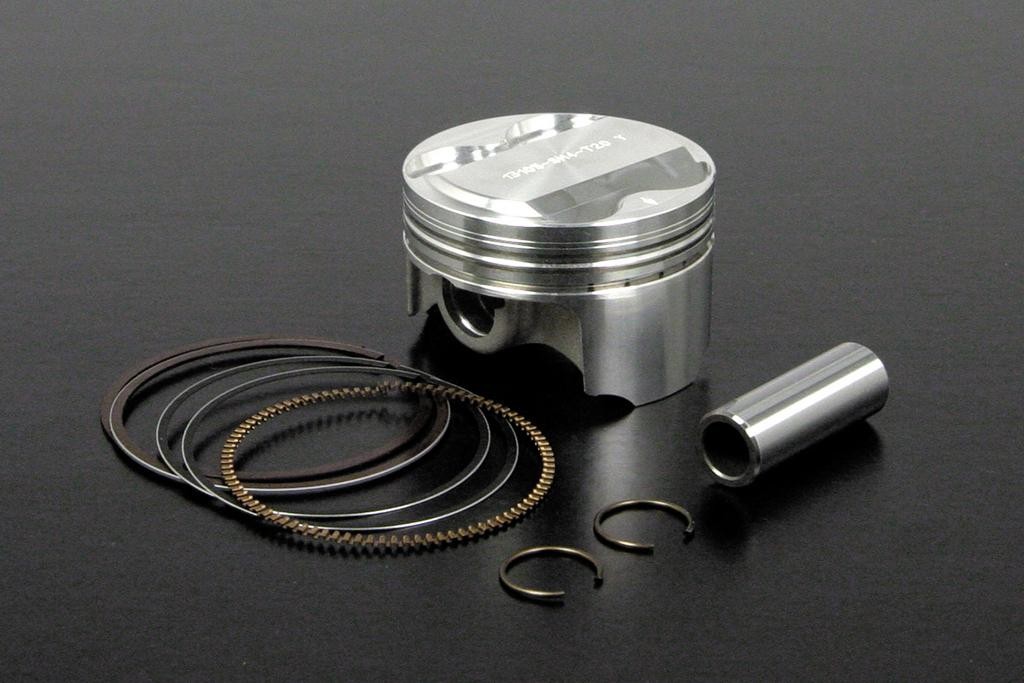

Piston rings are thin metal rings that are attached to the outer diameter of a piston in an internal combustion engine or a steam engine. A piston is a cylindrical metal part that moves up and down inside a cylinder. A cylinder is a hollow metal tube that houses the piston and forms part of the combustion chamber. A combustion chamber is where the air-fuel mixture is ignited by a spark plug and burned to produce power. The piston rings seal the gap between the piston and the cylinder wall, preventing the combustion gases from escaping to the crankcase and the oil from entering the combustion chamber.

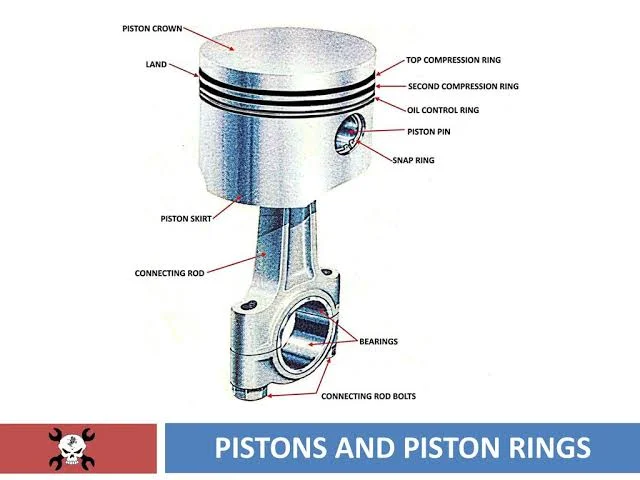

Where are piston rings located?

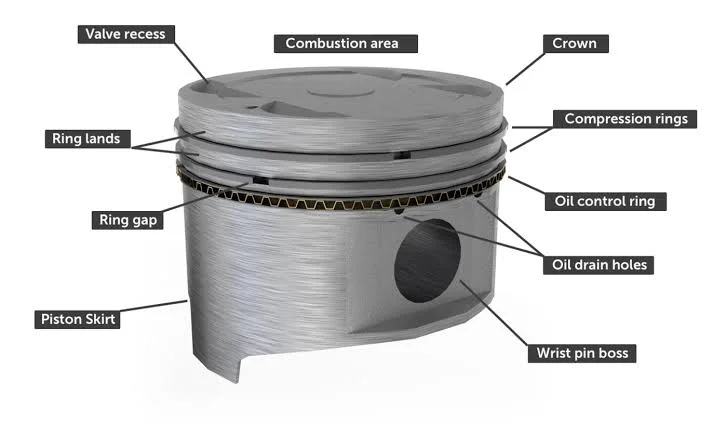

Piston rings are located in grooves on the top half of the piston. There are usually three piston rings on each piston: two compression rings and one oil control ring. The compression rings are the uppermost rings that seal the combustion chamber.

The oil control ring is the lowest ring that regulates the oil consumption and scrapes off excess oil from the cylinder wall. Between the compression rings and the oil control ring, there may be one or more scraper rings that help to remove carbon deposits and improve heat transfer.

What are the functions of piston rings?

Piston rings have three main functions in an engine:

1. Sealing the combustion chamber: Piston rings prevent the combustion gases from leaking to the crankcase, which would reduce the engine power and efficiency. They also prevent oil from entering the combustion chamber, which would cause smoke and pollution.
2. Controlling oil consumption: Piston rings regulate the amount of oil between the piston and the cylinder wall, which is necessary for lubrication and cooling. They also scrape off excess oil from the cylinder wall and return it to the sump, which is a reservoir for storing oil.
3. Aiding in heat transfer: Piston rings help to transfer heat from the piston to the cylinder wall, which helps to keep the engine temperature within optimal range.

Types of piston rings

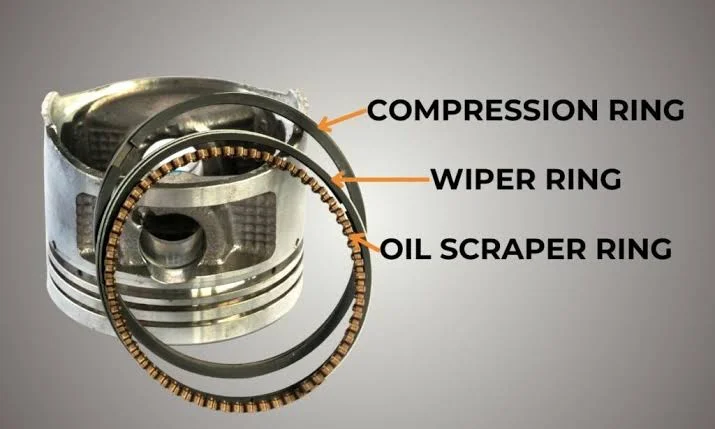

There are different types of piston rings depending on their shape, material, and function. Some of the common types of piston rings are:

• Compression rings: These are the uppermost rings that seal the combustion chamber. They have a rectangular or trapezoidal cross-section and may have different profiles on their faces to improve sealing and reduce friction.
• Oil control rings: These are the lowest rings that regulate oil consumption and scrape off excess oil from the cylinder wall. They have a complex cross-section with multiple grooves or slots that allow oil to pass through them.
• Scraper rings: These are intermediate rings that help to remove carbon deposits and improve heat transfer. They have a tapered or stepped cross-section that creates a scraping action on the cylinder wall.

Materials used in piston rings

Piston rings are commonly made from cast iron or steel. Cast iron is a type of metal that contains iron and carbon. It retains its shape well under heat, load, and other dynamic forces. Steel is a type of metal that contains iron and other elements such as carbon, manganese, chromium, or molybdenum. It is stronger and harder than cast iron but more prone to wear and corrosion. Some of the common materials used in piston rings are:

• Cast iron: This is a traditional material for piston rings that has good wear resistance, thermal stability, and compatibility with cylinder walls. It can be alloyed with other elements such as chromium or nickel to improve its properties.
• Steel: This is a modern material for piston rings that has high strength, durability, and fatigue resistance. It can be coated with other materials such as molybdenum or chromium to reduce friction and wear.
• Molybdenum: This is a type of metal that has high melting point, hardness, and lubricity. It is often used as a coating on steel piston rings to reduce friction and wear.

Piston ring design

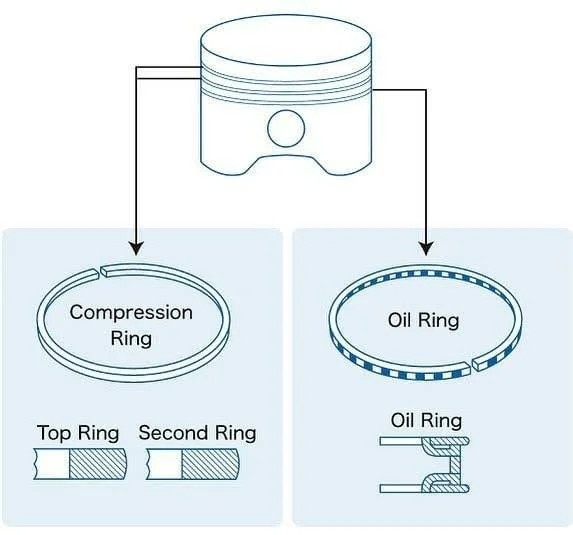

Piston rings have different designs depending on their function, shape, and profile. Some of the common piston ring designs are:

1. Axial twist: This is a design that twists the piston ring along its axis to create a spring effect that increases the contact pressure and improves the sealing.
2. Barrel taper: This is a design that curves the piston ring face to form a barrel shape that reduces the contact area and friction.
3. Taper face: This is a design that slopes the piston ring face to form a wedge shape that creates a scraping action and improves oil control.

Piston ring installation

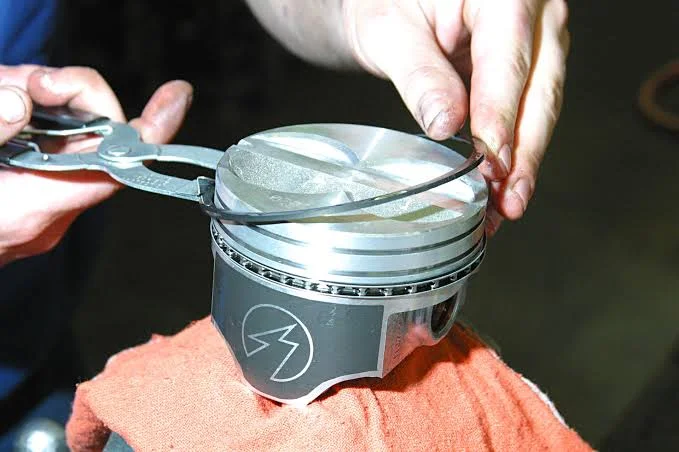

Piston rings are installed on the pistons by using special tools or methods. Some of the important steps in piston ring installation are:

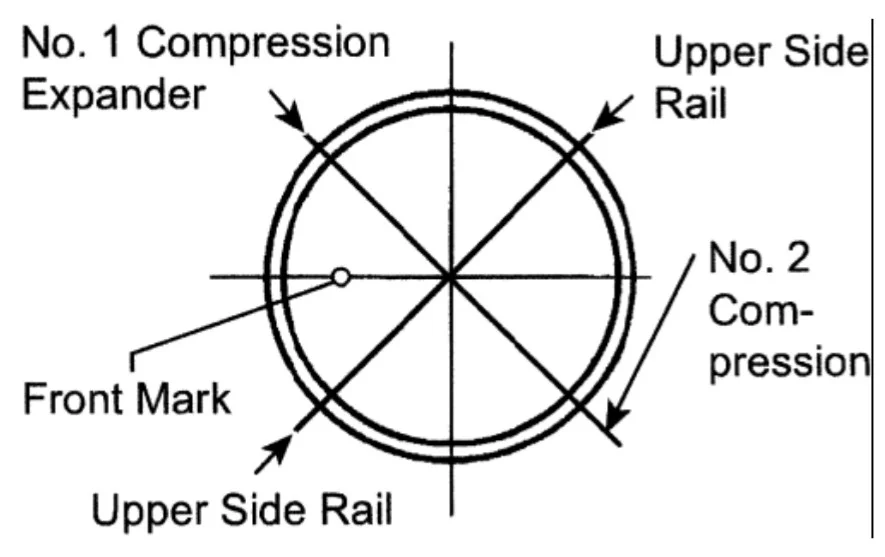

• Gap placement: This is the process of positioning the piston ring gaps or openings in a specific pattern or angle to prevent gas leakage and oil migration. The gaps should be staggered or offset from each other and aligned with the piston pin or the thrust side of the cylinder.
• Ring orientation: This is the process of orienting the piston rings correctly according to their markings or features. The rings should be installed with their faces or tops facing upward and their identification marks or dots facing outward.
• Ring end gap: This is the process of measuring and adjusting the piston ring end gap or clearance between the ends of the ring. The gap should be within the specified range for each type of ring and engine. The gap can be increased by filing or grinding the ends of the ring and decreased by installing a new ring.

Piston ring failure

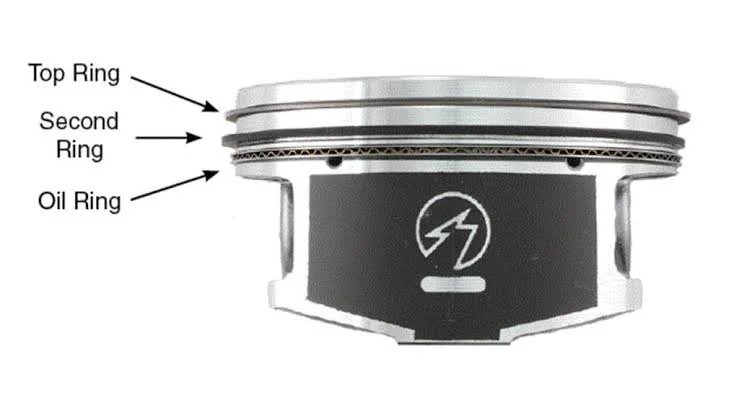

Piston rings can fail due to various reasons such as wear, breakage, or sticking. Some of the common causes and symptoms of piston ring failure are:

• Broken rings: This is when the piston rings crack or snap due to excessive stress, fatigue, or impact. This can cause loss of compression, power, and efficiency, as well as increased oil consumption, smoke, and noise.
• Worn rings: This is when the piston rings lose their thickness or shape due to friction, abrasion, or corrosion. This can cause loss of sealing, performance, and economy, as well as increased blow-by, oil consumption, smoke, and emissions.
• Stuck rings: This is when the piston rings get stuck in their grooves due to carbon deposits, sludge, or varnish. This can cause loss of flexibility, sealing, and heat transfer, as well as increased oil consumption, smoke, and detonation.

Piston ring maintenance

Piston rings can be maintained by following some simple tips such as:

• Proper lubrication: This is when you use the right type and amount of engine oil for your vehicle and change it regularly according to your manufacturer’s recommendations. This will help to reduce friction, wear, and heat in your engine and keep your piston rings clean and lubricated.
• Avoiding detonation: This is when you prevent abnormal combustion or knocking in your engine by using good quality fuel with the correct octane rating for your vehicle and avoiding overloading or overheating your engine. This will help to prevent damage to your piston rings and other engine components.
• Preventing overheating: This is when you keep your engine temperature within optimal range by using a good cooling system with adequate coolant level and quality. This will help to prevent thermal expansion, distortion, or cracking of your piston rings and cylinder walls.

The importance of piston rings

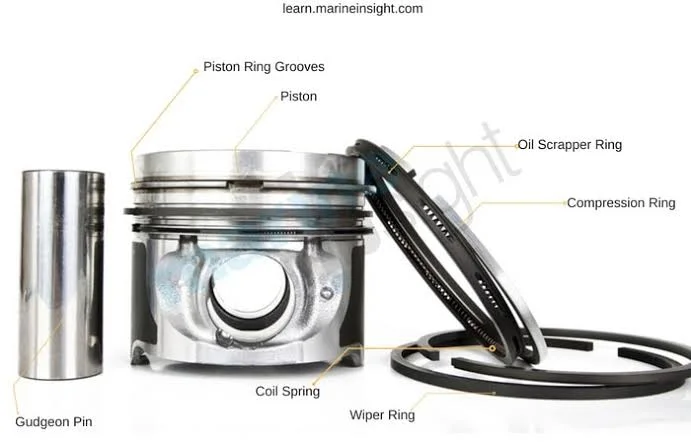

Piston rings are very important for your engine performance, as they perform many vital functions such as:

• Sealing combustion gases: Piston rings seal the combustion chamber from the crankcase, which ensures that all the power generated by burning fuel is used to move your vehicle. They also prevent oil from entering the combustion chamber, which prevents smoke and pollution.
• Controlling oil consumption: Piston rings control the amount of oil between the piston and the cylinder wall, which ensures that your engine is lubricated and cooled properly. They also scrape off excess oil from the cylinder wall and return it to the sump, which prevents oil loss and waste.
• Aiding in heat transfer: Piston rings help to transfer heat from the piston to the cylinder wall, which ensures that your engine temperature is maintained within optimal range. They also help to remove carbon deposits from the cylinder wall, which improves heat transfer and efficiency.

The future of piston rings

Piston rings are constantly evolving with new technologies and innovations. Some of the future trends in piston ring development are:

• Low-friction coatings: These are coatings that reduce friction and wear between the piston rings and the cylinder walls by using materials such as diamond-like carbon (DLC), chromium nitride (CrN), or titanium nitride (TiN).
• Advanced materials: These are materials that improve strength, durability, and performance of piston rings by using materials such as ceramic matrix composites (CMC), metal matrix composites (MMC), or carbon fiber reinforced polymers (CFRP).
• New designs: These are designs that improve sealing, oil control, and heat transfer of piston rings by using shapes such as elliptical, oval, or wave.

Conclusion

Piston rings are small metal rings that fit around the pistons and seal them to the cylinder walls. They are the unsung heroes of engine performance, as they perform many vital functions that affect your engine’s power, fuel economy, and durability. They seal the combustion chamber, control oil consumption, and aid in heat transfer. They are made from different types of materials such as cast iron, steel, or molybdenum, and have different designs such as axial twist, barrel taper, or taper face. They are installed on the pistons by using special tools or methods such as gap placement, ring orientation, or ring end gap. They can fail due to various reasons such as wear, breakage, or sticking, and can be maintained by following some simple tips such as proper lubrication, avoiding detonation, or preventing overheating. Piston rings are constantly evolving with new technologies and innovations such as low-friction coatings, advanced materials, or new designs. Piston rings are very important for your engine performance and should be taken care of properly.
