Turbochargers: Everything You Need to Know

Turbochargers are devices that increase the power and efficiency of an internal combustion engine by forcing more air into the combustion chamber.

If you are a technician, a student, or a motorist who is interested in learning more about turbochargers, you have come to the right place. In this article, we will explain what turbochargers are, how they work, and why you need them. We will also discuss the different types of turbochargers, their performance and efficiency, their benefits and challenges, and their future trends.

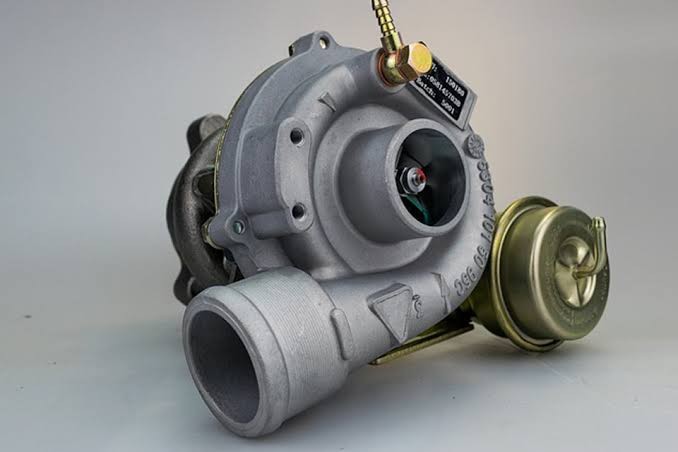

What are Turbochargers?

Turbochargers are devices that increase the power and efficiency of an internal combustion engine by forcing more air into the combustion chamber. Turbochargers consist of two main parts: a turbine and a compressor. The turbine is driven by the exhaust gases from the engine, and the compressor is driven by the turbine. The compressor compresses the air and sends it to the intake manifold, where it mixes with the fuel and burns more completely. This results in more power output and less fuel consumption.

Turbochargers are also known as turbos or turbo-superchargers. The term supercharger is sometimes used to refer to any device that boosts the air pressure in an engine, but technically, a supercharger is different from a turbocharger. A supercharger is driven by a belt or a chain connected to the engine's crankshaft, while a turbocharger is driven by the exhaust gases. Therefore, a supercharger consumes some of the engine's power to operate, while a turbocharger recovers some of the engine's wasted energy.

Turbochargers are not new inventions. They were first used in aircraft engines in the 1920s to improve their performance at high altitudes. They were later adopted by automotive and marine engines in the 1930s and 1940s. However, they became more popular and widespread in the 1970s and 1980s, when stricter emission regulations and fuel economy standards prompted manufacturers to use smaller and more efficient engines. Turbochargers helped these engines achieve higher power output without sacrificing fuel efficiency.

Today, turbochargers are widely used in various types of engines, such as gasoline, diesel, hybrid, electric, and hydrogen engines. They are also used in different kinds of vehicles, such as cars, trucks, buses, motorcycles, boats, trains, and planes.

How do Turbochargers Work?

Turbochargers work on the principle of forced induction. Forced induction is the process of increasing the density and pressure of the air that enters an engine's combustion chamber. This allows more air and fuel to be burned per cycle, resulting in more power output and less fuel consumption.

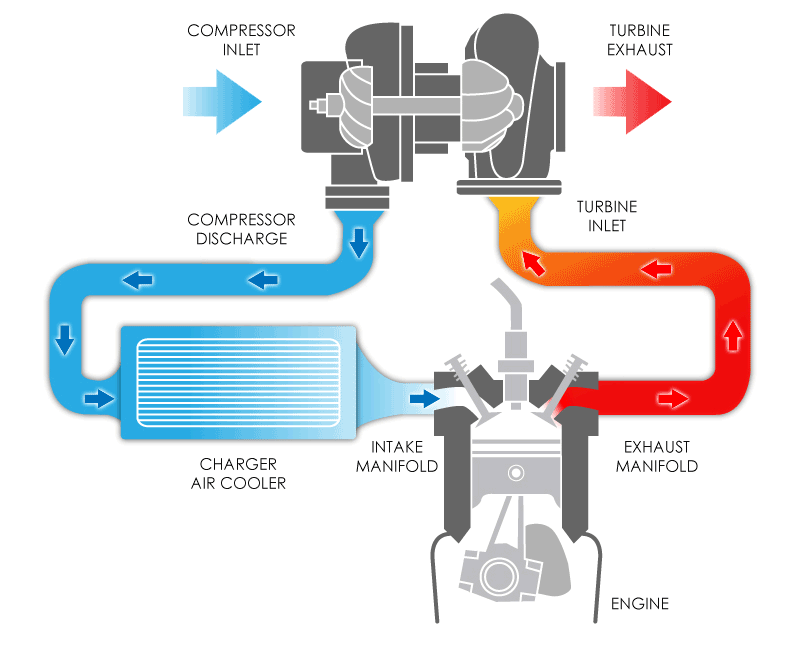

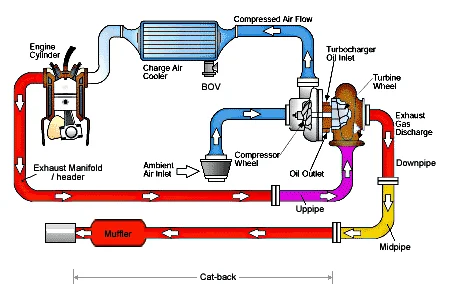

Turbochargers use a turbine and a compressor to achieve forced induction. The turbine is located in the exhaust stream of the engine, where it harnesses the kinetic energy of the exhaust gases. The turbine spins at high speeds (up to 250,000 rpm) and drives the compressor via a shaft. The compressor is located in the intake stream of the engine, where it draws in ambient air and compresses it to a higher pressure (up to 2.5 bar). The compressed air then passes through an intercooler or a charge air cooler (CAC), which cools down the air and reduces its temperature (up to 150°C). The cooled air then enters the intake manifold, where it mixes with the fuel and ignites in the combustion chamber.

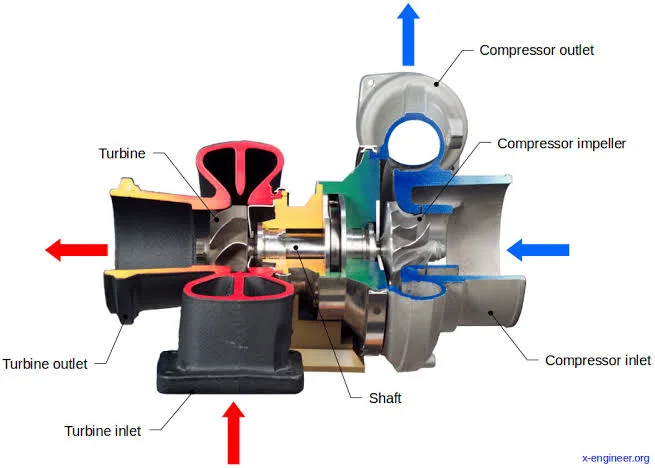

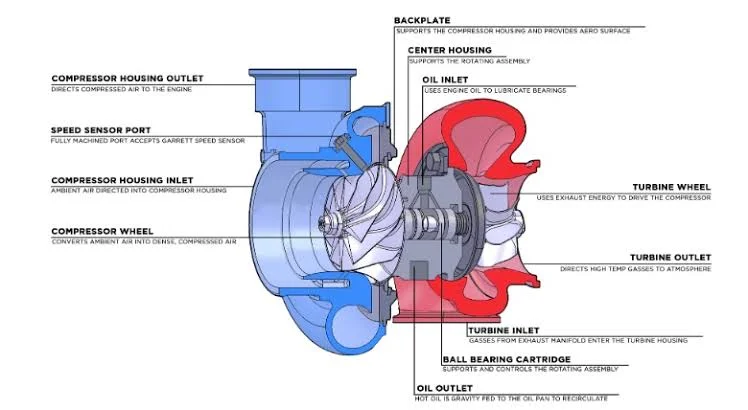

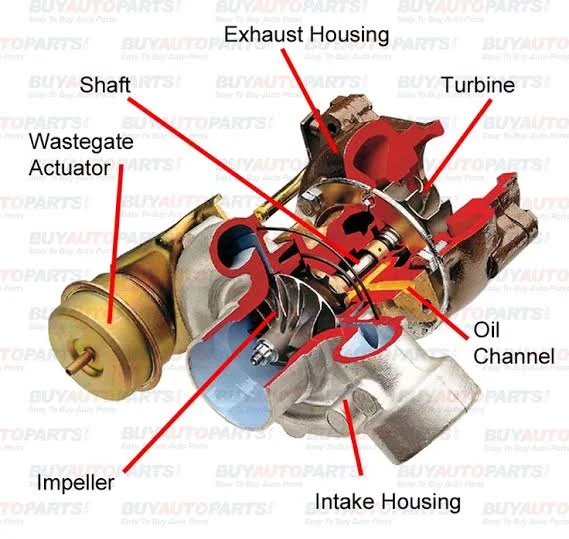

The main components of a turbocharger are:

1. Turbine: The turbine is a wheel with blades that spin when hit by the exhaust gases from the engine. The turbine converts the kinetic energy of the exhaust gases into mechanical energy that drives the compressor.
2. Compressor: The compressor is a wheel with blades that spin when driven by the turbine. The compressor draws in ambient air and compresses it to a higher pressure and density.
3. Shaft: The shaft is a rod that connects the turbine and the compressor. The shaft transfers the mechanical energy from the turbine to the compressor.
4. Housing: The housing is a casing that encloses and supports the turbine and the compressor. The housing also directs the flow of air and exhaust gases through the turbocharger.
5. Wastegate: The wastegate is a valve that controls the amount of exhaust gases that enter the turbine. The wastegate prevents overboosting or overspeeding of the turbocharger by diverting some of the exhaust gases away from the turbine when the desired boost pressure is reached.
6. Intercooler or Charge Air Cooler (CAC): The intercooler or CAC is a heat exchanger that cools down the compressed air before it enters the intake manifold. The intercooler or CAC improves the efficiency and performance of the turbocharger by reducing the temperature and increasing the density of the air.

Types of Turbochargers

There are different types of turbochargers that are used for various applications and purposes. Some of the common types of turbochargers are:

• Single-Turbo: This is the simplest and most common type of turbocharger, where a single turbine and a single compressor are connected by a shaft. A single-turbo can provide a significant boost in power and efficiency, but it may suffer from turbo lag and narrow operating range.

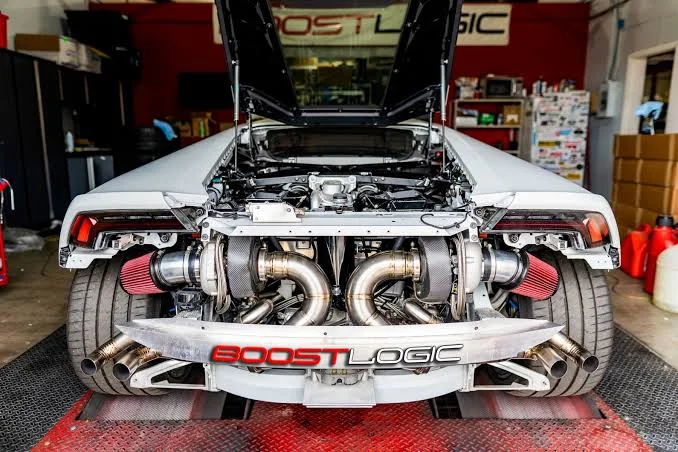

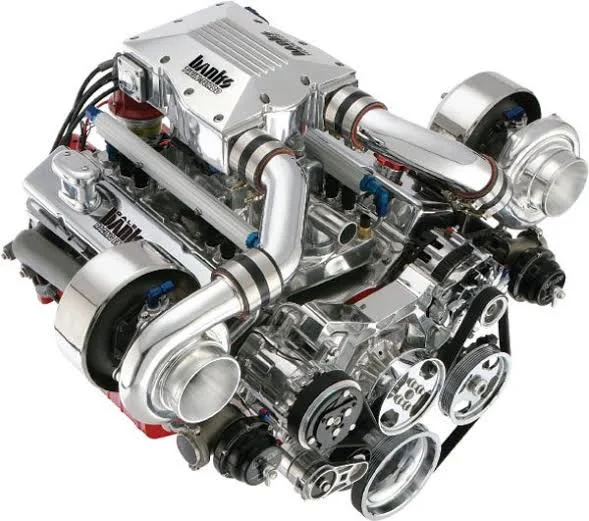

• Twin-Turbo: This is a type of turbocharger where two separate turbos are used, either in parallel or in series. In parallel configuration, each turbo handles half of the engine's exhaust flow and provides boost to half of the engine's cylinders. In series configuration, one turbo feeds into another, providing a staged boost. A twin-turbo can offer better performance, responsiveness, and flexibility than a single-turbo, but it is more complex and costly.
• Twin-Scroll Turbo: This is a type of turbocharger where a single turbine housing has two separate scrolls or volutes that direct the exhaust gas to the turbine wheel. The scrolls are designed to match the engine's firing order and separate the exhaust pulses from different cylinders. A twin-scroll turbo can reduce turbo lag, improve low-end torque, and increase efficiency by minimizing exhaust interference and backpressure.

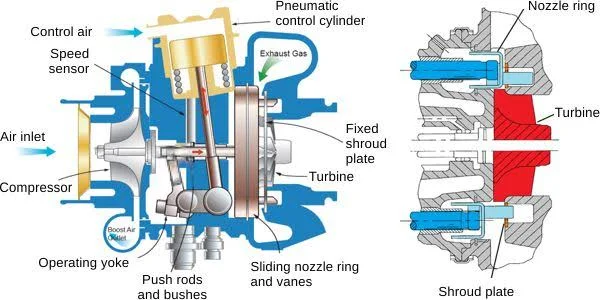

• Variable Geometry Turbo (VGT): This is a type of turbocharger where the turbine housing has adjustable vanes or nozzles that can change the angle and area of the exhaust gas flow to the turbine wheel. The vanes or nozzles are controlled by an actuator that responds to the engine's load and speed. A VGT can provide optimal boost at different engine conditions, reducing turbo lag, improving throttle response, and increasing efficiency.
• Variable Twin Scroll Turbo (VTST): This is a type of turbocharger that combines the features of a twin-scroll turbo and a VGT. It has two scrolls with variable geometry vanes that can independently adjust the exhaust gas flow to the turbine wheel. A VTST can offer superior performance, responsiveness, and efficiency by optimizing the boost pressure and minimizing the exhaust losses at different engine conditions.

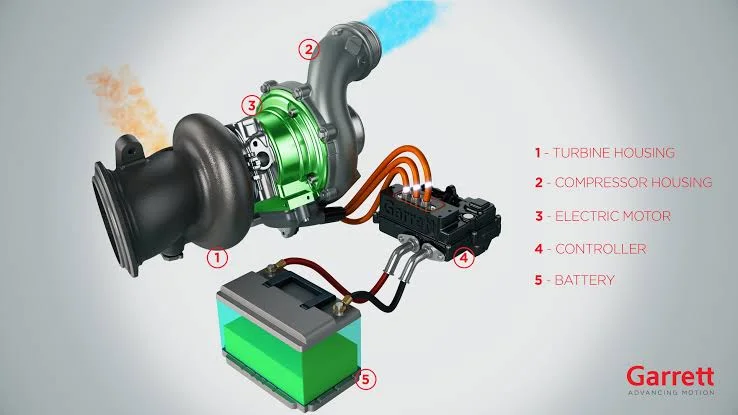

• Electric Turbo (E-Turbo): This is a type of turbocharger that has an electric motor integrated with the shaft that connects the turbine and the compressor. The electric motor can either assist or replace the turbine in driving the compressor, depending on the engine's demand. An E-Turbo can eliminate turbo lag, enhance power output, and improve fuel economy by using electrical energy from the battery or a generator.

Benefits and Challenges of Turbochargers

Turbochargers have many benefits for engines and vehicles, such as:

• Increased Power: Turbochargers can increase the power output of an engine by forcing more air into the combustion chamber, allowing more fuel to be burned per cycle. This results in higher torque and horsepower, which can improve acceleration, speed, and performance.
• Improved Efficiency: Turbochargers can improve the efficiency of an engine by reducing its specific fuel consumption (SFC), which is the amount of fuel needed to produce a unit of power. This is achieved by recovering some of the waste heat and kinetic energy from the exhaust gas and using it to compress the intake air. This reduces the pumping losses and increases the thermal efficiency of the engine. Turbochargers also enable engine downsizing, which means using a smaller engine with similar or higher power output than a larger engine. This reduces the weight, friction, and inertia of the engine, which further improves fuel economy and emissions.
• Reduced Emissions: Turbochargers can reduce the emissions of an engine by lowering its SFC and enabling engine downsizing. This reduces the amount of fuel burned and carbon dioxide (CO2) produced per unit of power. Turbochargers also increase the air-fuel ratio (AFR) and oxygen content in the combustion chamber, which enhances the combustion quality and reduces the formation of harmful pollutants such as carbon monoxide (CO), hydrocarbons (HC), nitrogen oxides (NOx), and particulate matter (PM).

However, turbochargers also have some challenges that need to be addressed, such as:

• Turbo Lag: Turbo lag is the delay between pressing the accelerator pedal and feeling the boost from the turbocharger. It is caused by the time it takes for the exhaust gas to spin up the turbine and compressor to produce sufficient boost pressure. Turbo lag can affect drivability, responsiveness, and performance of an engine.
• Heat Management: Turbochargers generate a lot of heat during operation due to high exhaust gas temperature, high compression ratio, high rotational speed, and friction losses. Excessive heat can damage or degrade the components of the turbocharger, such as bearings, seals, shafts, wheels, housings, etc. It can also affect other parts of the engine and vehicle, such as oil, coolant, intercooler, etc. Therefore, proper cooling and lubrication systems are required to maintain the optimal temperature and reliability of the turbocharger.
• Complexity and Cost: Turbochargers add complexity and cost to the engine and vehicle systems. They require additional components and sensors, such as wastegate, intercooler, boost controller, etc. They also require more sophisticated control and calibration strategies, such as boost pressure regulation, air-fuel ratio adjustment, ignition timing correction, etc. They also increase the maintenance and repair requirements and expenses of the engine and vehicle.

Future Trends of Turbochargers

Turbochargers are expected to play a vital role in the future of automotive industry, as they can help meet the increasing demands for higher performance, lower fuel consumption, and stricter emission standards. Some of the future trends of turbochargers are:

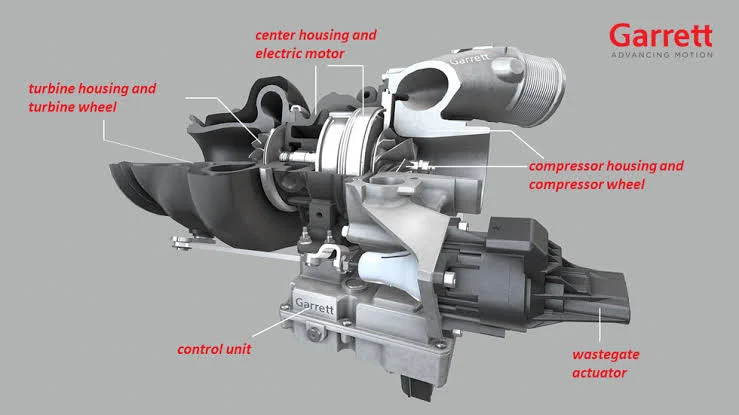

1. Hybridization: Hybridization is the integration of turbochargers with other technologies, such as electric motors, generators, batteries, supercapacitors, etc. Hybridization can enhance the performance and efficiency of turbochargers by providing additional power sources or sinks, reducing or eliminating turbo lag, recovering or storing excess energy, etc. Examples of hybridized turbochargers are E-Turbos, Turbo-Compounding Systems, Electrically Assisted Turbochargers (EAT), etc.
2. Digitalization: Digitalization is the application of digital technologies, such as sensors, actuators, controllers, software, algorithms, etc., to turbochargers. Digitalization can improve the functionality and adaptability of turbochargers by providing real-time monitoring and feedback, intelligent control and optimization, self-learning and self-diagnosis, etc. Examples of digitalized turbochargers are Variable Geometry Turbos (VGT), Variable Twin Scroll Turbos (VTST), Active Wastegate Control (AWC), etc.
3. Customization: Customization is the tailoring of turbochargers to specific applications and customers. Customization can increase the satisfaction and competitiveness of turbochargers by providing customized solutions for different engine types, sizes, configurations, operating conditions, performance requirements, emission regulations, etc. Examples of customized turbochargers are Twin-Turbos, Twin-Scroll Turbos (TST), Ball Bearing Turbos (BBT), Oil-Free Turbos (OFT), etc.
