How to Troubleshoot and Repair Common Powertrain DTC Codes in Your Vehicle

DTC codes, or diagnostic trouble codes, are codes that are generated by your vehicle’s computer system when it detects a malfunction or problem with a component or system. These codes can help you identify the source of the issue and fix it accordingly.

However, not all DTC codes are easy to understand or troubleshoot, so here is a guide to the most common DTC codes and how to repair them:

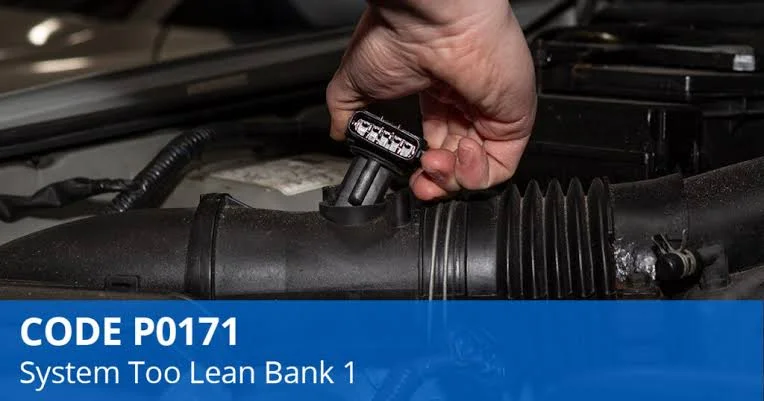

P0171 - System too lean:

This code means that the air-fuel ratio in your engine is too low, meaning that there is too much air and not enough fuel.

This can cause poor engine performance, reduced fuel economy, and increased emissions. To fix this code, you need to check the air intake system for any leaks or blockages, the mass air flow sensor for any dirt or damage, and the fuel system for any clogs or leaks. You may also need to replace the fuel filter, fuel pump, or fuel injectors if they are faulty.

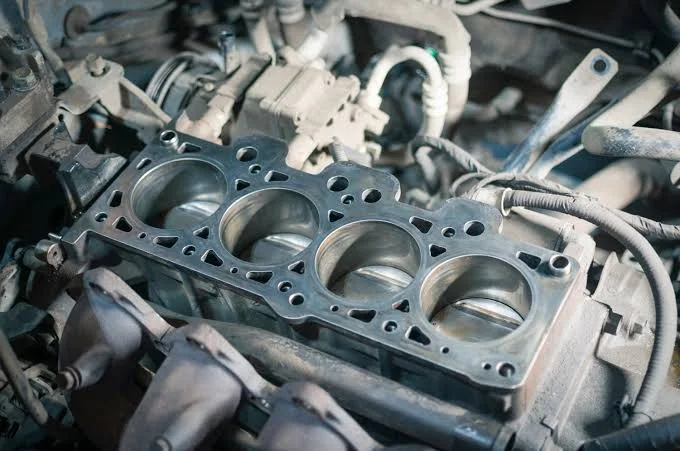

P0300 - Random Misfire:

This code means that one or more cylinders in your engine are misfiring, meaning that they are not firing properly. This can cause rough idle, loss of power, poor fuel economy, and increased emissions. To fix this code, you need to check the spark plugs, spark plug wires, and ignition coils for any wear or damage. You may also need to replace the distributor cap, rotor, or ignition module if they are faulty.

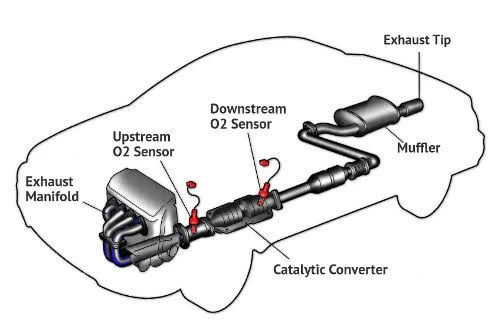

P0420 - Catalyst System Efficiency Below Threshold:

This code means that the catalytic converter in your exhaust system is not working properly and is not reducing harmful emissions effectively. This can cause reduced engine performance, increased fuel consumption, and failed emission tests.

To fix this code, you need to check the oxygen sensors for any dirt or damage, the exhaust system for any leaks or cracks, and the catalytic converter for any damage or clogging. You may also need to replace the oxygen sensors or the catalytic converter if they are faulty.

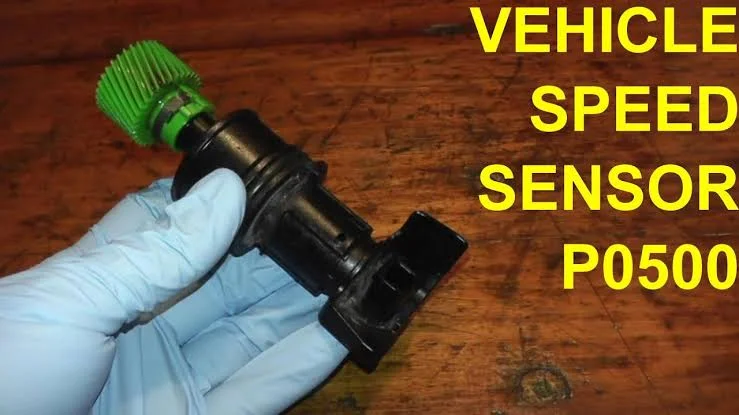

P0500 - Vehicle Speed Sensor Circuit:

This code means that there is a problem with the vehicle speed sensor circuit, which measures how fast your vehicle is moving.

This can affect your speedometer accuracy, cruise control function, transmission shifting, and anti-lock braking system. To fix this code, you need to check the wiring and connections of the vehicle speed sensor, and the sensor itself for any damage or corrosion. You may also need to replace the vehicle speed sensor if it is faulty.

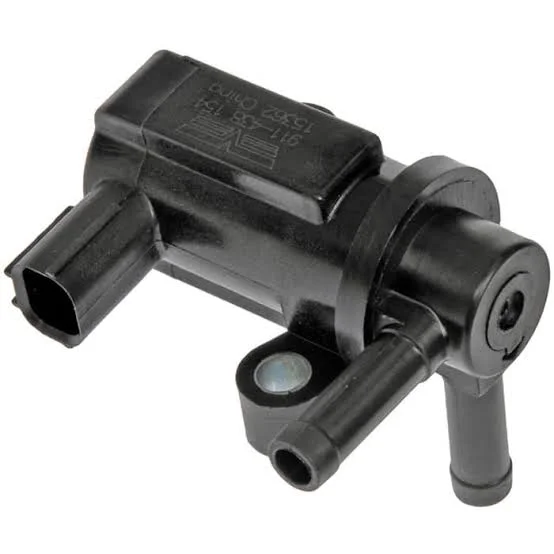

P0455 - Evaporative Emission Control System Leak Detected (Large Leak):

This code means that there is a large leak in the evaporative emission control system, which prevents fuel vapors from escaping into the atmosphere. This can cause reduced fuel economy, increased emissions, and a gas smell in your vehicle.

To fix this code, you need to check the gas cap for any damage or looseness, and the fuel system for any leaks or cracks. You may also need to replace the gas cap, fuel tank, fuel lines, or purge valve if they are faulty.

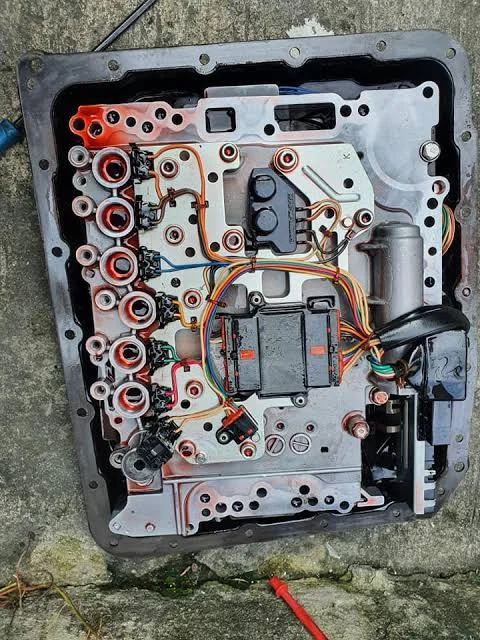

P0700 - Transmission Control System Malfunction:

This code means that there is a problem with the transmission control system, which controls how your transmission shifts gears. This can cause erratic shifting, slipping gears, delayed acceleration, and transmission overheating.

To fix this code, you need to check the wiring and connections of the transmission control system, and the transmission fluid level and condition. You may also need to replace the transmission control module (TCM), transmission fluid filter (TFF), or transmission solenoids if they are faulty.

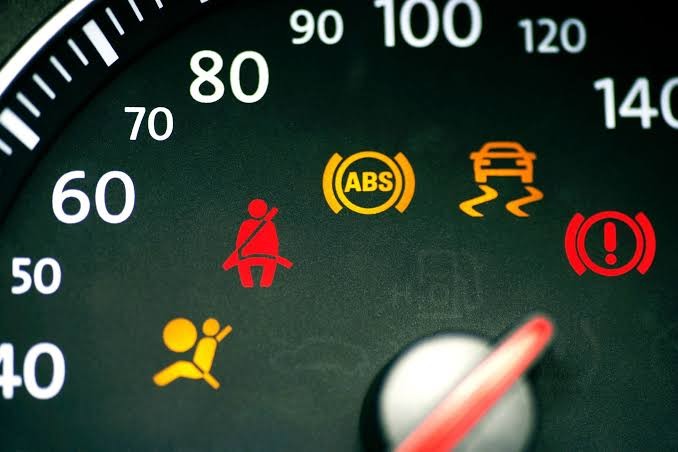

In summary, these are some of the most common DTC codes that can occur in vehicles, and how to troubleshoot and repair them. However, these codes are not always easy to diagnose or fix by yourself, so it’s always best to consult a professional mechanic if you’re unsure about the cause of a DTC code or how to fix it properly. If you see a check engine light on your dashboard (MIL), don’t ignore it and have your vehicle inspected by a professional mechanic as soon as possible.
