B0028, B0029, and B0030: Right Front or Passenger Side Deployment Loop

B0028, B0029, and B0030 are codes that refer to the right front/passenger side deployment loop, which is the circuit that connects the airbag control module to the airbag sensor and inflator. The deployment loop is responsible for detecting a crash and activating the airbag.

The airbag system is one of the most important safety features in your vehicle. It can protect you and your passengers from serious injuries in the event of a collision. However, the airbag system can also malfunction due to various reasons, such as wiring problems, sensor issues, or module faults. When this happens, you may see an airbag warning light on your dashboard or a message on your infotainment system. This means that there is a problem with the airbag system that needs to be fixed as soon as possible.

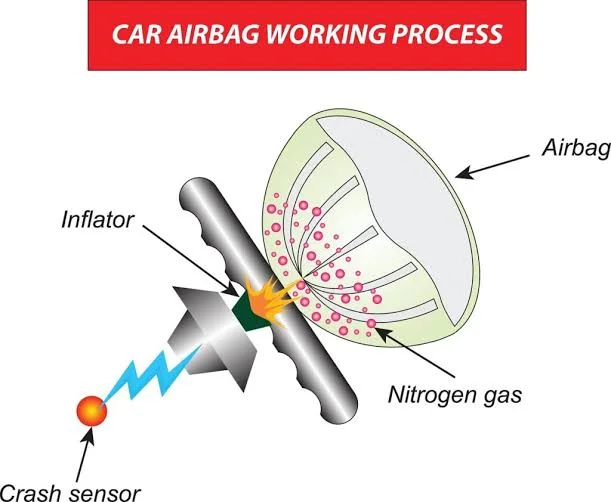

One of the possible problems that can affect the airbag system is the DTC codes B0028, B0029, and B0030. DTC stands for Diagnostic Trouble Code, which is a code that indicates the type and location of the problem. B0028, B0029, and B0030 are codes that refer to the right front/passenger side deployment loop, which is the circuit that connects the airbag control module to the airbag sensor and inflator. The deployment loop is responsible for detecting a crash and activating the airbag.

• B0028 - Right Front/Passenger Side Deployment Loop Resistance Low: means that the deployment loop resistance is low, which means that there is a potential short in the voltage, within the loop.
• B0029 - Right Front/Passenger Side Deployment Loop Open: means that the deployment loop is open, which means that there is a break or a high resistance in the circuit.
• B0030 - Right Front/Passenger Side Deployment Loop Short to Ground/Voltage Out of Range: means that the deployment loop is short to ground or voltage out of range, which means that there is a short circuit or a voltage spike in the circuit. All of these conditions can cause the airbag system to malfunction and not deploy properly.

In this article, we will explain the causes, symptoms, diagnosis, repair, and prevention of these DTC codes. We will also provide some tips on how to troubleshoot these codes.

Causes

The primary reasons that these DTC codes can occur are due to:

• A faulty or damaged wiring harness
• A faulty or damaged sensor
• A short circuit to ground or voltage
• A problem with the airbag control module

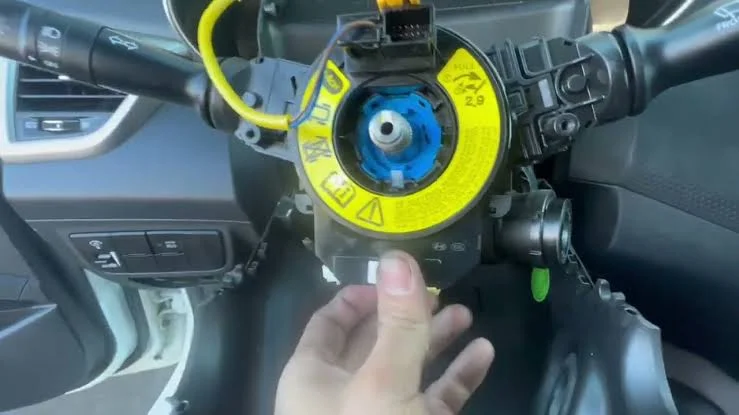

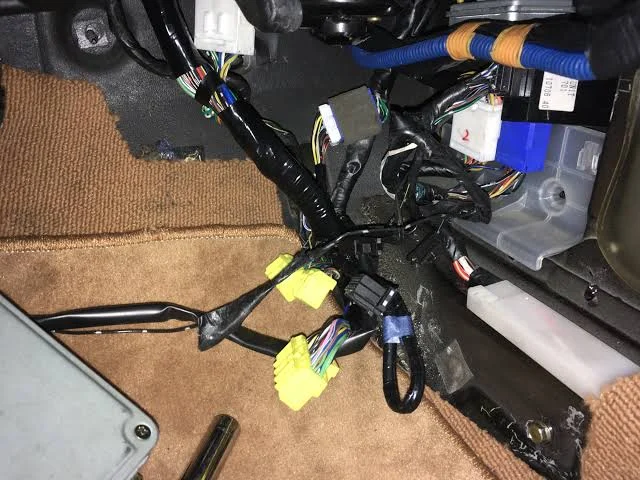

The wiring harness is the set of wires that connects the different components of the airbag system. The wiring harness can be damaged by physical wear and tear, corrosion, water exposure, or heat. The sensor is the device that detects the impact force and sends a signal to the airbag control module. The sensor can be damaged by physical impact, corrosion, water exposure, or heat. The short circuit to ground or voltage can occur when the wires touch each other or another metal part, creating an unwanted electrical connection. The short circuit can cause a surge of current or voltage that can damage the components of the airbag system. The airbag control module is the computer that controls the operation of the airbag system. The airbag control module can be damaged by physical impact, corrosion, water exposure, heat, or software glitches.

Symptoms

The symptoms of these DTC codes can vary depending on the severity of the problem. However, some common symptoms include:

• An airbag warning light on the dashboard
• A message on the infotainment system about a problem with the airbag system
• The airbag system may not deploy in the event of a crash

These symptoms indicate that there is a problem with the right front/passenger side deployment loop and that you need to have your vehicle diagnosed by a qualified automotive technician.

Diagnosis

To diagnose these DTC codes, you need to have your vehicle diagnosed by a qualified automotive technician who has the proper tools and equipment. The technician will use a diagnostic scan tool to retrieve the error codes and then inspect the wiring harness, sensors, and airbag control module for any problems. They will also test the resistance and voltage of the circuit to determine the exact cause of the problem.

Diagnosis Guide

To diagnose these DTC codes, the technician will follow these steps:

• Connect a diagnostic scan tool to your vehicle’s OBD-II port and turn on your ignition switch.
• Retrieve any stored error codes from your vehicle’s memory using your scan tool.
• Check if there are any other related codes such as B0017 (Right Front/Passenger Frontal Deployment Loop Resistance Low), B0018 (Right Front/Passenger Frontal Deployment Loop Open), or B0019 (Right Front/Passenger Frontal Deployment Loop Short to Ground/Voltage Out of Range). These codes indicate similar problems with different parts of the deployment loop.
• Clear all error codes from your vehicle’s memory using your scan tool.
• Turn off your ignition switch and disconnect your scan tool from your vehicle’s OBD-II port.
• Inspect the wiring harness for any damaged or corroded wires. You may need to remove some panels or covers to access the wiring harness. You may also use a multimeter to test the resistance of the wires.
• Inspect the sensors for any signs of damage or corrosion. You may need to remove some panels or covers to access the sensors. You may also use a multimeter to test the voltage and resistance of the sensors.
• Inspect the airbag control module for any signs of damage or corrosion. You may need to remove some panels or covers to access the airbag control module. You may also use a diagnostic scan tool to test the functionality of the airbag control module.
• Identify and repair or replace any faulty components as needed.
• Reconnect your scan tool to your vehicle’s OBD-II port and turn on your ignition switch.
• Check if the error codes are gone by using your scan tool.
• Clear any remaining error codes from your vehicle’s memory using your scan tool.
• Turn off your ignition switch and disconnect your scan tool from your vehicle’s OBD-II port.
• Road test your vehicle and confirm that the repair is complete.

Repair

To repair these DTC codes, you need to have your vehicle repaired by a qualified automotive technician who has the proper tools and equipment. The technician will follow the diagnosis guide above and identify and repair or replace any faulty components as needed.

Repair Guide

To repair these DTC codes, the technician will follow these steps:

• Replace any damaged or corroded wires in the wiring harness with new ones of the same gauge and length. You may need to use a soldering iron, wire strippers, wire cutters, heat shrink tubing, electrical tape, and wire connectors to complete this task.
• Replace any damaged or corroded sensors with new ones of the same type and specification. You may need to use a wrench, a screwdriver, and a socket set to complete this task.
• Replace any damaged or corroded airbag control module with a new one of the same type and specification. You may need to use a wrench, a screwdriver, and a socket set to complete this task.
• Reconnect all components and secure them in place with clips, bolts, nuts, screws, or brackets as needed.
• Reinstall any panels or covers that you removed to access the components.
• Follow the diagnosis guide above to check if the error codes are gone and clear any remaining error codes from your vehicle’s memory.

Prevention

To prevent these DTC codes from happening again, you should have your vehicle’s airbag system inspected regularly by a qualified automotive technician. You should also avoid driving through deep water or puddles, as this can damage the wiring harness or sensors. You should also avoid any modifications or alterations to the airbag system, as this can affect its performance and safety.

Conclusion

DTC codes B0028, B0029, and B0030 are serious error codes that can indicate a problem with your airbag system. If you are experiencing any of the symptoms listed above, you should have your vehicle diagnosed and repaired by a qualified automotive technician as soon as possible. This will ensure your safety and avoid further damage to your vehicle.
