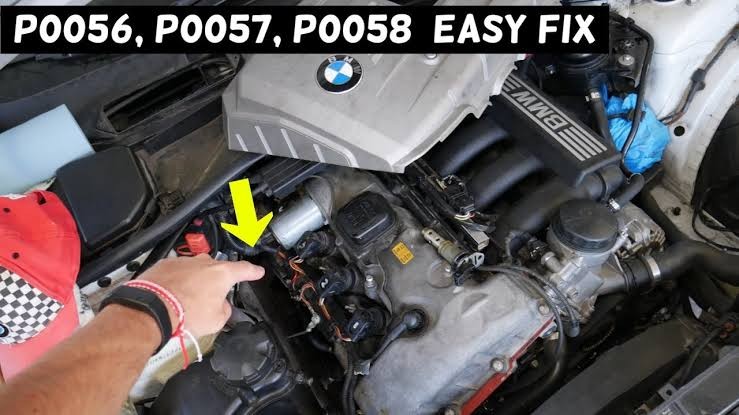

P0056, P0057, and P0058: HO2S Heater Control Circuit (Bank 2 Sensor 2)

DTC codes P0056, P0057, and P0058 are common codes that indicate a problem with the heater control circuit of the HO2S in bank 2 sensor 2. They can cause various symptoms such as a check engine light, poor fuel economy, increased emissions, and reduced engine performance.

If you own a car, you may have encountered the dreaded check engine light at some point. This light indicates that there is a problem with your vehicle’s emission system, and it can be triggered by various diagnostic trouble codes (DTCs).

In this article, we will explain what DTC codes P0056, P0057, and P0058 mean, what causes them, what symptoms they produce, how to diagnose them, how to repair them, and how to prevent them from happening again.

What are DTC codes P0056, P0057, and P0058?

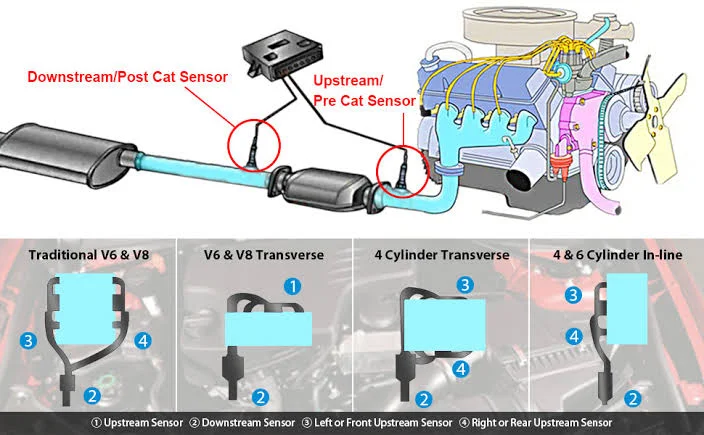

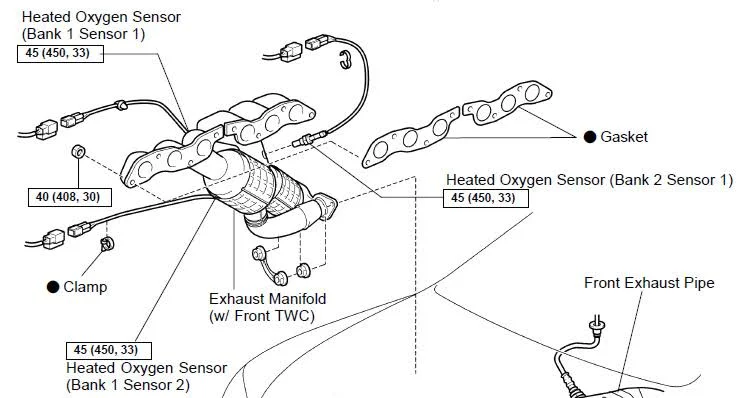

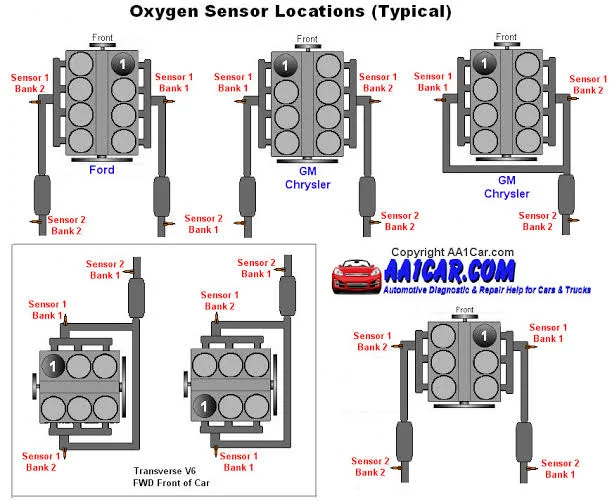

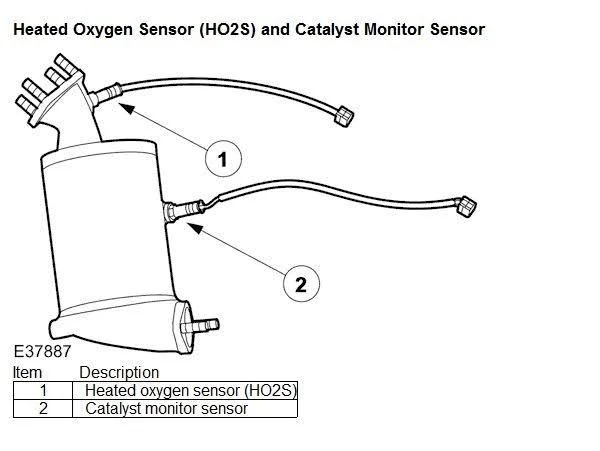

DTC codes P0056, P0057, and P0058 are related to the heater control circuit of the heated oxygen sensor (HO2S) located in bank 2 sensor 2. The HO2S is a device that measures the oxygen content in the exhaust gas and sends a signal to the powertrain control module (PCM) to adjust the air-fuel ratio accordingly. The HO2S has a heating element that helps it reach its optimal operating temperature faster and maintain it during cold conditions.

The heater control circuit consists of a fuse, a relay, a wiring harness, and the PCM. The PCM monitors the voltage and resistance of the heater circuit and compares it to a predetermined range. If the PCM detects a voltage or resistance that is out of range, it will set one of these codes and illuminate the check engine light.

The difference between these codes is as follows:

• P0056: HO2S Heater Control Circuit (Bank 2 Sensor 2). This code means that the PCM has detected an open or incomplete circuit in the heater control circuit. This means that there is no current flowing through the heater element or that there is a break in the wiring.
• P0057: HO2S Heater Control Circuit Low (Bank 2 Sensor 2). This code means that the PCM has detected a low voltage or high resistance in the heater control circuit. This means that there is not enough current flowing through the heater element or that there is a short to ground in the wiring.
• P0058: HO2S Heater Control Circuit High (Bank 2 Sensor 2). This code means that the PCM has detected a high voltage or low resistance in the heater control circuit. This means that there is too much current flowing through the heater element or that there is a short to power in the wiring.

What are the causes of DTC codes P0056, P0057, and P0058?

There are several possible causes of these codes, such as:

• A faulty HO2S or its connector. The HO2S may be damaged by heat, contamination, or wear and tear. The connector may be loose, corroded, or broken.
• A damaged or corroded wiring harness or its connector. The wiring harness may be exposed to moisture, heat, or abrasion. The connector may be loose, corroded, or broken.
• A blown fuse or a faulty relay in the heater control circuit. The fuse may be blown by a short circuit or an overload. The relay may be stuck open or closed by dirt, corrosion, or wear and tear.
• A bad PCM or its software. The PCM may be damaged by water, heat, or electrical surges. The software may be corrupted by bugs, viruses, or hackers.

What are the symptoms of DTC codes P0056, P0057, and P0058?

Some of the common symptoms of these codes are:

• A check engine light on the dashboard. This is the most obvious symptom of these codes. The check engine light will alert you that there is a problem with your emission system and that you need to scan your vehicle for codes.
• Poor fuel economy and increased emissions. These codes indicate that your HO2S is not working properly and that your air-fuel ratio is not optimal. This will result in more fuel consumption and more harmful gases being released into the atmosphere.
• Reduced engine performance and drivability. These codes may also affect your engine’s performance and drivability. You may experience rough idling, hesitation, stalling, misfiring, loss of power, or hard starting.
• A failed emission test. These codes will cause your vehicle to fail an emission test because your emission system is not functioning properly and your vehicle is emitting more pollutants than allowed by law.

How to diagnose DTC codes P0056, P0057, and P0058?

To diagnose these codes, you will need some tools such as an OBD scanner, a multimeter, and a wiring diagram. Here are some steps you can follow:

1. Connect the OBD scanner to the diagnostic port of your vehicle and retrieve the code(s) and freeze frame data. The freeze frame data will show you the conditions of your vehicle when the code was set, such as the engine speed, coolant temperature, and throttle position. This will help you narrow down the possible causes of the code.
2. Inspect the HO2S and its connector for any signs of damage or corrosion. If necessary, replace the sensor or repair the connector.
3. Inspect the wiring harness and its connector for any signs of damage or corrosion. If necessary, repair or replace the wiring harness or connector.
4. Check the fuse and relay for the heater control circuit. If they are blown or faulty, replace them with new ones.
5. Disconnect the HO2S connector and measure the resistance of the heater element with a multimeter. The resistance should be within the specification given by the manufacturer. If not, replace the sensor.
6. Measure the voltage of the heater control circuit with a multimeter. The voltage should be battery voltage when the ignition is on and zero when it is off. If not, check for any short circuits or open circuits in the wiring harness or PCM.
7. Clear the code(s) with the OBD scanner and perform a drive cycle to see if they come back. If they do, you may have a bad PCM or its software.

How to repair DTC codes P0056, P0057, and P0058?

To repair these codes, you will need to replace or repair the faulty component that caused them. Depending on the cause, this may involve:

• Replacing the HO2S or its connector
• Repairing or replacing the wiring harness or its connector
• Replacing the fuse or relay for the heater control circuit
• Replacing the PCM or updating its software

How to prevent DTC codes P0056, P0057, and P0058 from happening again?

To prevent these codes from happening again, you should:

• Maintain the battery condition and avoid low or high voltage situations
• Inspect the wiring harness and connectors regularly and protect them from moisture and corrosion
• Replace the HO2S sensors when they are due for replacement or show signs of deterioration
• Keep the emission system in good working order and perform regular tune-ups

Conclusion

DTC codes P0056, P0057, and P0058 are common codes that indicate a problem with the heater control circuit of the HO2S in bank 2 sensor 2. They can cause various symptoms such as a check engine light, poor fuel economy, increased emissions, and reduced engine performance. To diagnose and repair these codes, you will need some tools such as an OBD scanner, a multimeter, and a wiring diagram. You will also need to replace or repair the faulty component that caused them, such as the HO2S, the wiring harness, the fuse, the relay, or the PCM. To prevent these codes from happening again, you should maintain the battery condition, inspect the wiring harness and connectors regularly, replace the HO2S sensors when needed, and keep the emission system in good working order.
