Accelerator Pedal Sensors: Everything You Need to Know

The accelerator pedal sensor (APS) is a vital component of modern vehicles that controls the engine performance and speed. It is also known as the throttle position sensor (TPS) or the pedal value transmitter.

In this article, we will explain what an accelerator pedal sensor is, how it works, what are the different types of accelerator pedal sensors, how to diagnose and repair accelerator pedal sensor problems, and why it is important for vehicle safety and performance.

What is an Accelerator Pedal Sensor?

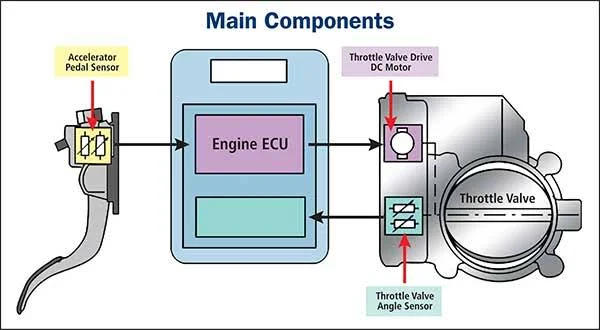

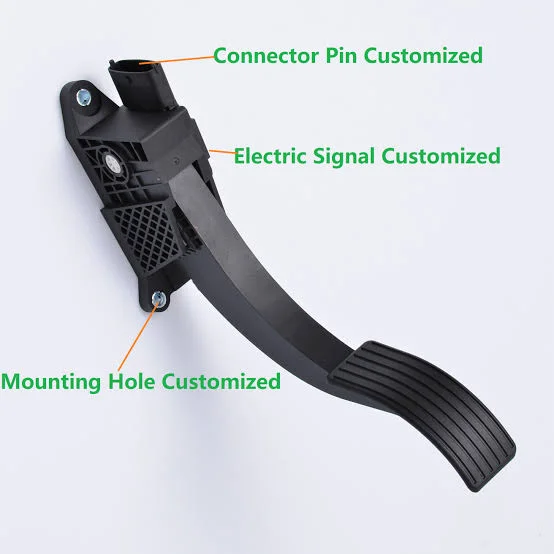

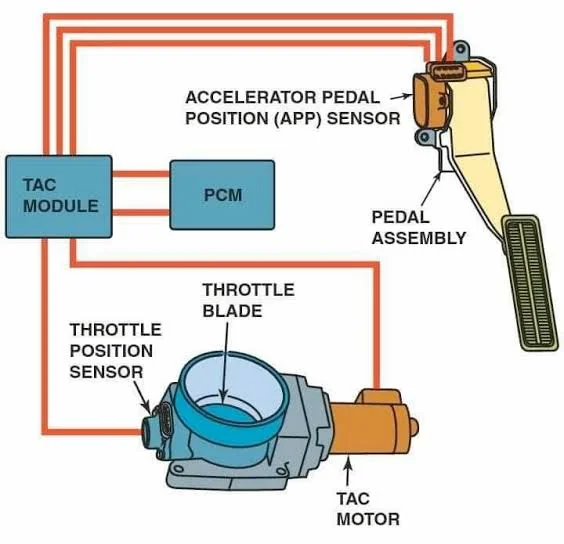

An accelerator pedal sensor is a device that measures the position of the accelerator pedal in a vehicle and sends that information to the engine control unit (ECU). The ECU uses this data to determine how much air and fuel to mix and send to the engine, which affects the vehicle speed and acceleration. The accelerator pedal sensor is part of the drive-by-wire system, which replaces the mechanical linkage between the accelerator pedal and the throttle body with electronic signals.

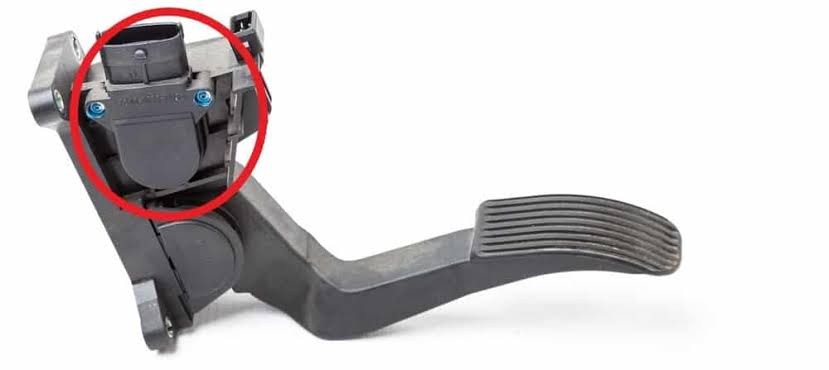

The accelerator pedal sensor is usually mounted on the accelerator pedal or sometimes on the throttle body. It consists of a stator, which includes an excitation coil, receiver coils, and an electronic evaluation unit, and a rotor, which is formed of one or more closed conductive loops. The stator and the rotor are separated by an air gap.

How Does an Accelerator Pedal Sensor Work?

The working principle of an accelerator pedal sensor is based on induction. When an alternating voltage is applied to the excitation coil in the stator, it generates a magnetic field that induces voltages in the receiver coils.

The rotor also has a current induced in its conductive loops by the magnetic field, which in turn affects the magnetic field of the receiver coils. Depending on the position of the rotor relative to the stator, different voltage amplitudes are produced in the receiver coils. These voltages are processed by the electronic evaluation unit and converted into a digital signal that represents the accelerator pedal position.

What are the Different Types of Accelerator Pedal Sensors?

There are two main types of accelerator pedal sensors: contact and contactless.

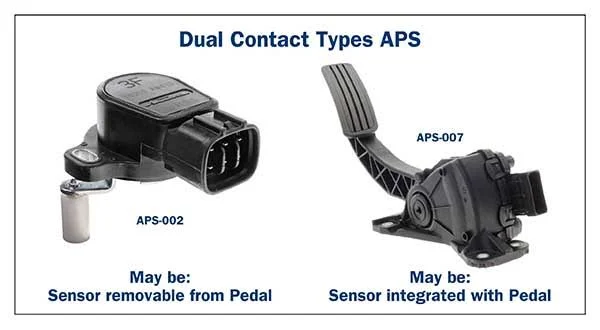

Contact sensors use potentiometers or resistors to measure the resistance change caused by the movement of a wiper arm along a resistor track. Contactless sensors use Hall effect sensors or magneto-resistive sensors to measure the magnetic field change caused by the movement of a magnet attached to the pedal. Contact sensors are more prone to wear and tear, while contactless sensors are more durable and accurate.

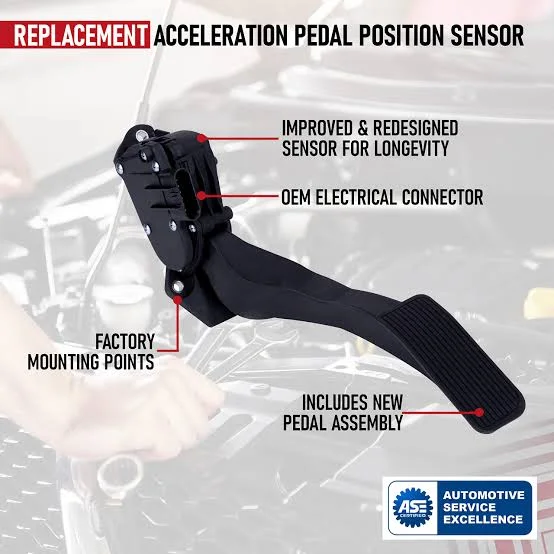

Symptoms of a Faulty Accelerator Pedal Sensor

A faulty accelerator pedal sensor can cause various problems for your vehicle, such as:

1. Poor acceleration or hesitation
2. Reduced fuel efficiency or increased emissions
3. Engine stalling or surging
4. Check engine light or limp mode activation
5. Difficulty starting or idling

If you notice any of these symptoms, you should have your vehicle checked by a professional mechanic as soon as possible.

How to Diagnose and Repair Accelerator Pedal Sensor Problems

To diagnose an accelerator pedal sensor problem, you will need a diagnostic scan tool that can read the trouble codes stored in your vehicle’s ECU. You can also use a multimeter to test the voltage output of the sensor at different pedal positions. If you find any abnormal readings or codes related to the APS, you will need to replace it with a new one.

To replace an accelerator pedal sensor, you will need to follow these steps:

• Disconnect the negative battery cable
• Locate and unplug the electrical connector from the APS
• Remove the mounting bolts or screws that secure the APS to the pedal or throttle body
• Remove the old APS and install the new one in reverse order
• Reconnect the electrical connector and battery cable
• Clear any trouble codes with your scan tool

The Importance of Accelerator Pedal Sensors for Vehicle Safety and Performance

The accelerator pedal sensor is essential for ensuring that your vehicle responds smoothly and accurately to your driving inputs. It also helps to optimize your fuel consumption and emission levels by adjusting the air-fuel ratio according to your driving conditions. A malfunctioning APS can compromise your vehicle’s safety and performance, as well as damage your engine components over time. Therefore, it is important to maintain your APS in good condition and replace it when necessary.

Frequently Asked Questions

How much does it cost to replace an accelerator pedal sensor?

The cost of replacing an accelerator pedal sensor depends on the make and model of your vehicle, the type of sensor, and the labor charges of your mechanic. On average, you can expect to pay between $100 and $300 for the part and between $50 and $150 for the labor.

How often should I replace my accelerator pedal sensor?

There is no specific interval for replacing your accelerator pedal sensor, as it depends on the quality and condition of the sensor and your driving habits. However, you should replace it as soon as you notice any signs of malfunction or failure, such as poor acceleration, reduced fuel efficiency, or check engine light.

Can I drive with a bad accelerator pedal sensor?

Driving with a bad accelerator pedal sensor is not recommended, as it can affect your vehicle’s performance and safety. You may experience erratic acceleration, stalling, surging, or limp mode, which can put you and other road users at risk. You should have your vehicle inspected and repaired by a professional mechanic as soon as possible.

How can I test my accelerator pedal sensor?

You can test your accelerator pedal sensor using a diagnostic scan tool that can read the trouble codes stored in your vehicle’s ECU. You can also use a multimeter to test the voltage output of the sensor at different pedal positions. If you find any abnormal readings or codes related to the APS, you will need to replace it with a new one.

What is the difference between an accelerator pedal sensor and a throttle position sensor?

An accelerator pedal sensor and a throttle position sensor are both devices that measure the position of the accelerator pedal and send that information to the ECU. However, they are located in different places. The APS is mounted on the accelerator pedal or sometimes on the throttle body, while the TPS is mounted on the throttle body or sometimes on the intake manifold. The APS is part of the drive-by-wire system, while the TPS is part of the mechanical linkage system.

What are some common causes of accelerator pedal sensor problems?

Some common causes of accelerator pedal sensor problems include:

• Dirt, dust, or moisture accumulation on the sensor or its connector
• Worn or damaged wiring or terminals
• Loose or corroded electrical connections
• Faulty ECU or software
• Physical damage or wear and tear on the sensor or its components
