B0022, B0024, and B0026: Left Front or Driver Frontal Deployment Loop (Single Stage or Stage 1)

B0022, B0024, and B0026 are diagnostic trouble codes (DTCs) that indicate a problem with the left front or driver frontal deployment loop. The deployment loop is the electrical circuit that connects the airbag module to the sensing and diagnostic module (SDM).

The SDM monitors the deployment loop for proper continuity and resistance, and triggers the airbag deployment in case of a frontal crash.

The deployment loop consists of the following components:

• A dual-stage inflatable restraint steering wheel module

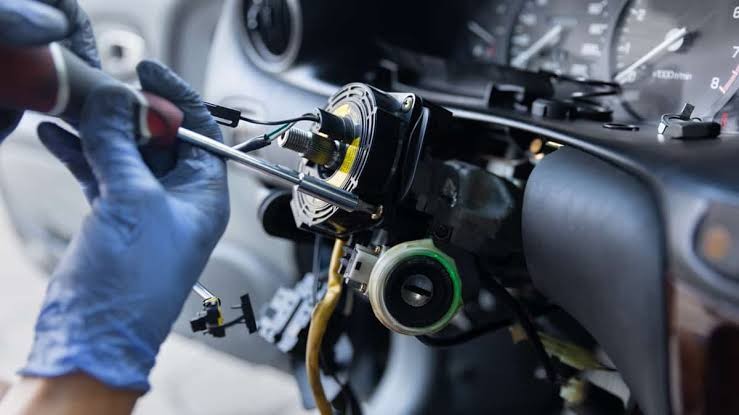

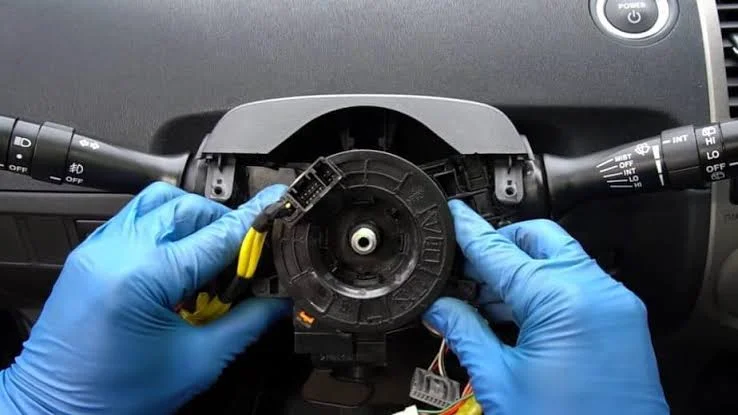

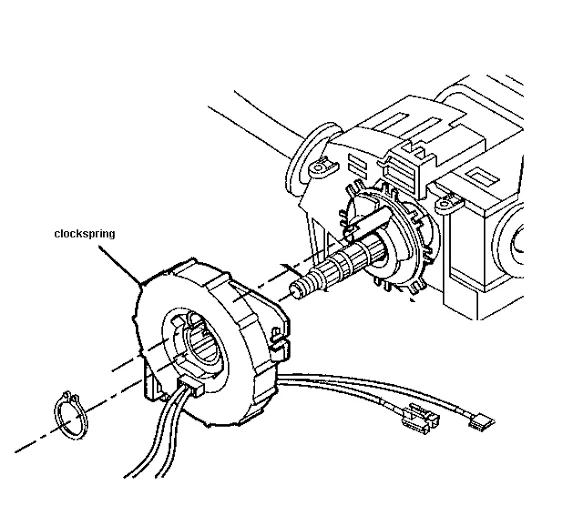

• The inflatable restraint steering wheel module coil
• The steering wheel module high circuits for both stages 1 and 2
• The steering wheel module low circuits for both stages 1 and 2

There are two shorting bars used within the steering wheel module coil connector. These shorting bars short together both stages of the steering wheel module high circuit and the steering wheel module low circuit when the connector is disconnected. This helps prevent unwanted deployment of the inflator module during servicing.

The codes B0022, B0024, and B0026 are related to the stage 1 of the deployment loop, which is the first stage of airbag inflation. The codes have different meanings depending on the type of malfunction detected by the SDM:

• B0022: Left Front/Driver Frontal Deployment Loop (Single Stage or Stage 1) Resistance Low
• B0024: Left Front/Driver Frontal Deployment Loop (Single Stage or Stage 1) Short to Ground/Voltage Out of Range
• B0026: Left Front/Driver Frontal Deployment Loop (Single Stage or Stage 1) Open

Possible Causes

There are many possible causes for these codes, but some of the most common ones are:

• A faulty steering wheel module coil
• A damaged or broken wire in the left front deployment loop
• A loose or corroded connector in the left front deployment loop
• A blown fuse or a bad relay in the left front deployment loop
• A faulty SDM

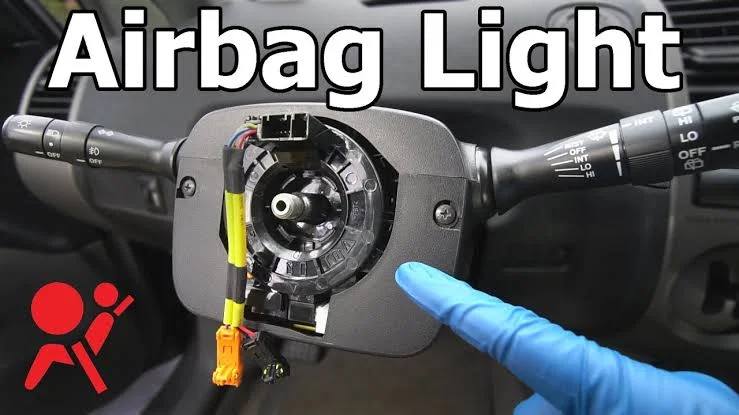

What symptoms may B0022, B0024, and B0026 codes produce?

Depending on the severity of the problem, these codes may cause one or more of the following symptoms:

• The airbag warning light may illuminate on the dashboard
• A secondary code may be present along with these codes, specifying which module is failing to communicate
• The airbag system may be disabled or malfunctioning
• The vehicle may not start or may shut down unexpectedly while driving

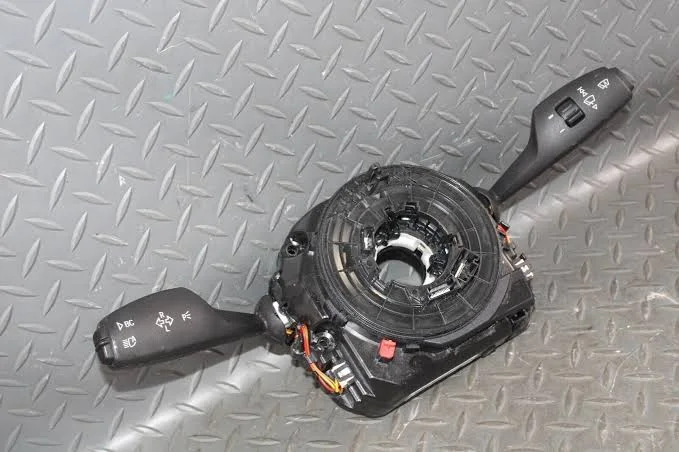

How to troubleshoot and fix B0022, B0024, and B0026 codes?

To diagnose and fix these codes, you will need some basic tools and equipment, such as:

1. A scan tool that can read and clear DTCs
2. A digital multimeter that can measure voltage and resistance
3. A visual inspection mirror and a flashlight that can help you inspect hard-to-reach areas
4. The following steps will guide you through a basic troubleshooting procedure for these codes:
5. Scan the vehicle with your scan tool and retrieve any stored DTCs. Note down any other codes that may be related to these codes, such as B0013 (Driver Frontal Deployment Loop Stage 2 Resistance Low), B0014 (Driver Frontal Deployment Loop Stage 2 Voltage Out of Range), or B0016 (Driver Frontal Deployment Loop Stage 2 Open). Clear all codes and test-drive the vehicle to see if these codes return.

6. If these codes return, inspect the left front deployment loop visually. Look for any signs of physical damage, such as cracks, breaks, or corrosion. Check the mounting bolts and make sure they are tight and secure. Check the wiring harness and connectors for any signs of damage, such as cuts, abrasions, burns, or corrosion. Repair or replace any damaged components as needed.
7. If the visual inspection does not reveal any obvious problems, test the left front deployment loop electrically. Disconnect the steering wheel module coil connector and measure the resistance across the two terminals with your multimeter. Compare your reading with the specifications from your vehicle’s service manual. If the resistance is out of range, replace the steering wheel module coil.
8. If the resistance is within range, reconnect the steering wheel module coil connector and measure the voltage across the two terminals with your multimeter. Spin the left front wheel by hand and observe your reading. You should see an alternating current (AC) voltage that varies with the wheel speed. If you do not see any voltage or a constant voltage, replace the steering wheel module coil.
9. If you see a normal voltage from the steering wheel module coil, test the wiring and connectors in the left front deployment loop. Disconnect both ends of each wire in the circuit and measure the resistance with your multimeter. Compare your readings with the specifications from your vehicle’s service manual. If any wire shows an open circuit (infinite resistance) or a short circuit (zero resistance), repair or replace it.
10. If all wires show normal resistance, test each connector in the circuit for continuity and corrosion. Clean any corroded terminals with electrical contact cleaner and a wire brush. Replace any damaged connectors as needed.
11. If the wiring and connectors are good, test the fuse and the relay in the left front deployment loop. Locate the fuse and the relay in the fuse box and check their condition. Replace any blown fuse or bad relay as needed.
12. If the fuse and the relay are good, test the SDM for proper operation. Connect your scan tool to the vehicle and access the live data from the SDM. Monitor the left front deployment loop signal and compare it with the other deployment loops. If the signal is erratic, missing, or incorrect, replace the SDM.

Conclusion

B0022, B0024, and B0026 are common DTCs that indicate a problem with the left front or driver frontal deployment loop. They can cause various symptoms, such as airbag warning light, disabled airbag system, or vehicle no start. To diagnose and fix these codes, you will need to follow a systematic troubleshooting procedure that involves visual inspection, electrical testing, and component replacement. By following this article, you should be able to diagnose and solve these codes with ease.
