C0040 and C0041: Right Front Wheel Speed Circuit Malfunction

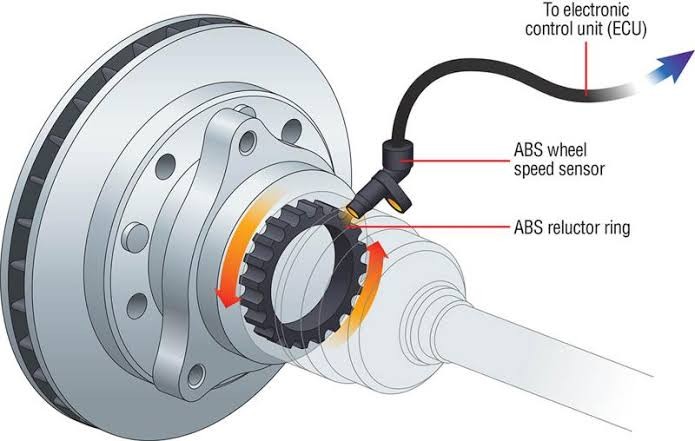

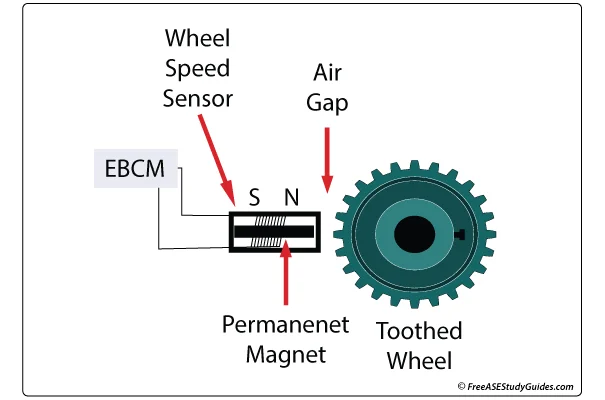

DTC codes C0040 and C0041 are related to the right front wheel speed sensor and its circuit. The wheel speed sensor is a device that measures the rotational speed of the wheel and sends a signal to the electronic brake control module (EBCM).

The EBCM uses this information to control the anti-lock braking system (ABS), traction control system (TCS), and electronic stability control (ESC) of the vehicle.

The code C0040 indicates that there is a malfunction in the right front wheel speed circuit, which means that the EBCM is not receiving a proper signal from the sensor. The code C0041 indicates that there is a range or performance problem in the right front wheel speed sensor circuit, which means that the signal from the sensor is out of the expected range or inconsistent.

Some of the common symptoms of DTC codes C0040 and C0041 are:

• The ABS, TCS, or ESC warning light on the dashboard
• The check engine light on the dashboard
• A pulsating or spongy brake pedal
• A loss of anti-lock braking, traction control, or stability control functions
• A reduced braking performance or increased stopping distance
• An inaccurate or erratic speedometer reading

There are several possible causes of DTC codes C0040 and C0041, such as:

• A faulty right front wheel speed sensor
• A damaged or corroded wiring harness or connector
• A loose or broken tone ring or reluctor ring on the wheel hub
• A faulty EBCM or ABS module
• A mismatched tire size or pressure on the right front wheel

C0040 - Right Front Wheel Speed Circuit Malfunction:

DTC Code C0040 signifies a malfunction within the Right Front Wheel Speed Circuit. This circuit plays a vital role in your vehicle's Anti-Lock Braking System (ABS) and Electronic Stability Control (ESC). Let's delve into the multiple factors that could trigger this code.

Possible Causes of C0040:

1. A Faulty Right Front Wheel Speed Sensor: Over time, the Right Front Wheel Speed Sensor, responsible for monitoring wheel speed, can become defective, leading to a circuit malfunction.
2. A Damaged or Corroded Wiring Harness or Connector: Exposure to the elements can result in corrosion or physical damage to the wiring harness or connectors, disrupting the circuit's integrity.

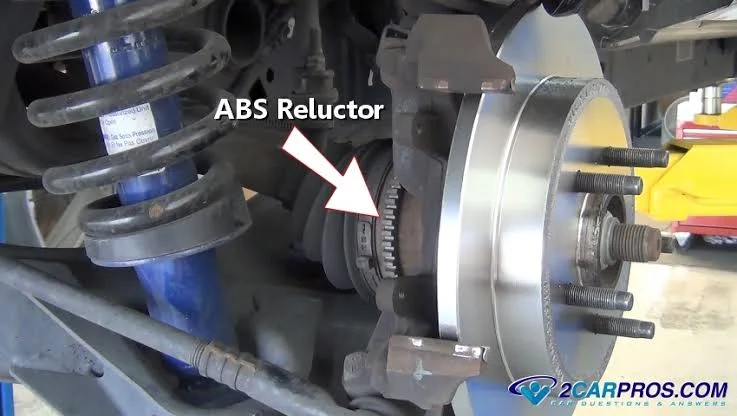

3. A Loose or Broken Tone Ring or Reluctor Ring: These rings, located on the wheel hub, are crucial for providing wheel speed data. Any looseness or damage to the ring can disrupt the circuit.
4. A Faulty EBCM or ABS Module: The Electronic Brake Control Module (EBCM) or the ABS module itself may develop issues that affect the Right Front Wheel Speed Circuit.
5. Mismatched Tire Size or Pressure: Variations in tire size or pressure on the right front wheel can interfere with the accurate functioning of the circuit, triggering DTC code C0040.

Common Symptoms of C0040:

• - Illuminated ABS, TCS, or ESC Warning Light: One of the primary indicators is the illumination of the ABS, TCS, or ESC warning light on your vehicle's dashboard.
• - Check Engine Light Activation: The check engine light may also make an appearance on your dashboard, signaling a problem within the ABS system.
• - Pulsating or Spongy Brake Pedal: You might notice an unusual pulsating or spongy sensation when applying the brakes, indicating potential ABS issues.
• - Loss of Anti-Lock Braking, Traction Control, or Stability Control Functions: These essential safety features may become compromised, impacting your vehicle's handling and stability.
• - Reduced Braking Performance or Increased Stopping Distance: A malfunctioning Right Front Wheel Speed Circuit can result in reduced braking performance, potentially increasing your stopping distance.
• - Inaccurate or Erratic Speedometer Reading: The speedometer may display inaccurate or erratic speed readings, indicating a problem with the wheel speed sensor.

C0041 - Right Front Wheel Speed Sensor Circuit Range/Performance:

DTC Code C0041 focuses on the Right Front Wheel Speed Sensor Circuit's range and performance issues. It often accompanies C0040, making it essential to explore its potential causes and symptoms.

Possible Causes of C0041:

1. Wheel Speed Sensor Out of Range: C0041 can trigger if the Right Front Wheel Speed Sensor readings fall outside the expected range. This may occur due to sensor wear or damage.
2. Sensor Circuit Issues: Problems within the sensor circuit, such as a short or open circuit, can disrupt the sensor's performance, leading to C0041.
3. Sensor Positioning Problems: Incorrect sensor positioning relative to the wheel can result in inconsistent readings, causing C0041.

Common Symptoms of C0041:

• - Illuminated ABS, TCS, or ESC Warning Light: Similar to C0040, one of the key symptoms is the illumination of the ABS, TCS, or ESC warning light on your vehicle's dashboard.
• - Check Engine Light Activation: The check engine light may also make an appearance on your dashboard, signaling an issue with the wheel speed sensor circuit's range or performance.
• - Pulsating or Spongy Brake Pedal: As with C0040, you might notice an unusual pulsating or spongy sensation when applying the brakes, indicating potential ABS issues.
• - Loss of Anti-Lock Braking, Traction Control, or Stability Control Functions: These vital safety functions may become compromised, impacting your vehicle's handling and stability.
• - Inaccurate or Erratic Speedometer Reading: C0041 can result in an inaccurate or erratic speedometer reading, mirroring symptoms seen in C0040.

Troubleshooting Guide for C0040 and C0041:

• Inspect the Sensor: Begin by closely examining the Right Front Wheel Speed Sensor for physical damage, corrosion, or misalignment. If any issues are detected, consider cleaning or replacing the sensor.
• Check Wiring and Connectors: Thoroughly inspect the wiring harness and connectors within the sensor circuit for signs of damage, disconnection, or corrosion. Any faults discovered should be promptly repaired or replaced.
• Verify Tone Ring Integrity: Ensure that the tone ring or reluctor ring on the wheel hub is secure and undamaged. Address any looseness or damage promptly.
• Examine EBCM or ABS Module: If necessary, assess the functionality of the Electronic Brake Control Module (EBCM) or ABS module. If these components are deemed faulty, replacement may be required.
• Tire Maintenance: Double-check tire sizes and pressures, ensuring they match manufacturer specifications.

Conclusion:

DTC error codes C0040 and C0041, both associated with the Right Front Wheel Speed Sensor, provide essential diagnostic clues to maintain your vehicle's safety, stability, and performance. While these codes may seem daunting, prompt inspection, maintenance, and potential repairs are your keys to trouble-free driving. A comprehensive understanding of their diverse causes and symptoms is pivotal to effective troubleshooting and safeguarding your driving experience.
