B0017 and B0018: Right Front or Passenger Frontal Deployment Loop

B0017 and DTC B0018 stand as significant indicators of potential issues within the right front/passenger frontal deployment loop, particularly in Single Stage and Stage 1 airbag systems.

These diagnostic trouble codes can be the result of various underlying causes, affecting your vehicle's safety systems. In this comprehensive guide, we'll explore the causes, symptoms, and troubleshooting steps to shed light on these DTC codes.

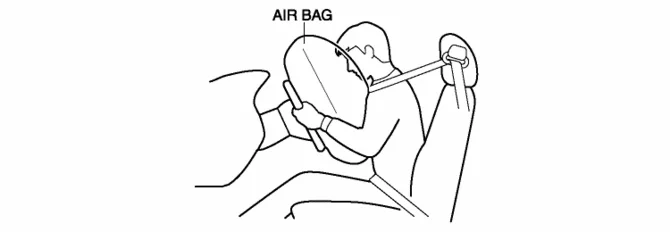

Understanding the Deployment Loop:

The airbag system is one of the most important safety features in your vehicle. It can protect you and your passengers from serious injuries in the event of a collision. However, the airbag system can also malfunction due to various reasons, such as wiring problems, sensor issues, or module faults. When this happens, you may see an airbag warning light on your dashboard or a message on your infotainment system. This means that there is a problem with the airbag system that needs to be fixed as soon as possible.

One of the possible problems that can affect the airbag system is the DTC error codes B0017 and B0018. DTC stands for Diagnostic Trouble Code, which is a code that indicates the type and location of the problem. B0017 and B0018 are codes that refer to the right front/passenger frontal deployment loop, which is the circuit that connects the airbag control module to the airbag sensor and inflator. The deployment loop is responsible for detecting a crash and activating the airbag.

B0017 means that the deployment loop is open, which means that there is a break or a high resistance in the circuit. B0018 means that the deployment loop is short to ground or voltage out of range, which means that there is a short circuit or a voltage spike in the circuit. Both of these conditions can cause the airbag system to malfunction and not deploy properly.

DTC B0017 - Open Circuit:

Causes:

1. - Damaged wiring within the deployment loop
2. - Loose or disconnected connectors in the circuit
3. - Faulty airbag sensor
4. - Malfunctioning airbag module

Symptoms:

• - Illuminated airbag warning light on the dashboard
• - Possibility of the airbag not deploying in an accident
• - Triggering of related DTC codes, if present

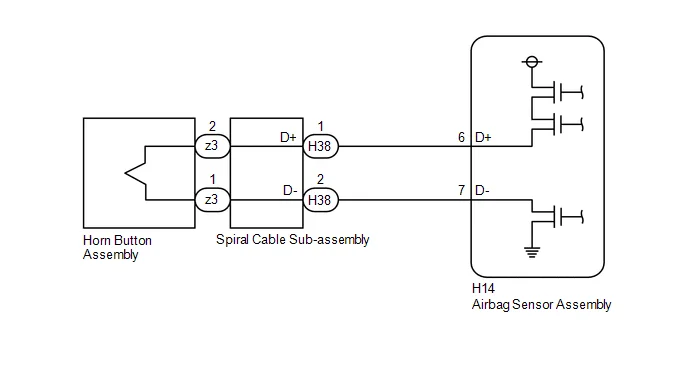

Troubleshooting Guide:

1. Inspect the wiring and connectors within the deployment loop for damage or disconnection.
2. Test the airbag sensor's functionality and check for proper connection.
3. Examine the airbag module for signs of malfunction.
4. If no issues are found, clear the DTC B0017 code, and monitor the system for recurrence.

DTC B0018 - Short to Ground/Voltage Out of Range:

Causes:

• - Short-circuits in the deployment loop, leading to grounding
• - Voltage fluctuations or irregularities within the circuit
• - Wiring or connector issues
• - Faulty airbag sensor or module

Symptoms:

• - Illuminated airbag warning light
• - Risk of unintended airbag deployment or failure to deploy
• - Possible correlation with other DTC codes

Troubleshooting Guide:

1. Inspect the wiring and connectors for signs of short circuits or grounding.
2. Check for voltage irregularities in the deployment loop.
3. Test the airbag sensor and module for proper functionality.
4. If no evident problems are found, clear the DTC B0018 code, and monitor the system for further occurrences.

Conclusion:

DTC B0017 and DTC B0018 are not just cryptic codes but critical indicators of your vehicle's safety system health. Understanding their potential causes, recognizing their symptoms, and following the troubleshooting steps can help ensure that your airbag system operates as intended. Always consult a qualified mechanic for in-depth diagnostics and repairs to maintain your safety on the road.
