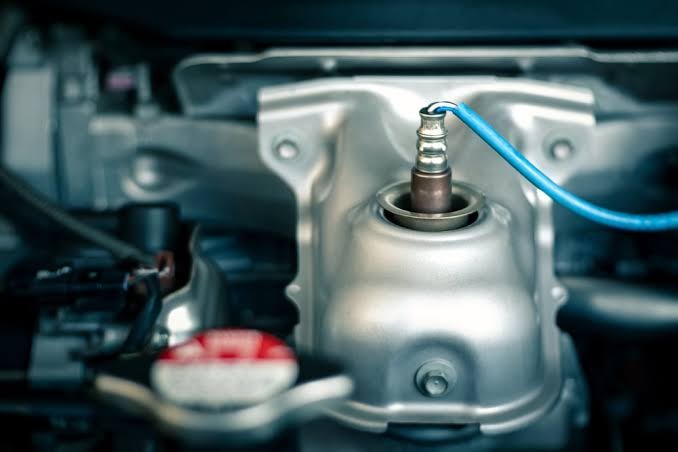

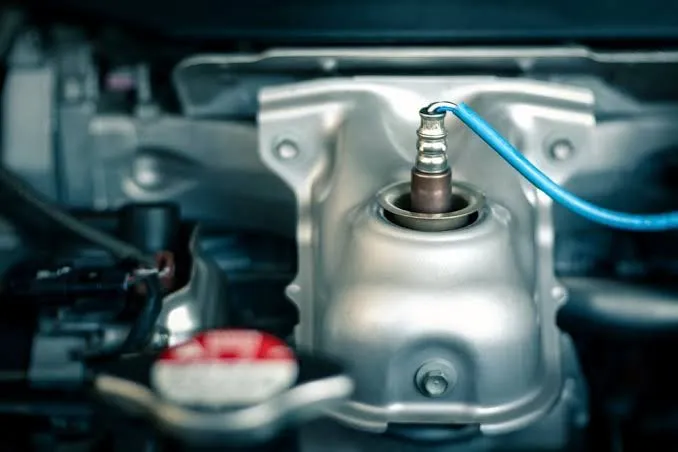

P0042, P0043, P0044: H02S heater control circuit (Bank 1 sensor 3)

These codes indicate a problem with the heater control circuit of the heated oxygen sensor (H02S) located in bank 1 sensor 3.

What are H02S Heater Control Circuit Codes?

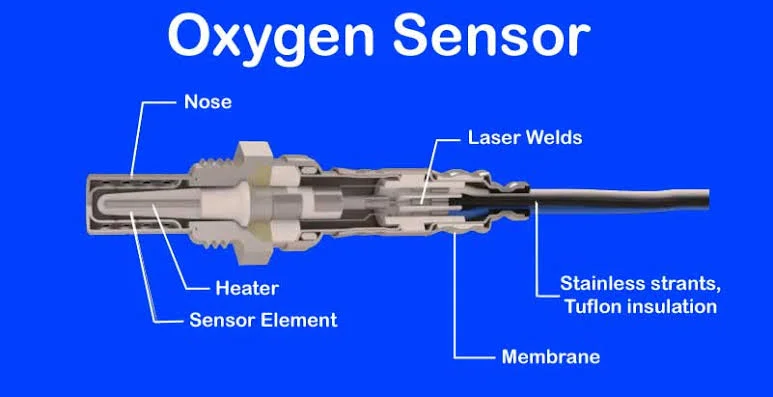

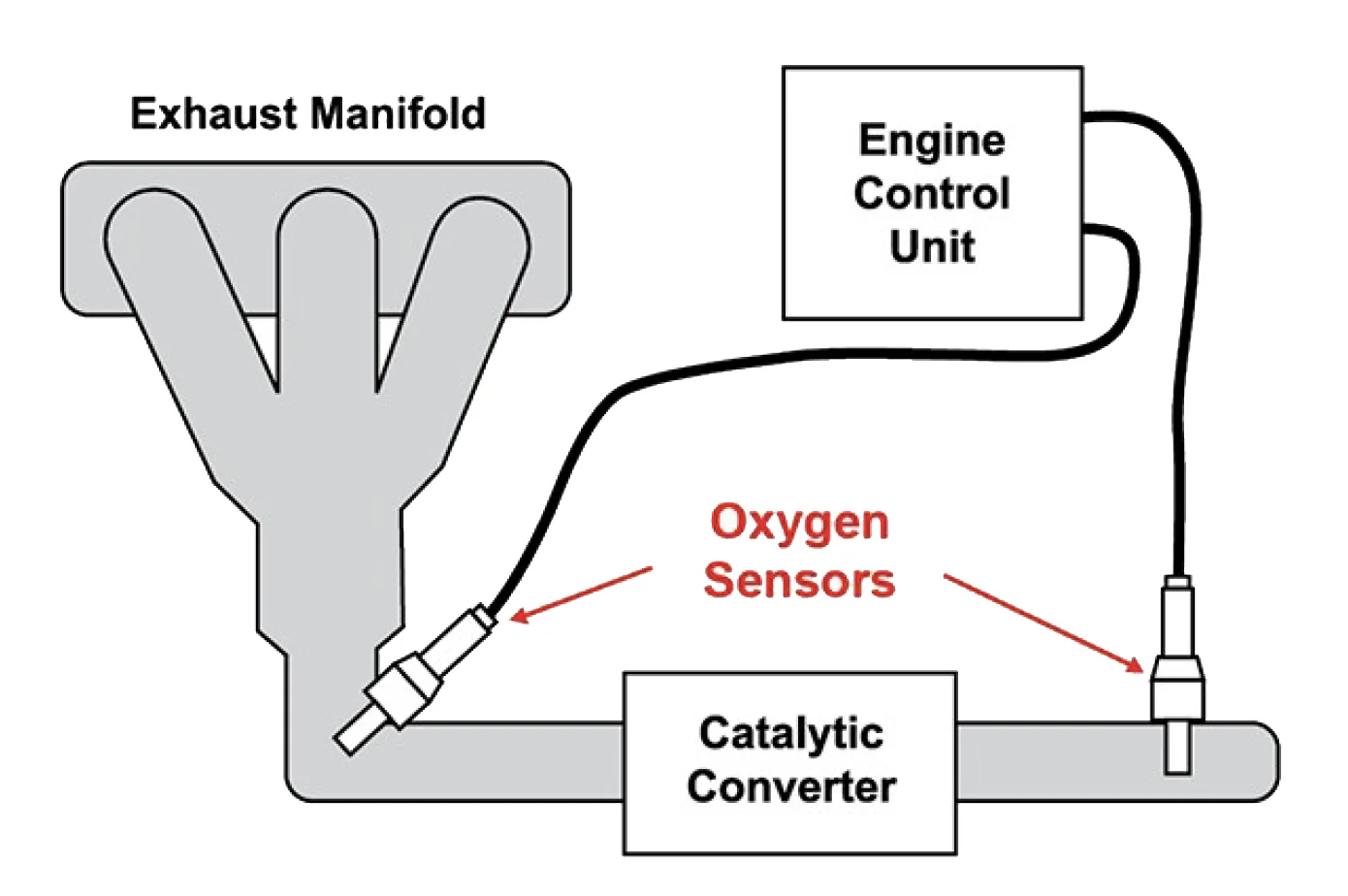

H02S heater control circuit codes are a type of diagnostic trouble code (DTC) that are related to the heating element of the oxygen sensor. The oxygen sensor is a device that measures the amount of oxygen in the exhaust gas and sends a signal to the engine control module (ECM) to adjust the air-fuel ratio accordingly. The oxygen sensor needs to be heated to a certain temperature to work properly, and this is done by a heater circuit that is controlled by the ECM.

The heater circuit consists of a power source, a ground, a fuse, a relay, and a heater element inside the sensor. The ECM monitors the voltage and resistance of the heater circuit and compares it to a predetermined range. If the ECM detects an abnormality in the heater circuit, it will set a DTC and illuminate the check engine light.

The most common symptom of H02S heater control circuit codes is the check engine light coming on. Other symptoms can include the oxygen sensor producing inaccurate readings, the engine running lean or rich, and the exhaust fumes smelling different than usual. These symptoms can affect the performance, fuel economy, and emissions of your vehicle. You can find more information about these codes and how to fix them in the web search results that I provided.

However, there are different types of H02S heater control circuit codes depending on the location and condition of the sensor. The location is indicated by the bank and sensor number. Bank 1 refers to the side of the engine that contains cylinder 1, and sensor 3 refers to the downstream sensor that is located after the catalytic converter. The condition is indicated by the suffix: low, high, or open.

• P0042: H02S Heater Control Circuit (Bank 1 Sensor 3). This code means that the ECM has detected a short circuit or low resistance in the heater circuit of bank 1 sensor 3.
• P0043: H02S Heater Control Circuit Low (Bank 1 Sensor 3). This code means that the ECM has detected a low voltage or high resistance in the heater circuit of bank 1 sensor 3.
• P0044: H02S Heater Control Circuit High (Bank 1 Sensor 3). This code means that the ECM has detected a high voltage or low resistance in the heater circuit of bank 1 sensor 3.

What Causes H02S Heater Control Circuit Codes?

There are several possible causes for H02S heater control circuit codes, such as:

• - A faulty oxygen sensor
• - A faulty heater element inside the sensor
• - A blown fuse or relay in the heater circuit
• - A short or open circuit in the wiring harness or connectors
• - A faulty ECM

How to Diagnose H02S Heater Control Circuit Codes?

To diagnose H02S heater control circuit codes, you will need an OBD2 scanner, a digital multimeter, and a wiring diagram of your vehicle. Here are some steps you can follow:

• - Scan your vehicle with an OBD2 scanner and note down any codes and freeze frame data.
• - Clear the codes and test drive your vehicle to see if they come back.
• - If the codes return, locate the bank 1 sensor 3 oxygen sensor on your vehicle. It should be on the same side as cylinder 1 and after the catalytic converter.
• - Disconnect the electrical connector of the sensor and inspect it for any signs of damage, corrosion, or loose pins.
• - Check the resistance of the heater element inside the sensor with a multimeter. It should be within the specifications provided by your vehicle manufacturer. If not, replace the sensor.
• - Check the voltage of the power and ground wires of the heater circuit with a multimeter. They should be within the specifications provided by your vehicle manufacturer. If not, check for any blown fuses or relays in the heater circuit.
• - Check for any short or open circuits in the wiring harness or connectors of the heater circuit with a multimeter. You may need to use a wiring diagram to identify the correct wires and terminals. If you find any problems, repair or replace them as needed.
• - If everything else checks out, suspect a faulty ECM and have it tested by a professional.

How to Fix H02S Heater Control Circuit Codes?

To fix H02S heater control circuit codes, you will need to replace or repair any faulty components that you have identified during your diagnosis. Here are some tips:

• - Before replacing any parts, make sure they are compatible with your vehicle model and year.
• - After replacing any parts, clear the codes and test drive your vehicle to see if they are gone.
• - If the codes persist, you may need to perform a more thorough diagnosis or seek professional help.

H02S heater control circuit codes are not very common, but they can indicate a serious problem with your oxygen sensor or heater circuit. If you ignore them, you may experience poor engine performance, reduced fuel economy, increased emissions, and possible damage to your catalytic converter. Therefore, it is important to diagnose and fix them as soon as possible.
