A Comparison of Planetary and Bevel Gears: Types, Functions, and Applications

Planetary gears and bevel gears are two types of gears that have different functions and applications. Planetary gears are used to transmit motion and power between parallel shafts, and to provide high reduction ratios, speed variation, or torque multiplication. Bevel gears are used to transmit motion and power between intersecting shafts, and to provide angular motion or direction change.

Gears are mechanical devices that transmit motion and power between rotating shafts by meshing their teeth. Gears can also change the speed, torque, and direction of the output shaft. There are many types of gears, each with its own advantages and disadvantages, depending on the design and application. In this article, we will compare two types of gears: planetary gears and bevel gears. We will explain what they are, how they work, and what they are used for.

What are Planetary Gears?

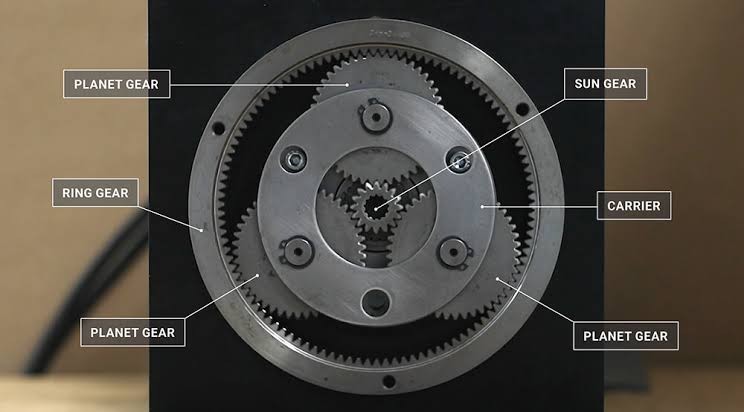

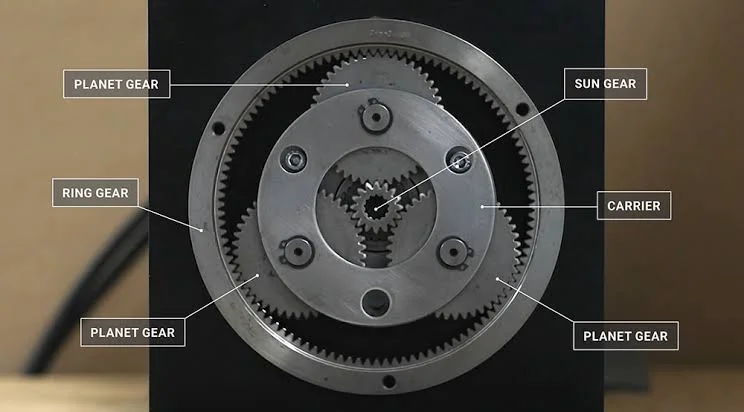

Planetary gears, also known as epicyclic gears, are a type of gear system that consists of three main components: a sun gear, a ring gear, and several planet gears. The sun gear is the central gear that rotates around its own axis. The ring gear is the outer gear that encloses the sun gear and the planet gears. The planet gears are the smaller gears that rotate around the sun gear and revolve around the ring gear. The planet gears are mounted on a carrier, which is a frame that connects them and rotates as a unit.

Planetary gears can have different configurations and arrangements, depending on the number of planet gears, the size and shape of the sun and ring gears, and the input and output shafts. The input shaft can be connected to either the sun gear, the ring gear, or the carrier. The output shaft can be connected to either the sun gear, the ring gear, or the carrier. The third component can be fixed or free to rotate.

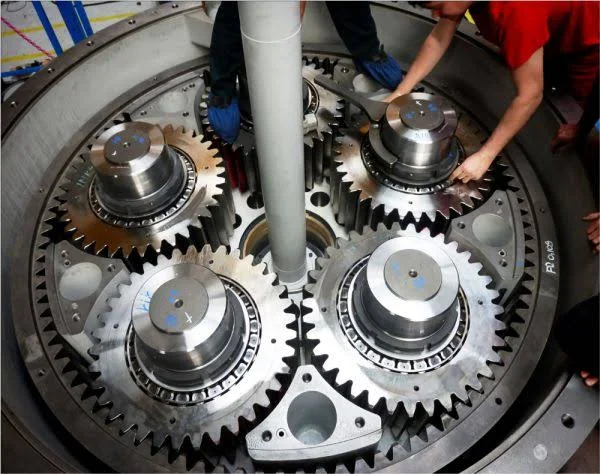

The advantage of planetary gears is that they can provide high reduction ratios in a compact and efficient design. Reduction ratio is the ratio of the input speed to the output speed. A high reduction ratio means that the output speed is much lower than the input speed, but the output torque is much higher than the input torque. Torque is the rotational force that causes an object to rotate. Planetary gears can also achieve different speed and torque combinations by changing the input and output shafts or by locking or unlocking one of the components.

Planetary gears are widely used in various applications that require high power transmission, speed variation, or torque multiplication. Some examples of planetary gear applications are:

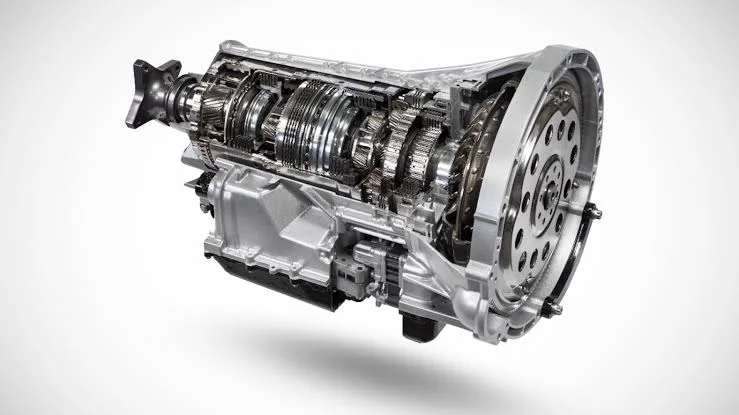

• Automobile transmissions: Planetary gears are used in automatic transmissions to provide smooth and efficient shifting between different gears. Planetary gears can also be combined with other types of gears, such as helical or spur gears, to increase the number of gear ratios.
• Aerospace systems: Planetary gears are used in aircraft engines, helicopters, satellites, and spacecraft to reduce the high rotational speeds of turbines or propellers to lower speeds suitable for generators or fans. Planetary gears can also provide reverse thrust or braking for landing or maneuvering.
• Industrial machinery: Planetary gears are used in various machines and equipment that require high torque or variable speed, such as cranes, hoists, winches, conveyors, mixers, pumps, compressors, etc.

What are Bevel Gears?

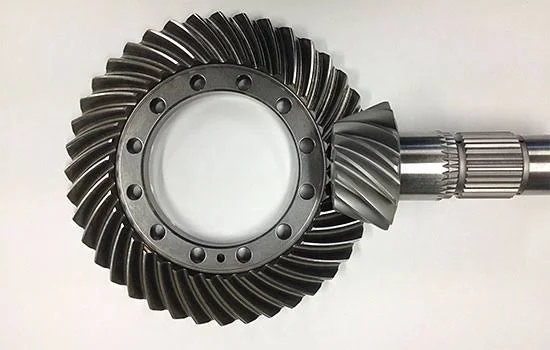

Bevel gears are a type of gear that have teeth cut on a conical surface. Bevel gears are used to transmit motion and power between shafts that intersect at an angle, usually 90 degrees. Bevel gears can also change the direction of rotation of the output shaft.

Bevel gears can have different types and shapes, depending on the angle and profile of their teeth. Some common types of bevel gears are:

1. Straight bevel gears: Straight bevel gears have straight teeth that are cut along the pitch cone. Straight bevel gears are simple and easy to manufacture, but they produce noise and vibration at high speeds.
2. Spiral bevel gears: Spiral bevel gears have curved teeth that are cut at an angle to the pitch cone. Spiral bevel gears are more complex and expensive to manufacture, but they produce less noise and vibration at high speeds.
3. Hypoid bevel gears: Hypoid bevel gears have teeth that are similar to spiral bevel gears, but they have a larger offset between their axes. Hypoid bevel gears can transmit more power and torque than spiral bevel gears, but they require special lubrication and alignment.

The advantage of bevel gears is that they can transmit motion and power between shafts that are not parallel or co-planar. Bevel gears can also provide different speed and torque ratios by changing the number of teeth or the pitch angle of their cones.

Bevel gears are widely used in various applications that require angular motion or direction change. Some examples of bevel gear applications are:

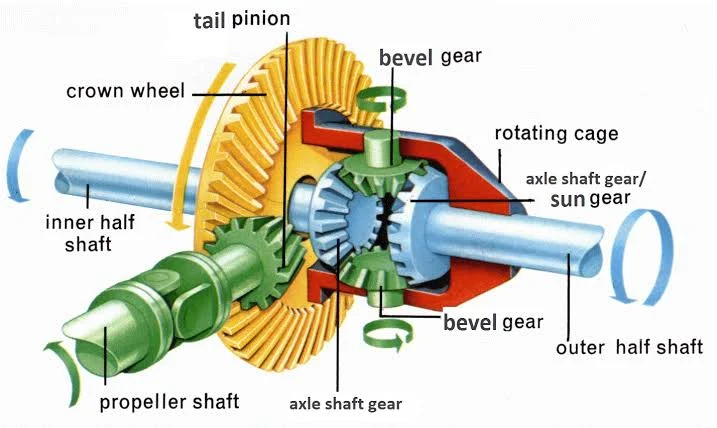

• Automobile differentials: Bevel gears are used in differential systems to allow the wheels of a vehicle to rotate at different speeds when turning or driving on uneven surfaces. Bevel gears can also distribute power evenly between the wheels or selectively between the front and rear axles.

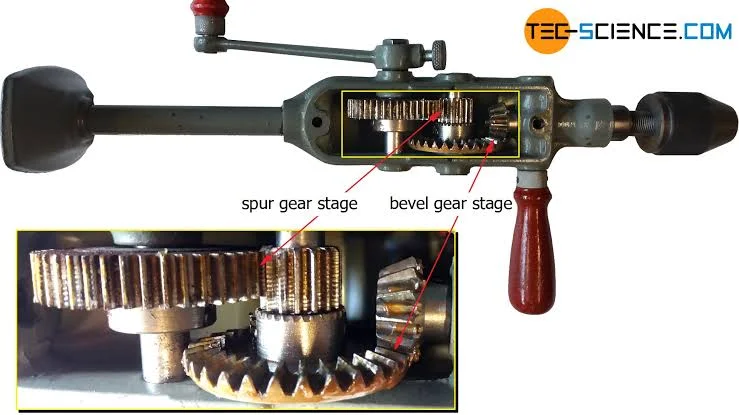

• Hand drills: Bevel gears are used in hand drills to change the direction of rotation from horizontal to vertical. Bevel gears can also provide different speed and torque options by changing the gear ratios.
• Clocks: Bevel gears are used in clocks to transfer the motion from the main spring or pendulum to the hands or dials. Bevel gears can also provide different time intervals by changing the gear ratios.

Conclusion

Planetary gears and bevel gears are two types of gears that have different functions and applications. Planetary gears are used to transmit motion and power between parallel shafts, and to provide high reduction ratios, speed variation, or torque multiplication. Bevel gears are used to transmit motion and power between intersecting shafts, and to provide angular motion or direction change. Both types of gears can also change the speed and torque of the output shaft by changing the number of teeth or the pitch angle of their components. Planetary gears and bevel gears are widely used in various household, commercial, and industrial applications, such as automobile transmissions, aerospace systems, industrial machinery, automobile differentials, hand drills, clocks, etc.
