Fuel Pump Replacement Guide: What Else to Replace

If your fuel pump fails, you may experience symptoms such as a noisy fuel pump, engine stalling, hard starting, or lack of power. In this article, we will show you how to replace a fuel pump and what else you should replace or check along the way.

The fuel pump is a vital component of your vehicle’s fuel system. It delivers fuel from the tank to the engine under high pressure.

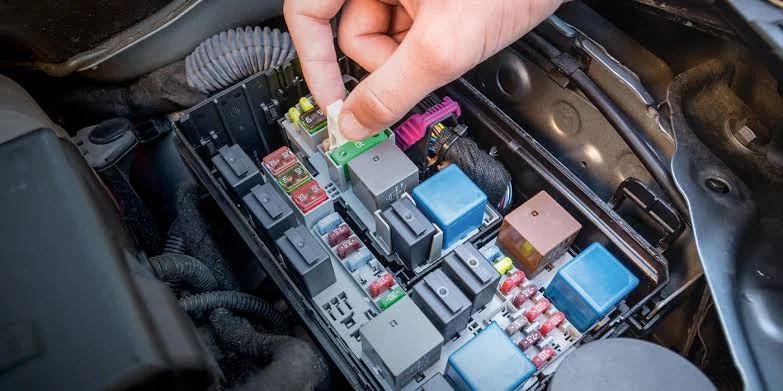

Step 1: Check the Fuel Pump Fuse and Relay

Before you replace the fuel pump, you should first check the fuel pump fuse and relay. These are located in the fuse box under the hood or inside the car. Refer to your owner’s manual for the exact location and identification.

If the fuse is blown or the relay is faulty, replace them with the correct ones. You can also test the relay by swapping it with another one of the same type and rating.

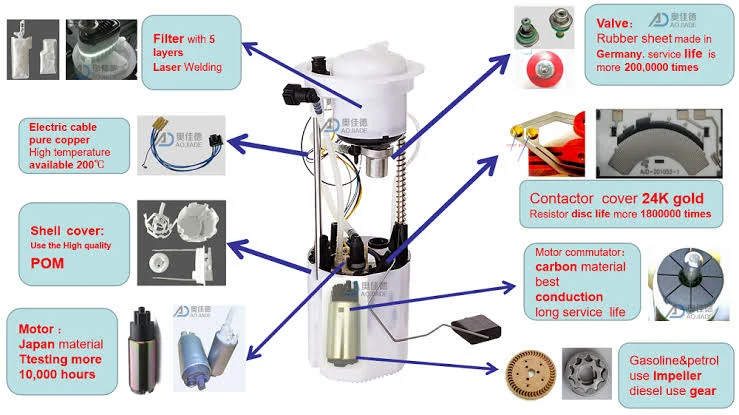

Step 2: Listen for Fuel Pump Noise

To confirm that your fuel pump is working, you can listen for its noise when you turn the ignition key to the ON position (without starting the engine). You should hear a whirring sound coming from inside the fuel tank for about two seconds.

This means that the pump is receiving power and it is priming the system. If you don’t hear this sound, you may have a problem with the wiring, the connectors, or the fuel pump itself.

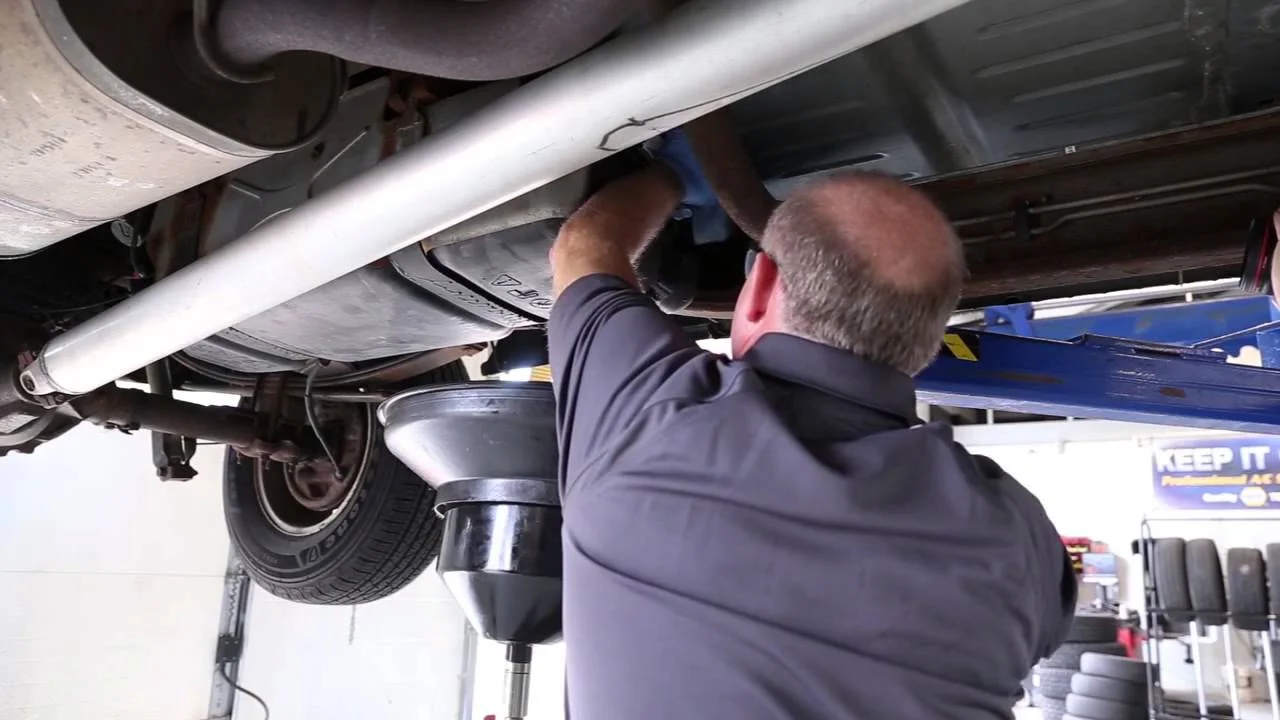

Step 3: Remove the Fuel Tank

To access the fuel pump, you will need to remove the fuel tank from the vehicle. This is a challenging and potentially dangerous task, so make sure you have all the necessary tools and safety equipment. You will need a jack, jack stands, a drain pan, a siphon pump, a wrench set, a screwdriver set, a hammer, a punch, and a fire extinguisher.

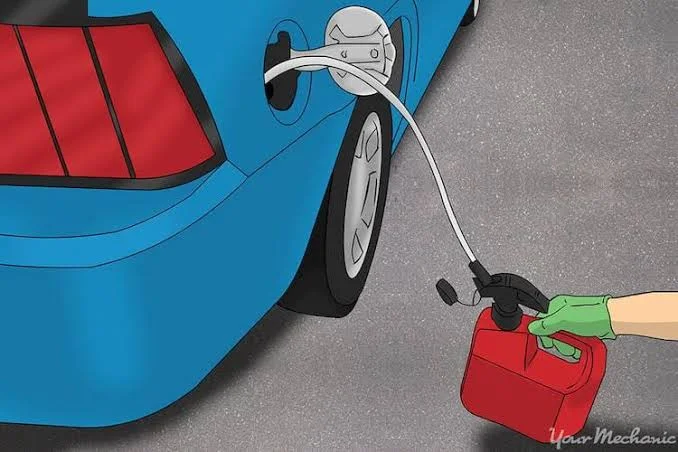

Before you remove the tank, you should drain as much fuel as possible from it using a siphon pump. Then disconnect the negative battery cable and relieve the fuel pressure by opening the gas cap or loosening the fuel line. Next, raise the vehicle and support it securely on jack stands. Locate the fuel tank under the rear of the car and disconnect all the hoses, wires, straps, and bolts that hold it in place. Carefully lower the tank and place it on a flat surface.

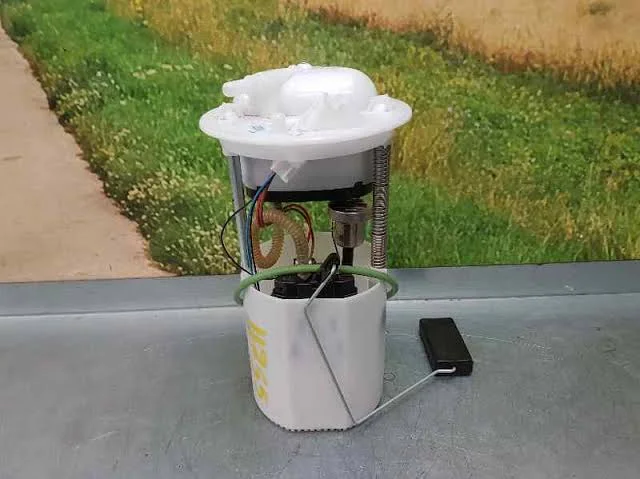

Step 4: Replace the Fuel Pump

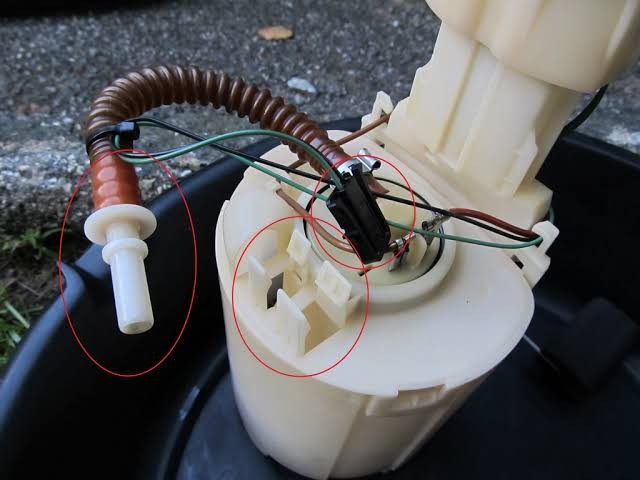

Once you have removed the tank, you can replace the fuel pump. The fuel pump is usually mounted on top of the tank with a lock ring or screws. You will need to remove this ring or screws using a hammer and a punch or a screwdriver. Then lift up the fuel pump assembly and disconnect any hoses or wires attached to it.

To install the new fuel pump, you will need to transfer some components from the old one, such as the fuel level sender unit, the wiring harness, and any gaskets or seals. Make sure you clean these parts before installing them on the new pump. Then connect any hoses or wires to the new pump and lower it into the tank. Secure it with the lock ring or screws and make sure it is properly aligned.

Step 5: Reinstall the Fuel Tank

To reinstall the fuel tank, you will need to reverse the steps of removing it. Lift up the tank and align it with its mounting position. Reconnect all the hoses, wires, straps, and bolts that hold it in place. Tighten everything securely and make sure there are no leaks or loose connections. Then lower the vehicle and reconnect the negative battery cable.

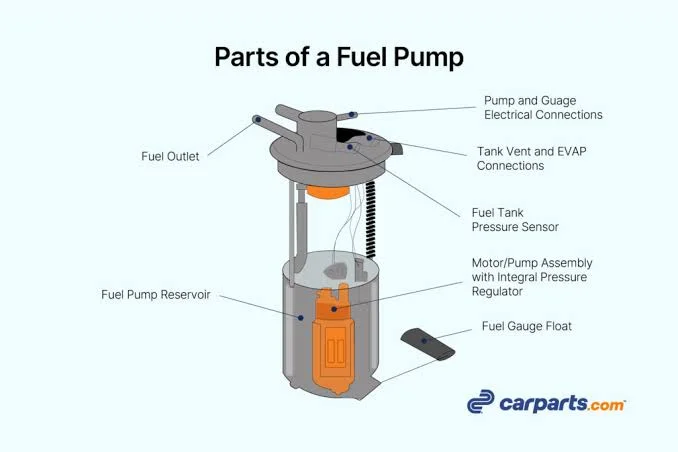

Step 6: Replace Other Components

When replacing a fuel pump, there are some other components that you should also replace or check for optimal performance and safety. These include:

1. The fuel filter: The fuel filter is located along the fuel line between the tank and the engine. It filters out any dirt or debris that may clog or damage your fuel injectors or engine. A clogged filter can also cause your fuel pump to work harder and wear out faster. You should replace your fuel filter every 15,000 to 30,000 miles or according to your manufacturer’s recommendations.
2. The pickup filter: The pickup filter is attached to the inlet of your fuel pump inside the tank. It prevents any large particles from entering your pump and causing damage. You should always replace this filter when replacing your fuel pump as it may be contaminated or worn out.
3. The O-rings, seals, and gaskets: These are rubber or metal parts that seal off any gaps or openings between your fuel system components. They prevent any leaks or air from entering your system and affecting your fuel pressure or flow. You should always replace these parts when replacing your fuel pump as they may be cracked or deteriorated.
4. The electrical connections: These are wires or connectors that link your fuel pump to your battery, fuse box, relay, and computer. They provide power and signals to your pump and allow it to operate properly. You should check these connections for any signs of corrosion, overheating, or damage. You should also apply some electrical grease to them to prevent moisture and dirt from affecting them.
5. The fuel tank: The fuel tank is where your fuel is stored and delivered to your pump. It is made of metal or plastic and can be prone to rust, corrosion, or damage. You should inspect your tank for any holes, cracks, dents, or leaks. You should also clean the inside of your tank to remove any dirt, debris, or water that may have accumulated over time.

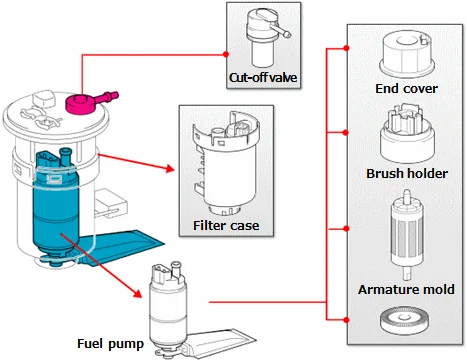

Step 7: Test the New Fuel Pump

After replacing your fuel pump and other components, you should test the new pump to make sure it is working properly. To do this, you should:

Fill up your tank with fresh fuel and close the gas cap.

1. Turn the ignition key to the ON position and listen for the fuel pump noise. It should run for about two seconds and then stop.
2. Start the engine and let it idle for a few minutes. Check for any leaks, noises, or warning lights.
3. Drive the vehicle for a short distance and observe its performance. It should accelerate smoothly and have no hesitation, stalling, or loss of power.

If everything works fine, congratulations! You have successfully replaced your fuel pump and improved your vehicle’s performance and reliability. If you encounter any problems or have any doubts, consult a professional mechanic for further assistance.

Fuel Pump Troubleshooting Tips

If you suspect that your fuel pump is not working properly, here are some tips to troubleshoot it before replacing it:

• Check the fuel pressure: You can use a fuel pressure gauge to measure the pressure of your fuel system at different points. This can help you determine if your pump is delivering enough fuel to your engine or if there is a blockage or leak somewhere. Refer to your service manual for the correct pressure specifications and testing procedures.
• Check the fuel pump relay: You can use a multimeter to test the fuel pump relay for continuity and resistance. This can help you determine if the relay is sending power to your pump or if it is faulty. Refer to your service manual for the correct relay location and testing procedures.
• Check the camshaft position sensor: You can use a scan tool to check the camshaft position sensor for any trouble codes or data readings. This sensor tells your computer when to activate your fuel pump based on the position of your camshaft. If this sensor is malfunctioning, your pump may not receive the right signals or timing. Refer to your service manual for the correct sensor location and testing procedures.
