P0042, P0043, and P0044: H02S heater control circuit (Bank 1 sensor 3)

P0042, P0043, and P0044 are OBD-II diagnostic trouble codes (DTCs) that indicate a problem with the heater element circuit of the HO2S on bank 1 sensor 3.

If you have a scan tool and you see one of these codes on your dashboard, you might be wondering what they mean and how to fix them. These codes are related to the heated oxygen sensor (HO2S) heater control circuit on bank 1 sensor 3. In this article, I will explain what these codes mean, what causes them, what symptoms they may cause, and how to diagnose and repair them.

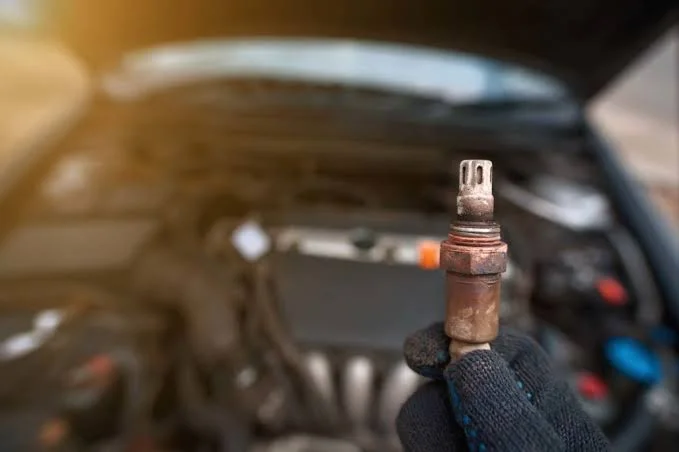

What are P0042, P0043, and P0044 Codes?

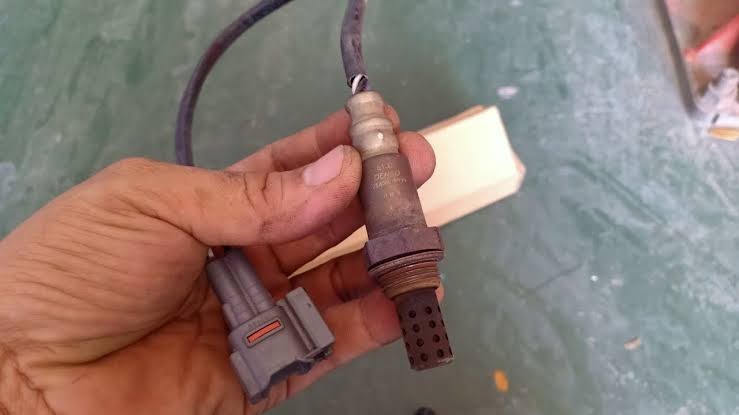

The HO2S is a device that measures the oxygen content in the exhaust gas and sends a voltage signal to the engine control module (ECM). The ECM uses this signal to adjust the air-fuel ratio and optimize the engine performance and emissions.

The HO2S has a heater element inside it that helps it reach the operating temperature faster and provide accurate readings. The heater element is controlled by the ECM based on the engine coolant temperature and engine load. The ECM monitors the voltage or current of the heater element circuit and compares it with the factory specifications. If the ECM detects an abnormal condition in the heater element circuit, it will set one of these codes and turn on the check engine light.

The codes have different meanings depending on the condition of the heater element circuit:

1. P0042 means that the ECM detects a problem with the heater element circuit of the HO2S on bank 1 sensor 3. This code is usually caused by a faulty HO2S or a problem with the wiring or connectors.
2. P0043 means that the ECM detects a low voltage or current condition in the heater element circuit of the HO2S on bank 1 sensor 3. This code is usually caused by an open or short to ground in the heater element circuit or a blown fuse.
3. P0044 means that the ECM detects a high voltage or current condition in the heater element circuit of the HO2S on bank 1 sensor 3. This code is usually caused by a short to power in the heater element circuit or a faulty ECM.

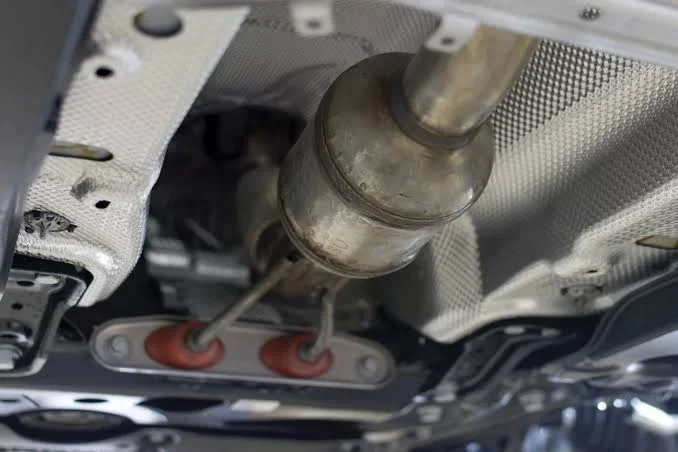

What Causes P0042, P0043, and P0044 Codes?

There are several possible causes for these codes, such as:

• Faulty HO2S
• Damaged or corroded wiring or connectors
• Blown fuse
• Faulty ECM

Some common factors that can contribute to these codes are:

• Water intrusion in the HO2S connector
• Exhaust leaks
• Wiring routed near hot or moving parts
• Improper installation or adjustment of the HO2S

What are the Symptoms of P0042, P0043, and P0044 Codes?

The most obvious symptom of these codes is the illumination of the check engine light. However, there may be other symptoms depending on the severity of the problem, such as:

• Poor engine performance
• Reduced fuel economy
• Increased emissions
• Failed emission test

How to Diagnose and Repair

To diagnose and repair these codes, you will need a scan tool, a multimeter, and a repair manual for your specific vehicle make and model. Here are some general steps you can follow:

• Verify the code with a scan tool. Check if there are any other codes related to the HO2S or its circuits. Clear the codes and test-drive the vehicle to see if they return.
• Inspect the HO2S and its wiring harness for any physical damage or signs of corrosion. Check if the wiring is routed properly and away from heat or moving parts. Repair or replace any damaged components as needed.
• Locate the fuse for the HO2S heater circuit and check if it is blown. Replace it if necessary and see if the code returns.
• Disconnect the HO2S connector and check for battery voltage at the heater power supply wire with the ignition on. If there is no voltage, check for continuity and resistance in the wiring between the fuse and the HO2S connector. Repair any open or shorted wires as needed.
• Check for ground at the heater control wire with the ignition on. If there is no ground, check for continuity and resistance in the wiring between the ECM and the HO2S connector. Repair any open or shorted wires as needed.
• Check for resistance in the heater element of the HO2S with a multimeter. Compare your reading with the specifications in your repair manual. If there is no resistance or infinite resistance, replace the HO2S.

If all tests are normal, suspect a faulty ECM. However, before replacing it, make sure to perform any other tests recommended by your repair manual and consult a professional if necessary.

Conclusion

P0042, P0043, and P0044 are codes that indicate a problem with the heater element circuit of the HO2S on bank 1 sensor 3. These codes can cause poor engine performance, reduced fuel economy, increased emissions, and failed emission test. To fix these codes, you need to diagnose and repair the faulty component in the heater element circuit, which can be the HO2S, the wiring, the fuse, or the ECM. You also need to clear the codes and reset the ECM after the repair. By following these steps, you can resolve these codes and restore your vehicle’s optimal performance.
