P0032 H02S heater control circuit high (Bank 1 sensor 1)

This code indicates that there is a problem with the heater control circuit of the upstream oxygen sensor (also known as the air/fuel ratio sensor) on bank 1 of your engine. Bank 1 refers to the side of the engine that contains cylinder 1.

The code P0032 means that the engine control module (ECM) has detected a high voltage or current in the heater circuit of the oxygen sensor. The heater circuit is responsible for warming up the sensor to its optimal operating temperature, which allows it to produce accurate and reliable signals.

The code P0032 is also known as:

• HO2S Heater Control Circuit High (Bank 1 Sensor 1)
• O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)
• Heated Oxygen Sensor (HO2S) Heater Circuit Bank 1 Sensor 1

The code P0032 is related to other codes that involve the oxygen sensor heater circuit, such as:

• P0030: HO2S Heater Control Circuit (Bank 1 Sensor 1)
• P0031: HO2S Heater Control Circuit Low (Bank 1 Sensor 1)
• P0050: HO2S Heater Control Circuit (Bank 2 Sensor 1)
• P0051: HO2S Heater Control Circuit Low (Bank 2 Sensor 1)
• P0052: HO2S Heater Control Circuit High (Bank 2 Sensor 1)

In this article, you will learn what causes the code P0032, what are the symptoms of this code, and how to diagnose and fix this code yourself using some basic tools and skills.

What are the Causes of P0032 Code?

The code P0032 can be caused by various factors that affect the oxygen sensor heater circuit. Some of the possible causes are:

• Faulty or damaged oxygen sensor: The oxygen sensor may be defective or damaged, which can prevent it from heating up properly or sending accurate signals to the ECM.
• Faulty or damaged wiring or connectors in the heater circuit: The wiring or connectors may be damaged, corroded, shorted, or open, which can affect the voltage or current in the circuit.
• Faulty or blown fuse in the heater circuit: The fuse may be blown or faulty, which can interrupt the power supply to the heater circuit.
• Faulty or stuck relay in the heater circuit: The relay may be stuck or faulty, which can cause a constant or intermittent power supply to the heater circuit.
• Faulty or damaged ECM: The ECM may be faulty or damaged, which can send incorrect commands or signals to the heater circuit.

What are the Symptoms of P0032 Code?

The symptoms of the code P0032 may vary depending on the severity of the problem, the type of vehicle, and the condition of the engine. Some of the common symptoms are:

1. Check engine light on: The check engine light is a warning indicator that alerts you when there is a problem with your engine or its components. The ECM turns on the check engine light when it detects a fault in the oxygen sensor heater circuit and stores the code P0032 in its memory.
2. Poor fuel economy: Poor fuel economy means that your engine consumes more fuel than normal. This can happen when the oxygen sensor is not heated properly, which can affect its ability to measure and adjust the air/fuel ratio in the engine. This can also cause an increase in emissions and pollution.
3. Rough idle or hesitation: Rough idle or hesitation means that your engine runs unevenly or hesitates when you accelerate. This can happen when the oxygen sensor is not heated properly, which can affect its ability to monitor and regulate the combustion process in the engine. This can also cause a misfire, a backfire, or a knock in the engine.
4. Increased emissions or failed emissions test: Increased emissions or failed emissions test means that your vehicle does not meet the standards for emissions and pollution set by your state or country. This can happen when the oxygen sensor is not heated properly, which can affect the amount and quality of the exhaust gases produced by your engine. This can also cause an increase in harmful substances such as carbon monoxide, hydrocarbons, and nitrogen oxides in your exhaust.

How to Diagnose and Fix P0032 Code?

To diagnose and fix the code P0032, you will need a scan tool, an OBD2 code reader, a multimeter, and a repair manual for your specific vehicle model. You will also need to follow these steps:

• Verify the code. Use a scan tool or an OBD2 code reader to confirm that the code P0032 is present. You may also see other codes related to the oxygen sensor heater circuit. Note down all the codes and clear them from the memory. Then, start the engine and see if the code returns. If it does, proceed to the next step.

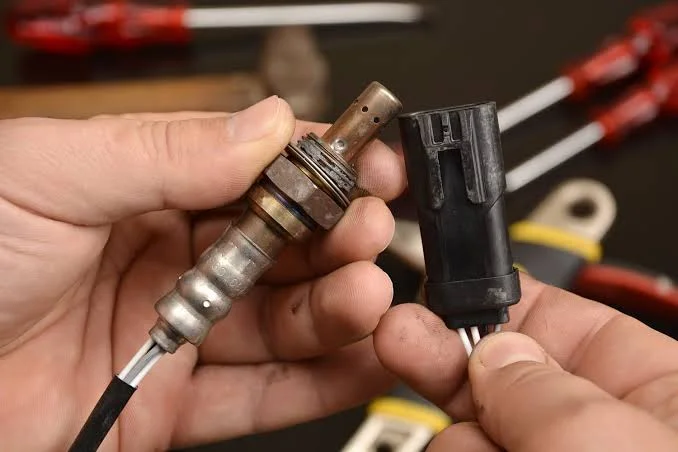

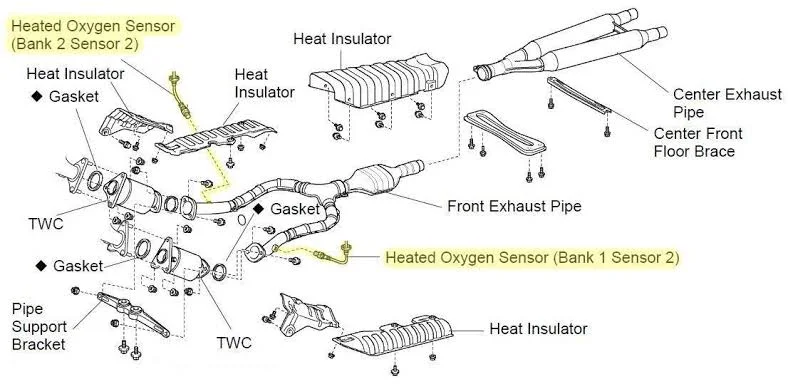

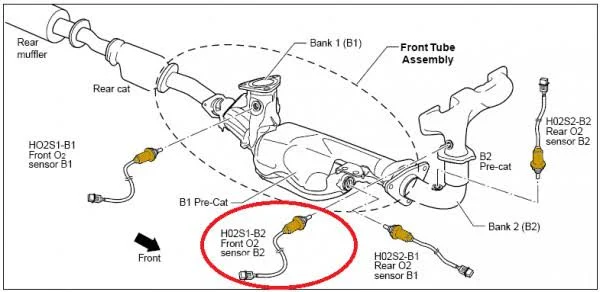

• Inspect the oxygen sensor. Locate the oxygen sensor on bank 1 of your engine. It is usually mounted on the exhaust manifold or pipe before the catalytic converter. Disconnect its electrical connector and inspect it for any signs of damage, corrosion, or loose wires. If you see any obvious physical damage, replace the oxygen sensor. If not, go to the next step.
• Test the oxygen sensor resistance. Use a multimeter to test the resistance of the oxygen sensor heater element. Refer to your repair manual for the correct specifications and procedure. If the resistance is out of range, replace the oxygen sensor. If not, go to the next step.
• Test the oxygen sensor voltage. Use a multimeter to test the voltage of the oxygen sensor heater circuit. Refer to your repair manual for the correct specifications and procedure. If there is no voltage or high voltage in the heater circuit, there may be a problem with the wiring, connectors, fuse, relay, or ECM. Go to step 5 to check these components. If there is normal voltage in the heater circuit, there may be an intermittent problem with the oxygen sensor or its connector. Try wiggling or tapping them and see if that affects the voltage reading. If it does, replace them as needed.
