P0031 H02S heater control circuit low (Bank 1 sensor 1)

The code P0031 means that the engine control module (ECM) has detected a low voltage or current in the heater circuit of the oxygen sensor. The heater circuit is responsible for warming up the sensor to its optimal operating temperature, which allows it to produce accurate and reliable signals.

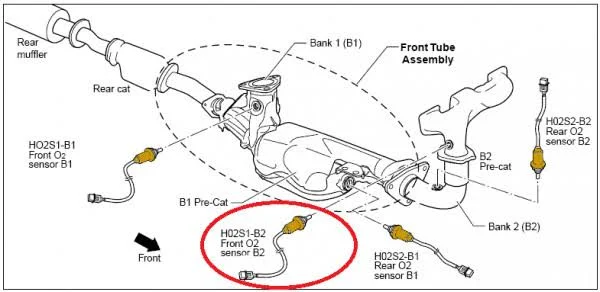

This code indicates that there is a problem with the heater control circuit of the upstream oxygen sensor (also known as the air/fuel ratio sensor) on bank 1 of your engine. Bank 1 refers to the side of the engine that contains cylinder 1.

The code P0031 is also known as:

• HO2S Heater Control Circuit Low (Bank 1 Sensor 1)
• O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)
• Heated Oxygen Sensor (HO2S) Heater Circuit Bank 1 Sensor 1

The code P0031 is related to other codes that involve the oxygen sensor heater circuit, such as P0030, P0032, P0050, P0051, and P0052.

What are the Symptoms of P0031 Code?

The symptoms of the code P0031 may vary depending on the severity of the problem, the type of vehicle, and the condition of the engine. Some of the common symptoms are:

• Check engine light on
• Poor fuel economy
• Rough idle or hesitation
• Increased emissions or failed emissions test
• Reduced engine performance or power

What are the Causes of P0031 Code?

The code P0031 can be caused by various factors that affect the oxygen sensor heater circuit. Some of the possible causes are:

• Faulty or damaged oxygen sensor
• Faulty or damaged wiring or connectors in the heater circuit
• Faulty or blown fuse in the heater circuit
• Faulty or stuck relay in the heater circuit
• Faulty or damaged ECM

Another common cause of the code P0031 is a problem with the wiring or connectors in the heater circuit. The wiring may be damaged, burnt, or shorted by hot exhaust components, which can affect the voltage or current in the circuit. Other factors that can damage the wiring or connectors include road debris, water, corrosion, or vibration.

The oxygen sensor itself may also be defective or damaged, which can prevent it from heating up properly or sending accurate signals to the ECM. The oxygen sensor may be affected by poor quality oil and fuel additives, which can contaminate or degrade its performance. The oxygen sensor may also be damaged by physical impact, such as hitting a bump or a pothole.

The code P0031 may also be caused by other issues that affect the engine performance and emissions, such as:

1. Large exhaust leaks that allow oxygen to enter the exhaust system and alter the sensor readings
2. Low or excessive fuel pressure that affects the air/fuel ratio and causes a lean or rich condition
3. Unmetered air entering the engine through a vacuum leak, a faulty mass air flow sensor, or a dirty air filter
4. Open circuits or blown fuses that interrupt the power supply to the heater circuit
5. Loss of ground that affects the electrical connection of the heater circuit

In rare cases, the code P0031 may be caused by a faulty ECM, which is the computer that controls the engine and its components. The ECM monitors the oxygen sensor heater circuit and sets the code P0031 if it detects a fault. However, before replacing the ECM, you should rule out all other possible causes first.

How to Diagnose and Fix P0031 Code?

To diagnose and fix the code P0031, you will need a scan tool, an OBD2 code reader, a multimeter, and a repair manual for your specific vehicle model. You will also need to follow these steps:

1. Verify the code. Use a scan tool or an OBD2 code reader to confirm that the code P0031 is present. You may also see other codes related to the oxygen sensor heater circuit. Note down all the codes and clear them from the memory. Then, start the engine and see if the code returns. If it does, proceed to the next step.

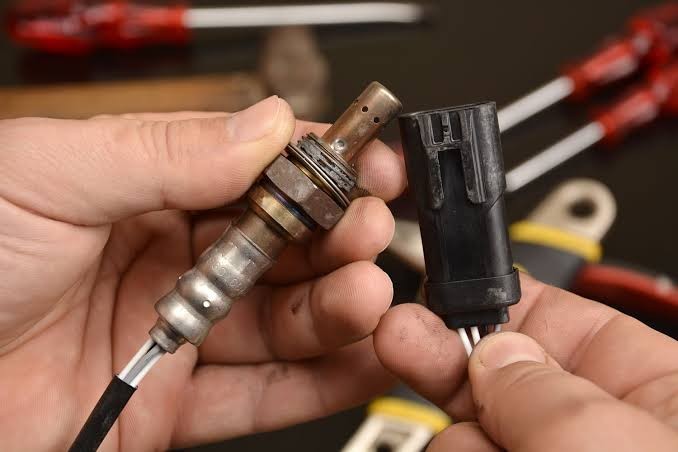

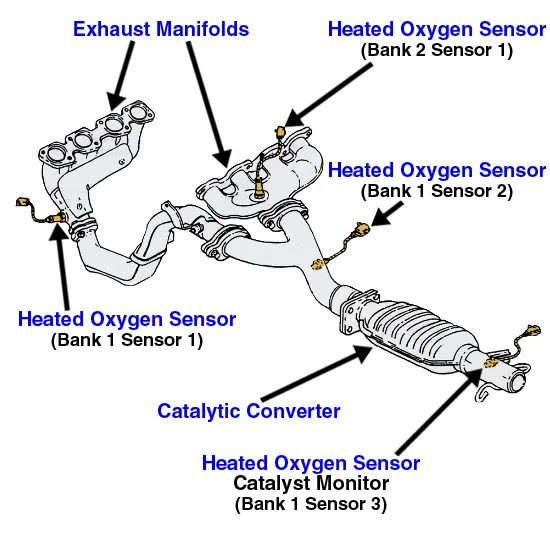

2. Inspect the oxygen sensor. Locate the oxygen sensor on bank 1 of your engine. It is usually mounted on the exhaust manifold or pipe before the catalytic converter. Disconnect its electrical connector and inspect it for any signs of damage, corrosion, or loose wires. If you see any obvious physical damage, replace the oxygen sensor. If not, go to the next step.
3. Test the oxygen sensor resistance. Use a multimeter to test the resistance of the oxygen sensor heater element. Refer to your repair manual for the correct specifications and procedure. If the resistance is out of range, replace the oxygen sensor. If not, go to the next step.
4. Test the oxygen sensor voltage. Use a multimeter to test the voltage of the oxygen sensor heater circuit. Refer to your repair manual for the correct specifications and procedure. If there is no voltage or low voltage in the heater circuit, there may be a problem with the wiring, connectors, fuse, relay, or ECM. Go to step 5 to check these components. If there is normal voltage in the heater circuit, there may be an intermittent problem with the oxygen sensor or its connector. Try wiggling or tapping them and see if that affects the voltage reading. If it does, replace them as needed.

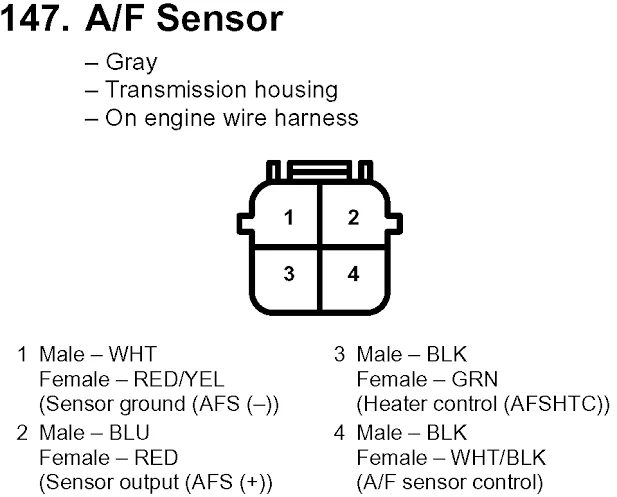

5. Check the wiring and connectors in the heater circuit. Inspect the wiring and connectors that connect the oxygen sensor to the ECM and the fuse box. Look for any signs of damage, corrosion, shorting, or open circuits. Repair or replace any faulty wiring or connectors as needed. Then, clear the codes and test drive the vehicle to see if the code comes back. If it does, go to the next step.
6. Check the fuse and relay in the heater circuit. Locate the fuse and relay that control the power supply to the oxygen sensor heater circuit. Refer to your repair manual for their location and identification. Use a multimeter to test their continuity and functionality. If either the fuse or relay is blown or faulty, replace it. Then, clear the codes and test drive the vehicle to see if the code comes back. If it does, go to the next step.
7. Check the ECM. The ECM is the computer that controls the engine and its components. It also monitors the oxygen sensor heater circuit and sets the code P0031 if it detects a fault. If you have ruled out all other possible causes, you may have a problem with the ECM. To test the ECM, you will need a scan tool that can communicate with it and perform various tests and commands. Refer to your repair manual for the correct procedure and specifications. If the ECM is faulty or damaged, replace it.

If none of these steps fix the code P0031, you may have a more complex or rare problem with your engine or its components. In that case, you will need to consult a professional mechanic for further diagnosis and repair.

Conclusion

The code P0031 is a common problem that can affect your engine performance, fuel economy, and emissions. It can also cause engine damage if left untreated. Therefore, it is important to diagnose and fix this code as soon as possible. By following the steps above, you can troubleshoot and repair this code yourself using some basic tools and skills. However, if you are not confident or comfortable with working on your engine, you should seek professional help from a qualified mechanic.
