How to Diagnose and Fix Low Compression in One Cylinder

Low compression in one cylinder can cause various problems for your engine, such as misfires, poor performance, loss of power, and increased fuel consumption. Low compression means that the pressure of the air-fuel mixture in the cylinder is lower than normal, which reduces the efficiency of the combustion process.

Low compression can be caused by several factors, such as leaking valves, worn or damaged piston rings, cracked cylinder walls, faulty head gaskets, or incorrect camshaft timing. In this article, we will explain how to diagnose and fix low compression in one cylinder, using some simple tools and techniques.

How to Diagnose Low Compression in One Cylinder

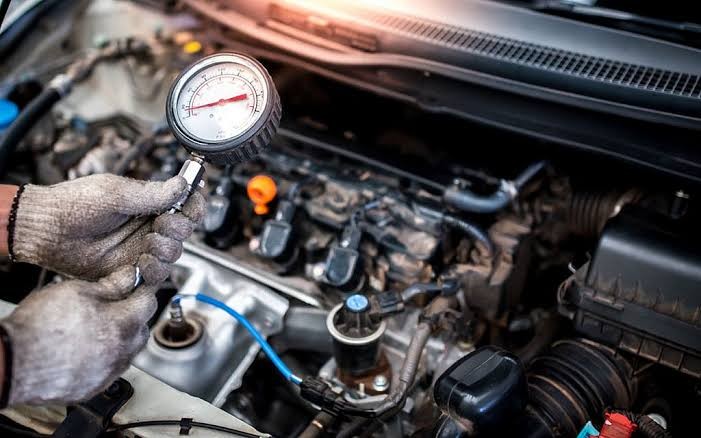

The first step to fix low compression in one cylinder is to identify which cylinder is affected and what is causing the problem. To do this, you will need a compression tester, which is a device that measures the pressure of the air-fuel mixture in the cylinder. You can buy a compression tester from any auto parts store or online. Alternatively, you can use a leak-down tester, which is similar to a compression tester but also allows you to pinpoint where the leak is coming from.

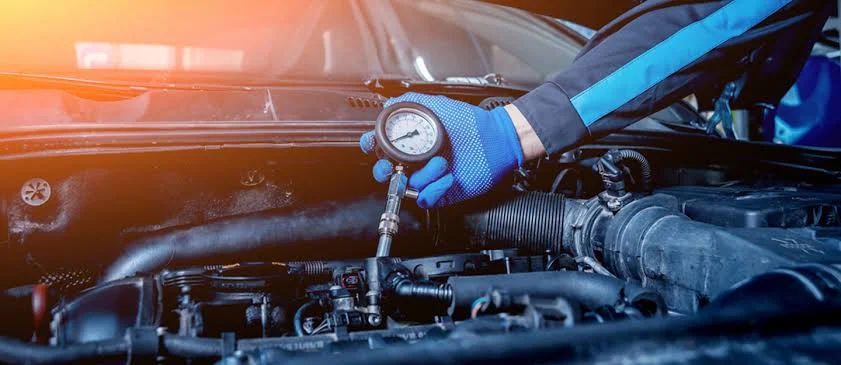

To use a compression tester, follow these steps:

• - Make sure the engine is warm and disable the ignition system to prevent it from starting while you are testing the cylinders.
• - Remove the spark plug from the cylinder you want to test and connect the compression tester to the spark plug hole.
• - Have someone crank the engine for a few seconds and watch the gauge on the tester. It should show a reading of the maximum pressure reached in the cylinder.
• - Repeat the same procedure for all the cylinders and compare the readings. The readings should be within 10% of each other. If one cylinder has a significantly lower reading than the others, it means that it has low compression.

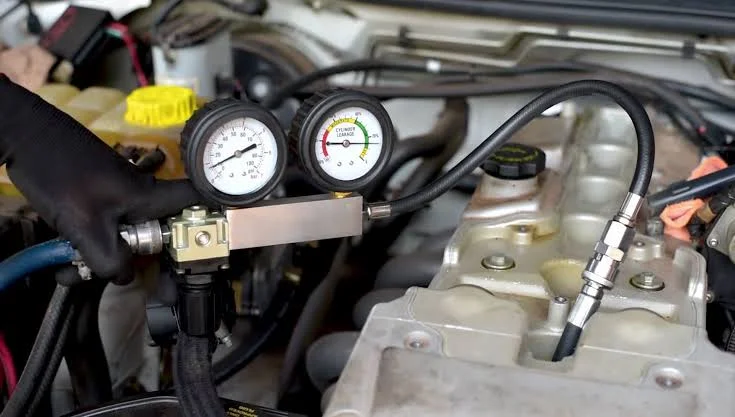

To use a leak-down tester, follow these steps:

• - Make sure the engine is cold and disable the ignition system to prevent it from starting while you are testing the cylinders.
• - Remove the spark plug from the cylinder you want to test and bring the piston to the top dead center (TDC) of its compression stroke. You can do this by inserting a long screwdriver into the spark plug hole and rotating the crankshaft until the screwdriver reaches its highest point.
• - Connect the leak-down tester to an air compressor and to the spark plug hole. The tester should have two gauges: one for measuring the input pressure and one for measuring the output pressure.
• - Turn on the air compressor and adjust the input pressure to about 100 psi. The output pressure should be close to the input pressure if there is no leak in the cylinder. If there is a leak, the output pressure will be lower than the input pressure.
• - Listen and look for where the air is escaping from. If you hear air coming out of the exhaust pipe, it means that there is a leak in the exhaust valve. If you hear air coming out of the intake manifold, it means that there is a leak in the intake valve. If you hear air coming out of the oil filler cap or dipstick tube, it means that there is a leak in the piston rings or cylinder wall. If you see bubbles coming out of the radiator or coolant reservoir, it means that there is a leak in the head gasket or cylinder head.

How to Fix Low Compression in One Cylinder

Once you have identified which cylinder has low compression and what is causing it, you can proceed to fix it. Depending on the severity of the problem, you may need to replace some parts or perform some repairs on your engine. Here are some possible solutions for each cause of low compression:

1. - Leaking valves: If your valves are leaking due to wear or damage, you will need to remove the cylinder head and replace them with new ones. You may also need to resurface or replace the valve seats if they are worn or damaged. This is a complex and costly procedure that requires special tools and skills, so you may want to take your car to a professional mechanic for this job.

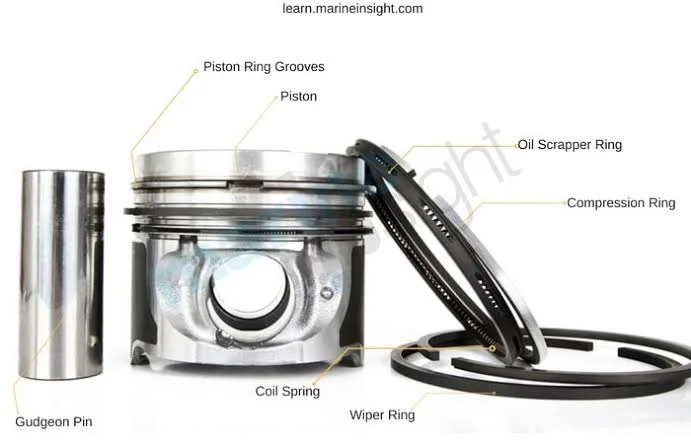

2. - Worn or damaged piston rings: If your piston rings are worn or damaged due to overheating or lack of lubrication, you will need to remove the piston and install new rings on it.  You may also need to hone or bore out your cylinder wall if it is scratched or scored. This is also a complicated and expensive procedure that requires special tools and skills, so you may want to take your car to a professional mechanic for this job.
3. - Cracked cylinder wall: If your cylinder wall is cracked due to excessive heat or detonation, you will need to replace your engine block or your entire engine. This is a very rare and extreme case that usually results from severe abuse or neglect of your engine. This is also a very costly procedure that requires professional assistance.

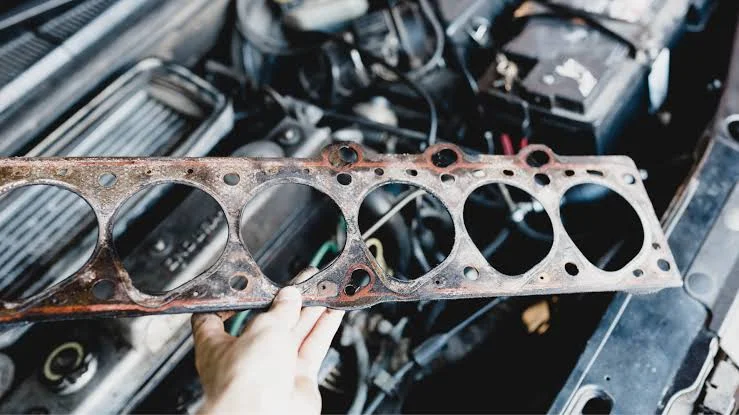

4. - Faulty head gasket: If your head gasket is blown or leaking due to overheating or improper installation, you will need to replace it with a new one. You may also need to resurface or replace your cylinder head if it is warped or cracked.  This is a relatively simple and inexpensive procedure that you can do yourself with some basic tools and knowledge, or you can take your car to a mechanic for a faster and more reliable service.
5. - Incorrect camshaft timing: If your camshaft timing is off due to a worn or broken timing belt or chain, you will need to replace it with a new one and set the correct timing according to the manufacturer's specifications. You may also need to check and adjust your valve clearance if it is affected by the timing issue. This is a moderately difficult and moderately expensive procedure that you can do yourself with some special tools and knowledge, or you can take your car to a mechanic for a more accurate and professional service.

Conclusion

Low compression in one cylinder can cause many problems for your engine and your driving experience. It is important to diagnose and fix it as soon as possible to prevent further damage and restore your engine's performance and efficiency. The causes of low compression can vary from simple to complex, and the solutions can range from cheap to expensive. You can use a compression tester or a leak-down tester to find out which cylinder has low compression and where the leak is coming from. Then, you can fix it yourself or take your car to a mechanic depending on the difficulty and cost of the repair. By following these steps, you can fix low compression in one cylinder and enjoy your car's full potential.
