ENGINE NOISE DIAGNOSTICS

Engine noise can be a sign of a serious problem or a minor issue that can be easily fixed. However, diagnosing engine noise can be challenging, as different sounds can have different causes and locations.

In this article, we will provide some tips on how to identify and troubleshoot common engine noises using your ears and simple tools.

Before you start, make sure to set the parking brake, pop the hood open, and set the transmission to Neutral (manual) or Park (automatic). Start the engine and listen carefully to the noise. Gradually increase engine speed and see whether the noise increases with engine speed. If the noise does not increase with engine speed, it is probably not an engine noise, but rather a noise from an accessory or a belt. If the noise increases with engine speed, it is most likely an engine noise, and you need to pinpoint its source.

To help you locate the source of the engine noise, you can use an automotive stethoscope or a long screwdriver. Place the tip of the stethoscope or the screwdriver on different parts of the engine and listen through the other end. Be careful not to touch any moving or hot parts. The part that produces the loudest noise is usually the culprit.

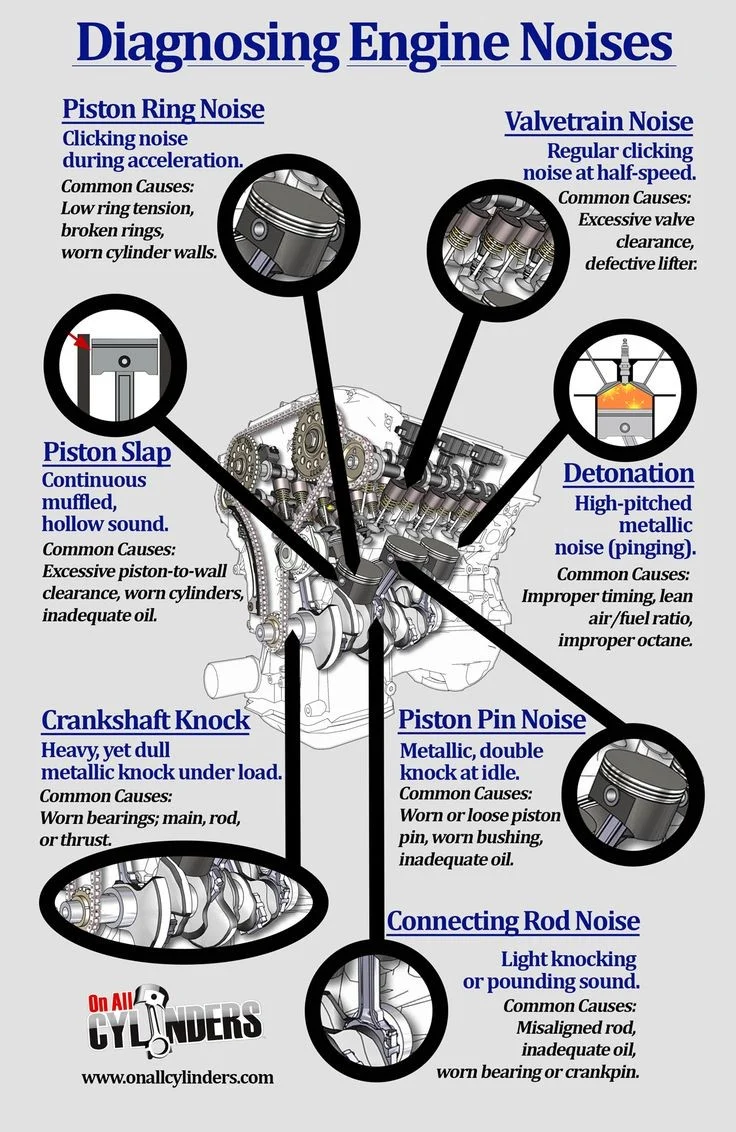

Here are some common engine noises and their possible causes:

1. Tap: A tapping sound that changes with engine speed is often caused by valve clearances out of adjustment, worn cam followers or cam lobes
2. Rattle: A rattling sound that occurs when the engine is cold or under load may indicate a loose component, a broken piston ring, or a damaged component.
3. Light knock: A light knocking sound that occurs at idle or low speeds may be caused by worn small-end bearings, cam or cam follower.
4. Deep knock or thud: A deep knocking or thudding sound that occurs at all speeds may be caused by worn big-end bearings.
5. Rumble: A rumbling sound that occurs at all speeds may be caused by worn main bearings.
6. Slap: A slapping sound that occurs when the engine is cold or under load may be caused by worn pistons or bores.
7. Vibration: A vibration that occurs at all speeds may be caused by loose or out-of-balance components.
8. Clatter: A clattering sound that occurs at all speeds may be caused by a broken rocker shaft or broken piston rings.
9. Hiss: A hissing sound that occurs when the engine is hot or under load may be caused by a leak from inlet or exhaust manifolds or connections.
10. Roar: A roaring sound that occurs when the engine is cold or under load may be caused by air intake noise, air filter missing, exhaust blowing or a seized viscous fan drive.
11. Clunk: A clunking sound that occurs when the engine is started or stopped may be caused by a loose flywheel, worn thrust bearings, or a loose front pulley/damper.
12. Whine: A whining sound that occurs when the engine is running may be caused by a bad power steering pump or alternator bearing.
13. Shriek: A shrieking sound that occurs when the engine is running may be caused by a dry bearing in an ancillary component.
14. Squeal: A squealing sound that occurs when the engine is running may be caused by a slipping drive belt.

Read Also: What Causes the Check Engine Light to Come On?

To fix these noises, you may need to adjust, replace, or lubricate the faulty parts. However, some noises may indicate more serious problems that require professional diagnosis and repair.

Therefore, it is always advisable to consult your owner's manual or a qualified mechanic before attempting any repairs.

Read Also: How to tell if a broken timing belt damaged the engine?

The Dangers of Overfilling Your Car's Engine With Oil

We hope this article has helped you understand how to diagnose engine noise using your ear and simple tools. Remember, engine noise can be a warning sign of potential damage, so do not ignore it and take action as soon as possible.
