P0021 A camshaft postion - timing over-advanced or system performance (Bank 2)

If you have a P0021 code on your OBD-II scanner, it means that your car's engine has a problem with its timing. The camshaft position for bank 2 is more advanced than what the engine control module (ECM) expects, and this can affect your car's performance, fuel efficiency, and emissions.

In this article, we will explain what the P0021 code means, what causes it, what symptoms it may produce, and how to diagnose and fix it.

What Is the P0021 Code?

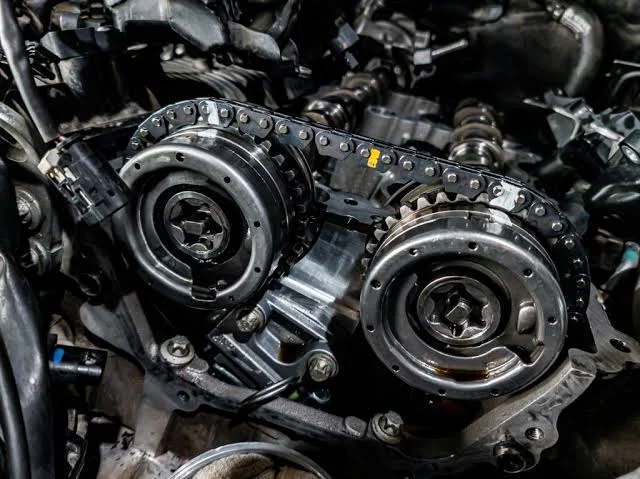

The P0021 code is a generic powertrain code that indicates a fault in the camshaft position for bank 2. The camshaft position is controlled by a device called a camshaft position actuator, which uses oil pressure to adjust the angle of the camshaft relative to the crankshaft. This adjustment affects the timing of the intake valves, which determines when the air-fuel mixture enters the cylinders.

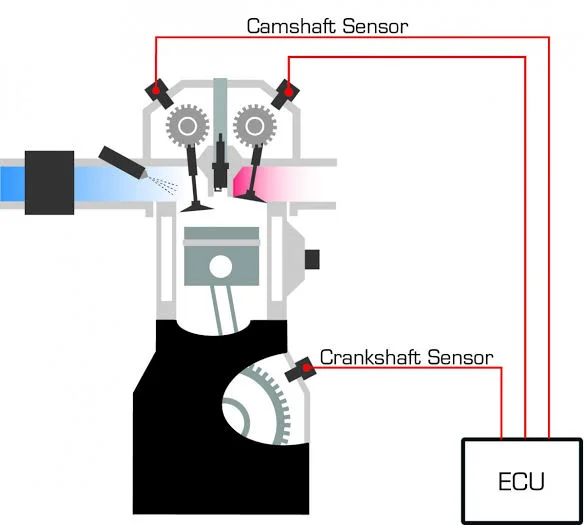

The ECM monitors the signals from the camshaft position sensor and the crankshaft position sensor to determine the position and speed of the camshaft and crankshaft. It also compares the signals from these sensors to ensure that they are in sync with each other. If the ECM detects that the camshaft position for bank 2 is more advanced than what it commands, it will set the P0021 code and turn on the check engine light.

Bank 2 refers to the side of the engine that does not contain cylinder 1. Depending on your car model, it may be the left or right side of the engine when viewed from the front.

What Causes the P0021 Code?

There are several possible causes for the P0021 code, such as:

• - A worn or stretched timing belt or chain
• - A faulty or misaligned timing belt or chain tensioner
• - A damaged or misaligned camshaft or crankshaft tone ring
• - A faulty or dirty camshaft position actuator
• - A faulty or dirty camshaft position sensor
• - A faulty or dirty crankshaft position sensor
• - A faulty or dirty solenoid valve
• - A damaged or corroded wiring harness or connector for the sensors or actuator
• - A software glitch or update issue in the ECM

What Symptoms Does the P0021 Code Produce?

Depending on the severity of the problem, the P0021 code may produce some of these symptoms:

• - The check engine light turns on
• - The engine cranks but does not start
• - The engine runs rough or stalls
• - The engine rattles near the harmonic balancer
• - The engine has reduced power or acceleration
• - The engine has poor fuel economy or increased emissions

How to Diagnose and Fix the P0021 Code?

To diagnose and fix the P0021 code, you will need some tools and equipment, such as an OBD-II scanner, a multimeter, a repair manual, and some basic tools. You will also need some knowledge and skills in automotive repair and troubleshooting.

Here are some general steps that you can follow to diagnose and fix the P0021 code:

1. Scan your car with an OBD-II scanner and confirm that you have the P0021 code. You may also have other related codes, such as P0016, P0017, P0018, or P0019. Note down all the codes and clear them from your scanner.

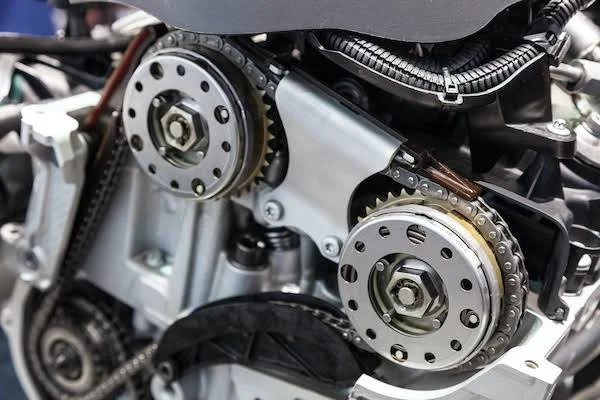

2. Check your timing belt or chain for any signs of wear, damage, or misalignment. You may need to remove some covers or components to access it. Refer to your repair manual for specific instructions. If you find any problems with your timing belt or chain, replace it as necessary.
3. Check your timing belt or chain tensioner for any signs of wear, damage, or misalignment. Make sure that it is properly adjusted and secured. If you find any problems with your tensioner, replace it as necessary.
4. Check your camshaft and crankshaft tone rings for any signs of wear, damage, or misalignment. These are metal rings with teeth that are attached to the shafts and interact with the sensors. Make sure that they are clean and free from any debris or corrosion. If you find any problems with your tone rings, replace them as necessary.

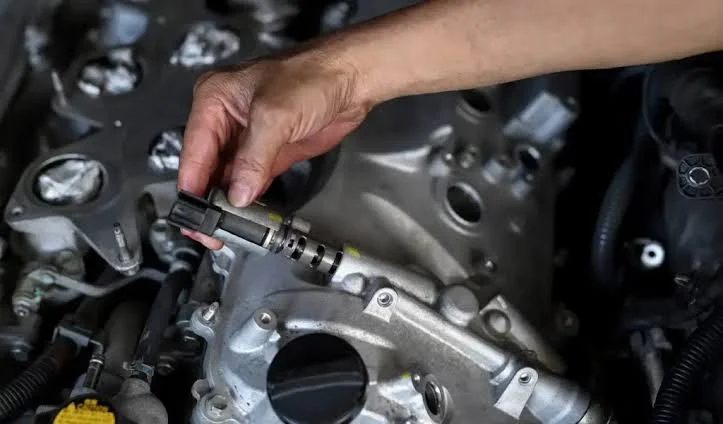

5. Check your camshaft position actuator for any signs of wear, damage, or contamination. Make sure that it is securely mounted and connected to its wiring harness. Use a multimeter to test its resistance and voltage according to your repair manual specifications. If you find any problems with your actuator, replace it as necessary.
6. Check your camshaft position sensor for any signs of wear, damage, or contamination. Make sure that it is securely mounted and connected to its wiring harness. Use a multimeter to test its resistance and voltage according to your repair manual specifications. If you find any problems with your sensor, replace it as necessary.
7. Check your crankshaft position sensor for any signs of wear, damage, or contamination. Make sure that it is securely mounted and connected to its wiring harness. Use a multimeter to test its resistance and voltage according to your repair manual specifications. If you find any problems with your sensor, replace it as necessary.

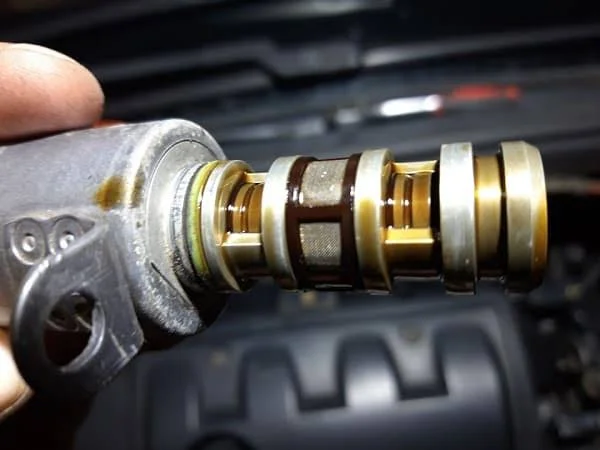

8. Check your solenoid valve for any signs of wear, damage, or contamination. Make sure that it is securely mounted and connected to its wiring harness. Use a multimeter to test its resistance and voltage according to your repair manual specifications. If you find any problems with your valve, replace it as necessary.
9. Check your wiring harnesses and connectors for any signs of damage or corrosion. Make sure that they are properly routed and secured. Use a multimeter to test their continuity and resistance according to your repair manual specifications. If you find any problems with your wiring harnesses or connectors, repair or replace them as necessary.

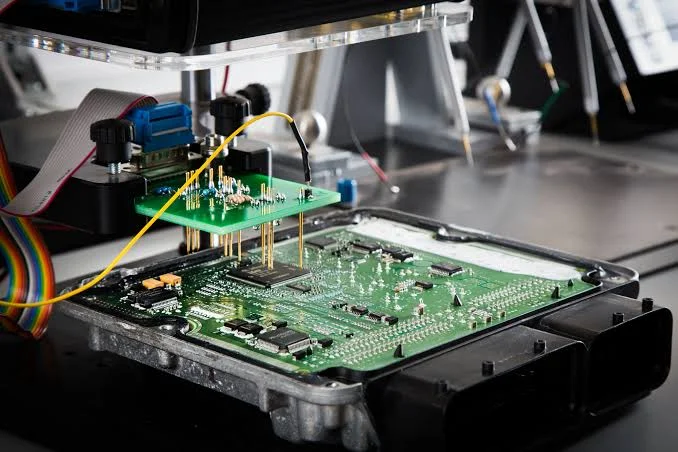

10. Update or reflash your ECM software if needed. Sometimes, a software glitch or update issue can cause false codes or performance issues in your car. You may need a professional scan tool or a dealer service to do this step.
11. Scan your car again with an OBD-II scanner and check if the problem is resolved. If not, you may need to perform further diagnosis or seek professional help.

Conclusion

The P0021 code is a common problem that can affect your car's engine performance, fuel efficiency, and emissions. It indicates that your camshaft position for bank 2 is more advanced than what the ECM expects, and this can affect your engine's timing. The possible causes include a worn or misaligned timing belt or chain, a faulty or dirty sensor, actuator, or valve, a damaged or corroded wiring harness, or a software glitch in the ECM.

To diagnose and fix the P0021 code, you need to scan your car with an OBD-II scanner, check your timing belt or chain, sensors, actuator, valve, wiring harnesses, and ECM software, and replace some components or update your ECM software if needed.
