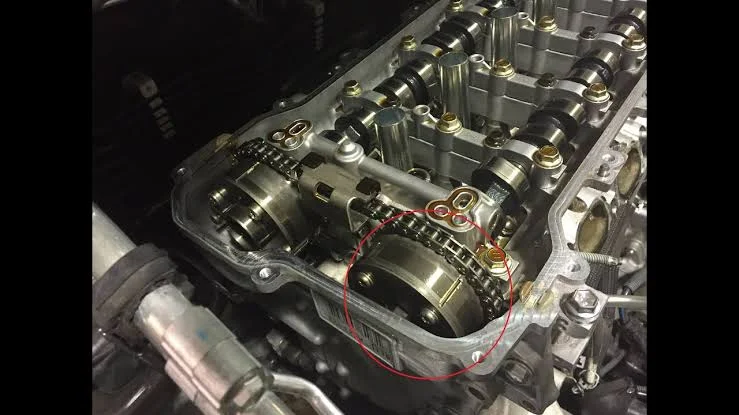

P0014 B camshaft position - timing over advanced or system performance (Bank 1)

P0014 is a diagnostic trouble code (DTC) that indicates a problem with the camshaft timing in your engine.

The camshaft is a rotating shaft that controls the opening and closing of the valves in the cylinders, which affects the performance and efficiency of your engine. The camshaft timing can be adjusted by a system called variable valve timing (VVT), which changes the angle of the camshaft relative to the crankshaft depending on the engine speed and load. This allows the engine to optimize the air-fuel mixture, reduce emissions, and increase power.

However, sometimes the camshaft timing can be out of sync with the desired position, either due to a mechanical or electrical fault. This can cause the engine to run poorly, lose power, consume more fuel, or emit more pollutants. When the engine control module (ECM) detects that the camshaft position for bank 1 (the side of the engine with cylinder 1) is more advanced (or ahead) than what it should be, it will trigger the P0014 code and illuminate the check engine light on your dashboard.

Possible Causes of P0014 Code

There are several possible causes of the P0014 code, such as:

• - A faulty camshaft position sensor or wiring
• - A faulty camshaft position actuator solenoid or wiring
• - A clogged or dirty oil filter or passages
• - A low or dirty engine oil level or quality
• - A worn or stretched timing chain or belt
• - A damaged or misaligned camshaft phaser or sprocket
• - A faulty ECM

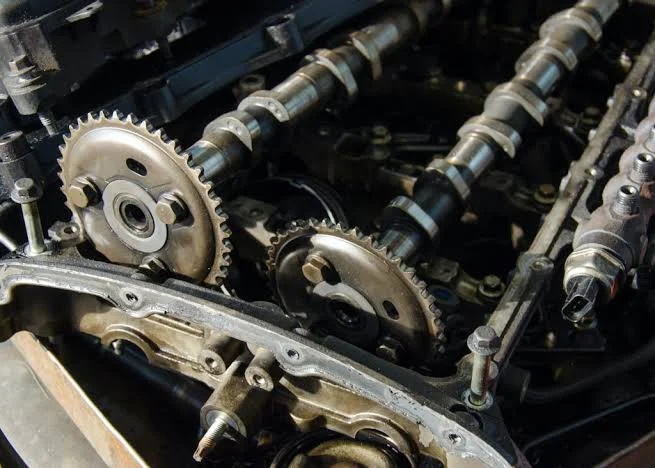

Symptoms of P0014 Code

The symptoms of the P0014 code may vary depending on the severity of the problem and the type of vehicle you have. Some common symptoms are:

• - Reduced engine performance and power
• - Rough idling or stalling
• - Decreased fuel economy and increased emissions
• - Engine knocking or rattling noise
• - Difficulty starting or hard shifting

How to Diagnose and Fix P0014 Code

To diagnose and fix the P0014 code, you will need a scan tool to read the trouble codes and data from the ECM. You will also need a multimeter, an oil pressure gauge, and a repair manual for your specific vehicle model. Here are some general steps to follow:

1. Verify the code with a scan tool. Clear the code and see if it returns after driving for a while.
2. Check the engine oil level and quality. If it is low or dirty, change the oil and filter and see if that fixes the problem.
3. Inspect the camshaft position sensor and wiring for any damage, corrosion, or loose connections. Test the sensor with a multimeter and compare the readings with the specifications in your repair manual. Replace the sensor or wiring if necessary.
4. Inspect the camshaft position actuator solenoid and wiring for any damage, corrosion, or loose connections. Test the solenoid with a multimeter and compare the readings with the specifications in your repair manual. Replace the solenoid or wiring if necessary.
5. Check the oil pressure with an oil pressure gauge. If it is too low, there may be a problem with the oil pump, oil filter, or oil passages. Clean or replace any clogged or damaged components.
6. Check the timing chain or belt for any wear, slack, or misalignment. If it is too loose or broken, it may cause the camshaft timing to be off. Replace the timing chain or belt if necessary.
7. Check the camshaft phaser or sprocket for any damage or misalignment. If it is stuck or worn out, it may not be able to adjust the camshaft timing properly. Replace the phaser or sprocket if necessary.
8. If none of the above steps solve the problem, there may be a problem with the ECM. Test the ECM with a scan tool and see if it is sending and receiving correct signals to and from the sensors and solenoids. Replace the ECM if necessary.

Conclusion

The P0014 code is a common DTC that indicates a problem with the camshaft timing in your engine. It can cause your engine to run poorly, lose power, consume more fuel, or emit more pollutants. To fix this problem, you will need to diagnose and repair the faulty component that is causing the camshaft timing to be out of sync with what it should be.
