P0012 A Camshaft Position - Timing Over Retarded (Bank 1)

This code indicates that the camshaft position of bank 1 is more retarded than the computer expected. This can affect the engine performance, fuel economy, and emissions.

If you have a car with a variable valve timing (VVT) system, you may encounter the trouble code P0012 on your code scanner.  In this article, we will explain what this code means, what causes it, what symptoms it produces, and how to diagnose and fix it.

What is P0012 Code?

The generic code P0012 is defined as "A" Camshaft Position - Timing Over Retarded (Bank 1). This code tells you that the powertrain control module (PCM) of your car has detected that the intake camshaft of bank 1 is more retarded than it was instructed to be. The code is set when the camshaft timing is below a certain limit for a certain amount of time.

The VVT system is a technology that allows the engine to adjust the timing of the intake and exhaust valves according to the driving conditions. This helps to optimize the engine performance, efficiency, and emissions. The VVT system consists of several components, such as the camshaft position sensor, the crankshaft position sensor, the VVT solenoid, and the camshaft phaser.

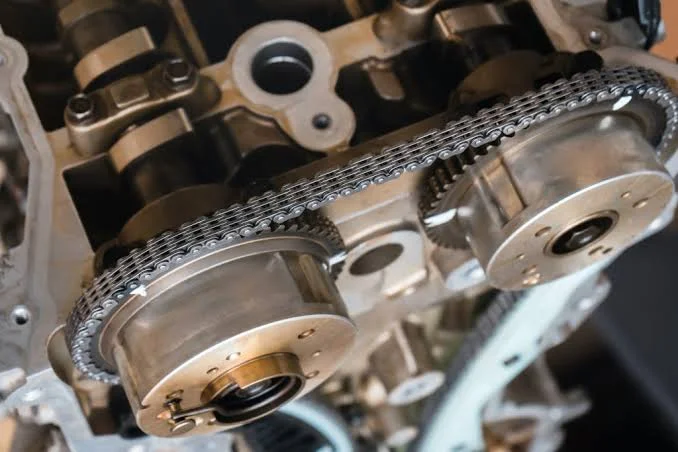

The camshaft position sensor measures the position of the camshaft and sends a signal to the PCM. The crankshaft position sensor measures the position of the crankshaft and sends a signal to the PCM. The PCM uses these signals to calculate the desired camshaft position and sends a signal to the VVT solenoid. The VVT solenoid controls the oil flow to the camshaft phaser. The camshaft phaser is a device that rotates the camshaft slightly to advance or retard the valve timing.

The code P0012 specifies that the problem is located in bank 1 of your engine, which is the side where cylinder 1 is located. It also specifies that the problem is related to "A" camshaft, which is usually the intake camshaft. However, this may vary depending on your car model and engine configuration.

What Causes P0012 Code?

There are several possible causes for the code P0012, such as:

• - Dirty or low-quality engine oil
• - Low or high oil pressure

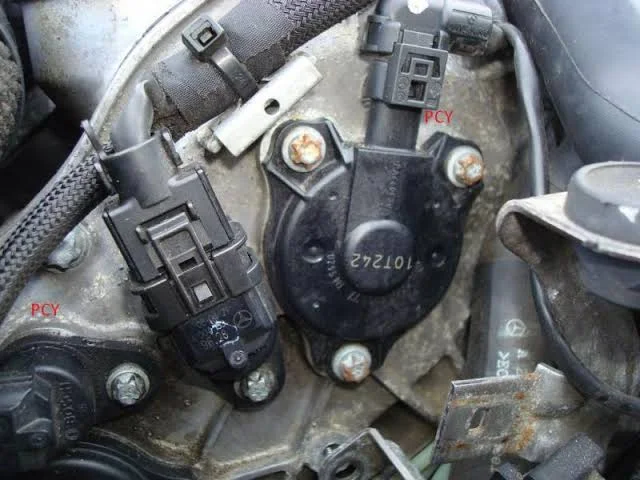

• - Faulty or clogged VVT solenoid
• - Damaged or loose wiring or connectors
• - Faulty camshaft position sensor
• - Faulty crankshaft position sensor
• - Faulty PCM

What are the Symptoms of P0012 Code?

The code P0012 may cause various symptoms for your engine, such as:

• - Check engine light on
• - Rough engine performance
• - Reduced power output
• - Poor fuel economy
• - Increased emissions
• - Engine noise or rattling

How to Diagnose P0012 Code?

To diagnose and fix the code P0012, you need to follow these steps:

• - Scan your car with an OBD-II reader to confirm the code and retrieve any other related codes.
• - Check your engine oil level and condition. If it is low, dirty, or contaminated, change your oil and filter and clear the code. If the code returns, proceed to the next step.
• - Inspect the wiring and connectors of the VVT solenoid circuit. Look for any signs of damage, corrosion, looseness, or short circuits. Repair or replace any faulty wiring or connectors and clear
• the code. If the code returns, proceed to the next step.
• - Test the VVT solenoid using a multimeter or a test light. Check its resistance and voltage according to your car's specifications. If it is out of range, replace it and clear the code. If it is within range, proceed to the next step.
• - Test the camshaft position sensor and the crankshaft position sensor using a multimeter or an oscilloscope. Check their resistance and signal according to your car's specifications. If they are out of range, replace them and clear the code. If they are within range, proceed to the next step.
• - Test the PCM using a scan tool or a jumper wire. Check its communication and operation according to your car's specifications. If it is faulty, replace it and clear the code. If it is working properly, you have successfully diagnosed and fixed the code P0012.

Conclusion

The code P0012 is a common trouble code that indicates a problem with one of the camshaft positions in bank 1 of your engine. It can cause various symptoms for your engine performance, fuel economy, and emissions. To diagnose and fix this code, you need to check your engine oil condition, inspect and test your wiring and connectors, test your VVT solenoid, test your camshaft position sensor and crankshaft position sensor, and test your PCM.

By following these steps, you can resolve this issue and restore your engine's optimal function.
