P0010 A Camshaft Position Actuator Circuit (Bank 1)

This code indicates that there is a problem with one of the camshaft position actuators in bank 1 of your engine.

If you have a modern car with a variable valve timing (VVT) system, you may encounter the trouble code P0010 on your code scanner. In this article, we will explain what this code means, what causes it, what symptoms it produces, and how to diagnose and fix it.

What is P0010 Code?

The generic code P0010 is defined as "A" Camshaft Position Actuator Circuit (Bank 1). This code tells you that the primary computer or powertrain control module (PCM) of your car has detected a problem with one of the VVT solenoids in bank 1 of your engine.

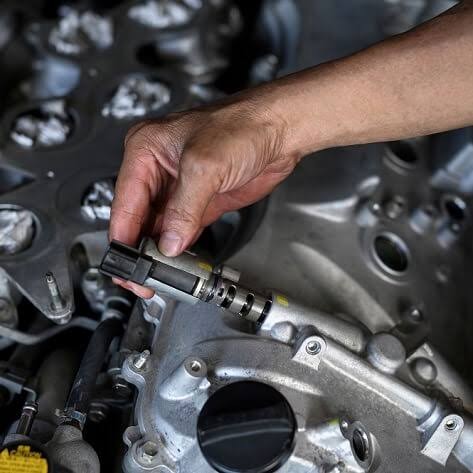

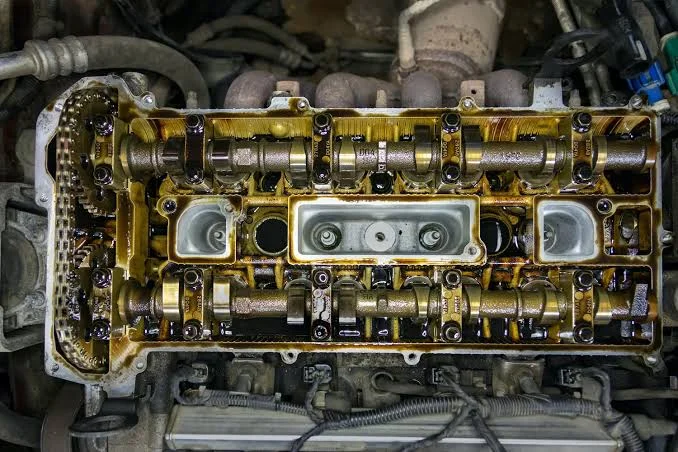

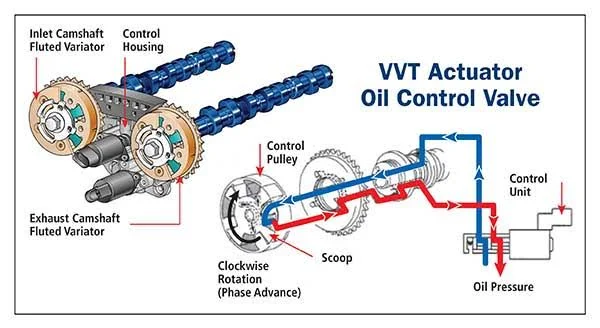

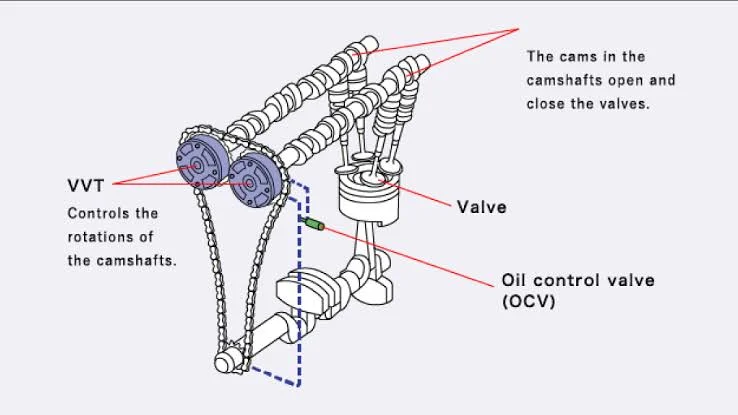

The VVT solenoid, also known as the oil control valve or the camshaft position actuator, is a device that controls the oil flow to the camshaft phaser. The camshaft phaser is a mechanism that adjusts the timing of the intake or exhaust valves by rotating the camshaft slightly. This allows the engine to optimize its performance, efficiency, and emissions under different driving conditions.

Read Also: 10 Common DTC Codes: Causes, Troubleshooting, and Repair

The PCM monitors the position and operation of the camshaft phaser using various sensors, such as the camshaft position sensor and the crankshaft position sensor. The PCM also sends signals to the VVT solenoid to regulate the oil pressure and flow to the camshaft phaser. If the PCM detects a malfunction in the VVT solenoid circuit, such as an open or short circuit, it will set the code P0010 and turn on the check engine light.

The code P0010 specifies that the problem is located in bank 1 of your engine, which is the side where cylinder 1 is located. It also specifies that the problem is related to "A" camshaft, which is usually the intake camshaft. However, this may vary depending on your car model and engine configuration.

What Causes P0010 Code?

There are several possible causes for the code P0010, such as:

• - Dirty or contaminated engine oil
• - Low or high oil pressure
• - Faulty or clogged VVT solenoid
• - Damaged or loose wiring or connectors
• - Faulty camshaft position sensor
• - Faulty crankshaft position sensor
• - Faulty PCM

Read Also: Dashboard Warning Light Symbols and Meanings: A Comprehensive Guide with DTC Codes

What are the Symptoms of P0010 Code?

The code P0010 may cause various symptoms for your engine, such as:

• - Check engine light on
• - Rough engine performance
• - Reduced power output
• - Poor fuel economy
• - Increased emissions
• - Engine noise or rattling

How to Diagnose P0010 Code?

To diagnose and fix the code P0010, you need to follow these steps:

• - Scan your car with an OBD-II reader to confirm the code and retrieve any other related codes. Read Also: Mastering the Art of Reading Engine DTC Codes without a Diagnostic Tool

• - Check your engine oil level and condition. If it is low, dirty, or contaminated, change your oil and filter and clear the code. If the code returns, proceed to the next step.
• - Inspect the wiring and connectors of the VVT solenoid circuit. Look for any signs of damage, corrosion, looseness, or short circuits. Repair or replace any faulty wiring or connectors and clear the code. If the code returns, proceed to the next step.
• - Test the VVT solenoid using a multimeter or a test light. Check its resistance and voltage according to your car's specifications. If it is out of range, replace it and clear the code. If it is within range, proceed to the next step.
• - Test the camshaft position sensor and the crankshaft position sensor using a multimeter or an oscilloscope. Check their resistance and signal according to your car's specifications. If they are out of range, replace them and clear the code. If they are within range, proceed to the next step.
• - Test the PCM using a scan tool or a jumper wire. Check its communication and operation according to your car's specifications. If it is faulty, replace it and clear the code. If it is working properly, you have successfully diagnosed and fixed the code P0010.

Conclusion

The code P0010 is a common trouble code that indicates a problem with one of the camshaft position actuators in bank 1 of your engine. It can cause various symptoms for your engine performance, fuel economy, and emissions. To diagnose and fix this code, you need to check your engine oil condition, inspect and test your wiring and connectors, test your VVT solenoid, test your camshaft position sensor and crankshaft position sensor, and test your PCM. By following these steps, you can resolve this issue and restore your engine's optimal function.
