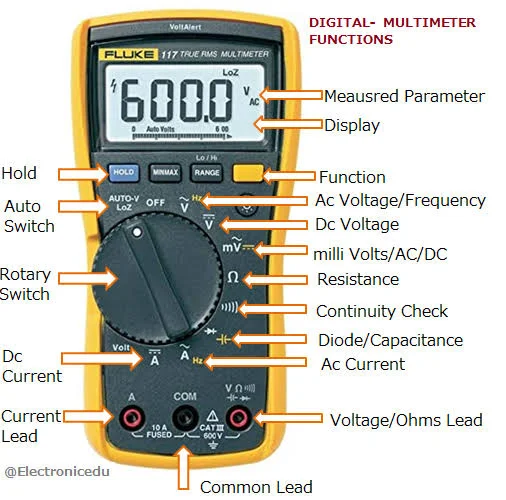

How to Troubleshoot a Multimeter: A Step-by-Step Guide

Troubleshooting a multimeter involves checking connections, batteries, and settings to ensure accurate readings. Learn how to identify and fix common issues with this essential electrical tool.

A multimeter is a handy device that can measure voltage, current, resistance, and other electrical properties. It can help you diagnose problems with your circuits, appliances, batteries, and more. However, sometimes a multimeter can malfunction or give inaccurate readings. How do you troubleshoot a multimeter and fix it? In this article, I will show you some common problems and solutions for both digital and analog multimeters.

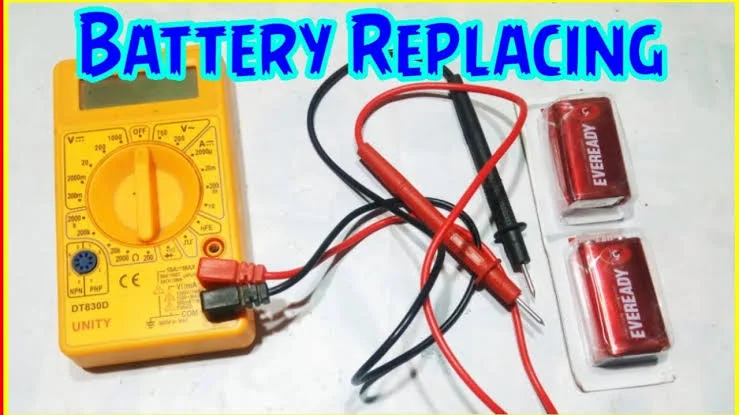

Check the Battery and the Fuse

The first thing you should do when your multimeter is not working properly is to check the battery and the fuse. A low or dead battery can affect the accuracy and functionality of your multimeter. To check the battery, turn on your multimeter and set it to measure DC voltage. Touch the probes to the terminals of a fresh 9V battery. If the reading is lower than 9V, replace the battery.

A blown fuse can also prevent your multimeter from measuring current or resistance. To check the fuse, locate the fuse holder on your multimeter and open it. Remove the fuse and inspect it for any signs of damage or burning. If the fuse is broken or discolored, replace it with a new one of the same rating.

Clean the Switches and the Probes

Another common cause of multimeter problems is dirty or corroded switches and probes. Dirt, dust, moisture, and oxidation can interfere with the electrical contacts and cause faulty readings or no readings at all. To clean the switches and probes, follow these steps:

• Turn off your multimeter and disconnect it from any power source.
• Use a soft cloth or a cotton swab dipped in alcohol to wipe the switches and probes gently. Do not use any abrasive or corrosive materials that could damage the components.
• Spray some contact cleaner on the switches and rotate them back and forth several times to remove any dirt or oxidation from the contacts. Let them dry for several hours before using them again.
• Check the wires and connectors of the probes for any cracks, breaks, or loose connections. If you find any damage, replace the probes with new ones.

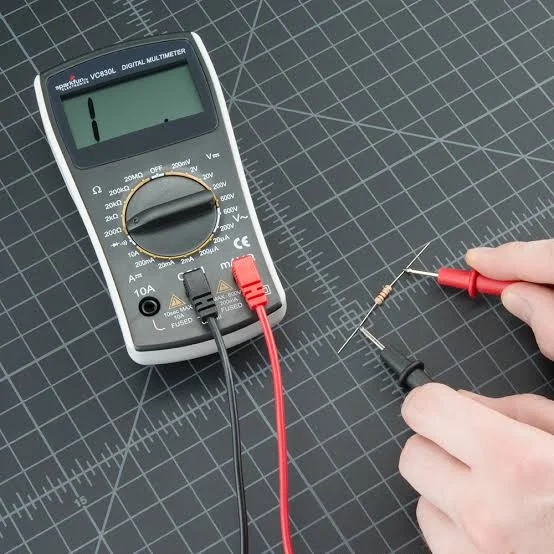

Test Your Multimeter on a Known Source

After checking and cleaning your multimeter, you should test it on a known source to see if it works correctly. For example, you can use a wall outlet, a light bulb, a resistor, or another multimeter to verify your readings. Here are some tips on how to test your multimeter on different sources:

• To test AC voltage, set your multimeter to measure AC voltage and plug the probes into a wall outlet. The reading should be around 120V in North America or 240V in Europe.
• To test DC voltage, set your multimeter to measure DC voltage and touch the probes to the terminals of a battery. The reading should match the voltage rating of the battery.
• To test resistance, set your multimeter to measure resistance (ohms) and touch the probes to a resistor. The reading should be close to the resistance value of the resistor.
• To test current, set your multimeter to measure current (amps) and connect it in series with a load, such as a light bulb. The reading should be equal to the current flowing through the load.
• To test continuity, set your multimeter to measure continuity (beep) and touch the probes to two points of a circuit. The multimeter should beep if there is a complete path between the points.

If your multimeter gives accurate readings on these sources, then it is working properly. If not, then you may need to calibrate it or repair it.

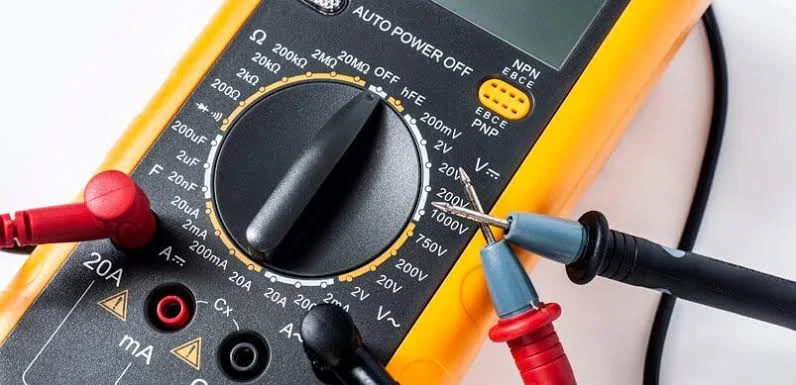

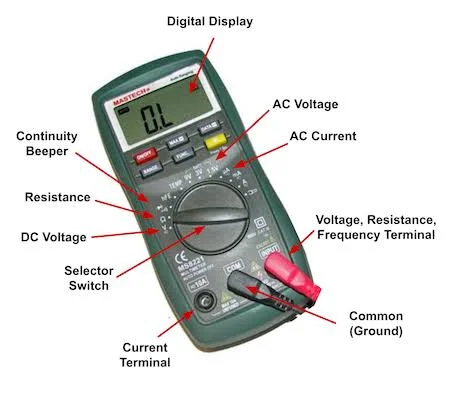

Calibrate or Repair Your Multimeter

If your multimeter is still giving inaccurate or inconsistent readings after troubleshooting it, then you may need to calibrate it or repair it. Calibration is the process of adjusting your multimeter to match a standard reference value. Repair is the process of fixing any broken or damaged parts of your multimeter.

Calibration and repair are not easy tasks and require special tools and skills. Therefore, unless you are an experienced technician, I recommend that you take your multimeter to a professional service center for calibration or repair.

Conclusion

A multimeter is an essential tool for measuring electrical properties and troubleshooting problems. However, sometimes a multimeter can malfunction or give inaccurate readings due to various reasons. In this article, I showed you how to troubleshoot a multimeter by checking the battery and fuse, cleaning the switches and probes, testing it on a known source, and calibrating or repairing it if necessary.
