Fuel Pressure Regulator Issues: Symptoms and Repairs

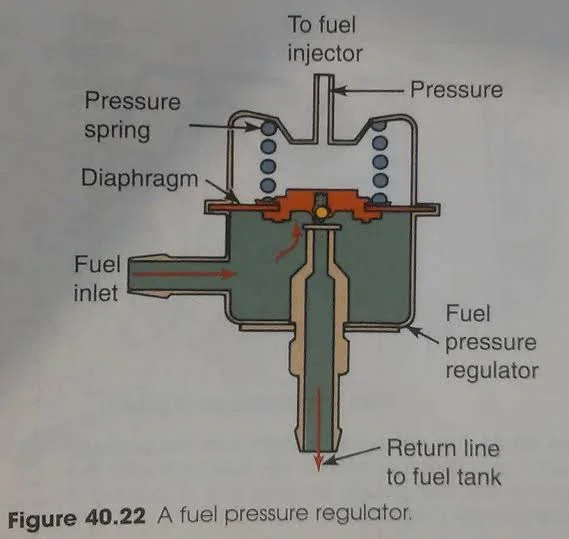

A fuel pressure regulator is a device that maintains a constant fuel pressure in the fuel rail, which supplies fuel to the injectors.

The fuel pressure regulator is controlled by a vacuum line that connects to the intake manifold. The fuel pressure regulator adjusts the fuel pressure according to the engine load and speed, ensuring a proper air-fuel ratio for optimal combustion.

However, a fuel pressure regulator can fail or malfunction due to various reasons, such as wear and tear, contamination, or damage. A faulty fuel pressure regulator can cause a variety of problems for the engine and the vehicle, such as performance issues, emission problems, or even a no-start condition. Therefore, it is important to recognize the symptoms of a bad fuel pressure regulator and perform the necessary repairs as soon as possible.

In this article, we will discuss some of the common symptoms of a bad fuel pressure regulator, how to diagnose and test it, and how to replace it.

Symptoms of a Bad Fuel Pressure Regulator

A bad fuel pressure regulator can affect the engine’s performance, efficiency, and emissions in different ways. Some of the common symptoms of a bad fuel pressure regulator are:

• Engine misfires: One of the most noticeable symptoms of a bad fuel pressure regulator is engine misfires, especially at idle or during acceleration. Engine misfires occur when the engine does not fire properly or at all in one or more cylinders. This can cause the engine to sputter, stumble, or lose power. Engine misfires can be caused by either too high or too low fuel pressure, which results in either a rich or lean air-fuel mixture. A rich mixture means there is too much fuel and not enough air in the combustion chamber, while a lean mixture means there is too little fuel and too much air. Both conditions can prevent complete combustion and cause unburned fuel to exit the engine through the exhaust system.
• Check engine light: Another symptom of a bad fuel pressure regulator is an illuminated check engine light on the dashboard. Most modern vehicles have an onboard diagnostic system that monitors various sensors and components in the engine and other systems. If the system detects a problem with the fuel pressure regulator or its circuit, it will store a trouble code in the engine control unit (ECU) and turn on the check engine light to alert the driver. The trouble code can be retrieved using a scan tool that plugs into the diagnostic port under the dashboard. Some of the common trouble codes related to the fuel pressure regulator are P0087 (Fuel Rail/System Pressure Too Low), P0088 (Fuel Rail/System Pressure Too High), P0090 (Fuel Pressure Regulator 1 Control Circuit), P0091 (Fuel Pressure Regulator 1 Control Circuit Low), and P0092 (Fuel Pressure Regulator 1 Control Circuit High).
• Decreased engine performance: Another symptom of a bad fuel pressure regulator is decreased engine performance, such as reduced power, acceleration, or fuel economy. As mentioned earlier, an incorrect fuel pressure can cause an improper air-fuel ratio, which affects the engine’s efficiency and output. A low fuel pressure can cause a lean mixture, which can result in detonation, knocking, or pre-ignition in the combustion chamber. These are abnormal combustion events that can damage the engine’s pistons, valves, or cylinder walls. A high fuel pressure can cause a rich mixture, which can result in excessive fuel consumption, carbon deposits, or fouled spark plugs.

• Fuel leakage: Another symptom of a bad fuel pressure regulator is fuel leakage from the regulator itself or its vacuum line. The fuel pressure regulator has a diaphragm and seals that can wear out or rupture over time, allowing fuel to leak out of the regulator’s body or into its vacuum line. This can cause a loss of fuel pressure and a rich mixture in the engine. Fuel leakage can also pose a fire hazard if it comes into contact with hot surfaces or sparks.
• Black smoke from exhaust: Another symptom of a bad fuel pressure regulator is black smoke coming out of the exhaust pipe. Black smoke indicates that there is too much fuel and not enough oxygen in the combustion chamber, which causes incomplete combustion and unburned hydrocarbons to exit the engine through the exhaust system. Black smoke can also be accompanied by a strong smell of gasoline, a rough idle, or a failed emission test.

How to Diagnose and Test a Bad Fuel Pressure Regulator

If you suspect that your fuel pressure regulator is bad, you should perform some tests to confirm your diagnosis before replacing it. Some of the tests you can do are:

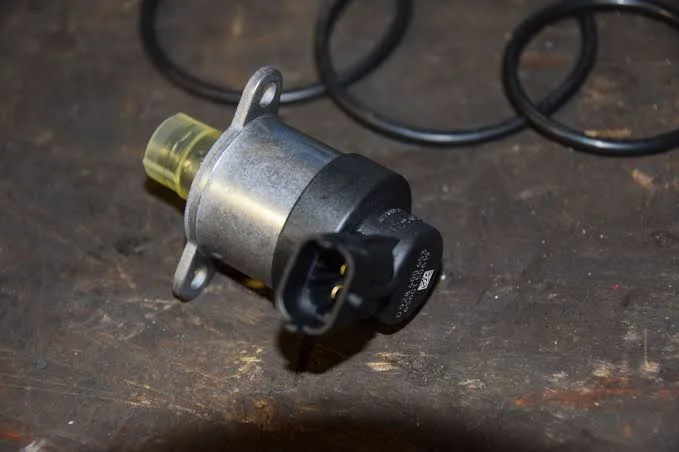

Visual inspection:

The first thing you should do is visually inspect the fuel pressure regulator and its vacuum line for any signs of damage, wear, or leakage. Look for cracks, holes, or corrosion on the regulator’s body or fittings, and check for wetness, stains, or swelling on the vacuum line. If you find any of these signs, you should replace the fuel pressure regulator or its vacuum line as soon as possible.

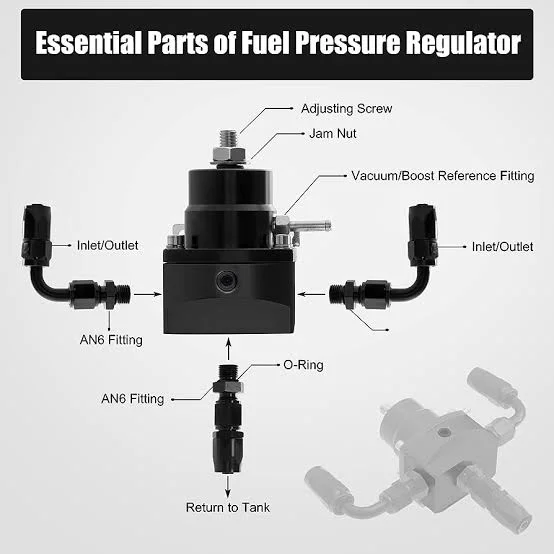

Fuel pressure test:

The next thing you should do is measure the fuel pressure in the fuel rail using a fuel pressure gauge. A fuel pressure gauge is a device that attaches to the fuel rail’s test port and displays the fuel pressure in psi (pounds per square inch). You can buy a fuel pressure gauge from any auto parts store or online. To perform the fuel pressure test, you should follow these steps:

1. Locate the fuel rail and its test port on your engine. The fuel rail is a metal pipe that runs along the top of the engine and connects to the injectors. The test port is a small valve with a cap that looks like a tire valve. The location of the fuel rail and the test port may vary depending on your vehicle’s make and model, so you should consult your owner’s manual or repair guide for more information.
2. Relieve the fuel pressure in the system by removing the fuel pump relay or fuse from the fuse box under the hood or inside the car. The location of the fuel pump relay or fuse may vary depending on your vehicle’s make and model, so you should consult your owner’s manual or repair guide for more information. Start the engine and let it run until it stalls, then turn off the ignition and disconnect the negative battery cable.
3. Attach the fuel pressure gauge to the test port by screwing it on or using an adapter if necessary. Make sure the gauge is securely connected and does not leak.
4. Reconnect the negative battery cable and reinstall the fuel pump relay or fuse. Turn the ignition to the ON position but do not start the engine. Observe the reading on the gauge and compare it to the specifications for your vehicle. The specifications may vary depending on your vehicle’s make and model, so you should consult your owner’s manual or repair guide for more information. Typically, the fuel pressure should be between 40 to 60 psi for most vehicles.
5. Start the engine and let it idle. Observe the reading on the gauge and compare it to the specifications for your vehicle. The fuel pressure should drop slightly when the engine is running, but not more than 10 psi.
6. Disconnect the vacuum line from the fuel pressure regulator and plug it with your finger or a cap. Observe the reading on the gauge and compare it to the specifications for your vehicle. The fuel pressure should increase by about 10 psi when the vacuum line is disconnected.
7. Reconnect the vacuum line to the fuel pressure regulator and turn off the engine. Observe how long it takes for
8. If any of these readings are out of range, you may have a bad fuel pressure regulator or another problem in
9. To confirm that
10. Replace

Read Also: Mastering Fuel System Troubleshooting: Tips, Solutions, and FAQs

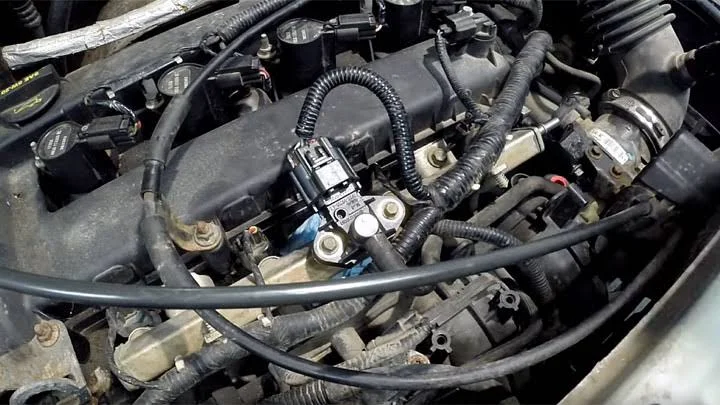

Fuel pressure regulator test:

The last thing you should do is test the fuel pressure regulator itself using a hand-held vacuum pump. A hand-held vacuum pump is a device that creates a vacuum by squeezing a handle and displays the vacuum level in inches of mercury (inHg) or millimeters of mercury (mmHg). You can buy a hand-held vacuum pump from any auto parts store or online. To perform the fuel pressure regulator test, you should follow these steps:

1. Locate
2. Disconnect
3. Attach
4. Apply
5. Observe
6. Release

If any of these results are abnormal, you have a bad fuel pressure regulator that needs to be replaced.

How to Replace a Bad Fuel Pressure Regulator

If you have confirmed that your fuel pressure regulator is bad, you can replace it yourself if you have some basic tools and skills, or you can take your car to a professional mechanic if you are not comfortable with doing it yourself. The replacement procedure may vary depending on your vehicle’s make and model, so you should consult your owner’s manual or repair guide for more information. However, a general overview of how to replace a bad fuel pressure regulator is as follows:

1. Gather
2. Relieve
3. Remove
4. Install
5. Reconnect

Read Also: How to Improve Fuel Efficiency in Cars: Tips and Techniques

Cost of Replacing a Bad Fuel Pressure Regulator

The cost of replacing a bad fuel pressure regulator depends on various factors, such as the type of vehicle, the type of regulator, and the labor rate. However, a general estimate of how much it will cost to replace a bad fuel pressure regulator is as follows
