Engine Sensors: How They Monitor and Optimize Performance

Engine sensors measure various parameters such as temperature, pressure, speed, position, air flow, and exhaust composition, and send the data to the engine control unit (ECU).

Engine sensors are essential components of modern vehicles that help to ensure optimal performance, efficiency, and safety. The ECU then uses this information to adjust the fuel injection, ignition timing, valve timing, and other engine functions according to the operating conditions.

In this article, we will discuss some of the most common types of engine sensors, how they work, and what benefits they provide for the engine and the driver.

Temperature Sensors

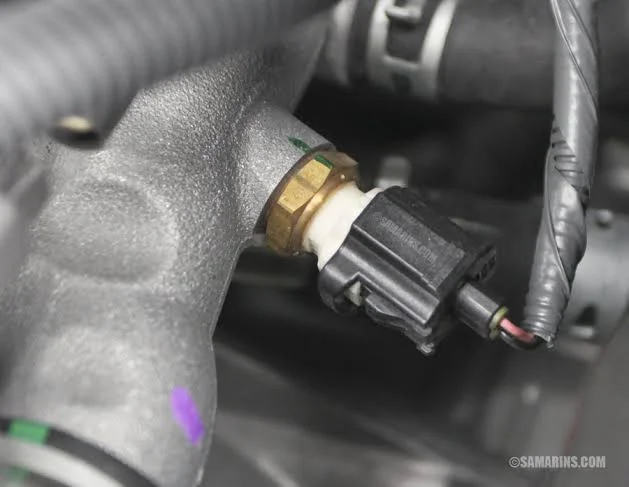

Temperature sensors are used to monitor the temperature of different parts of the engine, such as the coolant, the intake air, the exhaust gas, and the oil. Temperature sensors are usually based on thermocouples or resistance temperature detectors (RTDs), which change their electrical properties according to the temperature.

• The engine coolant temperature (ECT) sensor is located on the engine block or the radiator, and measures the temperature of the coolant that circulates through the engine and the radiator. The ECT sensor helps to regulate the cooling fan, the thermostat, and the fuel mixture. A cold engine requires more fuel to start and run smoothly, while a hot engine needs less fuel to prevent knocking and overheating.

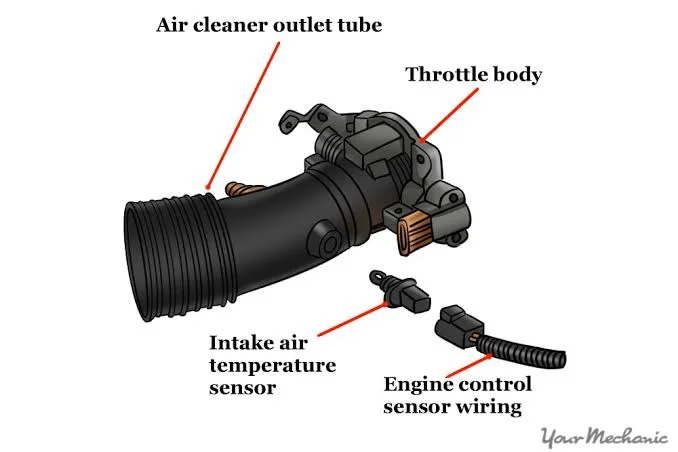

• The intake air temperature (IAT) sensor is located on the intake manifold or the air filter box, and measures the temperature of the air that enters the engine. The IAT sensor helps to calculate the air density and adjust the fuel injection accordingly. Cold air is denser than hot air, and therefore requires more fuel to maintain a proper air-fuel ratio.

• The exhaust gas temperature (EGT) sensor is located on the exhaust manifold or the catalytic converter, and measures the temperature of the exhaust gas that exits the engine. The EGT sensor helps to monitor the efficiency of the combustion process and detect any problems such as misfires, lean or rich mixtures, or clogged catalytic converters. A high EGT indicates incomplete combustion or excessive fuel consumption, while a low EGT indicates optimal combustion or insufficient fuel supply.

Read Also: Decoding the Engine Control Unit (ECU): Inputs, Outputs, and Sensor Interactions

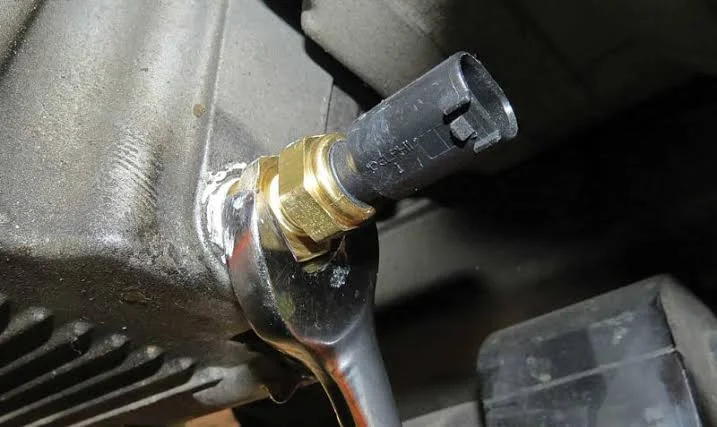

• The oil temperature sensor is located on the oil pan or the oil filter housing, and measures the temperature of the oil that lubricates the engine. The oil temperature sensor helps to control the oil pressure and viscosity, which affect the engine performance and durability. A cold oil is thicker and creates more friction, while a hot oil is thinner and provides less protection.

Pressure Sensors

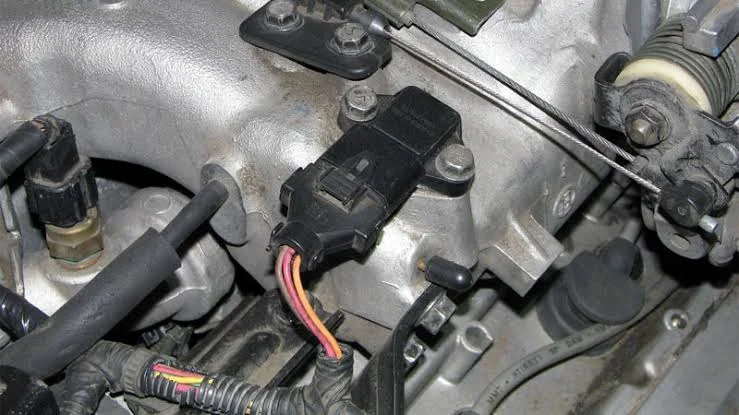

Pressure sensors are used to monitor the pressure of different fluids in the engine, such as the fuel, the oil, and the manifold. Pressure sensors are usually based on piezoelectric or strain gauge elements, which generate an electric signal proportional to the applied pressure.

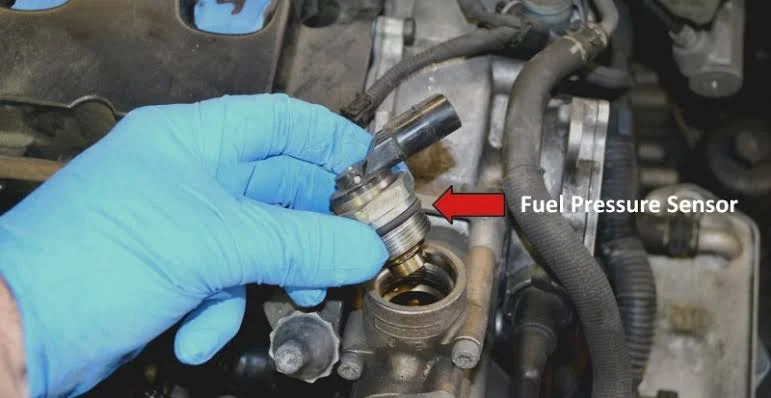

• The fuel pressure sensor is located on the fuel rail or the fuel tank, and measures the pressure of the fuel that is delivered to the injectors. The fuel pressure sensor helps to regulate the fuel pump and maintain a constant fuel supply for optimal combustion. A low fuel pressure indicates a weak or faulty pump, a clogged filter, or a leak in the system. A high fuel pressure indicates a stuck or faulty regulator, a blocked injector, or a restricted return line.

• The oil pressure sensor is located on the engine block or near the oil filter, and measures the pressure of the oil that circulates through the engine.The oil pressure sensor helps to warn the driver of any low oil level or pressure conditions that could damage the engine. A low oil pressure indicates a low oil level, a worn or faulty pump, a clogged filter, or an internal leak. A high oil pressure indicates a cold or thick oil, a stuck or faulty regulator, or a blocked passage.

Read Also: Automotive Sensor Wiring: A Comprehensive Guide to Major Sensors

• The manifold absolute pressure (MAP) sensor is located on the intake manifold, and measures the pressure of the air that enters the engine. The MAP sensor helps to calculate the engine load and adjust the fuel injection and ignition timing accordingly. A low MAP indicates a high altitude, a high vacuum, or a lean mixture. A high MAP indicates a low altitude, a low vacuum, or a rich mixture.

Speed Sensors

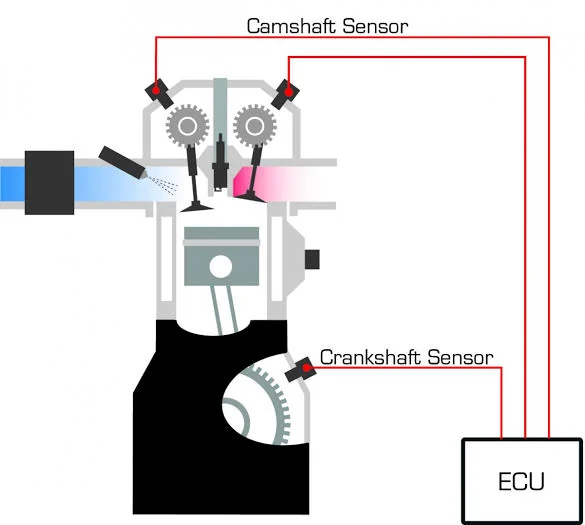

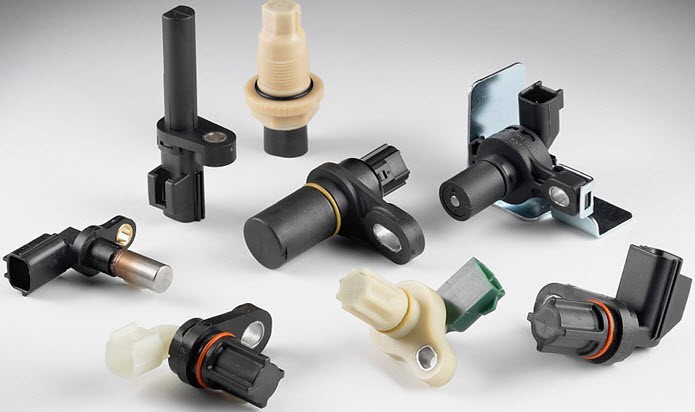

Speed sensors are used to monitor the speed of different rotating parts of the engine, such as the crankshaft, the camshaft, and the wheels. Speed sensors are usually based on Hall effect or magnetic elements, ehich generate an electric signal according to the magnetic field variation caused by the rotation.

• The crankshaft position (CKP) sensor is located on the crankshaft pulley or near the flywheel, and measures the speed and position of the crankshaft. The CKP sensor helps to determine the piston position and firing order for each cylinder. The CKP sensor also provides feedback for the ignition timing and fuel injection control.

• The camshaft position (CMP) sensor is located on the camshaft gear or near the distributor, and measures the speed and position of the camshaft. The CMP sensor helps to synchronize the valve timing and ignition timing for each cylinder. The CMP sensor also provides feedback for the variable valve timing (VVT) system.

Read Also: The Top 10 Engine Sensors Every Car Owner Should Know

• The wheel speed sensor is located on the wheel hub or near the brake rotor, and measures the speed and direction of each wheel. The wheel speed sensor helps to control the anti-lock braking system (ABS), the traction control system (TCS), and the electronic stability control (ESC) system.

Air Flow Sensors

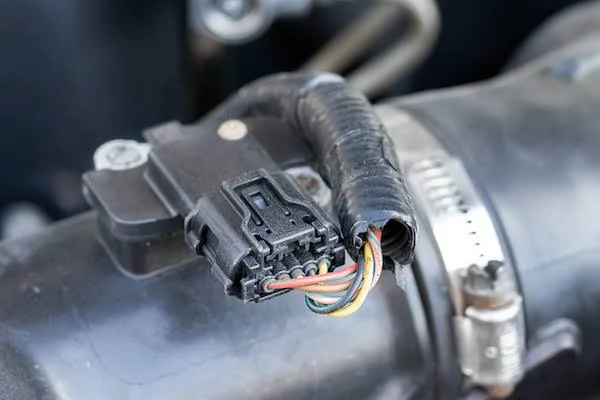

Air flow sensors are used to monitor the amount and quality of the air that enters the engine. Air flow sensors are usually based on hot wire or vane elements,  which measure the air flow by sensing the change in temperature or resistance caused by the air movement.

• The mass air flow (MAF) sensor is located on the intake hose between the air filter box and the intake manifold, and measures the mass of air that enters the engine. The MAF sensor helps to calculate the air-fuel ratio and adjust the fuel injection accordingly. The MAF sensor also provides feedback for the emission control system.

Read Also: MAF vs. MAP Sensors: Unraveling the Key Differences

Understanding the Mass Airflow Sensor: How It Works and Its Benefits

• The throttle position (TPS) sensor is located on the throttle body or near the accelerator pedal, and measures the angle of the throttle valve that regulates the air flow into the engine. The TPS sensor helps to determine the engine load and adjust the fuel injection and ignition timing accordingly. The TPS sensor also provides feedback for the idle speed control (ISC) system and the cruise control system.

Exhaust Sensors

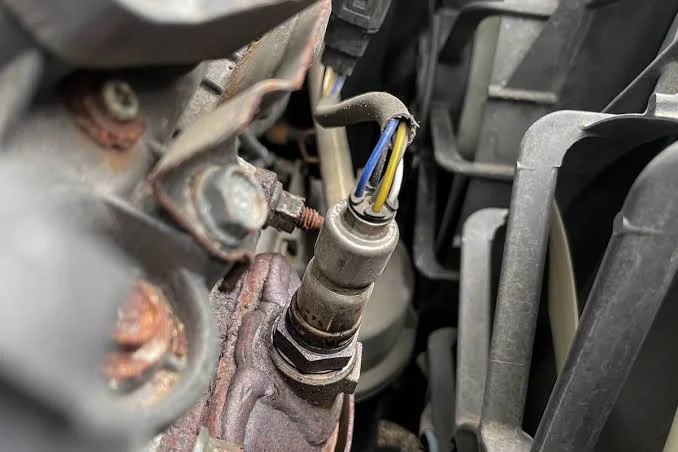

Exhaust sensors are used to monitor the composition and quality of the exhaust gas that exits the engine. Exhaust sensors are usually based on oxygen or nitrogen oxide elements, which measure the concentration of these gases in the exhaust stream.

• The oxygen sensor (O2) is located on the exhaust manifold or the catalytic converter, and measures the oxygen content in the exhaust gas. The O2 sensor helps to monitor the efficiency of the combustion process and adjust the fuel injection accordingly. The O2 sensor also provides feedback for the emission control system and the catalytic converter. A high oxygen content indicates a lean mixture or a misfire, while a low oxygen content indicates a rich mixture or a clogged catalytic converter.

Read Also: Understanding the Oxygen Sensor: How It Works and Its Benefits

5 Things You Need to Know About Faulty Oxygen Sensors in Cars

• The nitrogen oxide sensor (NOx) is located on the exhaust pipe or near the selective catalytic reduction (SCR) system, and measures the nitrogen oxide content in the exhaust gas. The NOx sensor helps to monitor the effectiveness of the SCR system and adjust the urea injection accordingly. The NOx sensor also provides feedback for the emission control system and the diesel particulate filter (DPF). A high nitrogen oxide content indicates a high combustion temperature or a faulty SCR system, while a low nitrogen oxide content indicates a low combustion temperature or a proper SCR system.

Benefits of Engine Sensors

Engine sensors provide various benefits for the engine and the driver, such as:

1. Improving engine performance, efficiency, and reliability by optimizing the fuel injection, ignition timing, valve timing, and other engine functions according to the operating conditions.
2. Reducing engine emissions, noise, and vibration by monitoring and controlling the combustion process and the emission control system.
3. Enhancing engine safety and durability by detecting and preventing any abnormal conditions such as overheating, knocking, misfiring, or oil pressure loss.
4. Increasing driver comfort and convenience by providing feedback and warning signals for various engine parameters such as temperature, pressure, speed, and fuel level.

Read Also: Unveiling Engine Sensors: Detecting Problems Before They Worsen

Engine sensors are vital components of modern vehicles that help to ensure optimal performance, efficiency, and safety. Engine sensors measure various parameters such as temperature, pressure, speed, position, air flow, and exhaust composition, and send the data to the engine control unit (ECU). The ECU then uses this information to adjust the fuel injection, ignition timing, valve timing, and other engine functions according to the operating conditions. By understanding how engine sensors work and what benefits they provide, you can better appreciate their role in your vehicle's performance.
