Understanding Engine Control Modules (ECMs) and Their Functions

An engine control module (ECM) is a computer that monitors and controls the operation of a vehicle’s engine.

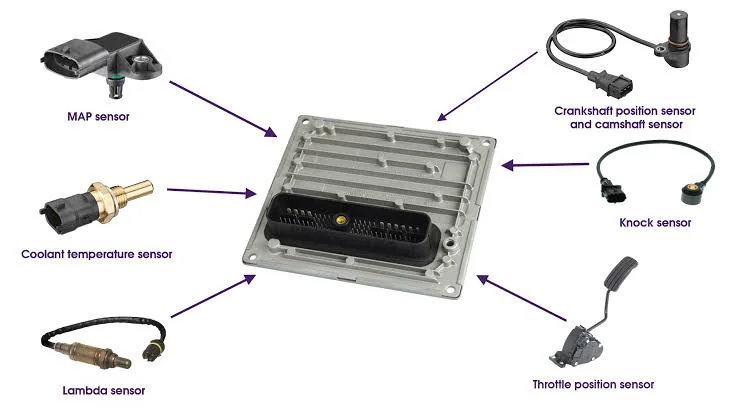

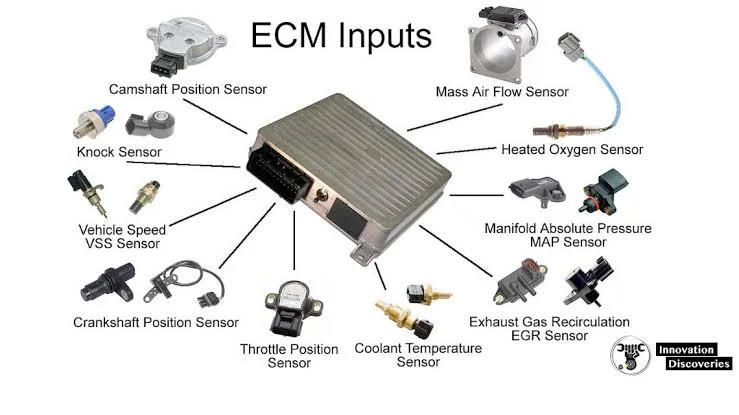

The ECM receives input signals from various sensors and switches, and uses them to calculate the optimal fuel injection, ignition timing, air-fuel ratio, emission control, and other engine parameters. The ECM also sends output signals to various actuators, such as fuel injectors, spark plugs, throttle valves, and solenoids, to execute the commands.

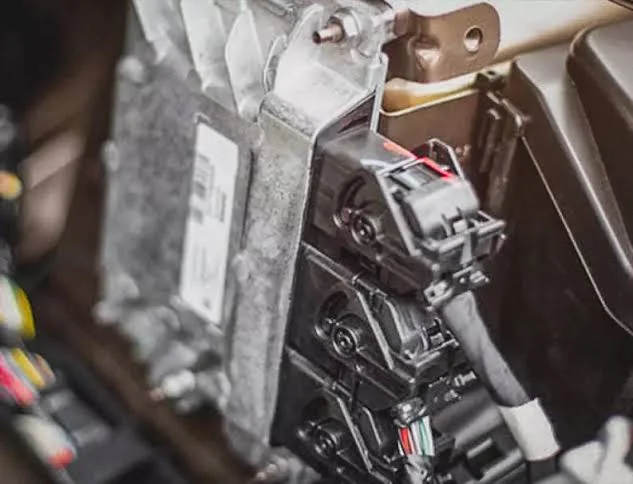

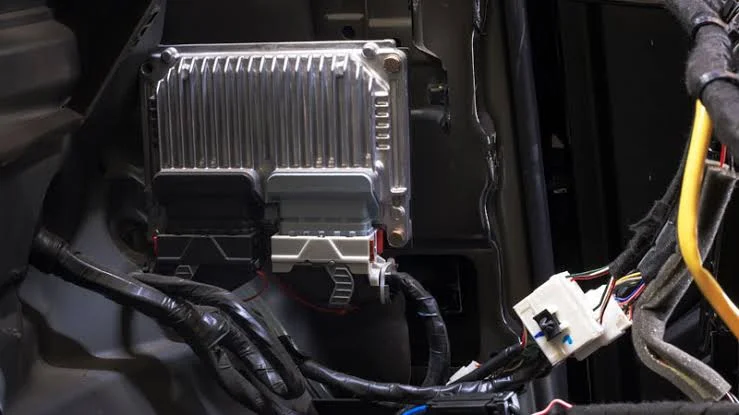

The ECM is also known as the engine control unit (ECU), powertrain control module (PCM), or electronic control unit (ECU). The ECM is usually located under the hood or behind the dashboard of a vehicle.

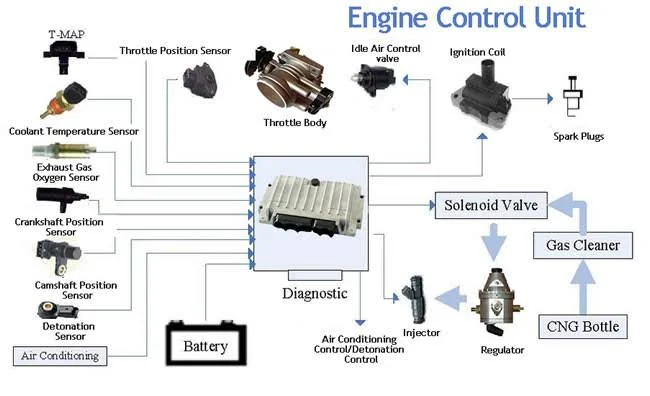

Functions of an ECM

The main functions of an ECM are:

1. Fuel management: The ECM determines the amount and timing of fuel injection for each cylinder based on the engine speed, load, temperature, and oxygen content in the exhaust. The ECM also adjusts the fuel pressure and flow rate to maintain the optimal air-fuel ratio for combustion.
2. Ignition management: The ECM controls the spark timing and intensity for each cylinder based on the engine speed, load, temperature, and knock detection. The ECM also regulates the dwell time and current of the ignition coil to produce a strong and consistent spark.
3. Idle speed control: The ECM regulates the idle speed of the engine by adjusting the amount of air that bypasses the throttle valve. The ECM also compensates for changes in engine load, such as when the air conditioner or power steering is turned on.
4. Emission control: The ECM controls the operation of various emission control devices, such as the catalytic converter, exhaust gas recirculation (EGR) valve, evaporative emission control (EVAP) system, and oxygen sensor. The ECM also monitors the performance of these devices and stores diagnostic trouble codes (DTCs) if any malfunction is detected.
5. Engine protection: The ECM protects the engine from damage by limiting the engine speed, power, or torque when certain conditions are met, such as low oil pressure, high coolant temperature, or low fuel level. The ECM also alerts the driver of any potential problems by illuminating warning lights or displaying messages on the instrument panel.

Read Also: Decoding the Engine Control Unit (ECU): Inputs, Outputs, and Sensor Interactions

Benefits of an ECM

The benefits of an ECM are:

• Improved performance: The ECM optimizes the engine performance by providing precise and timely control of fuel injection, ignition timing, air-fuel ratio, and other engine parameters. This results in better acceleration, responsiveness, and power output.
• Reduced fuel consumption: The ECM reduces the fuel consumption by maintaining the optimal air-fuel ratio for combustion and adjusting the fuel injection according to the engine load and speed. This results in lower emissions and higher fuel efficiency.
• Enhanced reliability: The ECM enhances the reliability of the engine by monitoring and controlling various engine functions and protecting the engine from damage. The ECM also diagnoses any faults in the engine system and stores DTCs for easy troubleshooting.

Read Also: ECU Remapping: What It Is and How It Can Benefit Your Car

Conclusion

An ECM is a computer that monitors and controls the operation of a vehicle’s engine. The ECM performs various functions, such as fuel management, ignition management, idle speed control, emission control, and engine protection. The ECM provides many benefits for the vehicle owner, such as improved performance, reduced fuel consumption, and enhanced reliability.
