Understanding the Engine Block: A Comprehensive Guide

The engine block is a critical component of a car engine, housing several parts that play essential roles in the engine's operation.

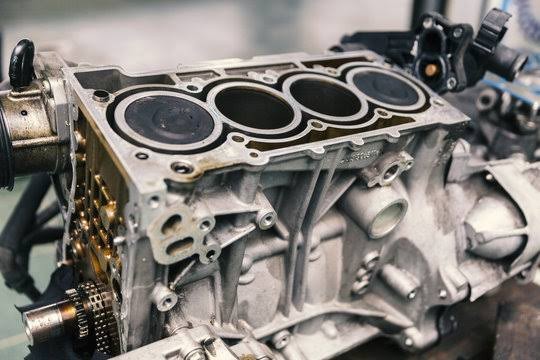

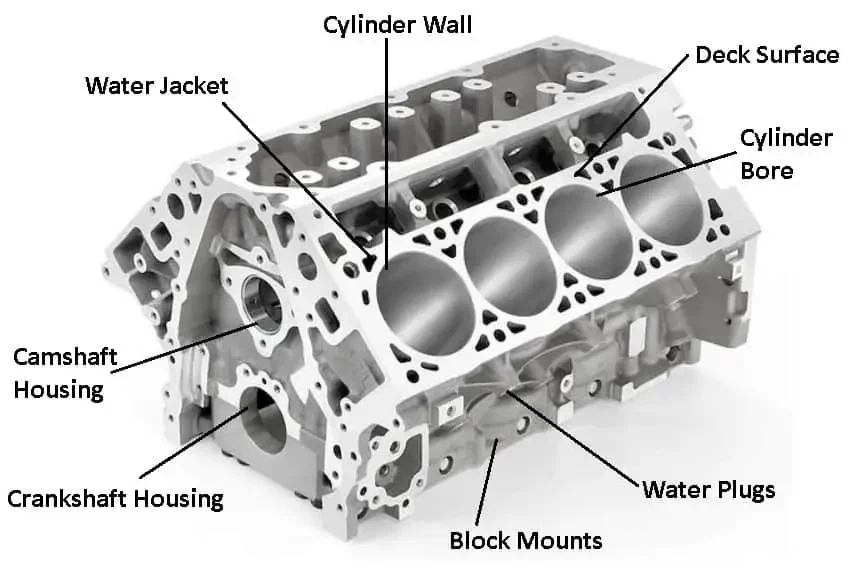

The engine block is one of the most vital and complex components of an internal combustion engine. It houses the cylinders, pistons, crankshaft, and other parts that work together to produce power and torque. The engine block also contains passages for coolant and oil to circulate and cool the engine, as well as holes for mounting accessories and attaching the cylinder head.

In this article, we will explain the functions, types, materials, problems, and solutions of engine blocks in detail. By the end of this article, you will have a better understanding of how the engine block works and how to maintain it properly.

Functions of Engine Block

The engine block performs several important functions for the engine, such as:

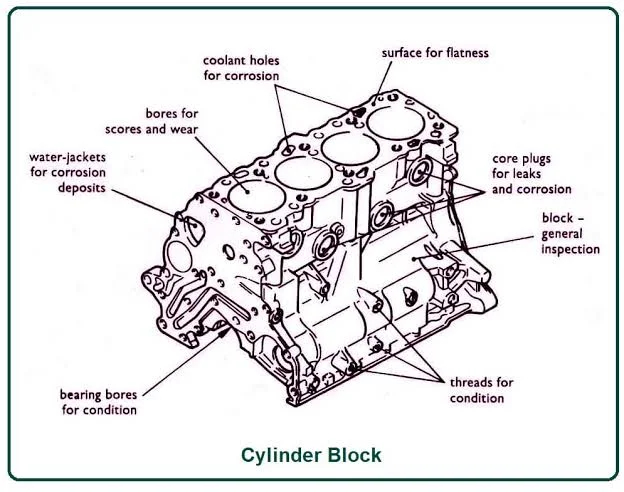

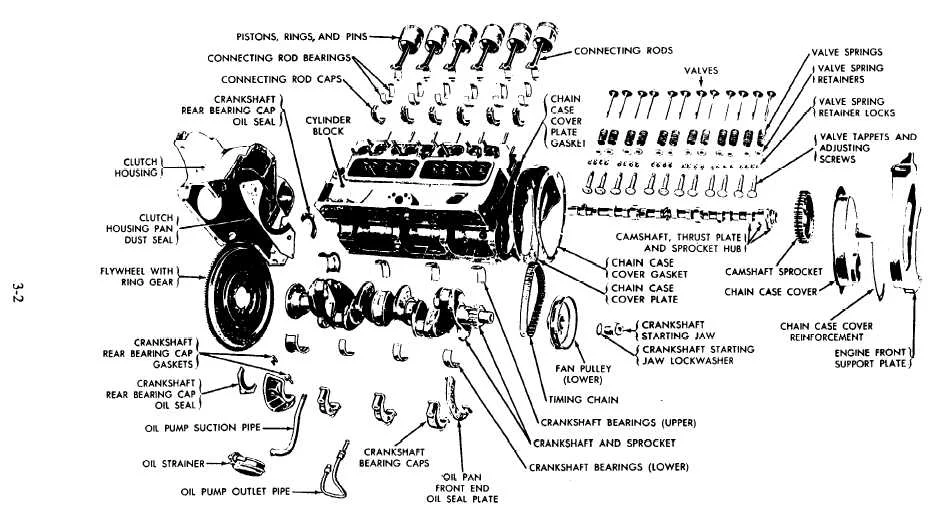

• Supporting the components of the engine: The engine block provides a rigid and durable structure that holds the cylinders, pistons, crankshaft, camshaft, valves, and other parts in place. The engine block also aligns and secures the cylinder head to the top of the block with bolts or studs.

• Containing the combustion process: The engine block forms the walls of the combustion chambers, where the fuel-air mixture is ignited by the spark plugs or glow plugs. The engine block withstands the high pressures and temperatures generated by the combustion process and transfers the force to the crankshaft.
• Cooling the engine: The engine block has coolant passages that allow coolant to flow through the block and absorb heat from the cylinders and other parts. The coolant then flows to the radiator, where it releases heat to the atmosphere and returns to the block. The coolant system prevents the engine from overheating and damaging itself.

• Lubricating the engine: The engine block has oil galleries that supply oil to the moving parts of the engine, such as the pistons, rings, bearings, camshaft, valves, etc. The oil reduces friction and wear between these parts and also helps to cool them. The oil then drains back to the oil pan, where it is filtered and pumped back to the block. The oil system ensures smooth and efficient operation of the engine.
• Integrating with other systems: The engine block has openings and mounts for connecting with other systems and components of the vehicle, such as the intake manifold, exhaust manifold, fuel injectors, sensors, water pump, oil filter, starter motor, alternator, etc. The engine block facilitates the communication and coordination between these systems and components.

Read Also: Does replacing engine head gaskets extend the life of the engine?

Types of Engine Block

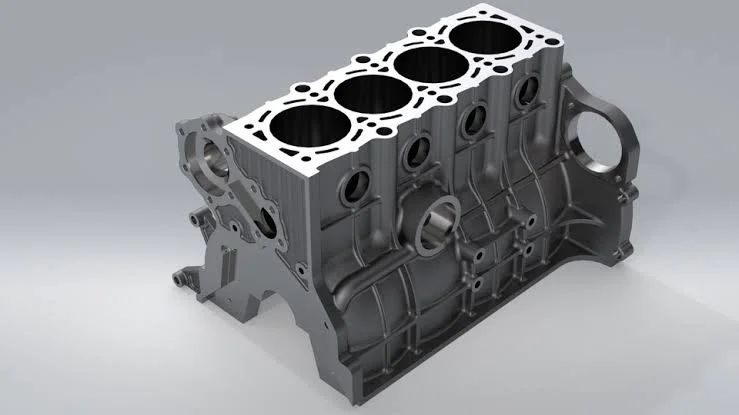

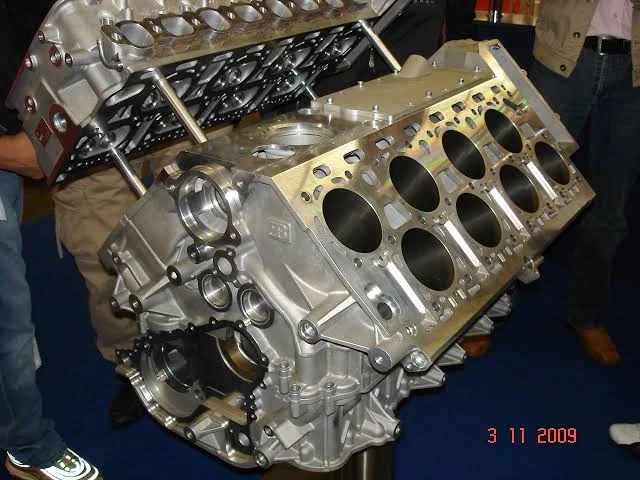

Engine blocks are classified according to the number and arrangement of cylinders they contain. The most common types of engine blocks are:

1. Inline: An inline engine block has all its cylinders arranged in a single row along a single crankshaft. Inline engines are simple, compact, and balanced, but they have limited power output due to their size constraints. Examples of inline engines are inline-4 (I4), inline-5 (I5), inline-6 (I6), etc.

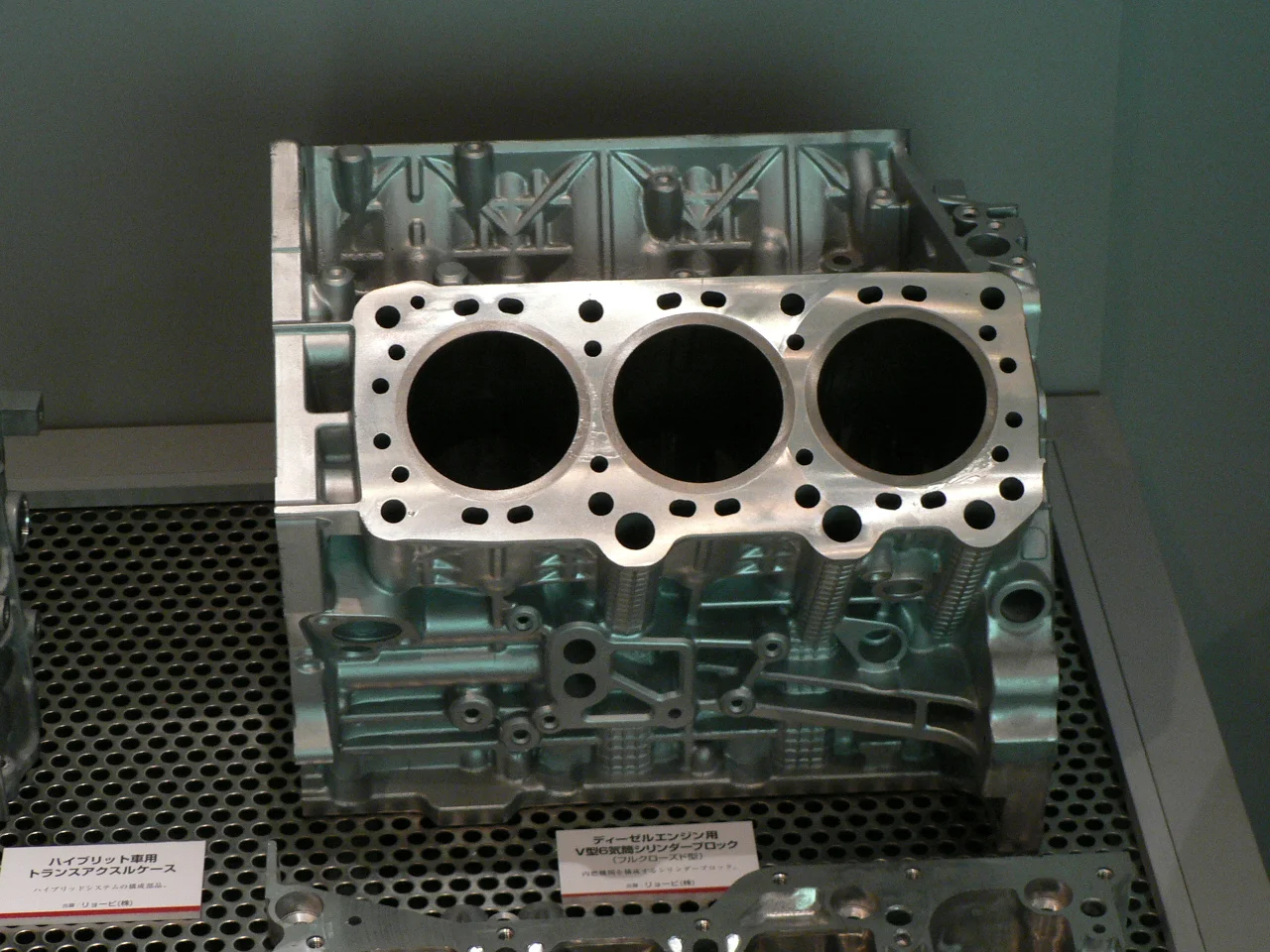

2. V: A V engine block has two rows of cylinders arranged in a V shape along a single crankshaft. V engines have more power output than inline engines due to their larger displacement and number of cylinders. However, they are also more complex, heavy, and bulky than inline engines. Examples of V engines are V6, V8, V10, V12, etc.

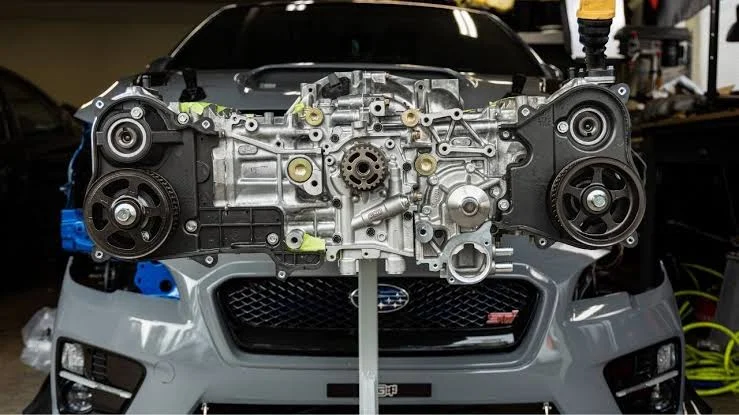

3. Flat: A flat engine block has two rows of cylinders arranged horizontally opposite each other along a single crankshaft. Flat engines have a low center of gravity and good balance due to their symmetrical layout. However, they are also wide and require more space than inline or V engines. Examples of flat engines are flat-4 (F4), flat-6 (F6), etc.
4. W: A W engine block has three or four rows of cylinders arranged in a W shape along a single or double crankshaft. W engines have very high power output due to their large number of cylinders and displacement. However, they are also very complex, expensive, and rare than other types of engines. Examples of W engines are W8, W12, W16, etc.

Read Also; ENGINE NOISE DIAGNOSTICS

Materials Used in Engine Block

Engine blocks are usually made from either cast iron or aluminum alloy. Both materials have their advantages and disadvantages for engine blocks.

• Cast iron is a traditional material for engine blocks due to its high strength, durability, wear resistance, thermal conductivity, and low cost. However, cast iron is also heavy, brittle, prone to corrosion, and difficult to machine.
• Aluminum alloy is a modern material for engine blocks due to its light weight, high strength-to-weight ratio, corrosion resistance, thermal efficiency, and recyclability. However, aluminum alloy is also more expensive than cast iron requires more complex casting processes.

Some engine blocks may use a combination of both materials or other materials such as magnesium alloy or composite materials.

Problems and Solutions of Engine Block

Engine blocks can suffer from various problems that can affect their performance and lifespan. Some of these problems are:

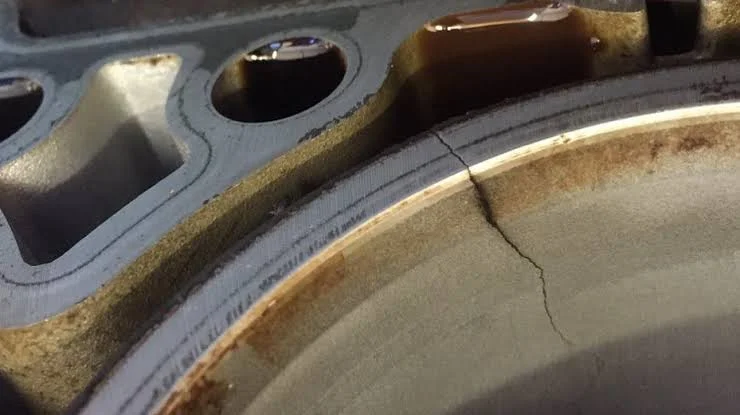

1. Cracks: Cracks are one of the most serious problems that can occur in engine blocks. Cracks can be caused by excessive heat, pressure, stress, or impact on the engine block. Cracks can lead to coolant or oil leaks, overheating, misfires, loss of compression, and engine failure. Cracks can be detected by visual inspection, pressure testing, or dye testing. Cracks can be repaired by welding, brazing, epoxy, or replacement of the engine block.
2. Warping: Warping is the distortion or deformation of the engine block due to uneven heating and cooling. Warping can cause misalignment of the cylinders, pistons, valves, and other parts, resulting in poor sealing, compression loss, oil consumption, and power loss. Warping can be detected by measuring the flatness of the engine block with a straightedge and a feeler gauge. Warping can be corrected by machining or resurfacing the engine block.
3. Wear: Wear is the gradual deterioration of the engine block due to friction and abrasion between the moving parts. Wear can cause reduced performance, efficiency, and reliability of the engine. Wear can be detected by measuring the dimensions and clearances of the cylinders, pistons, rings, bearings, etc. Wear can be prevented by using proper lubrication and maintenance of the engine. Wear can be repaired by honing, boring, sleeving, or replacing the worn parts.

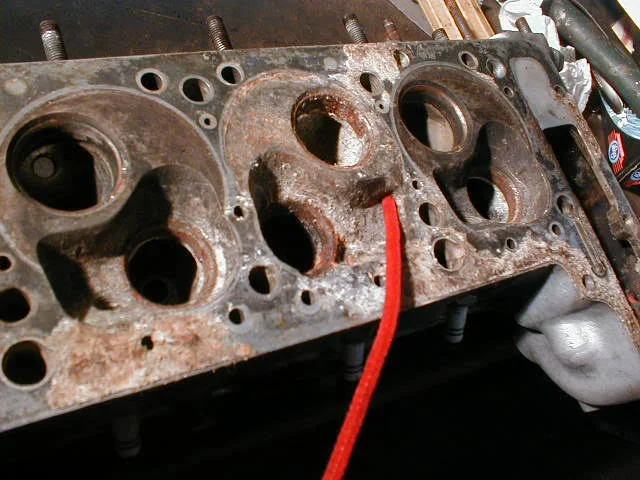

4. Corrosion: Corrosion is the chemical reaction of the engine block with oxygen, water, or other substances that cause rusting or pitting of the metal surface. Corrosion can reduce the strength and durability of the engine block and cause leaks or cracks. Corrosion can be detected by visual inspection or chemical testing. Corrosion can be prevented by using anti-corrosion additives in the coolant and oil and by keeping the engine clean and dry. Corrosion can be removed by cleaning, sanding, or coating the affected areas.

Conclusion

The engine block is a vital component of an internal combustion engine that performs various functions such as supporting, containing, cooling, lubricating, and integrating the engine parts. The engine block can be classified into different types based on the number and arrangement of cylinders. The engine block can be made from different materials such as cast iron or aluminum alloy. The engine block can suffer from various problems such as cracks, warping, wear, and corrosion that can affect its performance and lifespan. These problems can be detected and repaired by using appropriate methods and tools.
