The Complete Guide to the Major Parts of an Excavator

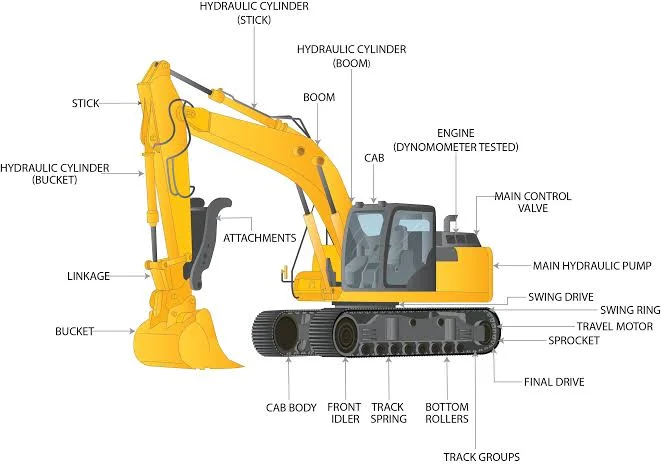

Excavators are heavy machinery used in a variety of construction and demolition projects. They are made up of many different parts, each of which plays an important role in the machine's operation.

In this article, I will discuss the major parts of an excavator and their functions. I will also provide some tips on how to keep your excavator in good working condition.

Engine

The engine is the heart of the excavator and provides the power for all of the machine's functions. It is typically a diesel engine that is located in the rear of the excavator. The engine's power is transferred to the hydraulic system through a torque converter.

Read also: Beginner's Guide to Operating an Excavator: Step-by-Step Basics

Hydraulic System

The hydraulic system is responsible for powering the excavator's movements. It is made up of a pump, cylinders, and valves. The pump creates the hydraulic pressure that is needed to move the excavator's boom, arm, and bucket. The cylinders are the actuators that move the excavator's components. The valves control the flow of hydraulic fluid to the cylinders.

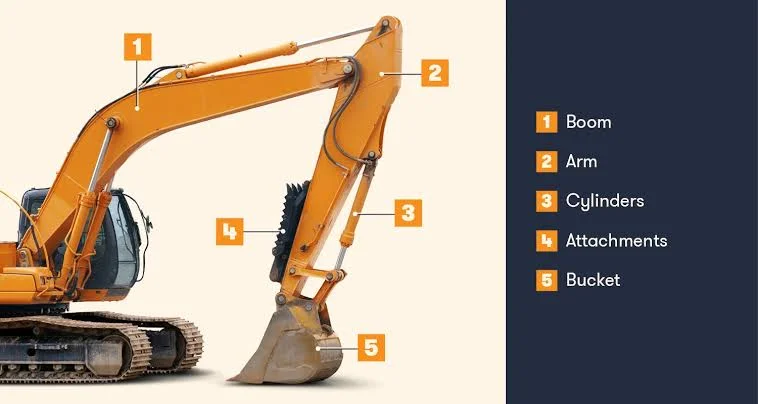

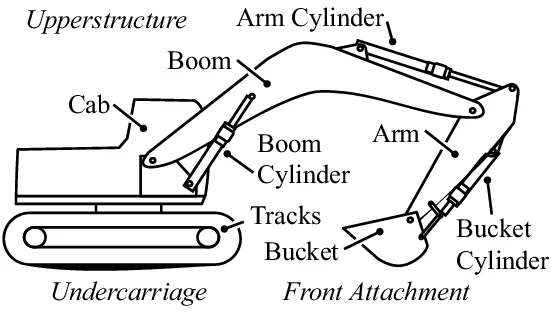

Boom

The boom is the long arm that extends from the excavator's body. It is used to lift and move the bucket. The boom is typically made of steel and is supported by hydraulic cylinders.

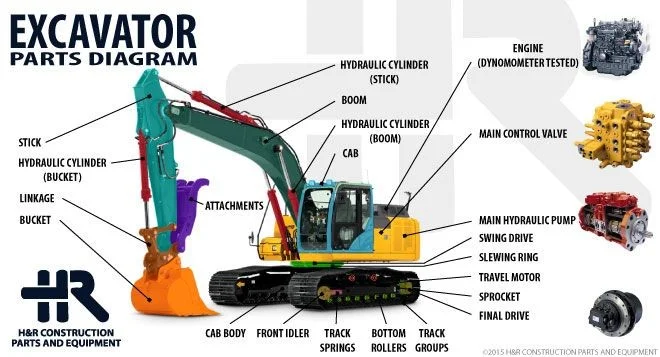

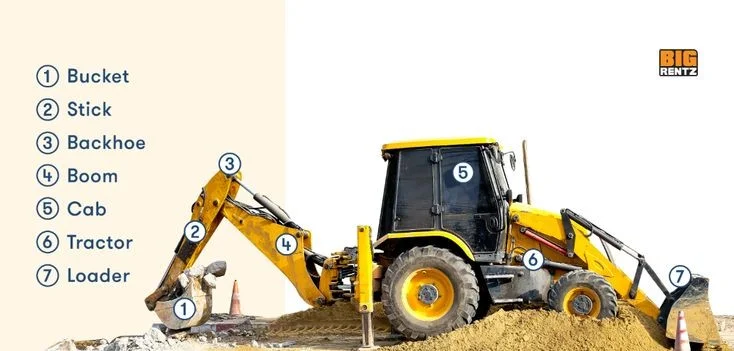

Arm

The arm is attached to the boom and is used to extend and retract the bucket. The arm is also made of steel and is supported by hydraulic cylinders.

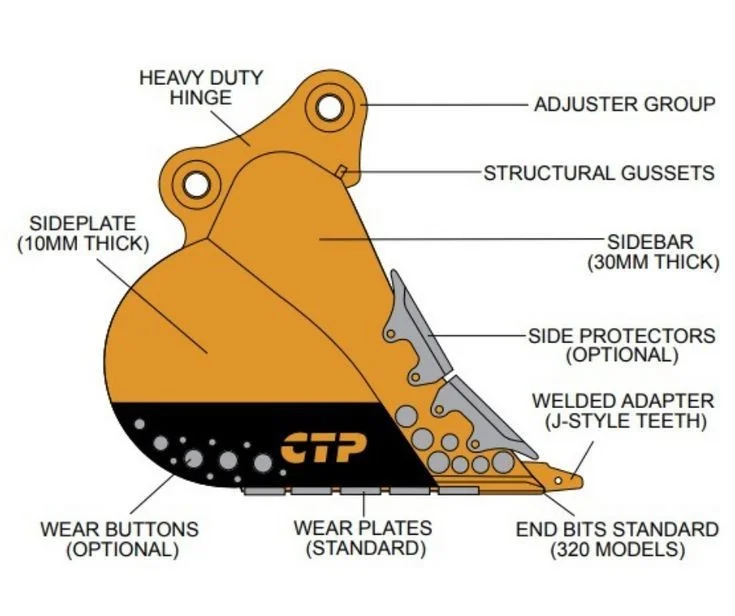

Bucket

The bucket is the attachment that is used to dig, scoop, and move material. It is attached to the end of the arm. The bucket is typically made of steel and has teeth or claws that help it to grip the material.

Cab

The cab is the operator's compartment and is located at the top of the excavator. It provides the operator with a clear view of the work area and controls for the machine's functions. The cab is also equipped with safety features, such as a roll cage and a seatbelt.

 Read Also: How to Design a Robot: A Comprehensive Guide

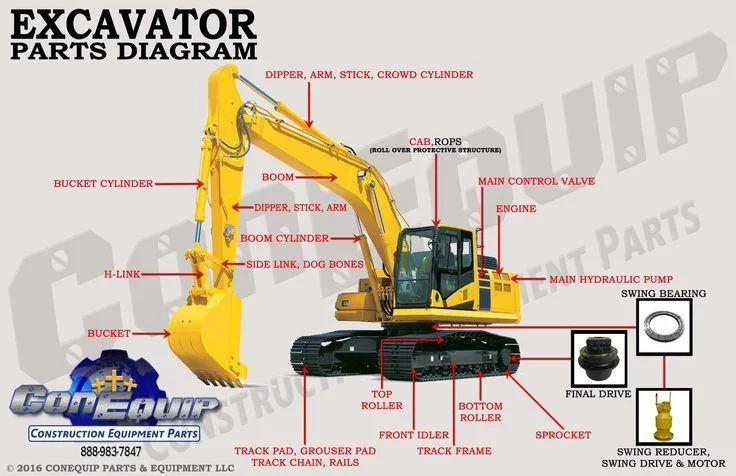

ROPS

ROPS stands for Rollover Protective Structure and is a safety feature that helps to protect the operator in the event of a rollover. The ROPS is a frame that is built around the cab and is designed to withstand the force of a rollover.

Counterweight

The counterweight is located at the rear of the excavator and helps to balance the weight of the boom and bucket. The counterweight is typically made of steel and is attached to the excavator's chassis.

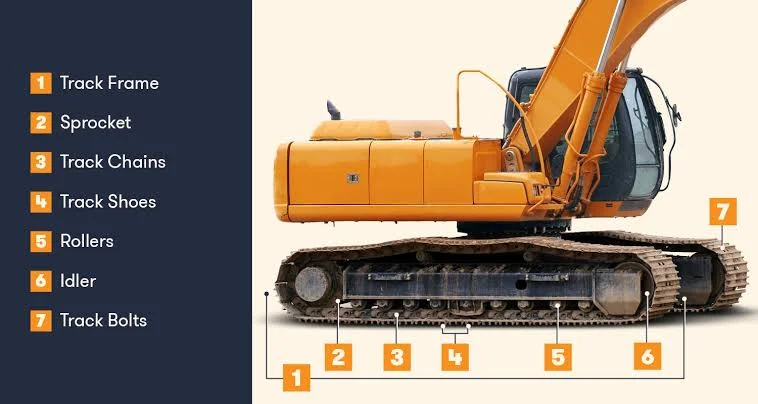

Track System

The track system is what allows the excavator to move. It is made up of tracks, sprockets, and idlers. The tracks are the continuous loops of metal that run along the bottom of the excavator. The sprockets are the wheels that the tracks run on. The idlers are the rollers that support the tracks.

Read Also: 10 Lathe Machine Processes That Every Manufacturer Should Know

Other Important Parts

Here are some of the other important parts of an excavator:

• Hydraulic pump: The hydraulic pump is responsible for creating the pressure that is needed to power the excavator's hydraulic system.
• Hydraulic cylinders: The hydraulic cylinders are the actuators that move the excavator's boom, arm, and bucket.
• Main control valve: The main control valve is the central control unit for the excavator's hydraulic system. It directs the flow of hydraulic fluid to the various cylinders and motors.
• Travel motor: The travel motor is responsible for moving the excavator forward and backward.
• Track adjusters: The track adjusters are used to tension the track chains.
• Grouser pads: The grouser pads are located on the bottom of the tracks and help to provide traction.

The specific parts of an excavator will vary depending on the make and model of the machine. However, the major parts listed above are common to all excavators.

Tips for Keeping Your Excavator in Good Working Condition

To keep your excavator in good working condition, it is important to follow the manufacturer's maintenance schedule. This schedule will typically include items such as changing the oil and filters, lubricating the components, and inspecting the machine for wear and tear.

It is also important to operate the excavator properly. This means using the machine within its capabilities and avoiding overloading it. It is also important to follow the safety procedures when operating the excavator.

Read Also: Types of Spanners: Uses, Advantages, and Material Composition

By following these tips, you can help to ensure that your excavator will last for many years to come.
