Unveiling Engine Sensors: Detecting Problems Before They Worsen

Explore vital engine sensors' functions and symptoms. Learn to identify issues early, ensuring efficient performance and avoiding expensive repairs. Become a knowledgeable car owner.

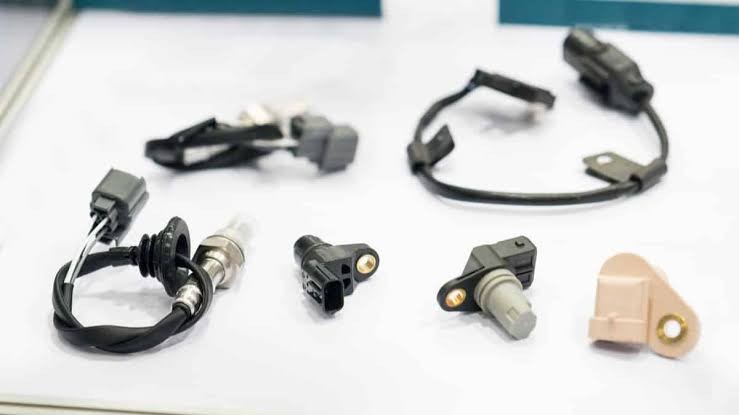

In the intricate ecosystem of a modern automobile, engine sensors play a pivotal role in monitoring various parameters and ensuring optimal performance. These sensors act as the eyes and ears of your vehicle's engine, detecting deviations from normal operation and providing crucial data to the onboard computer systems. By unveiling the functions of these 10 engine sensors, we shed light on how they contribute to detecting problems before they escalate into costly repairs.

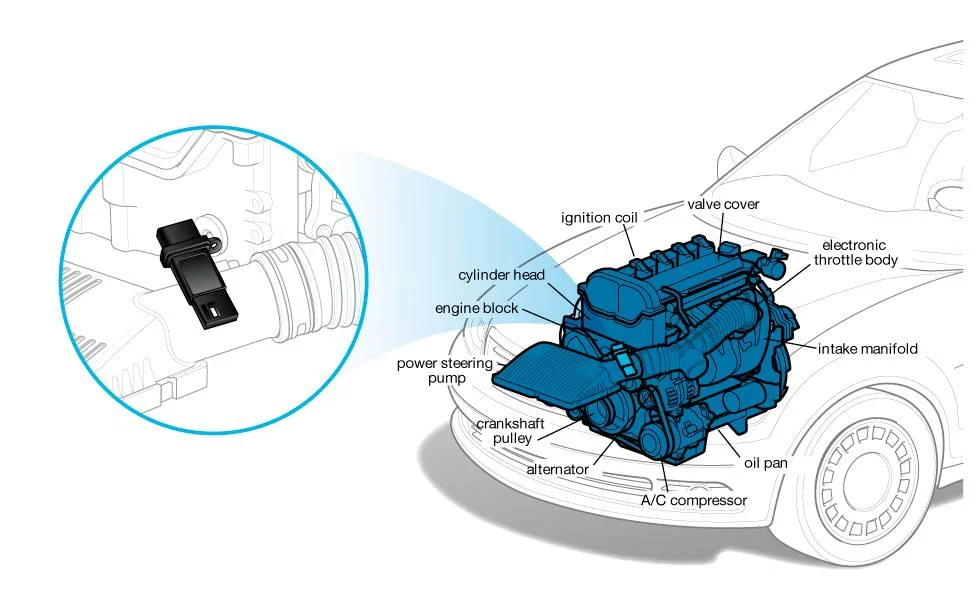

Mass Airflow Sensor (MAF):

The MAF sensor measures the amount of air entering the engine.

This data helps the engine control unit (ECU) adjust the fuel injection for an optimal air-to-fuel ratio. A malfunctioning MAF sensor has the following symptoms:-

• Decreased fuel efficiency and power.
• Rough idling or stalling.
• Engine hesitation during acceleration.
• Check Engine Light (CEL) illuminated.
• Improper shifting in automatic transmissions.

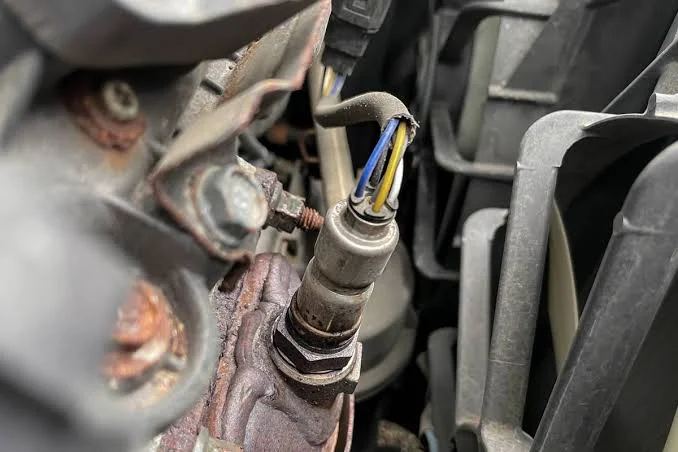

Oxygen Sensor (O2 Sensor):

   The O2 sensor monitors the oxygen levels in the exhaust gases.

It ensures the correct fuel mixture by providing feedback to the ECU. A failing O2 sensor can cause:-

• Reduced fuel efficiency.
• Unstable or fluctuating idle.
• Increased emissions.
• Poor engine performance and acceleration.
• Persistent CEL with O2 sensor code.

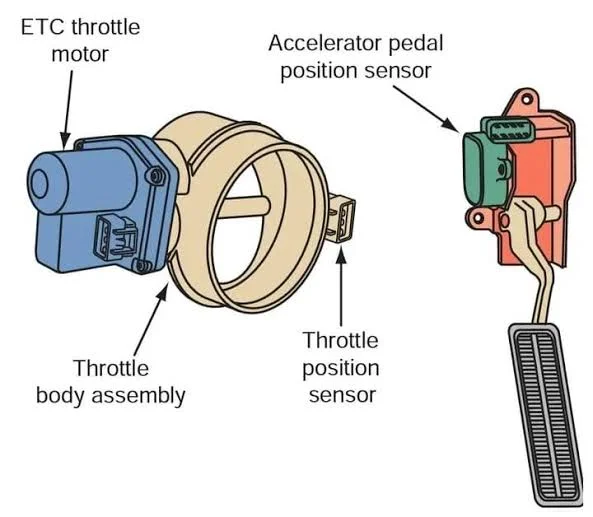

Throttle Position Sensor (TPS):

   The TPS tracks the position of the throttle plate, determining how much air enters the engine.

This information aids in regulating engine speed and response. A faulty TPS might result in:

• Jerky or hesitant throttle response.
• Poor acceleration or delayed throttle input.
• Sudden stalling when releasing the throttle.
• Inconsistent idle speed.
• Trouble shifting in automatic transmissions.

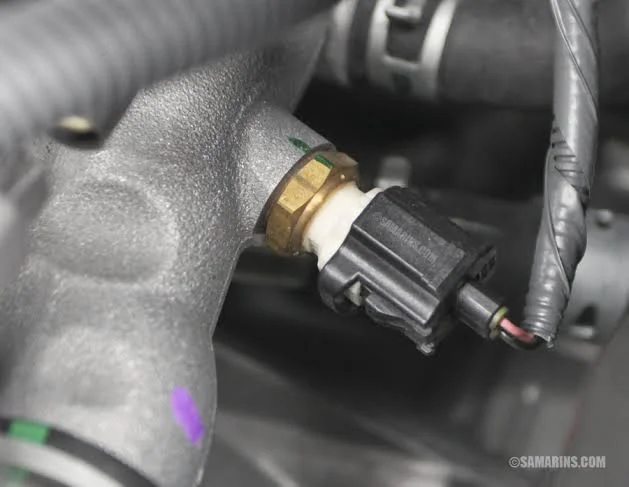

Coolant Temperature Sensor:

   Monitoring the engine's temperature, the coolant temperature sensor assists the ECU in adjusting fuel delivery and ignition timing.

If the sensor fails, inaccurate temperature readings can lead to:

• Engine running too hot or too cold.
• Fluctuating temperature gauge readings.
• Poor fuel efficiency.
• Engine misfires or rough idling.
• Overheating or coolant leakage.

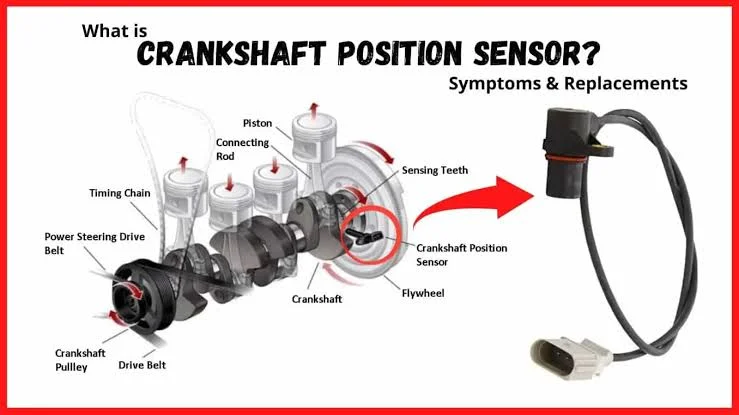

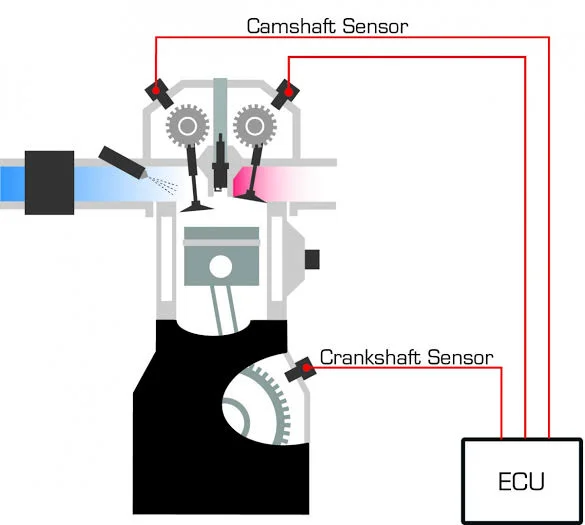

Crankshaft Position Sensor:

   The crankshaft position sensor detects the rotation speed and position of the crankshaft.

This data is crucial for ignition timing and fuel injection. A malfunctioning sensor can cause:

• Engine misfires or runs erratically.
• Difficulty starting the engine.
• Stalling during operation.
• Reduced engine power.
• CEL indicating crankshaft position error.

Camshaft Position Sensor:

   Similar to the crankshaft sensor, the camshaft position sensor tracks the camshaft's rotation and position. It synchronizes the camshaft with the crankshaft for optimal performance. A faulty camshaft sensor can lead to:

• Rough idling or stalling.
• Poor fuel efficiency.
• Engine misfires.
• Difficulty starting the engine.
• Reduced power during acceleration.

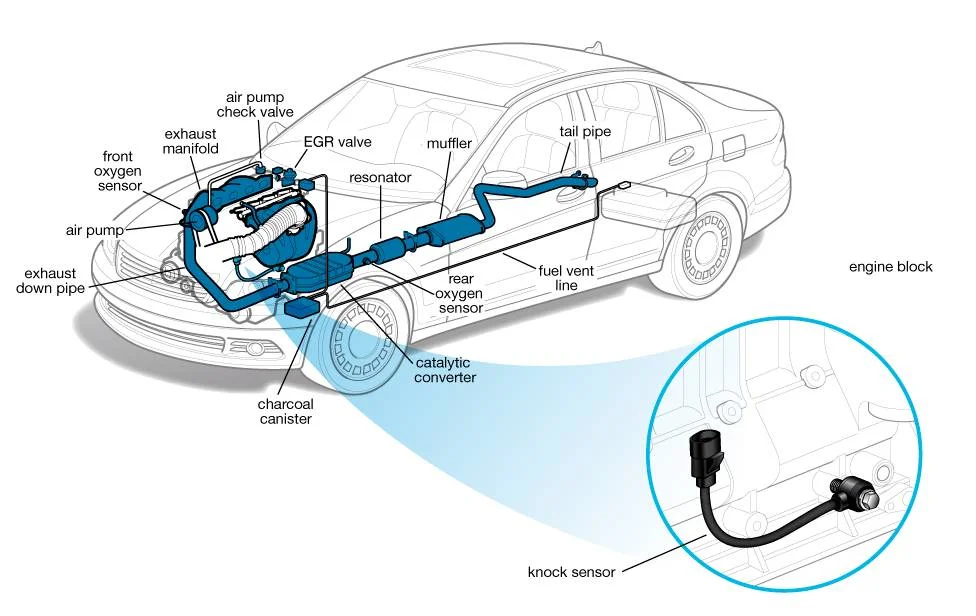

Knock Sensor:

   The knock sensor identifies engine knocking or pinging, which can indicate improper combustion.

The ECU adjusts settings to prevent engine damage. A malfunctioning knock sensor may lead to:

• Knocking or pinging sounds from the engine.
• Decreased engine performance.
• Poor fuel efficiency.
• CEL indicating knock sensor fault.
• Ignition timing issues.

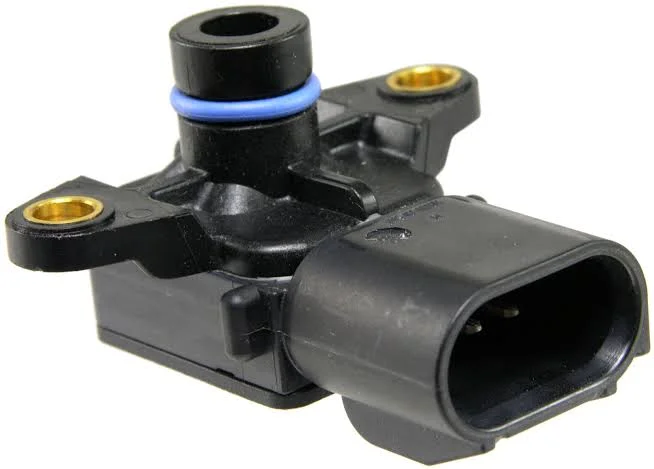

Manifold Absolute Pressure Sensor (MAP):

   The MAP sensor measures the intake manifold's pressure, aiding in calculating the engine's load. The ECU uses this data to adjust fuel injection and ignition timing.

A malfunctioning MAP sensor can result in:

• Reduced engine performance.
• Poor fuel efficiency.
• Hesitation or rough idling.
• Black smoke from the exhaust.
• CEL with MAP sensor trouble code.

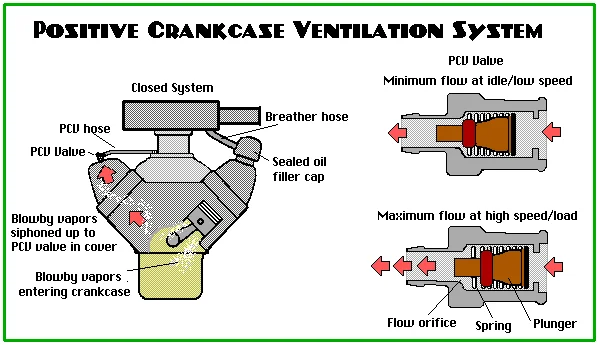

Crankcase Ventilation System (PCV):

   While not a sensor in the traditional sense, the PCV system maintains proper pressure within the engine by regulating the flow of gases.

A malfunctioning PCV valve can lead to:

• Excessive oil consumption.
• High levels of smoke from the exhaust.
• Poor idling or stalling.
• Engine misfires.
• Vacuum leaks and unusual noises.

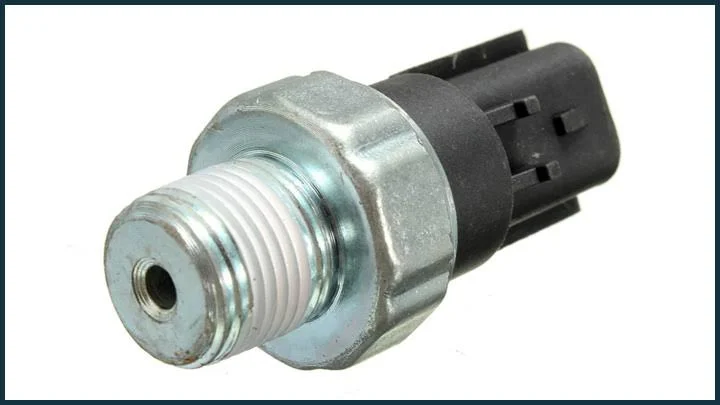

Oil Pressure Sensor:

The oil pressure sensor, also known as the oil pressure switch, monitors the oil pressure within the engine. It ensures that there's sufficient oil circulating to lubricate and protect moving parts.

The sensor sends a signal to the dashboard gauge or warning light, indicating whether the oil pressure is within the normal range. A malfunctioning oil pressure sensor can lead to:

• Fluctuating Oil Pressure Gauge: Dashboard gauge displays erratic, low, or high oil pressure readings.
• Warning Light Illumination: Oil pressure warning light turns on, especially at low engine speeds or idle.
• Engine Noise or Knocking: Increased friction due to improper lubrication leads to engine noise or knocking sounds.
• Erratic Engine Performance: Reduced oil pressure affects acceleration, power, and may result in stalling.
• Oil Leaks: Leaks around the sensor housing or connections contribute to drops in oil pressure and potential engine performance issues.

In conclusion, engine sensors are the unsung heroes of automotive diagnostics, continuously collecting and relaying data to ensure your vehicle runs smoothly. Regular maintenance and timely sensor replacements can prevent minor issues from escalating into major engine problems. By understanding the roles of these 10 engine sensors, you empower yourself to detect and address issues before they worsen, ultimately contributing to a longer-lasting and more reliable vehicle.

Remember, staying proactive in sensor maintenance not only saves you money but also contributes to a safer and more efficient driving experience. If you suspect any sensor-related issues, it's wise to consult a qualified mechanic for a thorough diagnosis and prompt resolution. Your vehicle and your wallet will thank you in the long run.
