Mastering DC Motors: A Comprehensive Guide to Types, Operation, and Applications

DC motors are used extensively in a wide range of applications, from small toys to large industrial machines. However, their operation and application can be confusing for many people.

This is why we have put together a comprehensive guide to demystifying DC motors. We will explore the different types of DC motors, how they work, and their advantages and disadvantages. By the end of this post, you will have a clear understanding of the operation of DC motors and which type of motor is best suited for your application. So, whether you are an engineer, technician, hobbyist, or just someone who is curious about how things work, read on to discover the fascinating world of DC motors.

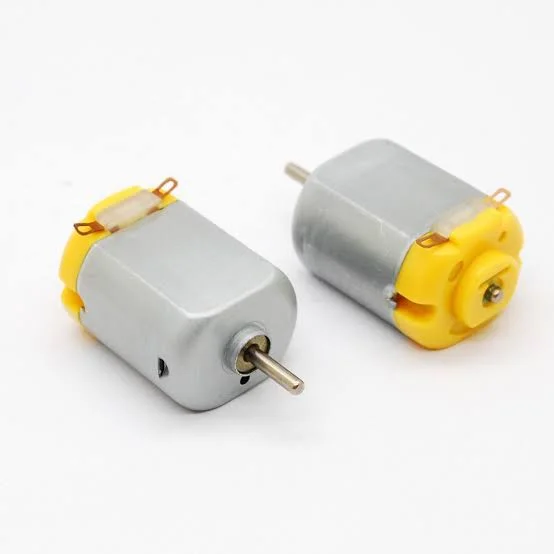

Introduction to DC motors and their significance

DC motors, short for direct current motors, have been a fundamental component of various industries for decades. These motors convert electrical energy into mechanical energy through the interaction of magnetic fields. Their versatility and efficiency make them indispensable in countless applications, ranging from household appliances and automotive systems to industrial machinery and robotics.

The significance of DC motors lies in their ability to provide precise control over speed and torque, making them ideal for applications that require accurate motion control. Unlike their AC counterparts, DC motors offer a simpler and more straightforward design, making them easier to understand and work with.

DC motors operate based on the principles of electromagnetism. When an electric current flows through the motor's coils, it creates a magnetic field that interacts with a fixed magnet or permanent magnet, resulting in rotational motion. This direct current flow allows for seamless control over the motor's speed and direction.

One of the key advantages of DC motors is their high starting torque, which enables them to initiate motion smoothly even when under heavy loads. Additionally, DC motors exhibit excellent speed regulation, ensuring consistent performance across various operating conditions. This feature makes them particularly suitable for applications that demand precise speed control, such as robotics, conveyor systems, and electric vehicles.

However, like any technology, DC motors also have their limitations. One significant drawback is the need for a power source that supplies direct current. This requirement often necessitates additional components, such as rectifiers or batteries, to convert alternating current (AC) into direct current (DC). Moreover, DC motors may require regular maintenance, such as brush replacement in brushed DC motors, to ensure optimal performance and longevity.

In the following sections, we will delve deeper into the various types of DC motors, their unique characteristics, operation principles, and the pros and cons associated with each type. By demystifying DC motors, we aim to equip you with the knowledge needed to make informed decisions when choosing the right motor for your specific application.

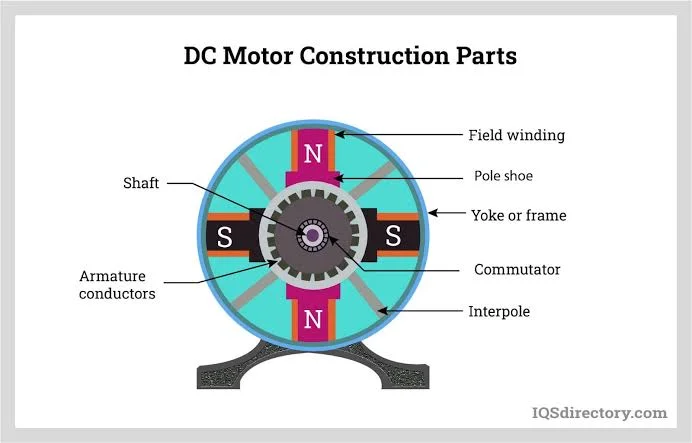

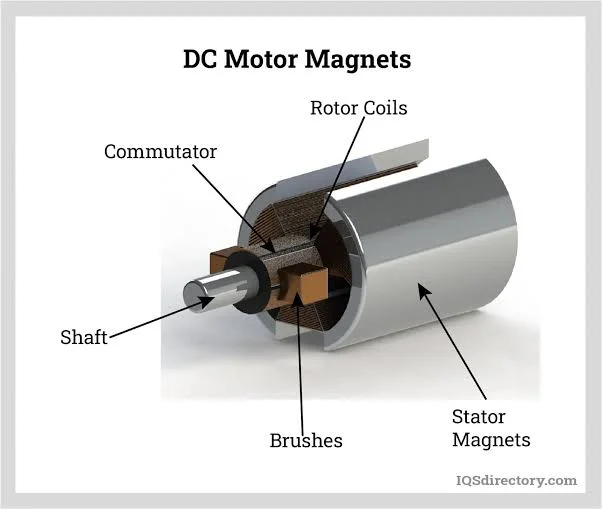

Understanding the basic components of a DC motor

To truly understand the operation of a DC motor, it is essential to have a good grasp of its basic components. These components work together harmoniously to convert electrical energy into mechanical energy, enabling the motor to function efficiently. Let's delve into the core elements that make up a DC motor.

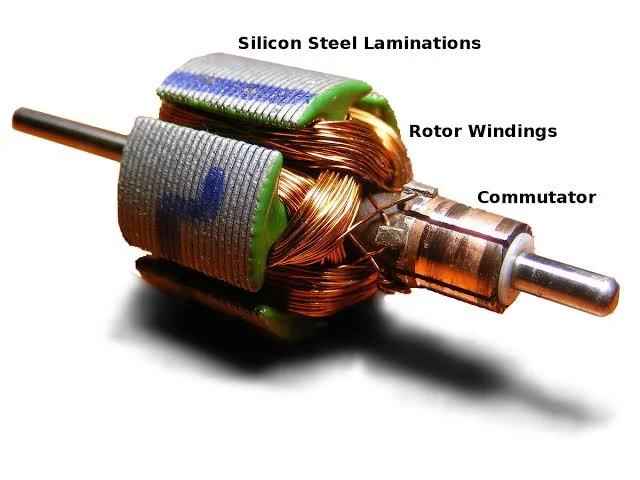

1. Armature: The armature is the central rotating part of the motor. It consists of a coil or multiple coils of wire wound around a core. When an electric current is passed through the armature, it generates a magnetic field that interacts with the fixed magnets, causing the armature to rotate.
2. Commutator: The commutator is a crucial component that ensures the continuous flow of electrical current to the armature coils. It is a split metal ring with multiple segments that are connected to the armature coils. As the armature rotates, the commutator brushes maintain contact with the segments, allowing the current to flow in the desired direction, which in turn, sustains the rotation of the motor.
3. Brushes: Brushes are conductive materials, usually made of carbon or graphite, that make direct contact with the commutator segments. They serve as the point of connection for the external power supply to the armature. By providing a constant flow of electrical current, the brushes enable the motor to operate smoothly.
4. Field Magnets: Field magnets are fixed magnets positioned around the armature. They create a magnetic field that interacts with the magnetic field produced by the armature. This interaction generates the torque required to initiate and sustain the rotation of the motor.

Understanding these fundamental components is essential for comprehending the inner workings of a DC motor. Each element plays a crucial role in converting electrical energy into mechanical motion, allowing DC motors to power various devices and machinery efficiently. By gaining a deeper understanding of these components, you can demystify the operation of DC motors and appreciate their pros and cons in different applications.

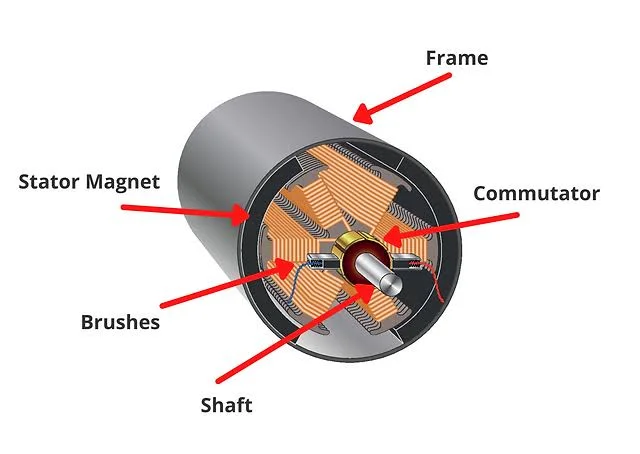

Different types of DC motors and their applications

When it comes to DC motors, there are various types, each designed for specific applications. Understanding these different types can help you choose the right motor for your needs.

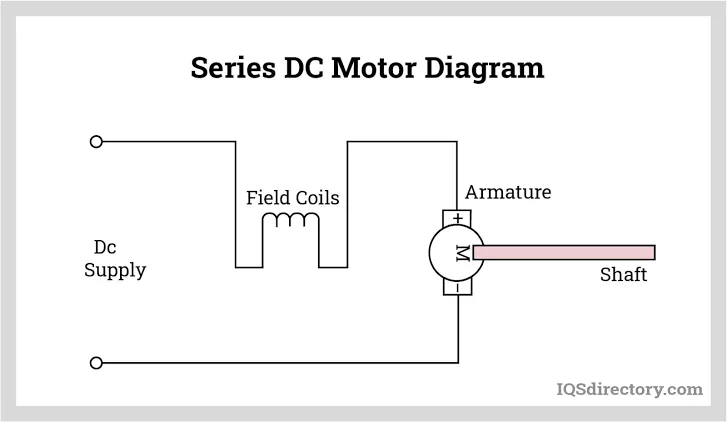

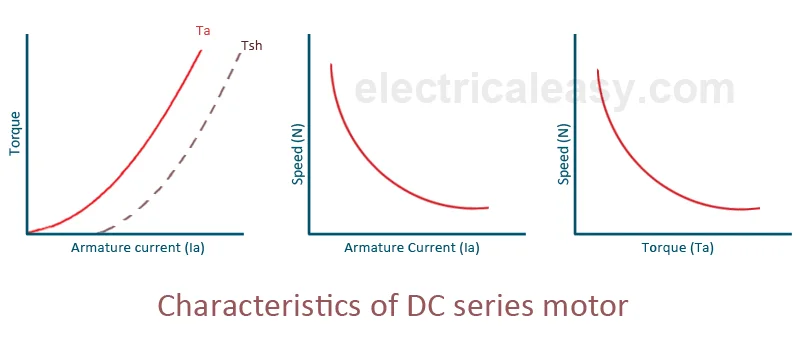

• Series DC Motors: Series-wound motors are known for their high torque output, making them ideal for applications that require a lot of power, such as in industrial machinery and electric vehicles. These motors have a simple construction and are capable of handling heavy loads.

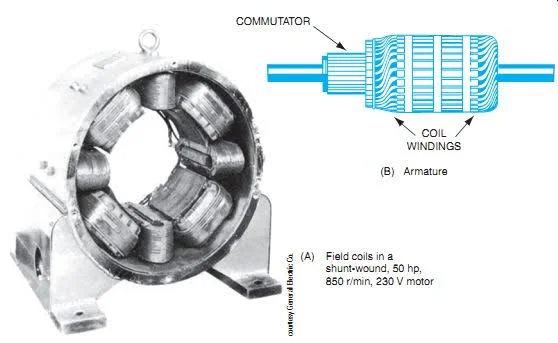

• Shunt DC Motors: Shunt-wound motors provide a more constant speed, making them suitable for applications that require consistent performance, like conveyor belts or pumps. They have a separate field winding that allows for independent control of the motor's speed and torque.

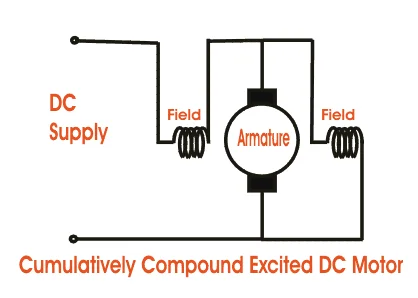

• Compound DC Motors: Compound-wound motors combine the characteristics of both series and shunt motors. They can provide high starting torque while maintaining a relatively constant speed. These motors are commonly used in applications such as hoists, elevators, and traction systems.

• Permanent Magnet DC Motors: As the name suggests, these motors utilize permanent magnets to create the magnetic field instead of field windings. They are compact, efficient, and offer good speed control. Permanent magnet motors are widely used in small appliances, electric vehicles, and robotics.
• Brushed DC Motors: Brushed motors have a rotating armature and a stationary set of brushes that supply electrical current to the commutator. They are cost-effective, easy to control, and widely available. However, they require regular maintenance due to the wear and tear of the brushes.

• Brushless DC Motors: Brushless motors eliminate the need for brushes by utilizing electronic commutation. These motors are efficient, durable, and require minimal maintenance. They are commonly used in applications such as computer cooling fans, drones, and electric vehicles.

Each type of DC motor has its own advantages and disadvantages, so it's essential to consider factors such as power requirements, speed control, and cost when selecting the appropriate motor for your specific application. By understanding the different types and their applications, you can make an informed decision and unlock the full potential of DC motors.

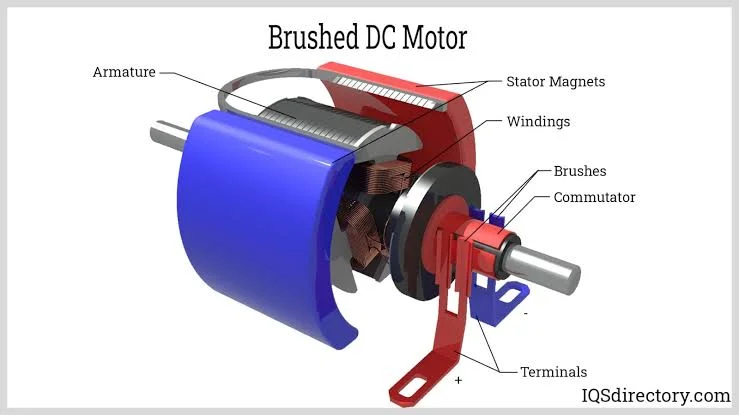

Brushed DC motors: How they work and their advantages and disadvantages

Brushed DC motors are one of the most commonly used types of DC motors. They operate on the principle of electromagnetism, where a rotating armature, also known as a rotor, interacts with a stationary set of magnets, known as the stator.

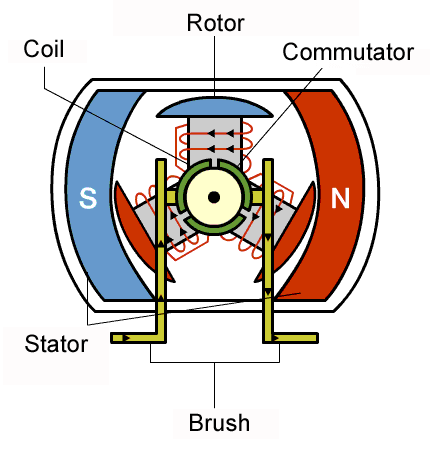

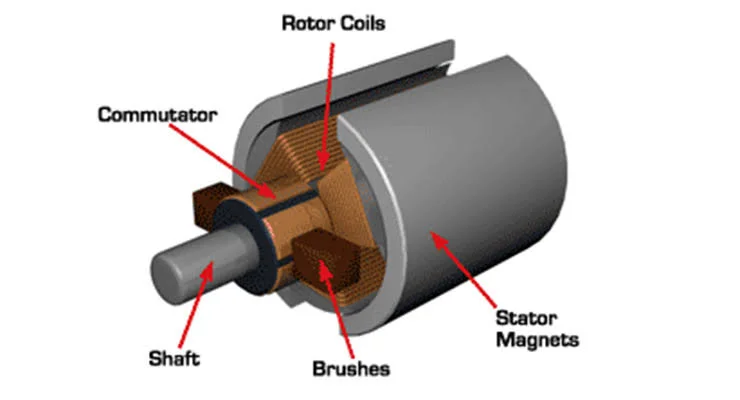

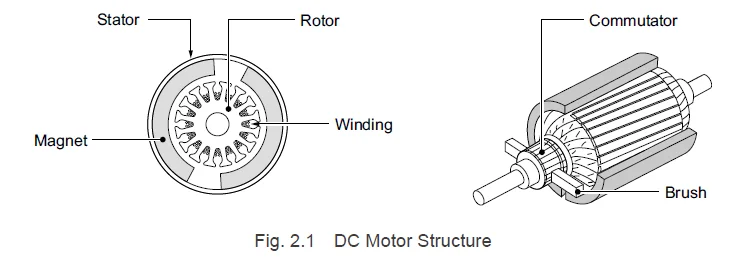

Inside a brushed DC motor, there are two main components: the rotor and the stator. The rotor consists of a coil of wire wound around a central core, while the stator contains permanent magnets. When an electric current is applied to the coil, it creates a magnetic field that interacts with the magnetic field of the stator, causing the rotor to rotate.

One of the advantages of brushed DC motors is their simplicity. They have a straightforward design, making them easy to understand and troubleshoot. Additionally, they offer good control over speed and torque, allowing for precise adjustments in various applications.

Another advantage of brushed DC motors is their affordability. Compared to other types of motors, brushed DC motors are relatively inexpensive to manufacture, making them a popular choice for budget-conscious projects.

However, brushed DC motors also have some drawbacks. One of the main disadvantages is the presence of brushes and commutators. The brushes, usually made of carbon, come into contact with the commutator, which is a rotating switch that directs the flow of current to the rotor. Over time, the brushes can wear out, requiring regular maintenance and replacement. Additionally, the brushes and commutators can generate friction and electrical noise, limiting the efficiency and lifespan of the motor.

Furthermore, brushed DC motors tend to have lower efficiency compared to other types of motors, such as brushless DC motors. This is due to the energy losses associated with the brushes and commutators. As a result, brushed DC motors may generate more heat and consume more power, making them less suitable for applications that require high efficiency or extended operation.

In summary, brushed DC motors offer simplicity, affordability, and good speed and torque control. However, they require regular maintenance, have lower efficiency, and may not be suitable for high-performance applications. Understanding the advantages and disadvantages of brushed DC motors can help you make informed decisions when selecting the right type of motor for your specific needs.

Brushless DC motors: Operation principles and benefits compared to brushed DC motors

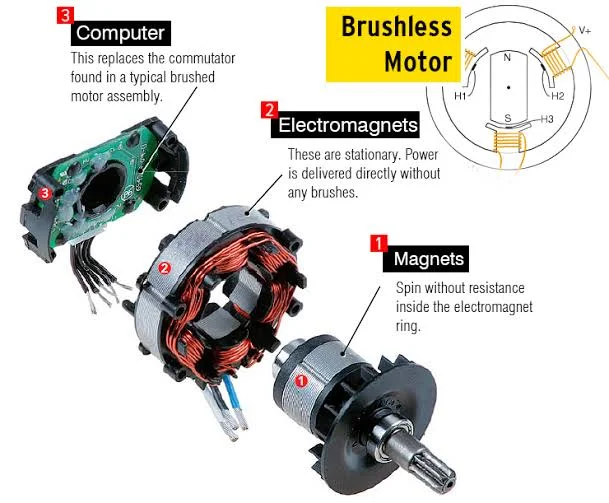

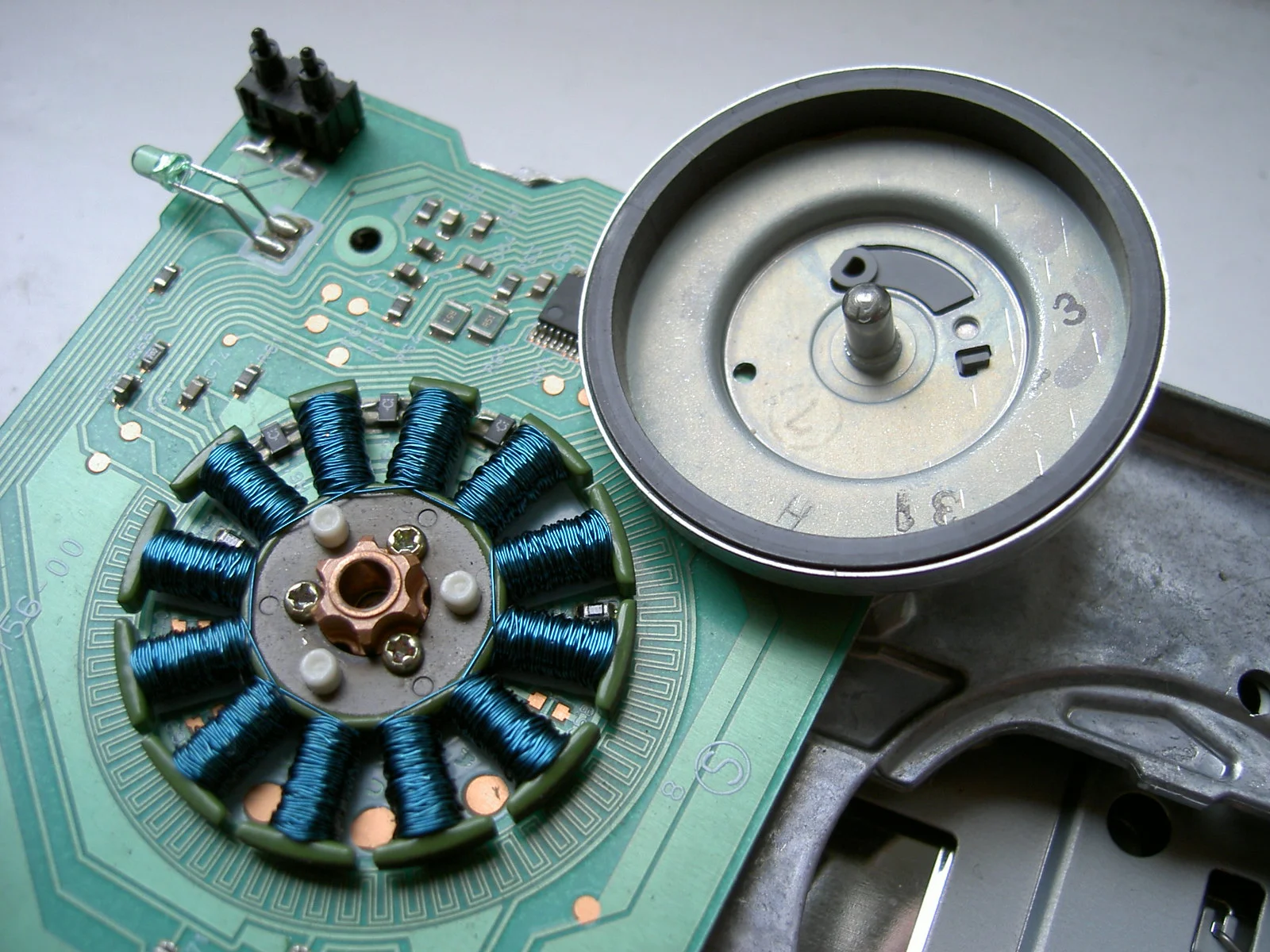

Brushless DC (BLDC) motors are gaining popularity in various industries due to their efficient and reliable operation. Unlike brushed DC motors, which use brushes and a commutator to transfer electrical power to the rotor, BLDC motors utilize electronic commutation for improved performance.

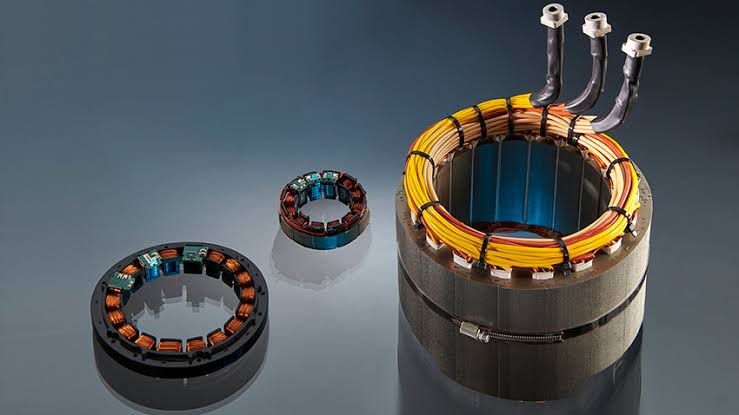

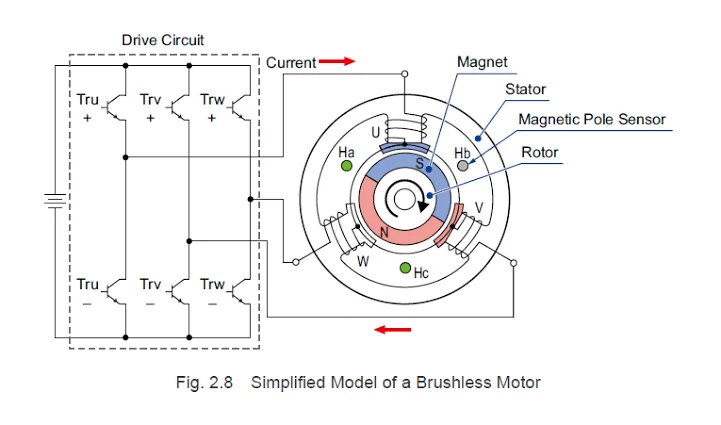

The operation principle of a brushless DC motor involves the use of a permanent magnet rotor and a stator with windings. The stator windings are energized in a specific sequence by an electronic controller, creating a rotating magnetic field. This magnetic field interacts with the permanent magnets on the rotor, causing it to rotate.

One of the significant advantages of brushless DC motors is their higher efficiency. Since there are no brushes or commutators, there is less frictional loss and wear, resulting in reduced heat generation and longer lifespan. Additionally, the absence of brushes eliminates the need for regular maintenance and brush replacement, making BLDC motors more cost-effective in the long run.

Another benefit of brushless DC motors is their ability to provide precise control and speed regulation. The electronic commutation allows for smoother and more accurate control of the motor's speed and torque. This makes them ideal for applications that require precise movements or variable speeds, such as robotics, electric vehicles, and industrial automation.

Furthermore, the brushless design eliminates the risk of sparking and electromagnetic interference, making BLDC motors suitable for sensitive electronic devices and environments where electromagnetic compatibility is crucial.

However, it's worth noting that brushless DC motors tend to be slightly more expensive upfront compared to their brushed counterparts. The need for electronic controllers and the complexity of the design contribute to the higher cost. Nevertheless, considering their energy efficiency and longer lifespan, the overall cost-effectiveness of brushless DC motors becomes evident over time.

In summary, brushless DC motors offer significant advantages compared to brushed DC motors. Their efficient operation, precise control, longer lifespan, and reduced maintenance make them increasingly popular in various industries. As technology continues to advance, we can expect even greater adoption of brushless DC motors in the future.

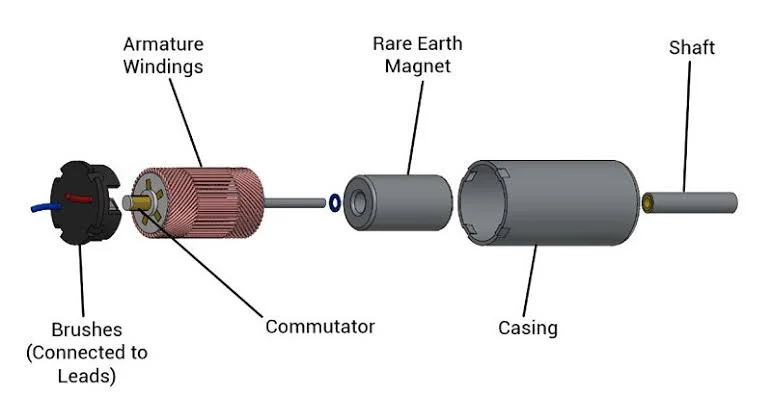

Coreless DC motors: Exploring their unique characteristics and applications

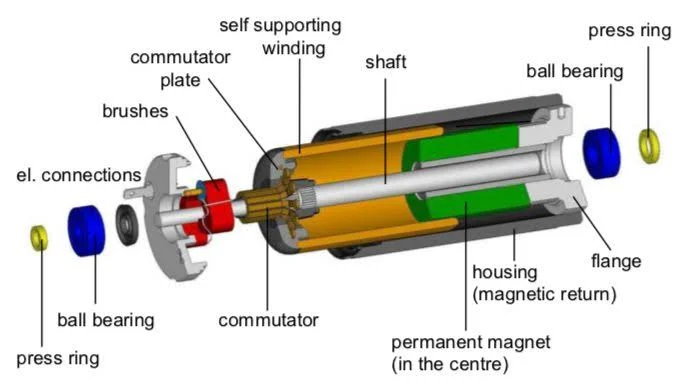

Coreless DC motors are a fascinating and innovative type of motor that offer unique characteristics and applications. Unlike traditional DC motors, coreless DC motors do not have an iron core in their rotor. Instead, they feature a winding that is directly attached to the outer casing, resulting in a lightweight and compact design.

One of the key advantages of coreless DC motors is their high acceleration capabilities. The absence of the iron core reduces the rotor's inertia, allowing for quick and precise movements. This makes them ideal for applications that require rapid response times, such as robotics, drones, and high-speed automation systems.

In addition to their agility, coreless DC motors also offer exceptional power density. The absence of the iron core allows for a higher copper filling factor, enabling these motors to deliver more power in a smaller package. This makes them suitable for applications where space is limited and weight reduction is crucial, such as medical devices, handheld tools, and aerospace equipment.

Furthermore, coreless DC motors exhibit low cogging, which refers to the resistance or reluctance of the rotor to start moving. This smooth operation ensures minimal vibration and noise, making them suitable for precision instruments, cameras, and audio equipment.

However, it's important to note that coreless DC motors also have some limitations. Due to their unique design, they are more prone to overheating, especially when subjected to high loads or continuous operation. Additionally, their construction and winding configuration can make them more expensive compared to traditional DC motors.

In conclusion, coreless DC motors offer a range of unique characteristics and applications. Their lightweight and compact design, high acceleration capabilities, and exceptional power density make them a preferred choice for various industries. However, it's essential to consider their limitations and ensure proper cooling and maintenance to maximize their performance and longevity.

Factors to consider when choosing a DC motor for a specific application

When choosing a DC motor for a specific application, there are several important factors to consider. These factors can greatly impact the performance and efficiency of the motor, as well as the overall success of your project.

1. Power Requirements: The first step is to determine the power requirements of your application. This includes the voltage and current needed to drive the motor effectively. Consider the load that the motor will need to handle and ensure that the motor's power output aligns with your specific needs.
2. Speed and Torque: Different applications require different levels of speed and torque. It is crucial to match the motor's speed and torque capabilities with the requirements of your application. Consider factors such as acceleration and deceleration rates, as well as the need for precise control over speed and torque.
3. Size and Weight: The physical dimensions and weight of the motor can be critical, especially in compact or portable applications. Consider the space limitations and weight restrictions of your project, and choose a motor that can fit within these constraints without compromising performance.
4. Efficiency and Energy Consumption: Energy efficiency is a vital consideration for many applications. Look for motors that offer high efficiency ratings to minimize energy consumption and reduce operating costs. This is particularly important for applications that run continuously or have high power demands.
5. Environmental Conditions: Consider the environmental conditions in which the motor will operate. Factors such as temperature, humidity, and exposure to dust or moisture can impact the motor's performance and longevity. Choose a motor that is specifically designed to withstand the conditions of your application.
6. Cost and Availability: Finally, consider the cost and availability of the motor. Evaluate your budget constraints and compare prices from different suppliers. Additionally, ensure that the motor you choose is readily available for purchase to avoid delays in your project timeline.

By carefully considering these factors, you can select the right DC motor for your specific application, ensuring optimal performance, efficiency, and reliability.

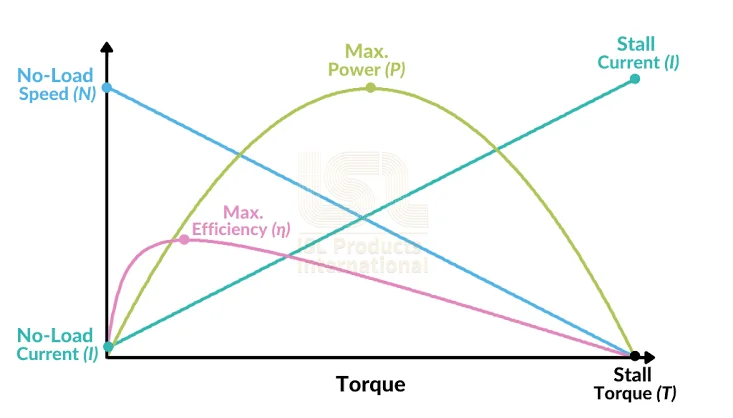

The role of voltage and current in DC motor performance

Understanding the role of voltage and current in DC motor performance is crucial for anyone looking to delve into the world of electric motors. Voltage and current are the two fundamental electrical parameters that directly impact the operation and efficiency of DC motors.

Voltage, measured in volts (V), is responsible for creating the necessary electrical potential difference to drive the motor. It determines the speed at which the motor rotates. A higher voltage will generally result in a faster motor speed, while a lower voltage will slow it down. However, it is important to note that exceeding the recommended voltage for a motor can lead to overheating and potential damage.

On the other hand, current, measured in amperes (A), is the flow of electric charge through the motor's windings. It determines the torque, or the rotational force, produced by the motor. A higher current will result in a greater torque output, enabling the motor to handle heavier loads. However, excessive current can lead to overheating and increased power consumption.

The relationship between voltage and current in a DC motor can be understood through Ohm's law. Ohm's law states that the current flowing through a conductor is directly proportional to the voltage applied across it, while inversely proportional to the resistance of the conductor. In the case of a DC motor, the resistance is typically represented by the internal resistance of the windings.

By manipulating the voltage and current supplied to a DC motor, you can control its speed and torque output. This allows for flexible operation and adaptability to different applications. However, it is important to carefully consider the motor's specifications and limitations when adjusting voltage and current to avoid damaging the motor or compromising its performance.

In summary, voltage and current play crucial roles in the performance of DC motors. Voltage determines the speed of the motor, while current determines the torque output. Understanding the relationship between these two parameters is essential for optimizing motor performance and ensuring safe and efficient operation.

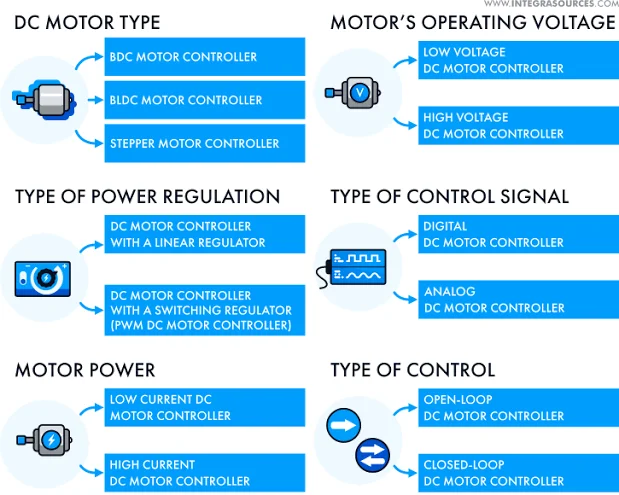

Exploring motor control techniques for DC motors

DC motors are widely used in various applications, ranging from robotics and automation to electric vehicles and industrial machinery.

To harness the full potential of these versatile motors, it is crucial to understand different motor control techniques.

Armature Voltage Control:

One of the most common techniques for controlling DC motors is armature voltage control. By varying the voltage applied to the motor's armature, the speed and torque can be adjusted. This method is relatively simple and cost-effective, making it suitable for many applications. However, it may result in reduced efficiency and can cause speed fluctuations under varying loads.

Field Flux Control:

Another approach is field flux control, where the magnetic field strength within the motor is regulated. By adjusting the field current, the motor's speed and torque can be controlled. This technique provides better speed regulation and efficiency compared to armature voltage control. However, it may require additional circuitry and can be more complex to implement.

Pulse Width Modulation (PWM):

PWM is a widely-used technique for controlling DC motors. It involves rapidly switching the motor's power supply on and off, with the duration of the on-time (duty cycle) determining the average voltage applied. By adjusting the duty cycle, the motor's speed can be precisely controlled. PWM offers excellent speed control, efficiency, and smooth operation. It is commonly used in applications requiring precise speed regulation, such as robotics and CNC machines.

Closed-Loop Control:

In closed-loop control, feedback sensors such as encoders are used to provide real-time information about the motor's speed and position. This information is then used to adjust the control signals to achieve the desired performance. Closed-loop control offers superior accuracy and stability, making it suitable for applications that require precise positioning or high-speed control.

Each motor control technique has its strengths and weaknesses, and the choice depends on the specific application requirements. It is essential to consider factors such as cost, complexity, speed regulation, efficiency, and precision when selecting the appropriate control technique for your DC motor system.

By understanding and exploring these motor control techniques, you can unlock the full potential of DC motors and optimize their performance in your applications. Whether you are a seasoned engineer or an enthusiast looking to delve into the world of DC motors, mastering these techniques will empower you to design and control efficient and reliable motor systems.

Conclusion and key takeaways: Making informed decisions about DC motor selection

In conclusion, understanding the different types of DC motors and their operation is crucial in making informed decisions when it comes to selecting the right motor for your specific needs. By considering factors such as speed, torque, efficiency, and power requirements, you can determine which type of DC motor will best suit your application.

The key takeaways from this exploration of DC motors are as follows:

• Brushed DC motors are simpler in design and more affordable, but they require regular maintenance due to the brushes wearing out over time.
• Brushless DC motors offer higher efficiency and longer lifespan, making them ideal for applications where maintenance is difficult or costly.
• The speed control of DC motors can be achieved through various methods, such as using PWM (Pulse Width Modulation) or adjusting the input voltage.
• Understanding the pros and cons of different types of DC motors will help you optimize their performance and enhance the overall efficiency of your system.
• It is essential to consider the specific requirements of your application, including the load, environment, and power source, to choose the most suitable DC motor.

By taking the time to evaluate your needs and familiarize yourself with the characteristics of different DC motors, you can make informed decisions that will contribute to the success and reliability of your projects. Whether you are in robotics, automotive, industrial, or any other field that relies on DC motors, this knowledge will empower you to select the right motor for the job, ensuring optimal performance and longevity.
