Chain Drives: A Comprehensive Guide to Types, Applications, and Advantages

Chain drives play a crucial role in the world of mechanical power transmission, offering a diverse range of types, applications, and benefits.

In this article, we'll delve into the various aspects of chain drives, exploring their types, uses, design considerations, applications, and both the advantages and disadvantages they bring to different industries.

Types of Chain Drives

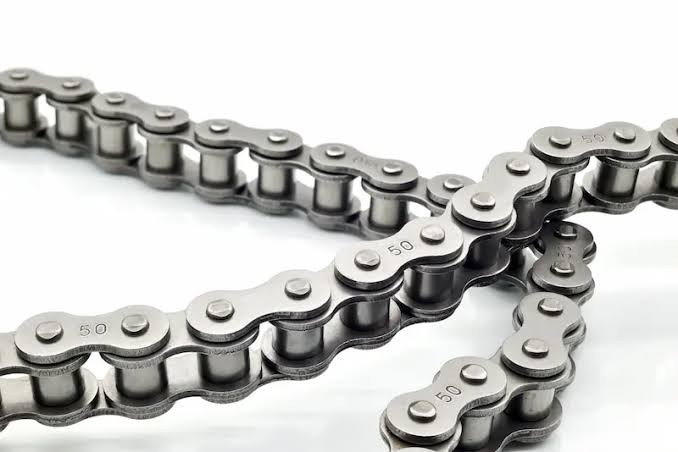

Chain drives come in various types, each with its own set of advantages and drawbacks. Among the most prevalent types is the roller chain, characterized by rows of cylindrical rollers linked by sideplates. While roller chains are robust and efficient, they can experience wear and tear over time. Another variant is the silent chain, which employs bushings to reduce noise and vibration, making it an excellent choice for applications where noise is a concern.

Uses and Applications

The versatility of chain drives extends to their applications across industries. Found in industrial machinery, agricultural equipment, bicycles, and motorcycles, chain drives offer adaptable solutions for diverse mechanical power transmission needs. They can be adjusted to accommodate different loads and speeds, making them ideal for high-use scenarios. However, it's worth noting that wear and noise can be challenges associated with chain drives.

Design Considerations

Chain drives exhibit a variety of designs, each with its own merits and demerits. For instance, roller chains consist of small cylindrical rollers rotating around a central axis, making them cost-effective and easy to maintain. On the other hand, the silent chain reduces noise and vibration through the use of bushings. These design variations provide engineers and designers with options tailored to specific requirements.

Advantages of Chain Drives:

1. Suitable for both long and short distances.
2. One chain can drive multiple shafts, enhancing efficiency.
3. Compact dimensions, saving space.
4. No fire hazard concerns.
5. Resistant to environmental conditions and temperature variations.
6. No initial tension requirement.
7. High efficiency, around 96 percent.
8. Minimal to no slip occurs.
9. Easy installation process.
10. Able to withstand abrasive conditions.
11. Operable in wet environments.

Disadvantages of Chain Drives:

1. Unsuitable for applications with slip requirements.
2. Require precise alignment compared to belt drives.
3. Frequent lubrication is necessary.
4. Lower load capacity compared to gear drives.
5. Noisy operation with potential vibration.
6. Not suitable for non-parallel shafts.
7. Incompatible with precise motion requirements.
8. Housing is needed.
9. Regular adjustment for slack using tensioning devices is required.

Conclusion

Chain drives represent a diverse and effective solution for mechanical power transmission needs. The roller chain, silent chain, and other variations offer unique advantages and disadvantages that must be carefully weighed when selecting a suitable type for a specific application. Their adaptability, efficiency, and capacity to withstand challenging conditions make chain drives an indispensable component in various industries. As technology advances, it's important to continually assess the evolving landscape of chain drive applications and harness their potential for enhanced mechanical power transmission.
