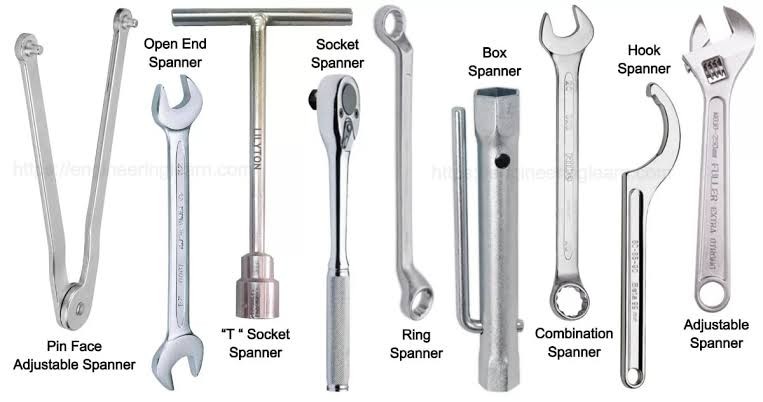

Types of Spanners: Uses, Advantages, and Material Composition

Spanners, also known as wrenches, are essential tools in mechanical engineering, enabling professionals to tighten or loosen various fasteners with ease.

In this comprehensive guide, we will delve into the different types of spanners, their applications, advantages, disadvantages, and the materials used in their construction.

Open-End Spanner:

The open-end spanner features U-shaped jaws on both ends, designed to fit over the flat sides of a nut or bolt head. Its primary purpose is to provide a strong grip, allowing precise tightening or loosening in confined spaces. Open-end spanners are commonly made of forged chrome vanadium steel, providing excellent strength and durability.

Advantages:

• Ideal for tight spots with limited accessibility.
• Lightweight and easy to carry.
• Versatile and suitable for various sizes of nuts and bolts.

Disadvantages:

• Limited torque application due to minimal contact area.
• May round off edges of soft or worn-out fasteners.

Double-End Spanner:

Similar to the open-end spanner, the double-end spanner has U-shaped jaws on both ends. However, the jaws are different sizes, making it a versatile tool for different bolt or nut sizes. Double-end spanners are commonly constructed from chrome-plated carbon steel, offering corrosion resistance and moderate strength.

Advantages:

• Space-saving design with two different sizes in one tool.
• Suitable for various fastener sizes.
• Provides a secure grip during operation.

Disadvantages:

• Limited leverage compared to longer spanners.
• May slip on rounded fastener corners.

Box Spanner:

The box spanner, also known as the socket spanner, has a closed-end design with a socket-like structure. This allows it to fit over the fastener completely, providing 360-degree contact. Box spanners are typically made from chrome-vanadium alloy steel, which enhances their sturdiness and ensures longevity.

Advantages:

• Offers maximum torque application with full surface contact.
• Prevents fastener rounding due to complete enclosure.
• Ideal for high-torque applications.

Disadvantages:

• Limited use in tight spaces.
• Multiple sizes required to cover a wide range of fasteners.

Ring Spanner:

The ring spanner features a circular-shaped end with a closed-loop design. It provides more contact points than an open-end spanner, minimizing the risk of fastener slippage. Ring spanners are usually crafted from chrome-plated carbon steel, providing adequate strength and moderate corrosion resistance.

Advantages:

• Ensures a secure grip on fasteners.
• Suitable for high-torque applications.
• Works well with hard-to-reach nuts and bolts.

Disadvantages:

• Limited use in confined spaces.
• May not fit all fastener shapes.

L Socket Spanner:

The L socket spanner is an L-shaped tool with a socket head at one end. It is ideal for accessing fasteners in tight or obstructed spaces. Typically, L socket spanners are made of chrome-vanadium alloy steel, combining strength and resistance to wear.

Advantages:

• Excellent tool for hard-to-reach areas.
• Allows for quick fastener engagement.
• Offers better torque transmission compared to other spanners.

Disadvantages:

• Limited leverage due to its compact design.
• May not fit certain fastener sizes or shapes.

Combination Spanner:

The combination spanner combines an open-end jaw on one end and a ring spanner on the other. This versatile tool allows engineers to switch between the two ends as needed. Combination spanners are commonly made from chrome-plated carbon steel or chrome-vanadium alloy steel.

Advantages:

• Dual functionality for multiple applications.
• Ideal for working in tight spaces or with different fastener types.
• Offers increased leverage compared to an L socket spanner.

Disadvantages:

• May not provide the same torque application as a box spanner.
• Not suitable for high-torque requirements.

Hook Spanner:

The hook spanner is specifically designed for adjusting and removing large circular nuts or retaining rings. It features a hook-like jaw that fits into the notches or holes on the fastener. Hook spanners are typically crafted from heat-treated carbon steel, ensuring high strength and durability.

Advantages:

• Specialized tool for specific applications.
• Provides a secure grip on circular fasteners.
• Ideal for industrial machinery and large equipment.

Disadvantages:

• Limited use in general applications.
• May not be applicable to standard fasteners.

Adjustable Spanner:

Also known as the adjustable wrench, this versatile tool has a movable jaw, allowing it to adapt to different fastener sizes. Adjustable spanners are commonly made from chrome-plated carbon steel, providing durability and corrosion resistance.

Advantages:

• Suitable for various fastener sizes.
• Versatile and multipurpose tool.
• Easy to adjust and use.

Disadvantages:

• Not as strong as fixed-size spanners.
• May not provide sufficient torque for heavy-duty applications.

"T" Socket Spanner:

The "T" socket spanner, also called a torque wrench, is designed to apply a specific torque to fasteners. It features a handle with a built-in torque indicator, ensuring precise torque application. The material composition varies, but most are made from chrome-vanadium alloy steel for strength and accuracy.

Advantages:

• Ensures accurate torque application.
• Prevents over-tightening and under-tightening of fasteners.
• Essential for critical applications with specified torque requirements.

Disadvantages:

• Not suitable for general-purpose use.
• More expensive than standard spanners.

Allen Key:

Also known as a hex key, the Allen key has a hexagonal cross-section, used for driving bolts and screws with hexagonal sockets. Allen keys are commonly made of hardened and tempered carbon steel, offering excellent durability and corrosion resistance.

Advantages:

• Ideal for hexagonal socket screws and bolts.
• Available in various sizes and shapes.
• Compact and easy to carry.

Disadvantages:

• Limited to hexagonal socket applications.
• May not provide enough leverage for stubborn fasteners.

Pin Face Adjustable Spanner:

The pin face adjustable spanner is a specialized tool used for adjusting or removing pins and collars. It features a pin-like end on one jaw, allowing precise alignment with the pin's hole. This spanner is usually made from carbon steel or chrome-vanadium alloy steel.

Advantages:

• Perfect tool for working with pins and collars.
• Allows accurate positioning and alignment.
• Suitable for delicate operations.

Disadvantages:

• Limited to pin-related tasks.
• May not be applicable in general mechanical work.

Conclusion:

In the realm of mechanical engineering, spanners are indispensable tools that facilitate efficient fastener tightening and loosening. Each type of spanner has its unique applications, advantages, and disadvantages. Understanding their characteristics and materials used can guide engineers in selecting the appropriate spanner for specific tasks, ensuring successful outcomes in various mechanical projects.
