Automotive Electrical Components: Functions, Troubleshooting, and Repairs

These are essential automotive electrical components. Starter cranks the engine, fuel pump supplies fuel, relays control fans and systems, and A/F oxygen sensor relay monitors air-fuel ratio. Troubleshoot and repair as needed.

As an automotive electrician, it is essential to have a comprehensive understanding of various electrical components that play a critical role in a vehicle's operation. In this article, we will explore the uses of starter, fuel pump, and various relays, along with practical troubleshooting and repair techniques to ensure optimal performance and reliability.

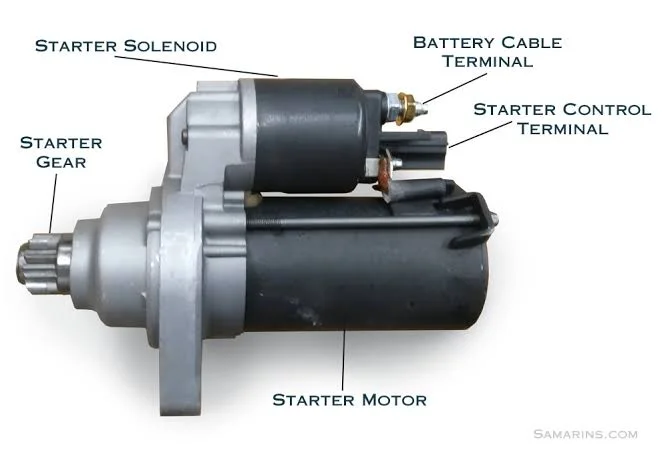

Starter:

Uses:

The starter is a vital component responsible for cranking the engine during the ignition process. It draws electrical power from the battery and turns the engine flywheel, initiating the combustion cycle.

Troubleshooting and Repair:

• If the engine fails to crank, first check the battery voltage and connections.
• Ensure the starter solenoid is functioning correctly by testing its electromagnetic coil.
• Inspect the starter motor's brushes and commutator for wear or damage, replacing if necessary.
• In case of starter motor failure, replacement with a new or rebuilt unit is recommended.

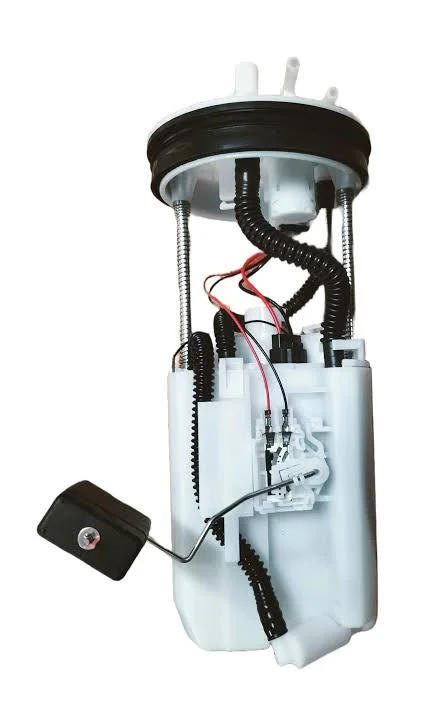

Fuel Pump:

Uses:

The fuel pump ensures a steady flow of fuel from the gas tank to the engine's fuel injectors. It maintains proper fuel pressure for efficient combustion and engine performance.

Troubleshooting and Repair:

• Test the fuel pump's electrical connections and fuse to ensure proper power supply.
• Use a fuel pressure gauge to measure the fuel pressure at the fuel rail. Abnormal readings may indicate a faulty fuel pump.
• Check for fuel leaks or a clogged fuel filter, as these can impact the pump's operation.
• In case of fuel pump failure, replace it with a new unit, ensuring compatibility with the vehicle's make and model.

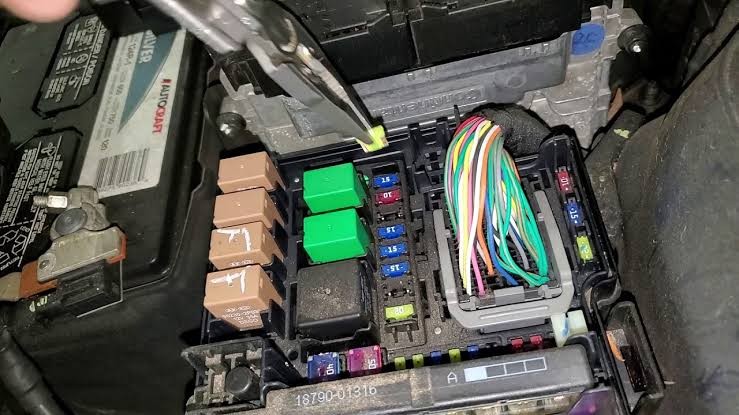

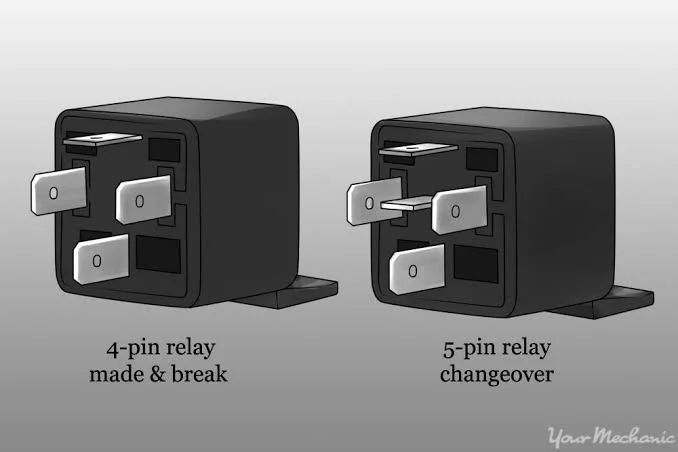

Relays:

Uses:

Relays serve as electrical switches that control high-current devices in the vehicle. They ensure efficient power distribution and protect sensitive electronic components.

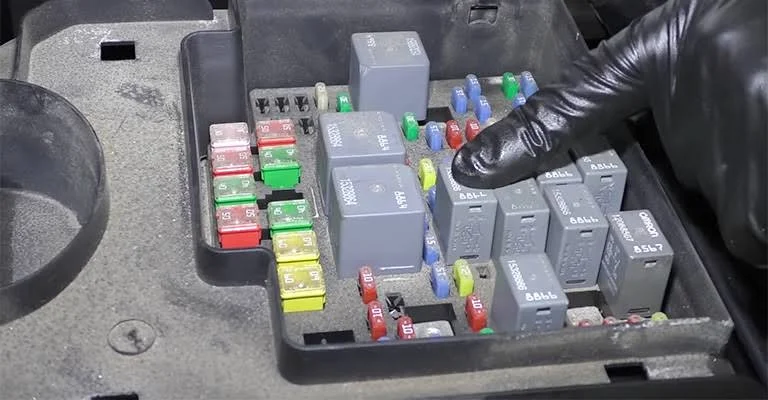

Troubleshooting and Repair:

• If a specific function controlled by a relay fails, check the corresponding fuse and wiring connections first.
• Use a multimeter to test the relay's coil resistance and confirm if it is functional.
• Listen for clicking sounds when the relay engages/disengages during operation. No clicking may indicate a defective relay.
• Replace faulty relays with compatible replacements based on the manufacturer's specifications.

Read: Common Car Electrical Problems and How to Troubleshoot Them

Unlock the Mysteries of Your Vehicle's Alternator: A Guide to Troubleshooting and Beyond

Radiator Main Fan Relay 1 and Radiator Sub Fan Relay:

Uses:

These relays control the operation of the radiator fans, which helps maintain the engine's optimal temperature by dissipating excess heat. Radiator main fan relay 1 activates the primary radiator fan, while radiator sub fan relay operates the secondary fan when additional cooling is required, such as during air conditioning operation or heavy engine load.

Troubleshooting and Repair:

• If the radiator fans do not operate, first check the fuses and wiring connections.
• Test the relays' coil resistance using a multimeter to ensure proper functionality.
• Check the engine temperature sensor and coolant temperature switch, as a faulty signal from these components can prevent the relays from activating.
• Replace defective relays with the appropriate replacements based on the vehicle's specifications.

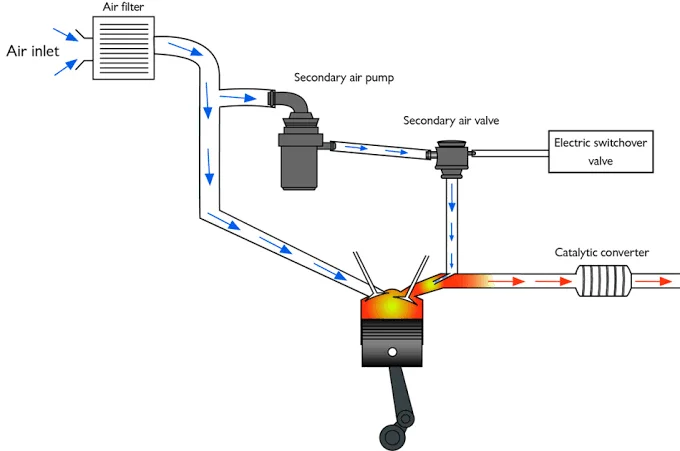

Secondary Air Combination Valve Relay 2 and Secondary Air Combination Valve Relay 1:

Uses:

These relays control the secondary air injection system, which reduces harmful emissions during cold engine start-up. Secondary air combination valve relay 2 operates the combination valve responsible for the air injection, while relay 1 controls the secondary air pump.

Troubleshooting and Repair:

• Inspect the relays' electrical connections and fuses to ensure proper power supply.
• Use a multimeter to check the relay coil resistance and confirm its functionality.
• If the secondary air system fails to operate, inspect the combination valve and air pump for any blockages or malfunctions.
• Replace faulty relays or other components in the secondary air injection system as needed.

Read: Troubleshooting Car Battery Drain: A Comprehensive Guide

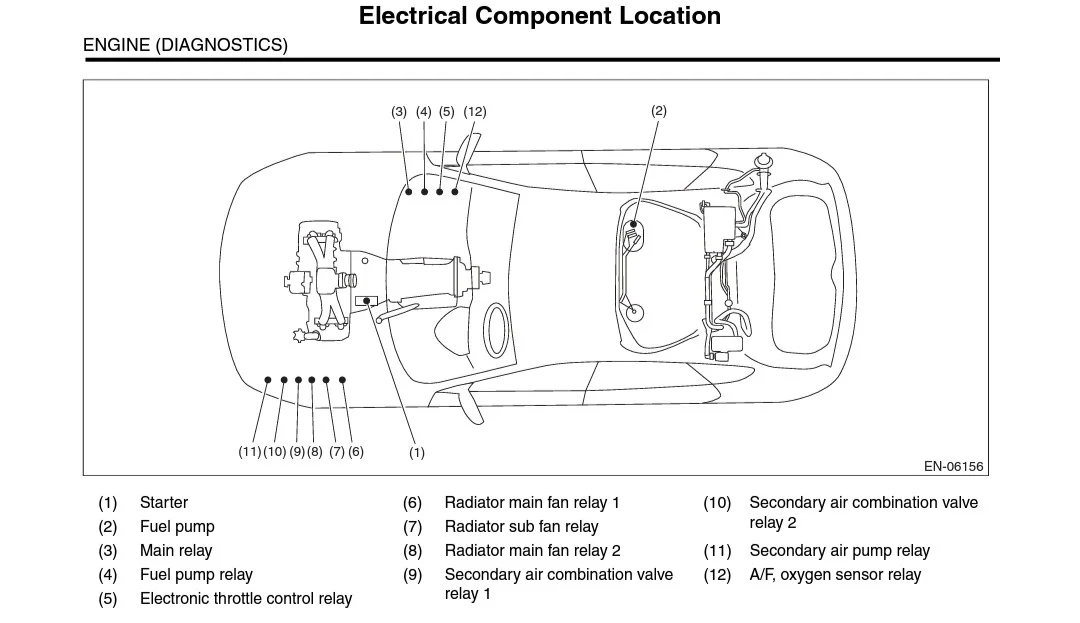

Main Relay, Fuel Pump Relay, Electronic Throttle Control Relay, and A/F Oxygen Sensor Relay:

Uses:

The main relay is a crucial component that supplies power to various electrical systems in the vehicle. The fuel pump relay, as mentioned earlier, controls the fuel pump's operation. The electronic throttle control relay manages the throttle body's operation, while the A/F (Air/Fuel) oxygen sensor relay controls the oxygen sensor's heating element.

Troubleshooting and Repair:

• Check the fuses and wiring connections associated with these relays to ensure proper power supply.
• Use a multimeter to test the relay coil resistance to verify if they are functional.
• Listen for clicking sounds to confirm the relays' engagement during operation.
• Replace any faulty relays with compatible replacements based on the manufacturer's specifications.

Conclusion:

Understanding the uses and troubleshooting methods for critical automotive electrical components is essential for automotive electricians to ensure reliable vehicle performance. When dealing with starter, fuel pump, and various relays, thorough inspection, proper testing, and appropriate replacements are key to efficient repairs. Always refer to the vehicle's service manual and follow safety precautions while working with electrical systems. By mastering these skills, automotive electricians can keep vehicles running smoothly and customers satisfied with their services.
