Engine Timing: A Comprehensive Guide for Successful Adjustment

Engine timing plays a critical role in an automobile's performance and efficiency. Properly adjusting the engine's timing ensures that the valves and pistons operate in sync, optimizing combustion and power delivery.

In this comprehensive guide, we will explore the different aspects of engine timing, its significance, and provide a step-by-step procedure for a successful engine timing adjustment.

Understanding Engine Timing:

Engine timing refers to the synchronization of the camshaft and crankshaft, controlling the opening and closing of intake and exhaust valves in relation to the movement of the pistons. It is crucial for achieving efficient fuel combustion, smooth power delivery, and reduced emissions. Proper engine timing can also prevent engine knocking and potential damage to internal components.

Key Components Affecting Engine Timing:

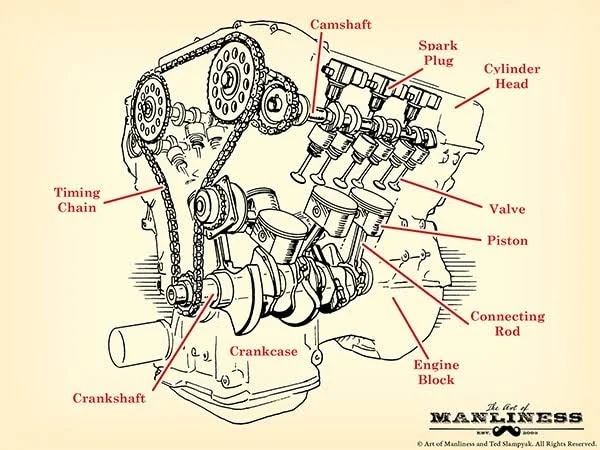

• Camshaft: The camshaft is responsible for controlling the valve timing, determining when the intake and exhaust valves open and close during each engine cycle.
• Crankshaft: The crankshaft converts the up-and-down motion of the pistons into rotary motion, transferring power to the wheels.
• Timing Belt or Chain: Many engines use a timing belt or chain to connect the camshaft and crankshaft, ensuring precise synchronization.

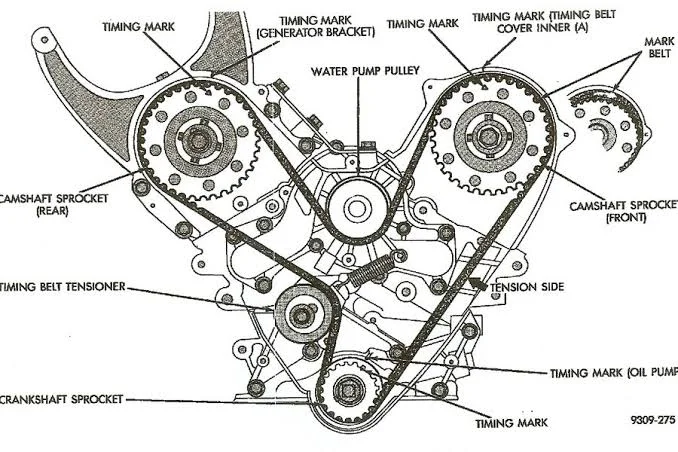

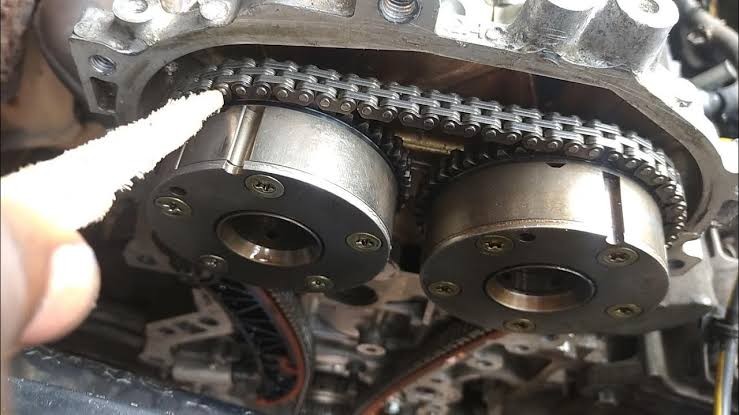

• Timing Marks: These markings on the camshaft and crankshaft gears help align them correctly during the timing adjustment process.

Step-by-Step Guide to Engine Timing Adjustment:

Before starting the engine timing adjustment, ensure you have the necessary tools, a service manual for your specific vehicle model, and a clean and well-lit workspace. Follow these steps:

Step 1: Preparation

- Disconnect the negative battery terminal to avoid electrical accidents during the process.

Step 2: Locate Timing Marks

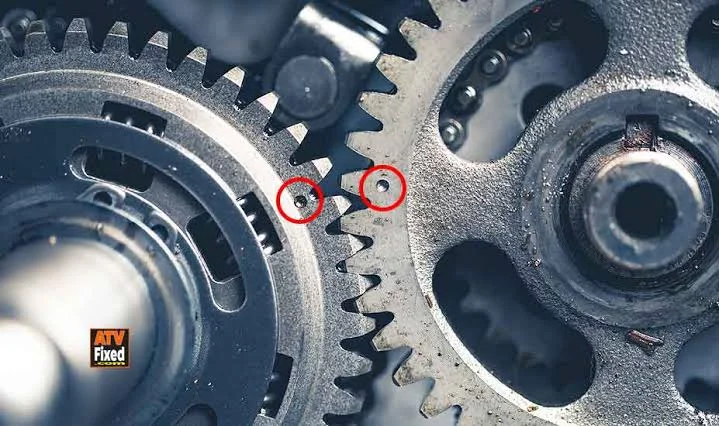

- Consult the service manual to find the timing marks on the camshaft and crankshaft gears.

- Rotate the engine manually, using a crankshaft pulley or flywheel bolt, until the timing marks align at the specified position.

Step 3: Removing Timing Belt/Chain Cover

- Remove the timing belt/chain cover to access the timing components safely.

Step 4: Check Tension and Condition

- Examine the timing belt/chain for signs of wear, cracks, or damage. If necessary, replace it.

- Check the tension of the timing belt/chain according to the manufacturer's recommendations. Adjust the tension if required.

Step 5: Adjusting Timing

- Locate the camshaft position sensor and the timing belt tensioner, if present.

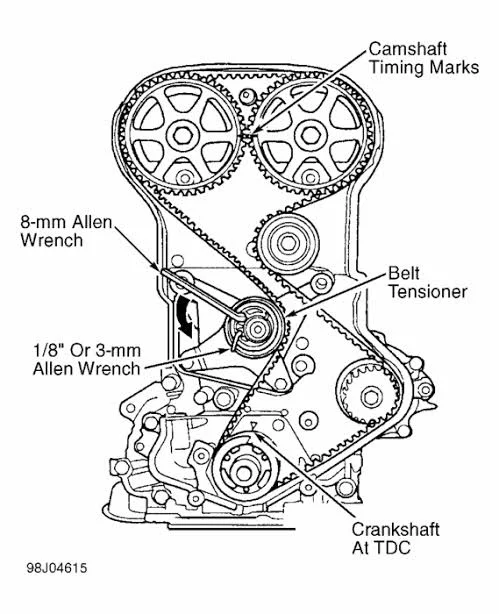

- Loosen the tensioner and carefully adjust the position of the camshaft, aligning the timing marks accurately.

- Once the camshaft timing is set, re-tighten the tensioner and verify that the timing marks are still aligned correctly.

Step 6: Reassembly

- Reinstall the timing belt/chain cover securely.

- Double-check all connections and ensure that there are no loose components.

Step 7: Reconnect Battery and Test

- Reconnect the negative battery terminal.

- Start the engine and check for any abnormal noises or issues.

- Use a timing light to verify the ignition timing if necessary.

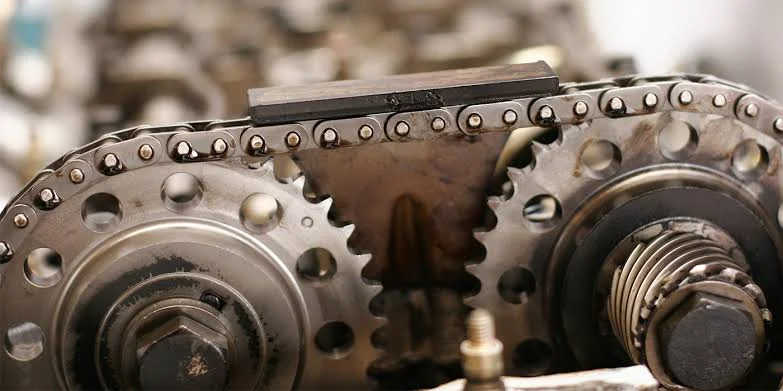

Symptoms of Bad Engine Timing:

1. Rough Idle: Incorrect engine timing can lead to a rough and unstable idle, causing the vehicle to shake or vibrate while stationary.
2. Misfiring: A misfiring engine, characterized by jerking or hesitation during acceleration, is a common symptom of bad engine timing.
3. Decreased Power and Performance: Bad engine timing can result in reduced engine power and overall performance, leading to slower acceleration and diminished towing capacity.
4. Engine Overheating: Incorrect engine timing may cause the engine to run hotter than usual due to inefficient fuel combustion, leading to potential overheating issues.
5. Poor Fuel Efficiency: A poorly timed engine can consume more fuel than usual, resulting in decreased fuel efficiency and increased fuel expenses.
6. Engine Knocking: Improper engine timing can lead to pre-ignition or knocking, causing potential damage to pistons, valves, and other internal components.

Problems Associated with Bad Engine Timing:

1. Reduced Engine Lifespan: Prolonged operation with bad engine timing can subject internal components to excessive stress, potentially reducing the engine's overall lifespan.
2. Increased Emissions: Incorrect engine timing can lead to incomplete combustion, contributing to higher emissions and environmental pollution.
3. Expensive Repairs: Ignoring bad engine timing issues can lead to severe engine damage over time, resulting in costly repairs or even engine replacement.
4. Loss of Engine Efficiency: An engine with bad timing may not perform optimally, leading to decreased fuel efficiency and higher operating costs.
5. Engine Damage: Continuous operation with poor timing can lead to serious engine damage, such as bent valves, damaged pistons, or a damaged cylinder head.

Conclusion:

Engine timing is a fundamental aspect of an automobile's performance and longevity. Properly adjusted timing ensures efficient fuel combustion, smooth power delivery, and reduced emissions. On the other hand, bad engine timing can lead to various symptoms, including rough idle, misfiring, decreased power, overheating, poor fuel efficiency, and engine knocking.

Addressing bad engine timing promptly is crucial to prevent further damage and expensive repairs. Regularly inspecting and adjusting engine timing as part of routine maintenance will contribute to a longer-lasting, more efficient, and reliable vehicle.

If you encounter any symptoms of bad engine timing or suspect timing issues, it is advisable to consult a qualified automotive professional for a comprehensive diagnosis and precise adjustment. Remember, investing in timely maintenance and adjustments will not only enhance your driving experience but also protect your engine, ensuring years of trouble-free motoring.
