Common Car Starting Issues and How to Troubleshoot Them

Identify and troubleshoot common car starting problems: dead battery, faulty starter motor, fuel system issues, ignition system failure, and more. Ensure a smooth driving experience.

Car starting issues can occur due to various reasons, leaving drivers stranded and wondering what went wrong. In this comprehensive guide, we will explore some of the most common car starting problems and provide step-by-step troubleshooting methods to help you get your vehicle up and running smoothly. Whether you're facing a dead battery, a faulty ignition system, or other related issues, this article aims to equip you with the knowledge to diagnose and potentially resolve these problems on your own.

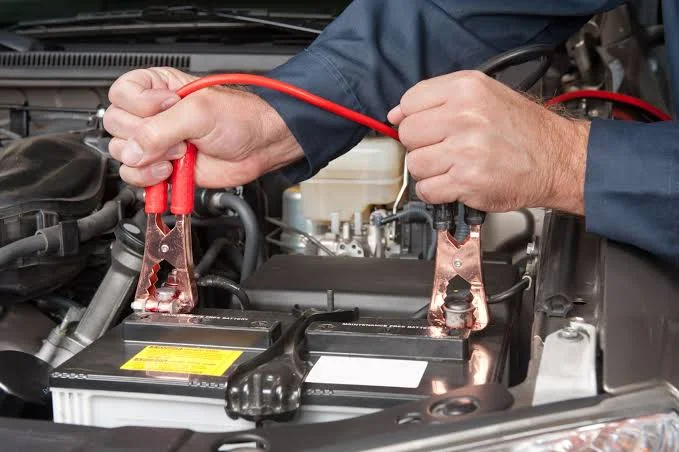

Dead Battery:

A dead battery is one of the primary reasons for car starting issues. Symptoms include the engine not cranking or producing a clicking sound when attempting to start. To troubleshoot this problem, follow these steps:

• Check the battery's condition by inspecting the terminals for corrosion or loose connections.
• If the battery is low on charge, jump-start the car using jumper cables and a running vehicle.
• Consider recharging the battery overnight if it's old but still holding some charge.
• If the battery is beyond recovery, replace it with a new one.

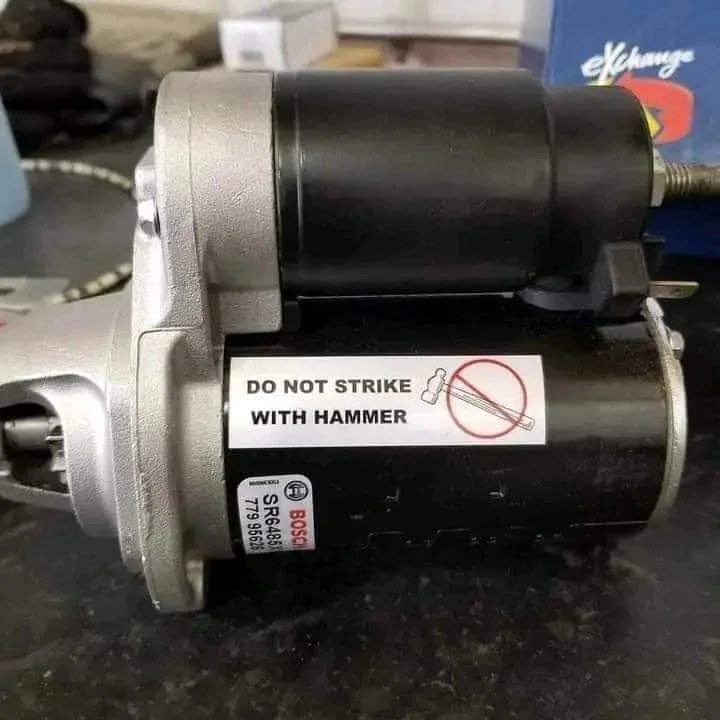

Faulty Starter Motor:

A malfunctioning starter motor can prevent the engine from turning over when starting. Indications include a single loud click or repetitive clicking sounds. To troubleshoot the starter motor:

1. Check the battery first to ensure it has sufficient charge.
2. Listen for any unusual noises when attempting to start the car; grinding noises may indicate starter motor issues.
3. Have a professional mechanic inspect the starter motor, solenoid, and related components for faults or wear.

Fuel System Problems:

Issues with the fuel system can result in the engine not receiving the necessary fuel for combustion. Common signs include the engine cranking but not starting or sputtering during startup. Troubleshoot as follows:

1. Check the fuel gauge to ensure there is enough fuel in the tank.
2. Listen for the fuel pump priming sound when turning the key; a quiet or absent sound may indicate a faulty fuel pump.
3. Inspect the fuel filter for clogs or dirt buildup, replacing it if necessary.
4. If the car uses fuel injection, consider testing the fuel injectors for proper operation.

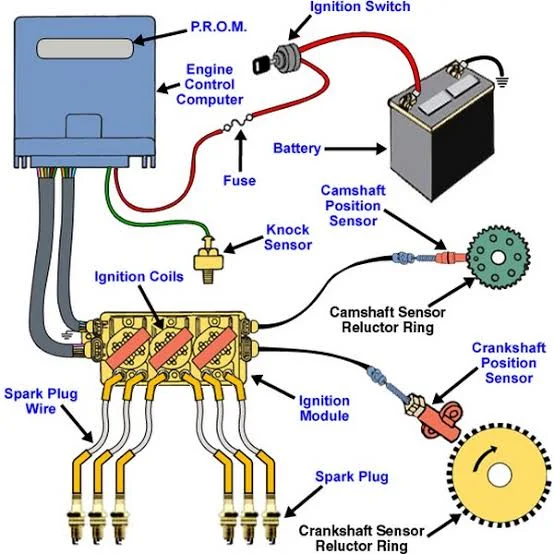

Ignition System Failure:

The ignition system is critical for starting the engine. If it malfunctions, the engine won't ignite, and the car won't start. Symptoms include no response when turning the key or intermittent starting issues. To troubleshoot the ignition system:

1. Check for a spark by removing a spark plug wire, using insulated pliers, and grounding it while someone cranks the engine. If there's no spark, the ignition system may be at fault.
2. Examine the ignition coil, distributor (if applicable), and spark plugs for signs of damage or wear.
3. Replace faulty components or seek professional help for further diagnosis.

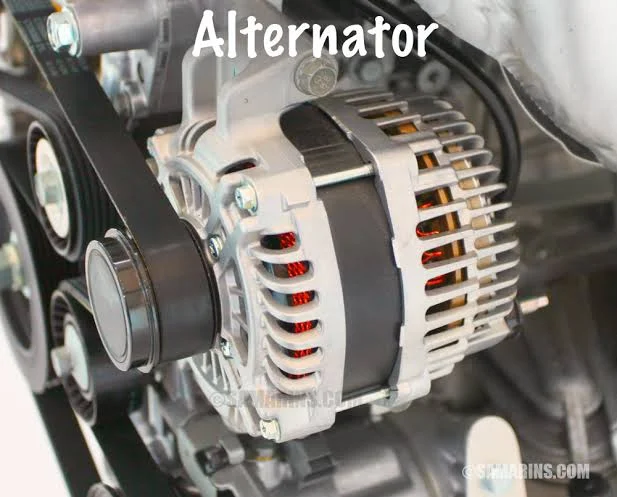

Faulty Alternator:

The alternator is responsible for charging the battery while the engine is running. If it fails, the battery can drain, causing starting problems. Signs include dimming lights and battery warning lights illuminating on the dashboard. To troubleshoot the alternator:

• Use a multimeter to test the alternator's output voltage while the engine is running; it should read around 13.5 to 14.5 volts.
• If the voltage is below the specified range, the alternator may need replacement.

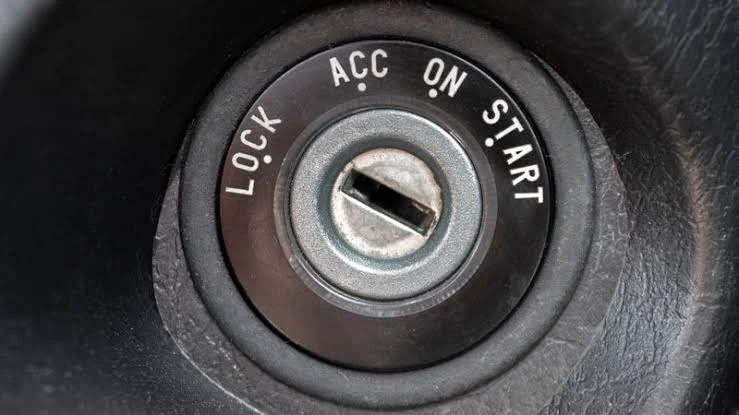

Ignition Switch Problems:

A faulty ignition switch can disrupt the electrical flow between the battery and the starter, leading to starting problems. Symptoms include no response when turning the key or intermittent starting issues. Troubleshoot as follows:

• Check for signs of wear or damage on the ignition key and keyway.
• Try turning the key while gently wiggling it to see if there is any response.
• Test the ignition switch with a multimeter to ensure proper functionality.

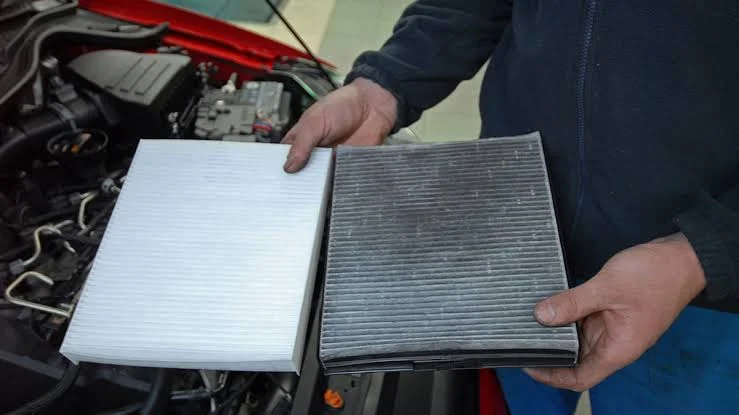

Clogged Air Filter:

A dirty or clogged air filter can restrict airflow to the engine, affecting its ability to start and run smoothly. Indications include difficulty starting the engine and reduced engine performance. Troubleshoot as follows:

1. Inspect the air filter for dirt, debris, or excessive buildup.
2. Replace the air filter if it appears clogged or excessively dirty.

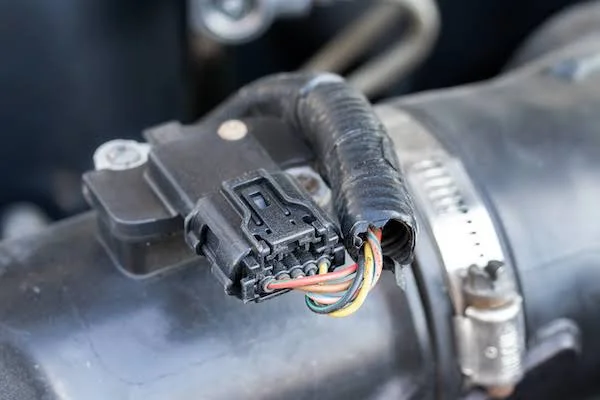

Malfunctioning Mass Airflow Sensor (MAF):

The Mass Airflow Sensor measures the amount of air entering the engine and provides data for fuel injection. If it fails or becomes contaminated, it can cause starting issues and poor engine performance. Troubleshoot as follows:

• Use an automotive diagnostic scanner to check for any MAF sensor error codes.
• Clean the MAF sensor with MAF cleaner to remove dirt and contaminants.
• If cleaning doesn't resolve the issue, consider replacing the MAF sensor.

Vapor Lock:

Vapor lock occurs when the fuel in the fuel lines evaporates and forms vapor bubbles, disrupting the fuel flow to the engine. Symptoms include difficulty starting the engine, particularly after the car has been sitting in hot weather. Troubleshoot as follows:

1. Allow the engine to cool down for a while before attempting to restart.
2. Insulate the fuel lines or add a heat shield to prevent excessive heat affecting the fuel.

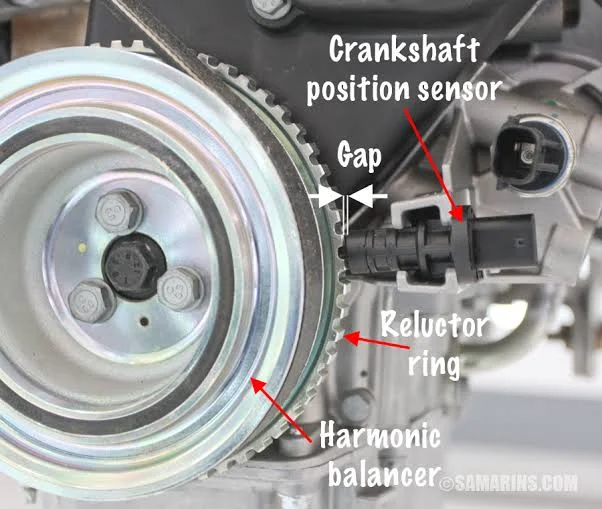

Faulty Crankshaft Position Sensor (CKP):

The Crankshaft Position Sensor monitors the crankshaft's rotational speed and position, providing crucial information for engine timing. If it fails, the engine may not start or may stall during operation. Troubleshoot as follows:

• Check for any CKP sensor error codes using an automotive diagnostic scanner.
• Test the CKP sensor's resistance and voltage output to ensure it is within specifications.
• Replace the CKP sensor if it is found to be faulty.

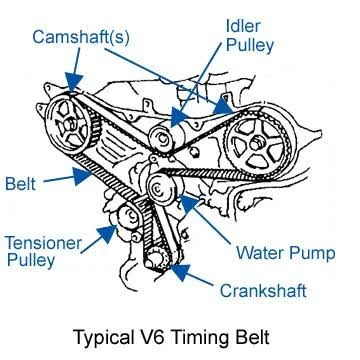

Timing Belt or Chain Issues:

If the timing belt or chain becomes damaged or slips out of alignment, it can lead to engine timing problems and starting issues. Symptoms may include a cranking engine but no start or unusual engine noises. Troubleshoot as follows:

• Inspect the timing belt or chain for signs of wear, damage, or misalignment.
• If there are any issues, seek professional assistance to replace or realign the timing belt or chain.

Security System Malfunctions:

Modern vehicles come equipped with security systems to deter theft. If the system malfunctions or senses unauthorized access, it may prevent the engine from starting. Indications include a flashing security light on the dashboard. Troubleshoot as follows:

1. Check the owner's manual for security system reset procedures.
2. If the issue persists, consult the vehicle manufacturer or a qualified mechanic to diagnose and fix the security system problem.

Conclusion:

Car starting issues can be a source of frustration, but armed with the knowledge of common problems and troubleshooting techniques, you can take steps to diagnose and potentially resolve these issues on your own. Always prioritize safety, and if you encounter complex problems or lack confidence in your skills, seek assistance from a qualified automotive professional. By addressing car starting problems promptly, you can ensure a smoother and more reliable driving experience. Remember to conduct regular maintenance and inspections to prevent these issues from occurring in the first place.
