Common Car Electrical Problems and How to Troubleshoot Them

Learn how to tackle common car electrical issues like dead batteries, faulty alternators, and malfunctioning lights with this comprehensive troubleshooting guide for automotive enthusiasts.

Modern cars are equipped with complex electrical systems that power various components and ensure smooth operation. However, electrical problems can arise, leading to issues like non-starting engines, flickering lights, and malfunctioning accessories. In this article, we will delve into common car electrical problems, their potential causes, and step-by-step troubleshooting methods to help you get your vehicle back on the road.

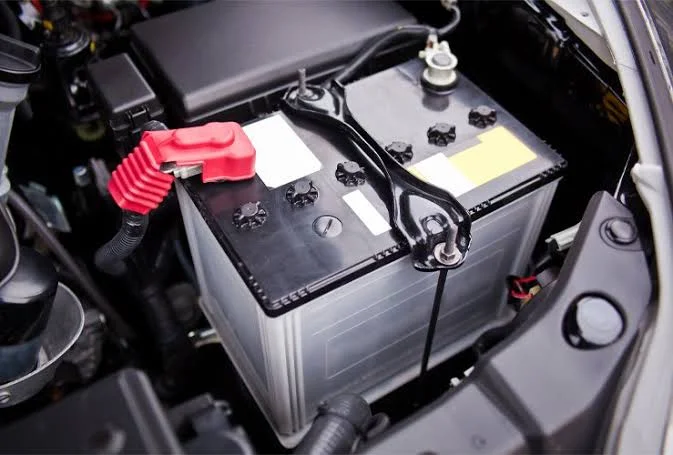

Dead Battery

Symptoms: Car won't start, clicking sounds, dimmed lights.

Causes: Age, leaving lights or accessories on, faulty charging system.

Troubleshooting:

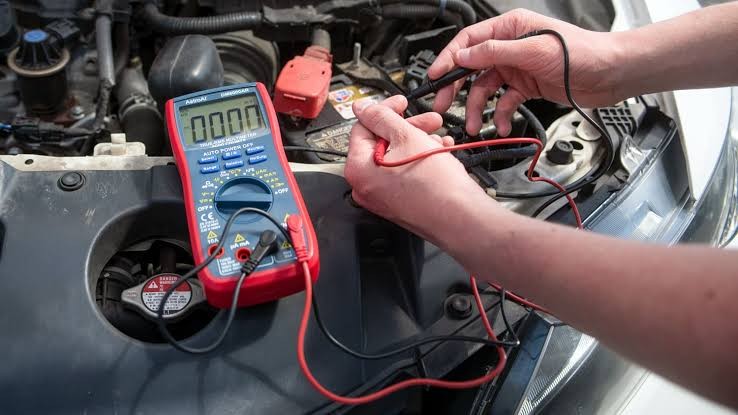

• Use a multimeter to check battery voltage; it should read around 12.6 volts.
• If voltage is low, jump-start the car and recharge the battery.
• Test the alternator to ensure it's charging the battery properly.
• Replace the battery if it's old or damaged.

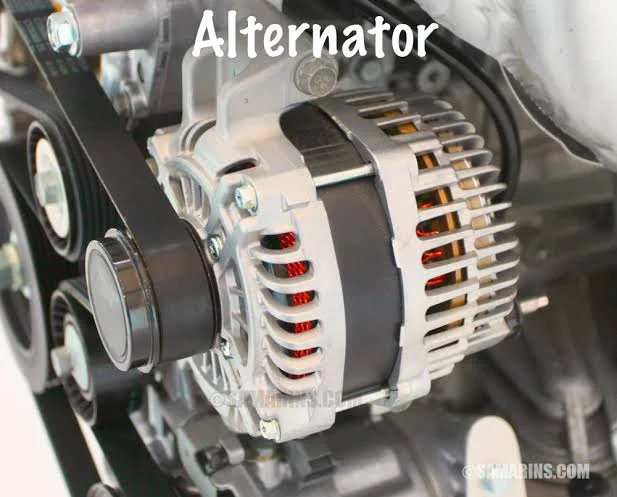

Faulty Alternator

Symptoms: Dead battery, warning lights on the dashboard, dim lights, electrical failures.

Causes: Worn-out brushes, damaged diodes, broken belts.

Troubleshooting:

• Check alternator belt for signs of damage or wear.
• Use a multimeter to test alternator output; it should read around 13.8 to 14.4 volts.
• Replace the alternator if voltage output is below normal range or if there are visible issues.

Malfunctioning Lights

Symptoms: Flickering or non-functional headlights, taillights, or interior lights.

Causes: Burnt-out bulbs, faulty wiring, bad switches.

Troubleshooting:

• Inspect and replace burnt-out bulbs.
• Check fuses related to the lights and replace if necessary.
• Test the light switches for continuity and proper functionality.
• Examine the wiring for any signs of damage or loose connections.

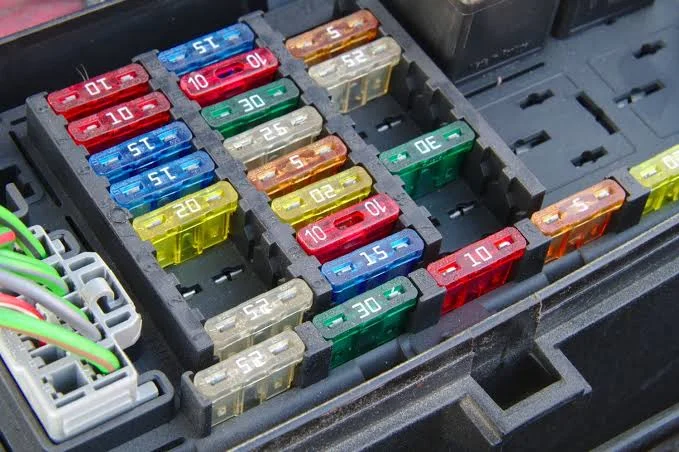

Blown Fuses

Symptoms: Specific electrical components not working, like power windows or radio.

Causes: Overloaded circuit, short-circuits, electrical malfunctions.

Troubleshooting:

• Locate the fuse box and identify the blown fuse (darkened metal strip inside).
• Replace the blown fuse with a new one of the same rating.
• If the fuse blows again, inspect the circuit for possible short-circuits or damaged components.

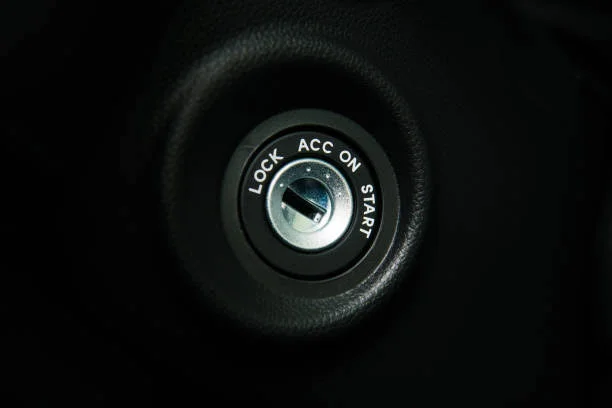

Ignition Switch Issues

Symptoms: Car won't start, intermittent starting problems.

Causes: Worn-out ignition switch, electrical contacts corroded.

Troubleshooting:

• Test the ignition switch for continuity using a multimeter.
• Clean the electrical contacts or replace the ignition switch if it's faulty.

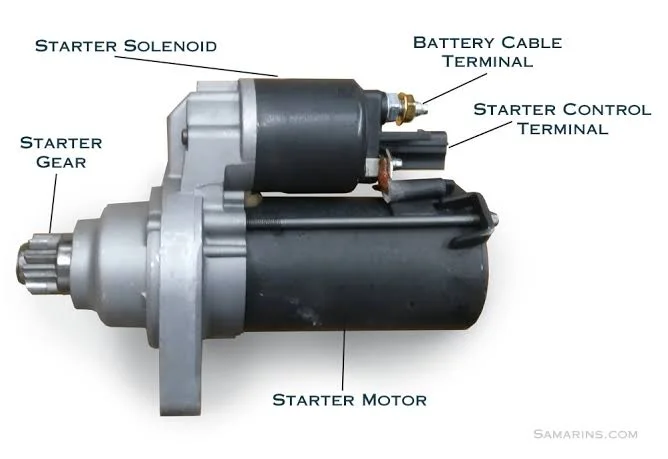

Faulty Starter Motor

Symptoms: Clicking noise when trying to start the car, engine cranks slowly or not at all.

Causes: Worn-out brushes, corroded electrical connections, faulty solenoid.

Troubleshooting:

• Check the battery voltage; a weak battery can mimic starter motor issues.
• Inspect the starter motor for any visible damage or loose connections.
• Test the starter motor's electrical connections for continuity and cleanliness.
• If all connections are fine, but the starter motor still fails to engage, it may need replacement.

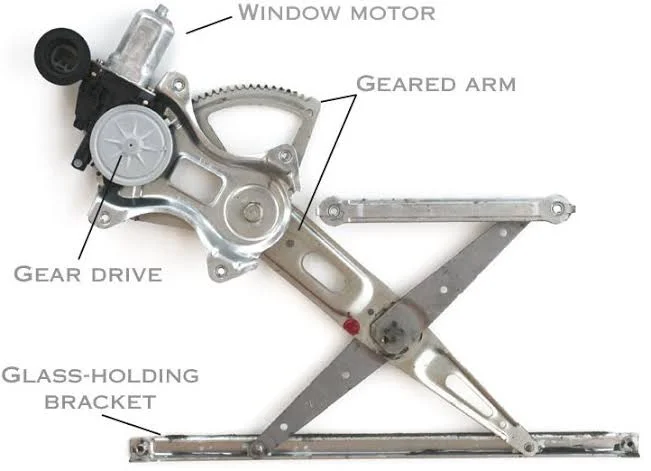

Power Window Problems

Symptoms: Power windows not functioning or working intermittently.

Causes: Faulty window switches, damaged window motors, wiring issues.

Troubleshooting:

• Test the power window switches with a multimeter for continuity.
• Listen for any unusual noises from the window motor while operating the window switch.
• Check the window motor's electrical connections for corrosion or damage.
• If the window motor is functioning correctly, inspect the wiring harness for signs of damage or loose connections.

Malfunctioning Central Locking System

Symptoms: Doors not locking or unlocking with the remote or central locking button.

Causes: Dead batteries in the remote, damaged actuators, faulty control module.

Troubleshooting:

• Replace the batteries in the remote and test the central locking system.
• If the remote is working, but the doors still won't lock or unlock, inspect the door lock actuators for proper function.
• Use a diagnostic tool to scan for any error codes related to the central locking system.
• If all components check out, the central locking control module may need replacement.

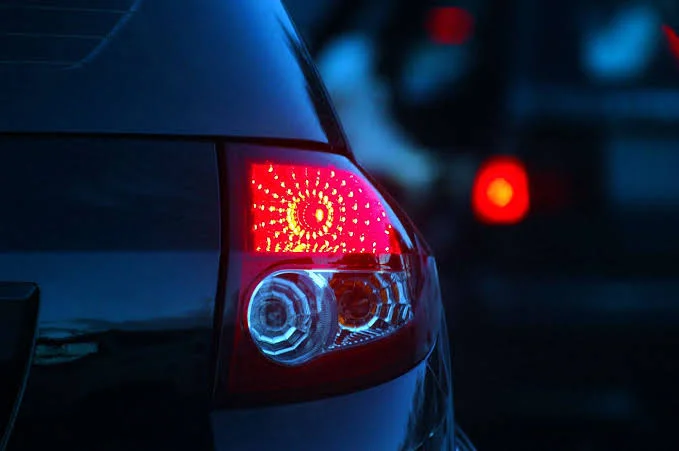

Non-Responsive Brake Lights

Symptoms: Brake lights not illuminating when the brake pedal is pressed.

Causes: Burnt-out bulbs, faulty brake light switch, damaged wiring.

Troubleshooting:

• Inspect the brake light bulbs and replace any burnt-out ones.
• Test the brake light switch for continuity while pressing the brake pedal.
• Check the wiring and connectors for any signs of damage or corrosion.
• If the switch and wiring are fine, the brake light module or the body control module may require further investigation.

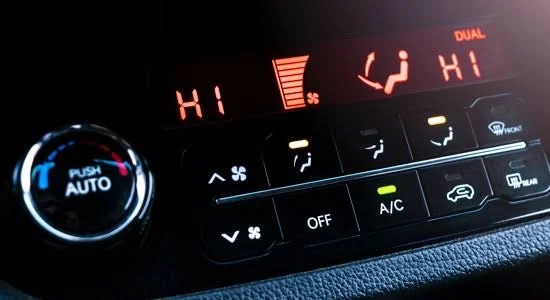

Air Conditioning Problems

Symptoms: Air conditioning system not blowing cold air or not working at all.

Causes: Low refrigerant level, faulty compressor, electrical issues.

Troubleshooting:

• Check the refrigerant level using a pressure gauge; recharge if low.
• Test the compressor clutch for proper engagement when the AC is turned on.
• Inspect the AC system's electrical connections for any loose or damaged wires.
• If the compressor and electrical connections are fine, have the AC system inspected for leaks and other issues by a professional technician.

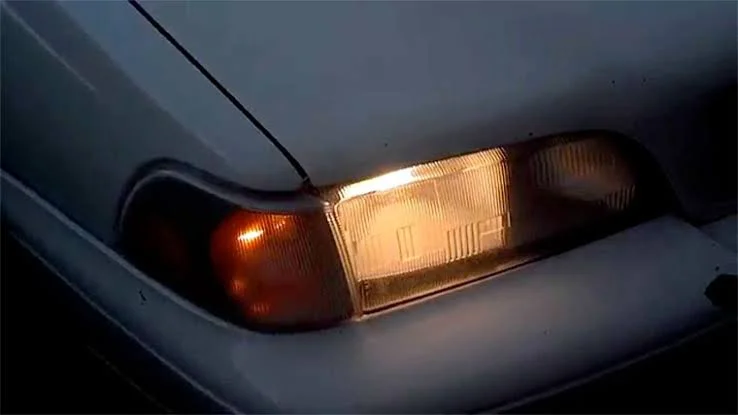

Dim Headlights

Symptoms: Headlights appear dim or flicker when turned on.

Causes: Faulty bulbs, corroded electrical connections, failing alternator.

Troubleshooting:

• Inspect the headlight bulbs for any signs of damage or burnt-out filaments.
• Clean the electrical connections to the headlights to ensure good contact.
• Use a multimeter to check the voltage output of the alternator; it should be around 13.8-14.4 volts when the engine is running.

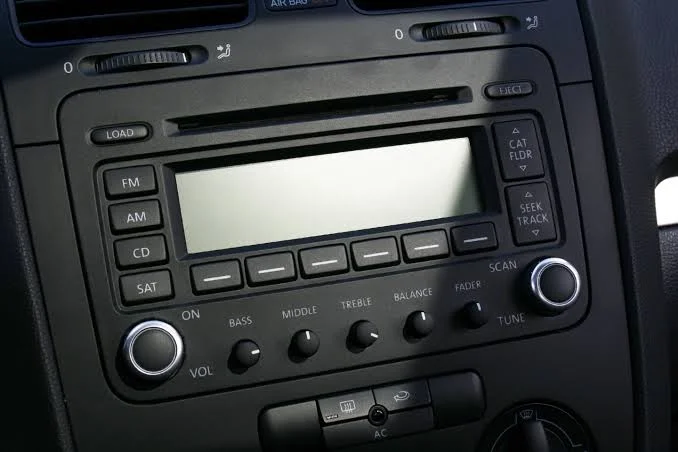

Radio or Audio System Issues

Symptoms: Radio or audio system not turning on, no sound, or poor sound quality.

Causes: Blown fuse, disconnected wiring, faulty radio unit.

Troubleshooting:

• Check the fuse for the radio/audio system and replace if necessary.
• Inspect the wiring connections to the radio unit and ensure they are secure.
• Test the radio unit with a known working one to determine if it's the source of the problem.

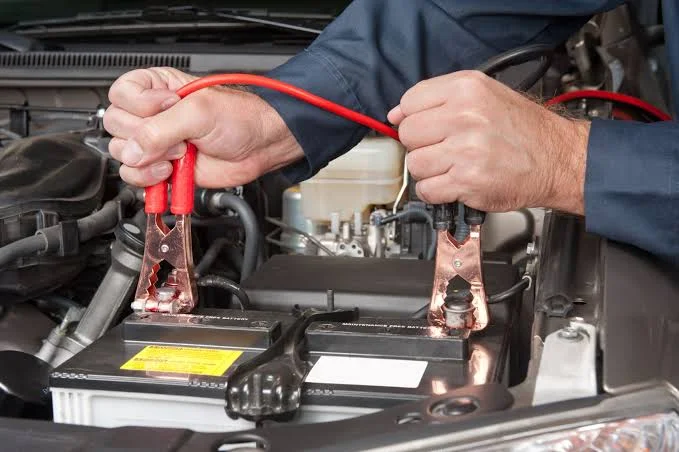

Battery Drain

Symptoms: The battery constantly discharging, requiring frequent jump starts.

Causes: Parasitic draw, malfunctioning electrical component.

Troubleshooting:

• Disconnect the negative battery terminal and use a multimeter in series to check for a parasitic draw. It should be minimal (around 50 milliamps).
• If there is a significant draw, start removing fuses one by one to identify the circuit causing the drain.
• Once the problematic circuit is identified, inspect its components for any issues or replace any faulty parts.

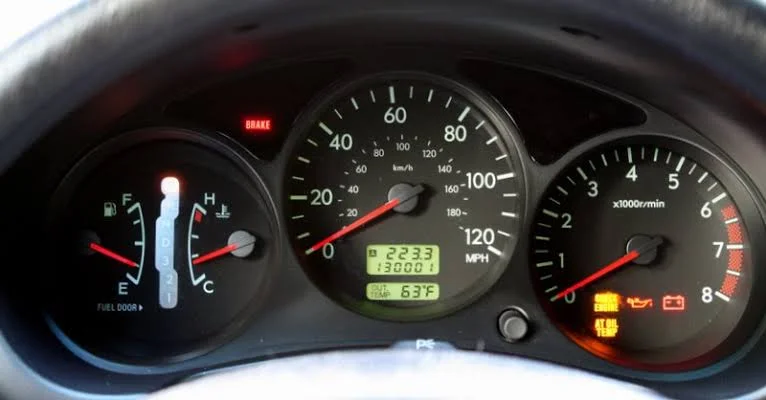

Non-Functional Gauges

Symptoms: Gauges on the instrument cluster not working or giving inaccurate readings.

Causes: Faulty instrument cluster, wiring issues, bad sensors.

Troubleshooting:

• Inspect the instrument cluster for any signs of damage or loose connections.
• Test the individual sensors for the gauges to ensure they are functioning correctly.
• Check the wiring harness for any signs of damage or corrosion.

Conclusion

Car electrical problems can be frustrating, but armed with the right knowledge and tools, troubleshooting becomes manageable. By following the steps outlined in this article, you can diagnose and resolve common car electrical issues, saving time and money on unnecessary repairs. Regular maintenance and prompt attention to electrical problems will keep your car running smoothly and ensure a safe and reliable driving experience. Remember, if you encounter complex or severe electrical issues, it's always best to seek professional help from a qualified automotive technician.
