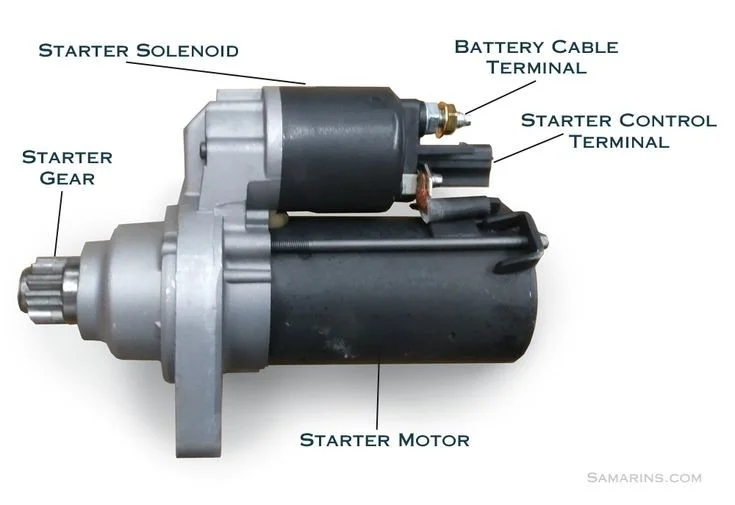

Starter Motor: Functions, Parts, Troubleshooting, and Common Issues Explained

The automotive starter is a crucial component in a vehicle's starting system. Its primary function is to engage the engine's flywheel and crank the engine, allowing the ignition and combustion process to begin.

In this comprehensive guide, we will delve into the workings of the starter, its parts and their functions, signs of a faulty starter, troubleshooting tips, and common starter motor issues.

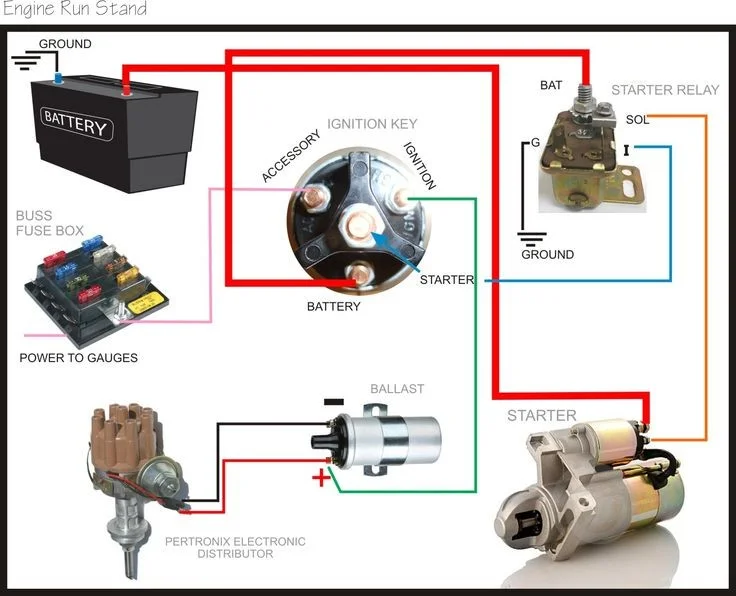

Understanding How the Starter Works - Step by Step

1. Ignition Key Turned: When the driver turns the ignition key, a signal is sent to the starter solenoid.
2. Starter Solenoid Activation: The starter solenoid receives the signal and, in response, allows a high electric current to flow through its contacts.
3. Engaging the Starter Gear: The starter gear, also known as the bendix, is pushed forward to mesh with the engine's flywheel teeth.
4. Cranking the Engine: As the starter gear engages with the flywheel, the starter motor spins, causing the engine's crankshaft to turn and initiate the combustion process.

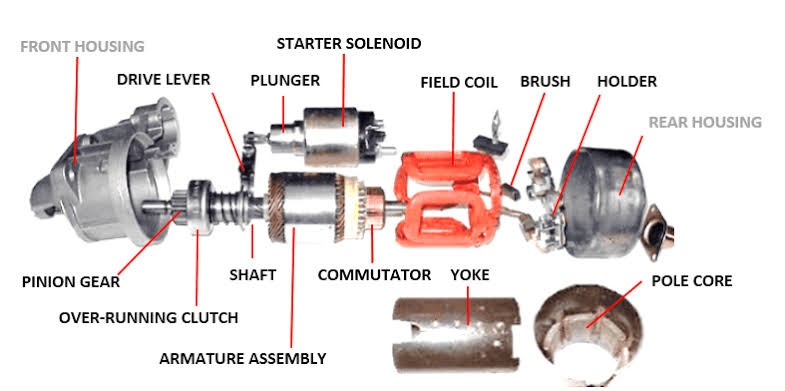

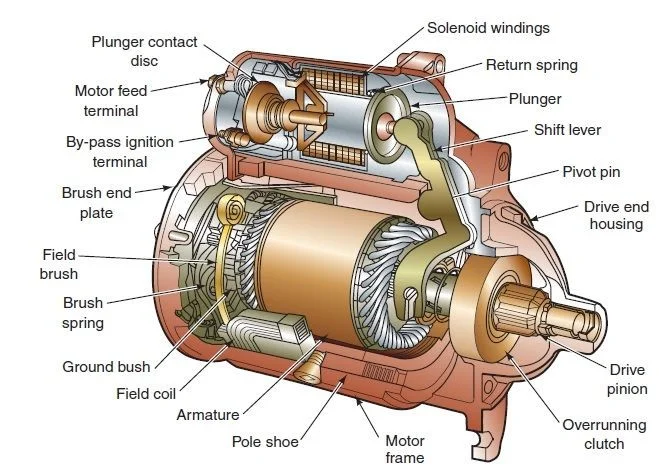

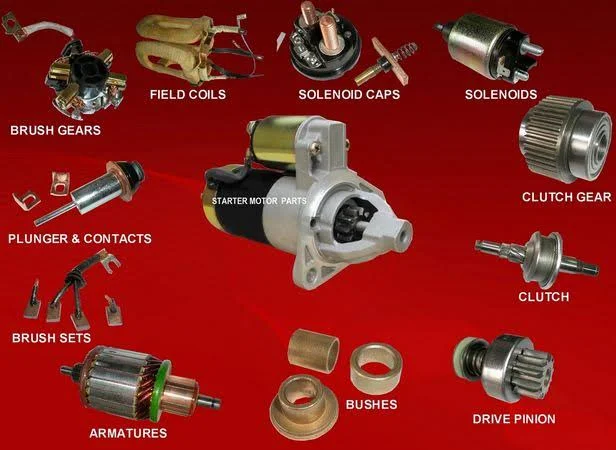

Parts of a Starter and Their Functions

1. Starter Motor: The main component that spins the starter gear and cranks the engine.
2. Starter Solenoid: An electromagnetic switch that activates the starter motor and engages the bendix.
3. Starter Gear (Bendix): The gear that meshes with the flywheel, enabling the transfer of rotational motion from the starter motor to the engine.
4. Armature: The rotating part of the starter motor, consisting of wire windings.
5. Commutator: A split metal ring on the armature, ensuring continuous electrical contact with the brushes.
6. Brushes: Carbon contacts that deliver electric current to the armature.
7. Pinion Gear: A small gear on the starter motor shaft that meshes with the flywheel ring gear.
8. Drive End Housing: Encloses the armature and drive mechanism.
9. Field Coils: Wire windings that produce a magnetic field within the starter motor.

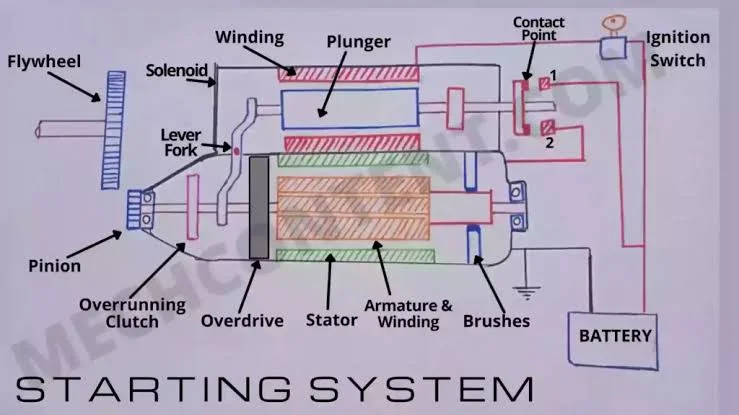

Signs of a Faulty Starter Motor or Its Parts

• Clicking Noise: Repeated clicking sounds when turning the ignition key, indicating a malfunctioning starter solenoid.
• No Crank: The engine does not crank at all when attempting to start the vehicle.
• Slow Cranking: The engine cranks slowly, suggesting a weak starter motor or a dying battery.
• Grinding Noise: A grinding noise during engine cranking indicates issues with the starter gear engaging properly.
• Smoke or Burning Smell: Smoke emanating from the starter motor or a burning smell suggests overheating or worn components.
• Freewheeling: The starter gear does not engage with the flywheel teeth, causing the engine not to crank.

Troubleshooting and Repairing Starter Motor Issues

1. Check Battery Voltage: Ensure the battery voltage is sufficient and connections are clean and tight.
2. Inspect Starter Connections: Examine all wiring connections, including those at the starter, solenoid, and battery.
3. Test Starter Current Draw: Use a multimeter to check for excessive current draw, indicating a failing starter motor.
4. Inspect Starter Gear and Ring Gear: Check for wear or damage in the starter gear and flywheel ring gear.
5. Starter Solenoid Test: Verify the solenoid is functioning correctly, allowing current flow to the starter motor.
6. Check Starter Brushes: Examine the brushes for wear or damage, as they can affect the starter's performance.

Common Issues Explained

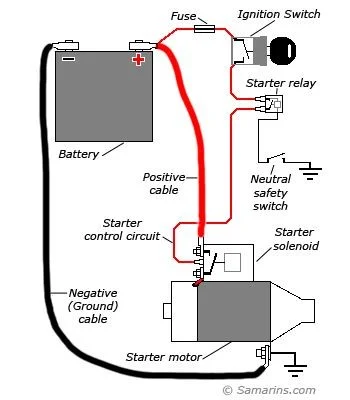

Symptoms of a Faulty Starter Motor:

• Clicking Noise: Repeated clicking sounds when turning the ignition key, indicating a malfunctioning starter solenoid.
• No Crank: The engine does not crank at all when attempting to start the vehicle.
• Slow Cranking: The engine cranks slowly, suggesting a weak starter motor or a dying battery.
• Grinding Noise: A grinding noise during engine cranking indicates issues with the starter gear engaging properly.
• Smoke or Burning Smell: Smoke emanating from the starter motor or a burning smell suggests overheating or worn components.
• Freewheeling: The starter gear does not engage with the flywheel teeth, causing the engine not to crank.

Most Common Cause of Starter Motor Failure:

The most common cause of starter motor failure is worn-out brushes or a failed solenoid. Over time, the brushes wear down, leading to reduced contact with the armature, while solenoid failure can prevent the starter motor from engaging the engine.

Consequences of Starter Motor Failure:

When the starter motor fails, the engine won't crank, rendering the vehicle unable to start. This can be frustrating and leave the driver stranded.

Causes of Starter Motor Lacking Power:

Starter motors may lack power due to several reasons, such as a weak battery, corroded or loose electrical connections, or worn internal starter components.

Reasons for Slow Cranking:

A slow cranking speed can be attributed to a weak battery, a bad starter motor, high resistance in the electrical circuit, or excessive friction in the engine.

Symptoms of a Problem in the Starting System:

Three common symptoms indicating a problem in the starting system are slow cranking, clicking noise when turning the key, and freewheeling where the starter gear fails to engage the flywheel.

Differentiating Between Starter and Alternator Issues:

To determine if it's the starter or alternator, start by testing the battery voltage. If the battery is in good condition and the vehicle still doesn't crank, it's likely a faulty starter.

Symptoms of a Faulty Starter Solenoid:

Two symptoms indicating a faulty starter solenoid are a clicking noise during ignition and no cranking when turning the key.

Identifying a Bad Starter Relay:

Test the starter relay for continuity or voltage issues using a multimeter. A lack of continuity or erratic voltage readings indicate a faulty relay.

Detecting a Blown Starter Fuse:

Inspect the starter fuse visually for any signs of damage, such as a broken wire or blackened appearance. Alternatively, use a multimeter to check for continuity.

Impact of a Bad Starter on the Battery:

Yes, a bad starter can drain the battery. When the starter motor fails to disengage properly, it may continue drawing current from the battery, leading to battery drain.

How to Check for Starter Problems:

To check for starter problems, perform the following steps:

1. Ensure the battery is fully charged.
2. Check battery voltage and connections.
3. Inspect starter wiring and connections for corrosion or damage.
4. Test the starter solenoid and relay.
5. Perform a voltage drop test to identify resistance issues.

Starting a Car with a Bad Starter:

To start a car with a bad starter temporarily, use the bump-starting method if the vehicle has a manual transmission. Gain some speed, engage the clutch, and release it to crank the engine.

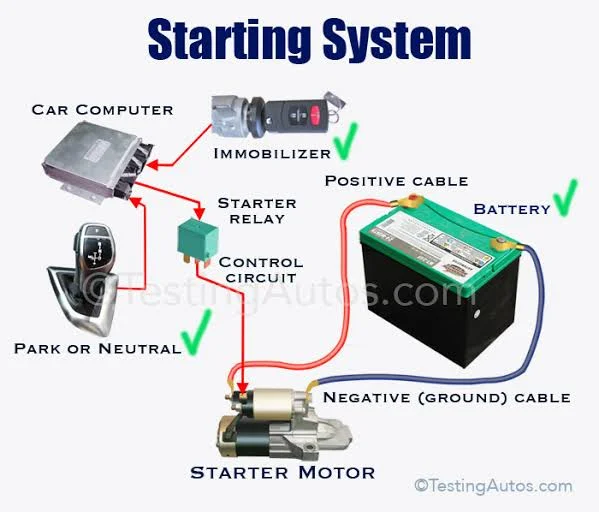

Car Cranks But Won't Start:

If the engine cranks but fails to start, the problem lies in other components of the ignition and fuel systems, such as spark plugs, fuel pump, or ignition coil.

Sensors That Can Cause No Spark:

Several sensors can cause a lack of spark in the engine, including the crankshaft position sensor, camshaft position sensor, and ignition control module. A malfunction in any of these sensors can disrupt spark delivery, leading to a no-start condition.
