Demystifying OBD-II Trouble Codes: An In-Depth Look at Automotive Diagnostics

OBD-II Trouble Codes play a vital role in automotive diagnostics, offering valuable insights into potential issues, facilitating precise diagnosis, and ensuring effective and efficient repairs for vehicles.

In the realm of automotive diagnostics, OBD-II trouble codes serve as invaluable tools for identifying and resolving potential issues within a vehicle's powertrain. These Diagnostic Trouble Codes (DTCs) play a vital role in the accurate diagnosis and efficient repair of modern vehicles. In this comprehensive guide, we will explore the most common generic powertrain DTCs encountered in OBD-II systems, as well as examples from the C, B, and U code categories. Keep in mind that DTC interpretations can vary depending on the vehicle's make and model, necessitating reference to the vehicle's service manual or consultation with a professional mechanic for precise diagnosis and repair.

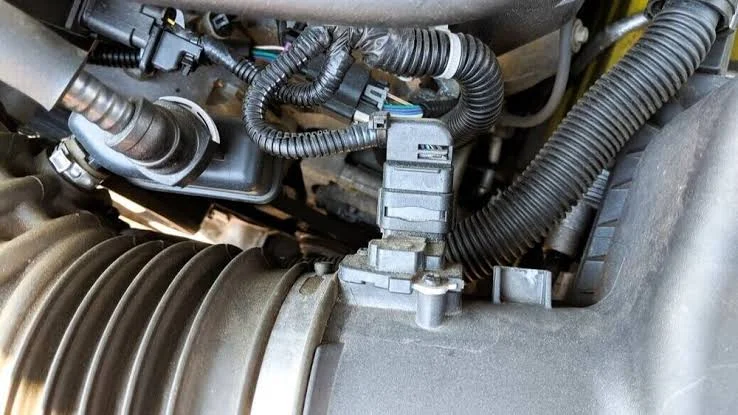

P0XXX - Fuel and Air Metering and Auxiliary Emission Controls

The P0XXX series of DTCs revolves around fuel and air metering, along with auxiliary emission controls. These codes shed light on vital components affecting engine performance and emission output. Some examples of P0XXX codes include:

• P0100: Mass or Volume Air Flow Circuit Malfunction
• P0113: Intake Air Temperature Circuit High Input
• P0120: Throttle/Pedal Position Sensor/Switch "A" Circuit Malfunction
• P0135: O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)

P1XXX - Manufacturer-Specific Codes

Specific to each vehicle manufacturer and model, the P1XXX series requires access to the manufacturer's unique code definitions or diagnostic resources for proper interpretation. These codes offer detailed insights into manufacturer-specific systems and functionalities.

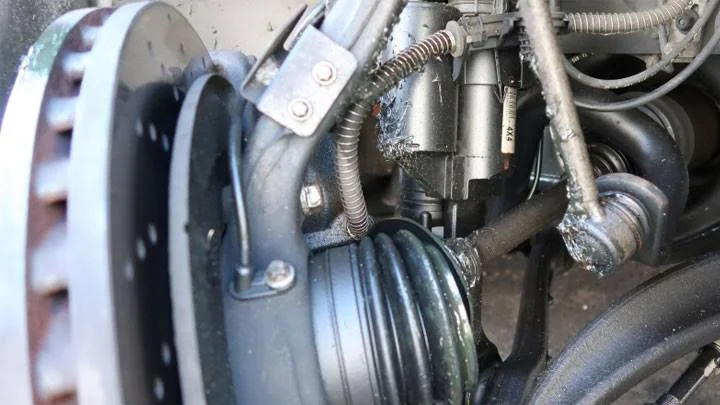

C0XXX - Chassis Codes

The C0XXX codes encompass various chassis systems, including ABS, suspension, steering, and drivetrain. Accurate interpretation of these codes is vital for diagnosing issues related to the vehicle's stability and handling. Examples of C0XXX codes include:

• C0035: Left Front Wheel Speed Sensor Circuit
• C1201: Engine Control System Malfunction
• C1233: ABS Hydraulic Pump Motor Circuit Shorted to Ground

U0XXX - Network Communication Codes

The U0XXX codes address communication issues between control modules in the vehicle. These codes are crucial for identifying problems with the network that connects the vehicle's components and systems. Examples of U0XXX codes include:

• U0100: Lost Communication with ECM/PCM "A"
• U0140: Lost Communication with Body Control Module
• U0423: Invalid Data Received from Instrument Panel Control Module

B0XXX - Body Codes

B0XXX codes are related to various body control modules and systems, encompassing lighting, climate control, and comfort features. Understanding these codes aids in diagnosing issues related to various vehicle functionalities. Examples of B0XXX codes include:

• B0051: Stuck Climate Control Sun Sensor
• B1262: Fuel Door Select Switch Circuit Failure
• B2908: Seat Belt Retractor Pretensioner Deployment Control Circuit

Conclusion

OBD-II trouble codes are invaluable assets for automotive diagnostics, providing essential information for accurate diagnosis and efficient repairs. This guide covered a range of generic powertrain DTCs, along with examples from the C, B, and U code categories. However, it is essential to acknowledge that the list of trouble codes is extensive, with variations for different vehicle models and manufacturers. For a thorough diagnosis and precise repair, referencing the vehicle's service manual or consulting with a qualified mechanic remains essential. Embrace the power of OBD-II trouble codes, and ensure your vehicle's performance, safety, and emission efficiency remain optimal.
