10 Common DTC Codes: Causes, Troubleshooting, and Repair

This comprehensive article explores 10 common DTC codes, including their causes, troubleshooting methods, and repair solutions, providing readers with valuable insights into vehicle diagnostics and maintenance.

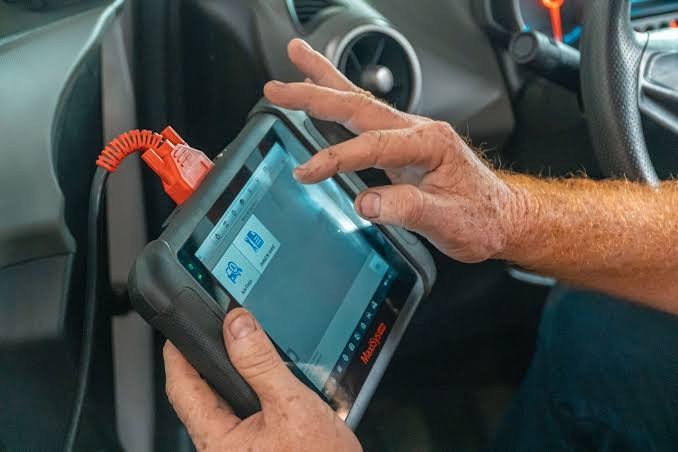

As a vehicle owner, encountering a check engine light can be a cause for concern. The check engine light is an indicator that a Diagnostic Trouble Code (DTC) has been detected by the vehicle's onboard diagnostic system. DTC codes provide valuable information about specific issues or malfunctions in your vehicle. In this article, we will explore 10 common DTC codes, their causes, troubleshooting steps, and repair solutions. By understanding these codes, you can take the necessary actions to diagnose and address potential problems effectively.

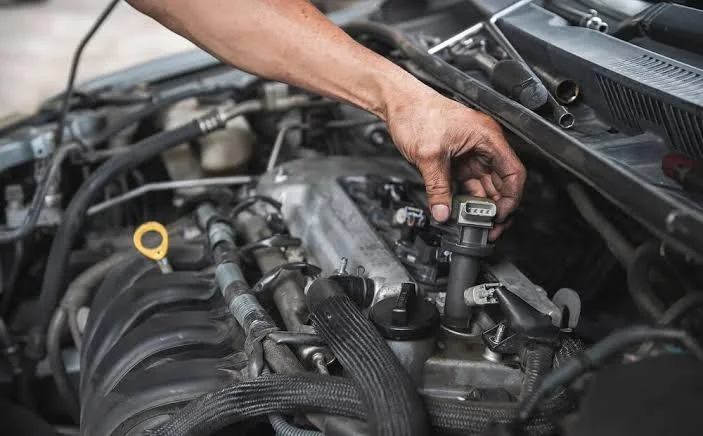

1. P0300 - Random/Multiple Cylinder Misfire Detected

• Cause: This code indicates random or multiple cylinder misfires, which can be caused by issues such as worn spark plugs, a faulty ignition coil, fuel system problems, vacuum leaks, or a malfunctioning sensor.
• Troubleshooting: Begin by inspecting and replacing worn spark plugs, checking the ignition coil for proper operation, examining the fuel system for any clogs or leaks, and verifying the integrity of the vacuum lines.
• Repair: Repair actions may include replacing faulty spark plugs, ignition coils, or damaged fuel injectors. Additionally, fixing any vacuum leaks or addressing sensor malfunctions will help resolve this issue.

Read Also: Decoding the Check Engine Light: Causes, Troubleshooting, and Common DTC Codes Explained

2. P0171 - System Too Lean (Bank 1)

• Cause: A P0171 code indicates that the air-fuel mixture in Bank 1 is too lean, meaning there is insufficient fuel for combustion. This can be caused by a vacuum leak, faulty oxygen sensor, clogged fuel injectors, or a malfunctioning Mass Air Flow (MAF) sensor.
• Troubleshooting: Inspect the vacuum lines for any leaks, check the oxygen sensor's operation, clean or replace clogged fuel injectors, and verify the accuracy of the MAF sensor readings.
• Repair: Repair actions may involve fixing vacuum leaks, replacing a faulty oxygen sensor, cleaning or replacing fuel injectors, or calibrating/replacing the MAF sensor.

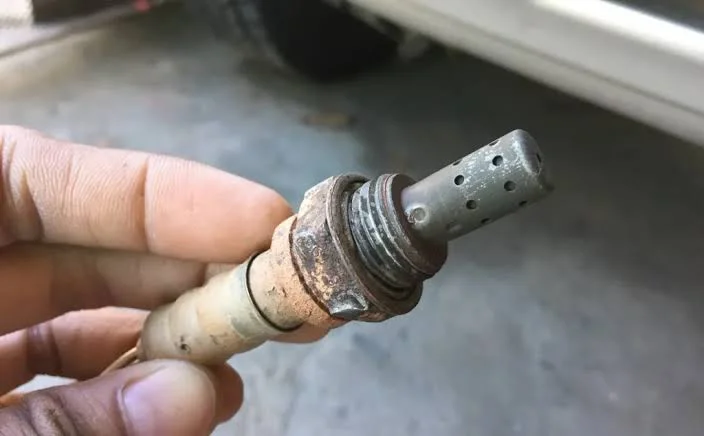

3. P0420 - Catalyst System Efficiency Below Threshold (Bank 1)

• Cause: The P0420 code indicates that the catalytic converter in Bank 1 is not functioning efficiently, often due to a failing catalytic converter, oxygen sensor, or exhaust leak.
• Troubleshooting: Inspect the catalytic converter for damage or clogging, check the oxygen sensor's readings, and examine the exhaust system for any leaks.
• Repair: Repair actions may include replacing a faulty catalytic converter, oxygen sensor, or repairing any exhaust leaks.

Read Also: The Top 10 Engine Sensors Every Car Owner Should Know

4. P0442 - Evaporative Emission Control System Leak Detected (Small Leak)

• Cause: The P0442 code suggests a small leak in the vehicle's evaporative emission control system, typically caused by a loose or damaged fuel cap, cracked hoses, or a malfunctioning purge valve.
• Troubleshooting: Check the fuel cap for tightness and condition, inspect the hoses for any cracks or damage, and test the purge valve's functionality.
• Repair: Repair actions may involve replacing a loose or damaged fuel cap, repairing or replacing cracked hoses, or addressing any issues with the purge valve.

5. P0302 - Cylinder 2 Misfire Detected

• Cause: The P0302 code indicates a misfire in Cylinder 2, which can be caused by issues such as a faulty spark plug, ignition coil, fuel injector, or low compression.
• Troubleshooting: Begin by inspecting and replacing the spark plug and ignition coil specific to Cylinder 2. Check the fuel injector's operation and conduct a compression test.
• Repair: Repair actions may involve replacing faulty spark plugs, ignition coils, or fuel injectors. Additionally, addressing any compression issues will help resolve this problem.

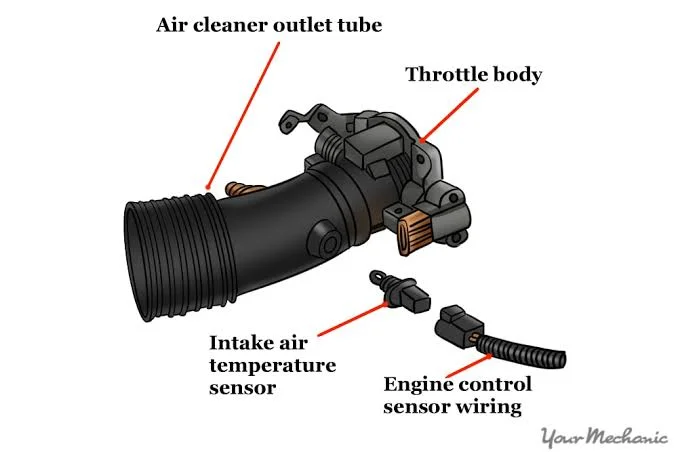

6. P0113 - Intake Air Temperature (IAT) Sensor Circuit High Input

• Cause: A P0113 code indicates that the Intake Air Temperature (IAT) sensor is providing a high voltage input, potentially caused by a faulty sensor, damaged wiring, or a defective Engine Control Module (ECM).
• Troubleshooting: Test the IAT sensor's readings, inspect the wiring for any damage or loose connections, and check the ECM's functionality.
• Repair: Repair actions may involve replacing a faulty IAT sensor, repairing damaged wiring, or addressing any issues with the ECM.

Read Also: MAF vs. MAP Sensors: Unraveling the Key Differences

7. P0172 - System Too Rich (Bank 1)

• Cause: A P0172 code suggests that the air-fuel mixture in Bank 1 is too rich, meaning there is an excess of fuel. This can be caused by issues such as a malfunctioning oxygen sensor, fuel pressure regulator, or a clogged fuel injector.
• Troubleshooting: Check the oxygen sensor's readings, inspect the fuel pressure regulator's operation, and clean or replace clogged fuel injectors.
• Repair: Repair actions may involve replacing a faulty oxygen sensor, fuel pressure regulator, or cleaning/replacing clogged fuel injectors.

8. P0301 - Cylinder 1 Misfire Detected

• Cause: The P0301 code indicates a misfire specifically in Cylinder 1, which can be caused by issues such as a faulty spark plug, ignition coil, fuel injector, or low compression.
• Troubleshooting: Inspect and replace the spark plug and ignition coil specific to Cylinder 1. Check the fuel injector's operation and conduct a compression test to assess the cylinder's compression levels.
• Repair: Repair actions may involve replacing faulty spark plugs, ignition coils, or fuel injectors. Additionally, addressing any compression issues will help resolve this problem.

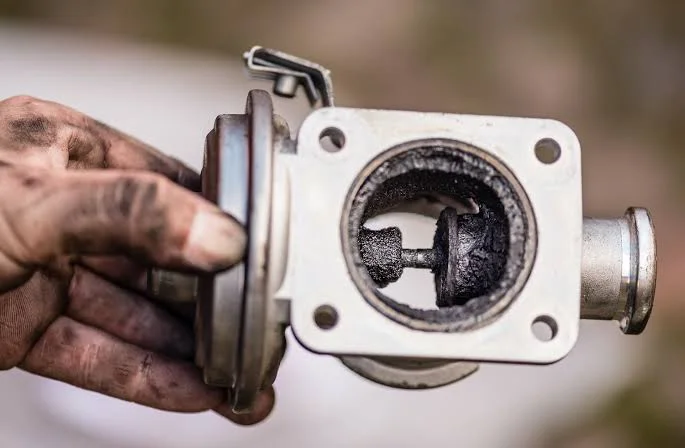

9. P0401 - Exhaust Gas Recirculation (EGR) Flow Insufficient

• Cause: The P0401 code indicates insufficient flow in the Exhaust Gas Recirculation (EGR) system, often due to a clogged EGR valve, carbon deposits, or a malfunctioning EGR sensor.
• Troubleshooting: Inspect the EGR valve for any blockages or carbon buildup, test the EGR sensor's readings, and check for any disconnected or damaged hoses related to the EGR system.
• Repair: Repair actions may involve cleaning or replacing a clogged EGR valve, addressing carbon deposits, or replacing a faulty EGR sensor.

Read Also: Unveiling Engine Sensors: Detecting Problems Before They Worsen

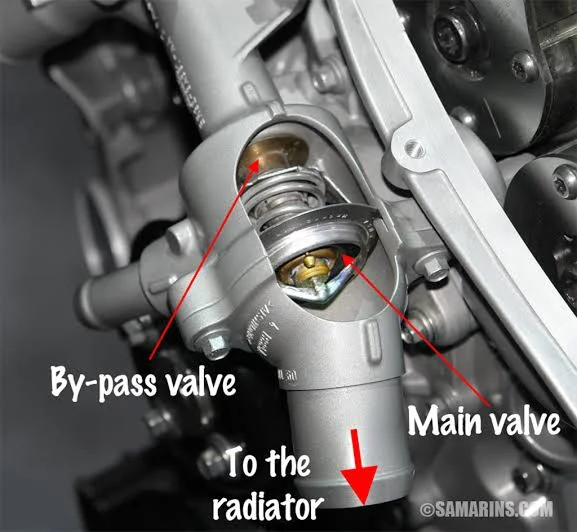

10. P0128 - Coolant Temperature Below Thermostat Regulating Temperature

• Cause: A P0128 code suggests that the engine coolant temperature is below the thermostat's regulating temperature, often caused by a malfunctioning thermostat, low coolant levels, or a faulty Engine Coolant Temperature (ECT) sensor.
• Troubleshooting: Test the thermostat's functionality, check the coolant levels, and verify the ECT sensor's readings for accuracy.

• Repair: Repair actions may involve replacing a faulty thermostat, addressing low coolant levels, or replacing a malfunctioning ECT sensor.

Conclusion

By understanding these 10 common DTC codes, you have gained valuable insights into potential issues that may trigger your vehicle's check engine light. Remember, when encountering a DTC code, it is crucial to conduct proper troubleshooting and diagnostics to accurately identify the cause. While these codes provide valuable information, it is recommended to consult a qualified automotive technician or refer to your vehicle's specific repair manual for detailed instructions.

Keep in mind that addressing DTC codes promptly and accurately is essential for maintaining your vehicle's performance, fuel efficiency, and overall reliability. Regular maintenance, such as replacing spark plugs, fuel filters, and air filters at the recommended intervals, can help prevent or minimize the occurrence of these codes. Additionally, maintaining proper fluid levels and adhering to scheduled service intervals will contribute to the longevity and optimal operation of your vehicle's systems.

As a responsible vehicle owner, staying proactive and informed about DTC codes empowers you to take the necessary steps to address any underlying issues promptly. Remember, diagnosing and repairing the root cause of a DTC code will not only resolve the immediate problem but also contribute to the long-term health and performance of your vehicle.
