Mastering Diesel Injector Nozzles: Function, Control, and Maintenance

Discover the critical role of diesel injector nozzles in engine performance. Learn how to troubleshoot and maintain them for optimal fuel efficiency and emissions control.

Diesel injector nozzles play a critical role in the efficient operation of diesel engines. Understanding how they work, how the ECU controls them, identifying symptoms of faulty nozzles, troubleshooting techniques, and maintenance practices are essential for automotive technicians. In this comprehensive article, we will delve into these aspects and provide valuable insights into diesel injector nozzles.

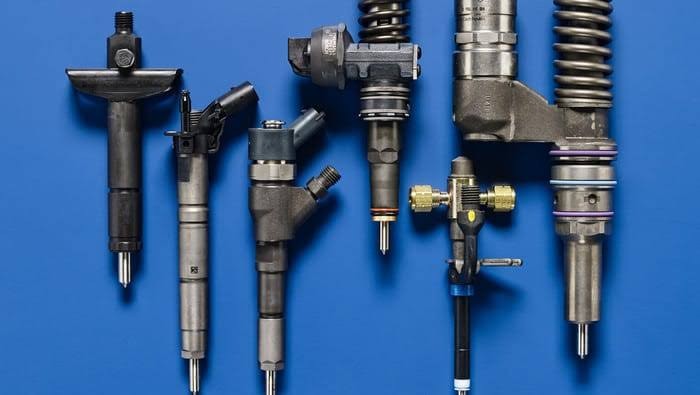

Function of Diesel Injector Nozzles:

• Injector nozzles are responsible for precisely delivering atomized fuel into the combustion chamber of a diesel engine.
• They determine the fuel spray pattern, fuel distribution, and injection timing, directly impacting engine performance, fuel efficiency, and emissions.

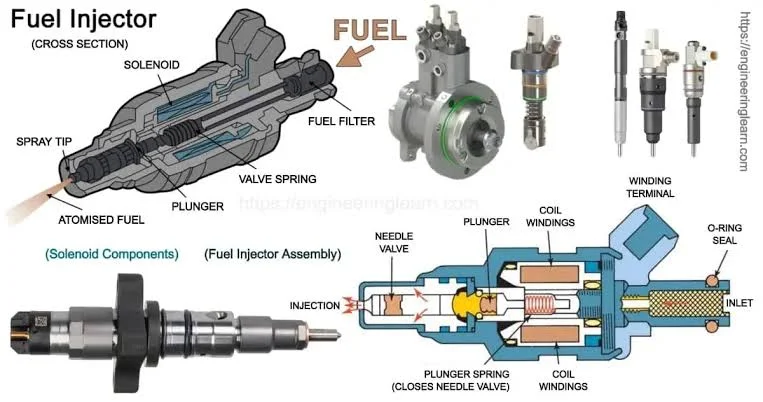

ECU Control of Diesel Injector Nozzles:

• The Engine Control Unit (ECU) uses various sensors to monitor engine parameters such as RPM, load, temperature, and pressure to calculate the optimal fuel injection timing and duration.
• The ECU sends signals to the injector nozzles, controlling the opening and closing of the nozzle needle, ensuring accurate fuel delivery.

Symptoms of Faulty Injector Nozzles:

1. Reduced Performance:

1. Loss of power, decreased acceleration, and overall engine performance.
2. Increased fuel consumption due to inefficient fuel atomization.

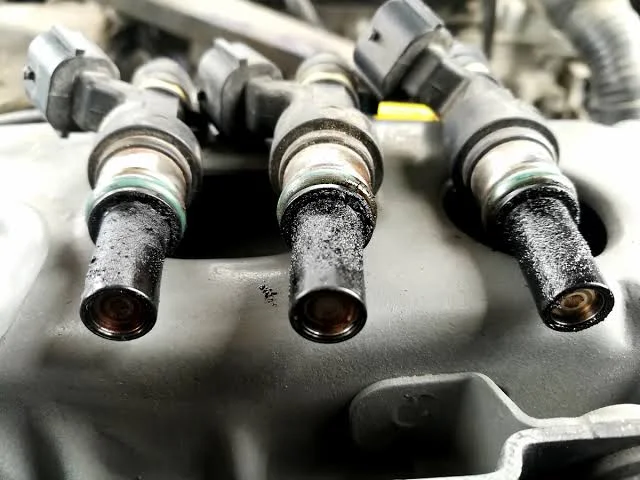

2. Rough Idle and Misfires:

1. Engine idle becomes rough, accompanied by vibrations or misfires.
2. Unburned fuel may lead to excessive smoke from the exhaust.

3. Increased Emissions:

1. Higher levels of black smoke or particulate matter in the exhaust.
2. Failed emissions tests due to incomplete combustion.

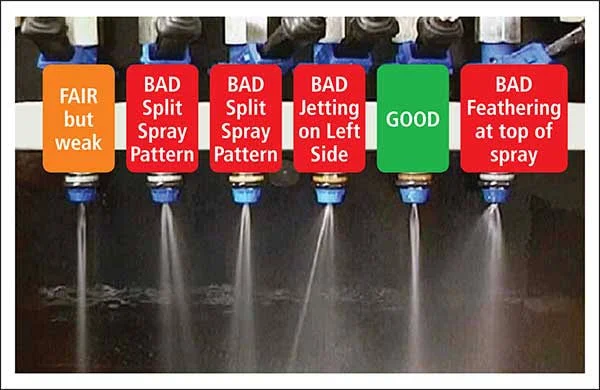

4. Engine Knocking or Noise:

1. Injector nozzles malfunctioning can cause engine knocking or abnormal noise during operation.
2. This may result from improper fuel spray patterns or fuel dribbling.

Troubleshooting and Repairing Diesel Injector Nozzles:

1. Visual Inspection:

1. Inspect the nozzles for signs of leaks, carbon deposits, or clogging.
2. Check for external damage or loose connections.

2. Injector Balance Test:

1. Perform an injector balance test using specialized diagnostic equipment.
2. This test helps identify any discrepancies in fuel delivery among the injectors.

3. Fuel Pressure Test:

1. Measure the fuel pressure to ensure it falls within the manufacturer's specifications.
2. Low or fluctuating fuel pressure can affect nozzle performance.

4. Nozzle Cleaning or Replacement:

1. If clogged or damaged, cleaning the nozzles using approved cleaning solutions may restore their functionality.
2. In severe cases, replacement of the injector nozzles might be necessary.

Regular Maintenance and Testing:

• Follow the manufacturer's recommended maintenance intervals for inspecting and testing injector nozzles.
• Perform regular fuel system cleaning and use high-quality diesel fuel to prevent nozzle deposits.
• Periodically check fuel filters and replace them as recommended.

Conclusion:

Diesel injector nozzles are vital components in diesel engines, impacting performance, fuel efficiency, and emissions. By understanding their function, the ECU control, symptoms of failure, and employing effective troubleshooting and maintenance practices, automotive technicians can ensure optimal performance and longevity of diesel injector nozzles in their quest to provide excellent service to diesel vehicle owners.
