Understanding the Intake Manifold: Operation, Indications of Leaks, and Related Considerations

The intake manifold is a vital component, distributing air-fuel mixture, but leaks can cause rough idle, misfires, decreased efficiency. Prompt diagnosis and maintenance are essential for optimal engine performance.

It is a critical component within an internal combustion engine, responsible for delivering a precisely metered air-fuel mixture to the combustion chambers. This log article aims to provide a comprehensive overview of the intake manifold, its functions, potential symptoms of leaks, and other related considerations.

Anatomy and Function:

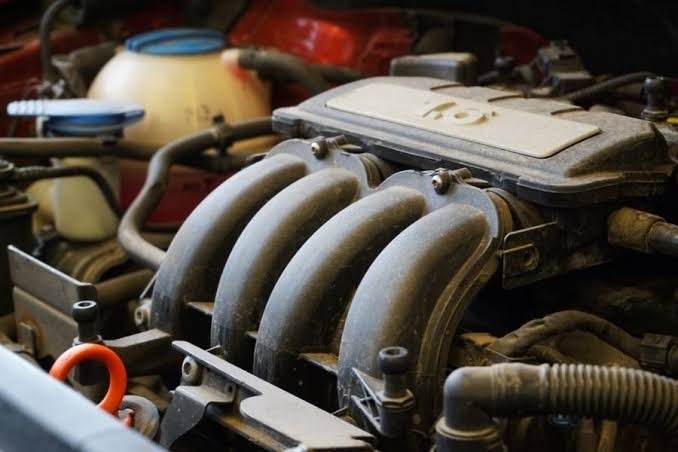

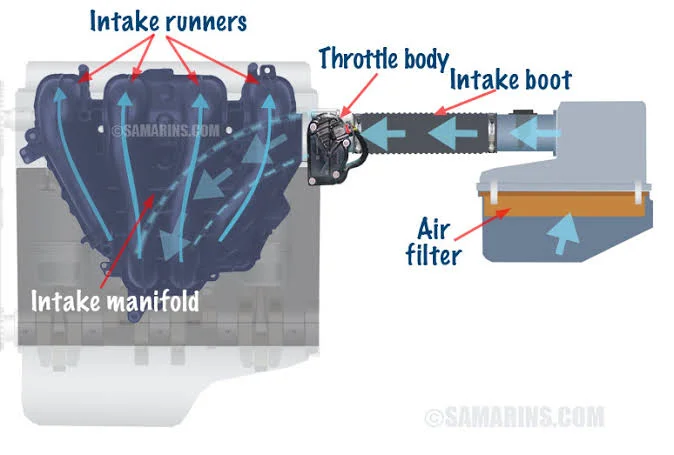

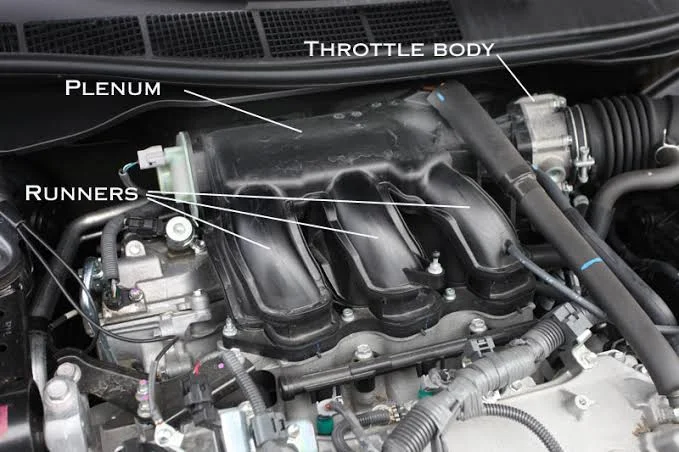

The intake manifold is a network of passages that connects the throttle body to the engine cylinders. It serves as a conduit for air and fuel to enter the combustion chambers, ensuring optimal engine performance. The manifold is typically made of cast aluminum or plastic and is designed to withstand the temperature and pressure variations inherent in the intake process.

The primary functions of the intake manifold are as follows:

1. Distribution: The manifold evenly distributes the air-fuel mixture to each cylinder, ensuring balanced combustion and consistent power delivery.

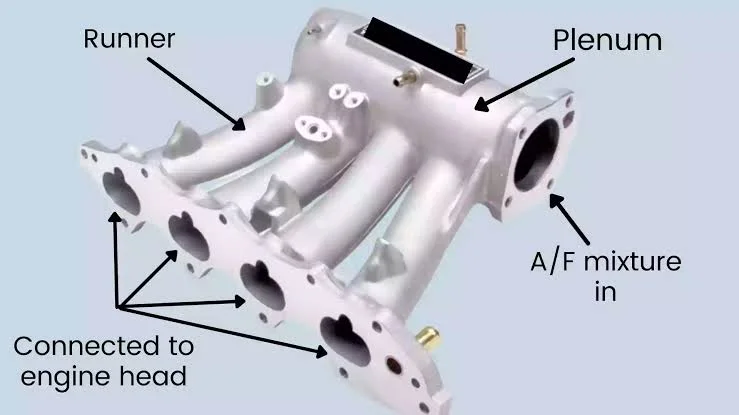

2. Tuning: Modern intake manifolds incorporate variable length runners or adjustable intake plenums to optimize airflow at different engine speeds, improving torque and power characteristics.
3. Heat Exchange: Some intake manifolds feature coolant passages to transfer heat from the engine coolant to the incoming air, aiding in quicker warm-up and enhanced fuel atomization.

Indications of Intake Manifold Leaks:

A leaking intake manifold can lead to a host of performance issues and should be addressed promptly. Here are some common signs and symptoms to watch for:

• Rough Idle: A leak can upset the air-fuel mixture, causing an irregular idle speed and potentially resulting in engine stalling.
• Engine Misfires: Intake manifold leaks can disrupt the air-fuel ratio, leading to incomplete combustion in one or more cylinders. This can manifest as engine misfires, reduced power, or poor acceleration.
• Decreased Fuel Efficiency: Leaks can cause an imbalance in the air-fuel mixture, leading to a rich or lean condition. A rich condition may cause increased fuel consumption, while a lean condition can result in decreased efficiency.
• Vacuum-related Issues: Leaks in the intake manifold can affect the vacuum system, leading to problems such as erratic power brake assist, non-functional HVAC controls, or even a malfunctioning EGR (exhaust gas recirculation) system.

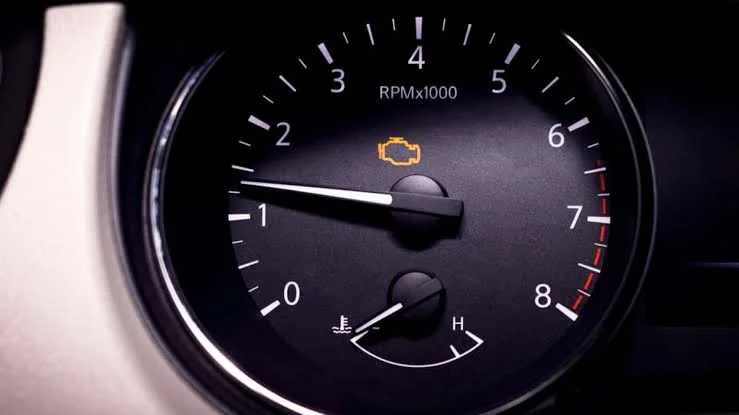

• Check Engine Light: In many modern vehicles, a leak in the intake manifold can trigger a diagnostic trouble code (DTC) and illuminate the check engine light on the instrument panel.

Diagnosing and Repairing Intake Manifold Leaks:

Accurate diagnosis is crucial when dealing with intake manifold leaks. Professional inspection by a qualified mechanic or technician is recommended. Common diagnostic steps may include:

1. Visual Inspection: A careful examination of the intake manifold, gaskets, and associated components to identify visible signs of leaks, such as oil or coolant residue.

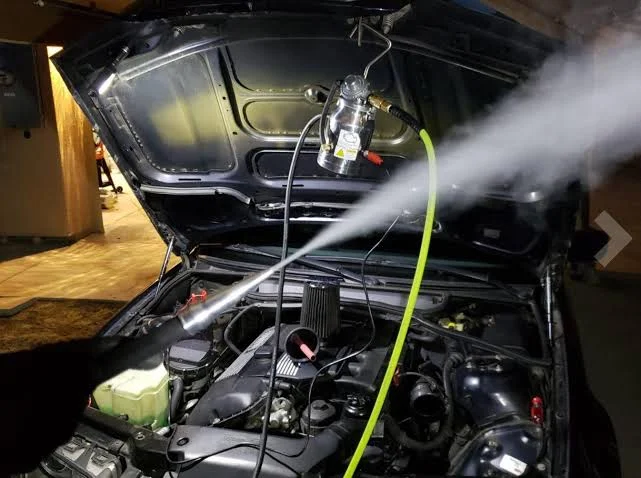

2. Smoke Test: Using a smoke machine, technicians introduce smoke into the intake system to identify leaks by observing where the smoke escapes.
3. Pressure Test: Applying pressure to the intake manifold and monitoring pressure loss can help pinpoint the location of leaks.

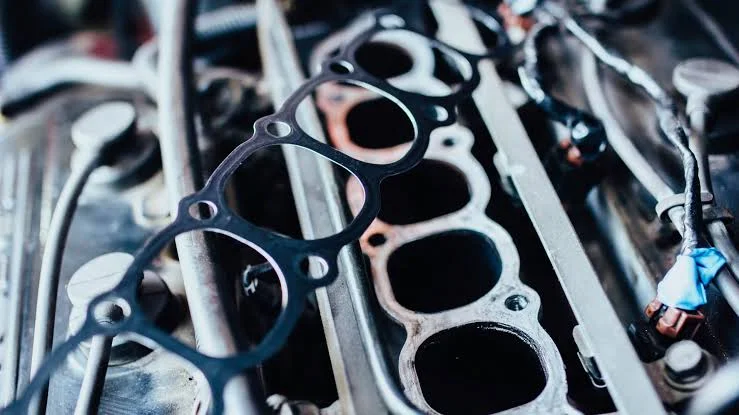

4. Gasket Replacement: In cases where the leak is due to a faulty gasket, replacing the gasket with a new, high-quality one is often the appropriate remedy.
5. Manifold Replacement: Severe cracks, warping, or other structural issues may necessitate the replacement of the entire intake manifold assembly.

Preventive Maintenance and Considerations:

To maintain the integrity and performance of the intake manifold, the following preventive measures and considerations are recommended:

• Regular Inspection: Periodic visual inspections can help identify early signs of deterioration or leaks in the intake manifold.
• Gasket Replacement during Service: When conducting other maintenance procedures, such as spark plug replacement or valve adjustments, it is advisable to inspect the intake manifold gasket and replace it if necessary. This proactive approach can prevent potential leaks and ensure optimal engine performance.
• Proper Torque Specifications: When reinstalling the intake manifold or any related components, it is crucial to follow the manufacturer's recommended torque specifications. This ensures a proper seal and avoids overtightening or undertightening, which can lead to leaks.
• Coolant System Maintenance: If the intake manifold incorporates coolant passages, regular maintenance of the engine coolant system is essential. This includes monitoring coolant levels, checking for coolant leaks, and performing coolant flushes at recommended intervals to prevent clogging or corrosion within the manifold.
• Avoiding Excessive Stress: Extreme driving conditions, such as excessive heat or frequent high RPM operation, can subject the intake manifold to additional stress. It is advisable to drive within recommended limits and avoid prolonged periods of aggressive driving to minimize the risk of manifold damage.
• Quality Components: When replacing the intake manifold or gaskets, it is crucial to use high-quality, OEM (Original Equipment Manufacturer) or reputable aftermarket parts. This ensures proper fitment, durability, and reliable performance.

Conclusion:

The intake manifold plays a vital role in the efficient operation of an internal combustion engine, ensuring the optimal delivery of the air-fuel mixture to the cylinders. Recognizing the signs and symptoms of intake manifold leaks and addressing them promptly is crucial to maintain engine performance and prevent further damage. Regular inspections, adherence to torque specifications, and proactive maintenance are essential in preserving the integrity of the intake manifold and maximizing its lifespan. By understanding the intricacies of the intake manifold system, vehicle owners and technicians can effectively diagnose, repair, and maintain this critical component, ensuring the longevity and efficiency of the engine.
