The Inner Workings of Automotive Airbags: From Sensors to Inflation

Automotive safety systems play a pivotal role in safeguarding lives on the road. Among these, airbag systems stand as crucial protective measures during collisions.

With a multitude of sensors and advanced technology, airbags have evolved into highly efficient occupant restraint systems. In this article, we will delve into the step-by-step functioning of airbag systems, exploring their ability to detect collisions and deploy precisely timed inflation.

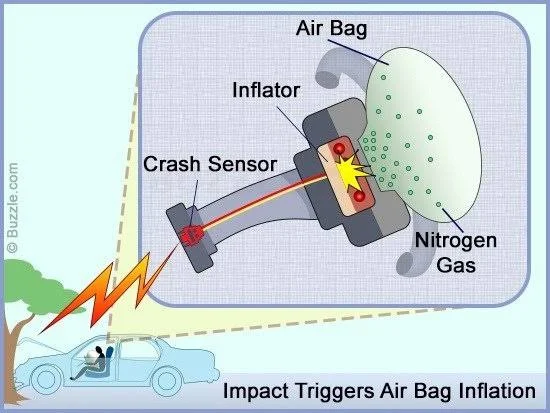

Step 1: Collision Detection:

The airbag system's operation initiates with its ability to detect a collision event accurately. Utilizing various sensor inputs, including accelerometers, impact sensors, and sometimes even radar or lidar systems, the airbag control unit monitors the vehicle's dynamics continuously. These sensors measure acceleration, deceleration, and changes in vehicle speed to assess whether a collision has occurred.

Step 2: Signal Processing:

Once a potential collision is detected, the airbag control unit processes the incoming signals to determine the severity and type of impact. Sophisticated algorithms analyze the data from multiple sensors, considering factors such as the magnitude and direction of the impact, as well as the location and occupancy of the affected seating positions.

Step 3: Deployment Decision:

Based on the information gathered and analyzed, the airbag control unit determines whether the situation warrants airbag deployment. The decision to deploy an airbag is a complex one, as it must balance the need for occupant protection with the risk of unnecessary deployment in non-critical situations. Advanced algorithms and decision logic within the control unit ensure precise and reliable deployment decisions.

Step 4: Inflation:

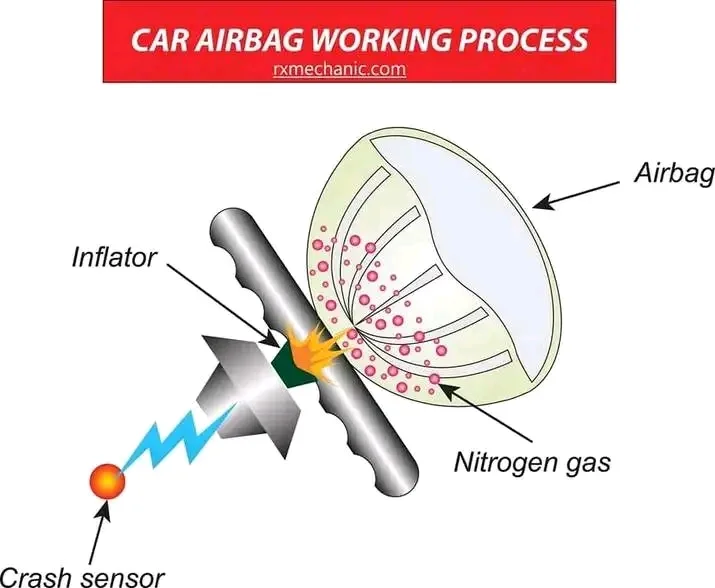

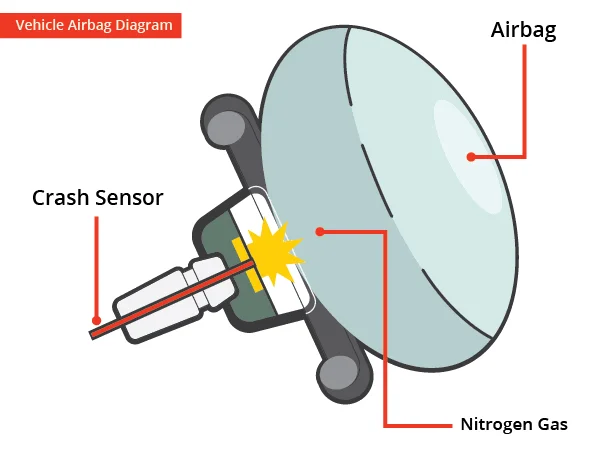

Upon the deployment decision, the airbag control unit triggers the inflation process. The system relies on a stored inflator, typically containing a mixture of chemicals, including a solid propellant and a pyrotechnic initiator. When the control unit sends the deployment signal, it ignites the pyrotechnic material, generating a rapid release of hot gas. This gas swiftly inflates the airbag cushion, which then deploys to protect the occupant.

Step 5: Occupant Restraint:

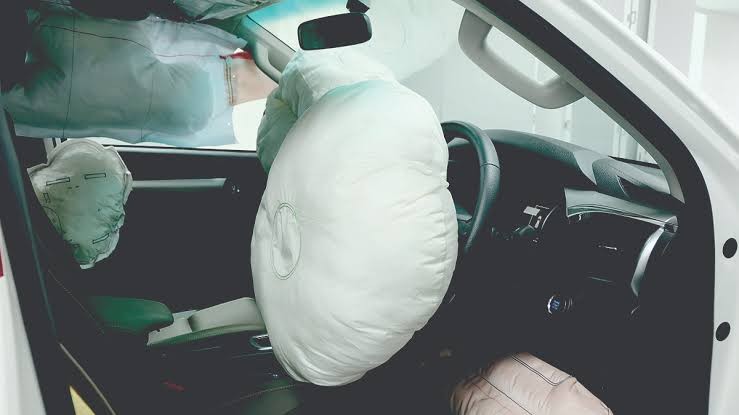

As the airbag deploys, it forms a barrier between the occupant and various vehicle components, including the steering wheel, dashboard, or side structures. The inflated airbag acts as a cushion, effectively absorbing and distributing the occupant's momentum during the collision. This controlled deceleration helps minimize the risk of severe injury by reducing the forces experienced by the occupant.

Step 6: Deflation and Resetting:

Once the airbag has fulfilled its intended purpose, it gradually deflates to provide space for the occupant to exit the vehicle or regain visibility. Integrated vents or porous fabric within the airbag allow the gas to escape safely, preventing a sudden deflation that could potentially harm the occupant. After deployment, the airbag system must be professionally inspected and reset or replaced to ensure its functionality in subsequent collisions.

Conclusion:

Automotive airbag systems are vital safety components that rely on a sophisticated series of steps to detect collisions, process signals, and deploy precisely timed inflation. Through constant advancements in sensor technology, signal processing algorithms, and deployment mechanisms, airbag systems have become highly effective in minimizing the risk of injury to vehicle occupants. Understanding the intricacies of airbag functionality underscores their significance in modern vehicle safety and underscores the ongoing commitment of the automotive industry to enhance occupant protection on our roads.
