Troubleshooting Car Battery Drain: A Comprehensive Guide

Troubleshooting car battery drain requires identifying signs such as dim lights, performing parasitic draw tests, and inspecting faulty components to restore optimal electrical system performance.

How do you tell if there is a draw on the car battery?

There are a few signs that can indicate a draw on the car battery:

• Dim lights: If your headlights, interior lights, or dashboard lights appear noticeably dimmer than usual, it could be a sign of a battery draw.
• Slow cranking: If your engine cranks slowly when starting the car, it may indicate a battery drain.
• Electrical issues: Malfunctions in electrical components such as power windows, door locks, or the radio that occur without any obvious cause could be related to a battery draw.
• Dead battery: If your battery frequently goes dead, even after being fully charged, it suggests a persistent drain.

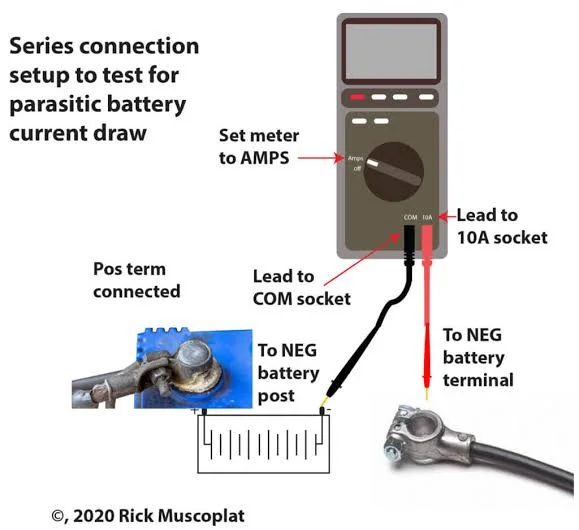

How do you find out what is drawing on the battery?

To determine what is drawing power from the battery, you can perform a parasitic draw test. Here's how you can do it:

1. Ensure that all electrical components in the vehicle are turned off, including lights, radio, and accessories.
2. Disconnect the negative terminal of the battery.
3. Connect an ammeter (set to the appropriate DC amp range) between the negative terminal and the disconnected battery cable.
4. Wait for around 20-30 minutes to allow the car's modules to go into sleep mode.
5. Check the ammeter reading. If it shows a significant current draw (usually more than 50 milliamps), there is likely a parasitic draw.
6. Begin removing fuses one by one while observing the ammeter. If the amperage drops significantly after removing a particular fuse, you have identified the circuit responsible for the draw.

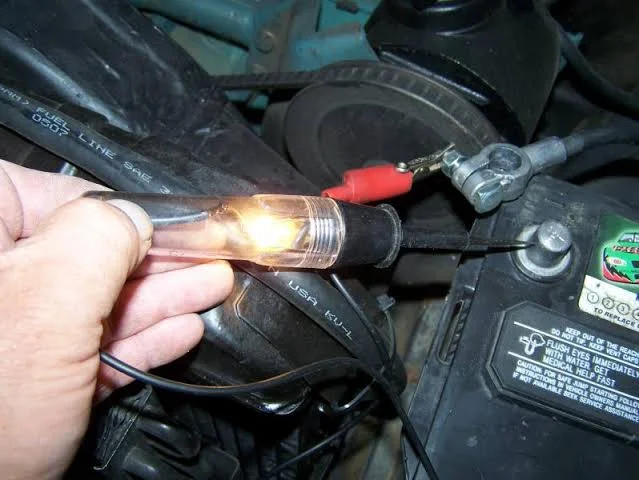

Can you test a battery with a test light?

While a test light can indicate whether power is reaching a particular point, it is not a reliable method to test a battery's overall condition. To test a battery, it is better to use a dedicated battery tester or a multimeter that can measure the voltage and load test the battery. These devices provide more accurate information about the battery's health and its ability to hold a charge.

How do I know if my alternator is draining my battery?

If your alternator is draining your battery, there are a few signs to look out for:

• Dim or flickering lights: When the alternator fails to provide sufficient power, you may notice the headlights or interior lights becoming dim or flickering.
• Battery warning light: The battery warning light on your dashboard may illuminate, indicating a problem with the charging system.
• Dead battery: If your battery keeps losing its charge even after being fully charged, it could be a sign that the alternator is not replenishing the battery's power.

To confirm if the alternator is causing the battery drain, you can have it tested at a reputable automotive service center. They can perform a charging system test to evaluate the alternator's performance and determine if it needs to be repaired or replaced.

How do you find a short in a car with a test light?

To locate a short circuit in a car using a test light, follow these steps:

1. Disconnect the negative terminal of the battery to prevent any accidental short circuits during the process.
2. Set up the test light by connecting its ground clamp to a suitable ground point in the vehicle (e.g., a metal bolt or chassis).
3. Connect the test light's probe to the positive terminal of the battery.
4. Begin inspecting the electrical circuits, wiring, and components associated with the suspected short.
5. Touch the test light probe to various points along the circuit or wiring. If the test light illuminates brightly, it indicates the presence of a short circuit at that particular point.
6. Move along the circuit, continuing to test different points until you locate the area where the test light illuminates brightly. This indicates the presence of a short circuit.
7. Once you identify the area of the short circuit, carefully inspect the wiring, connectors, and components in that vicinity. Look for any damaged insulation, exposed wires, or components that may be causing the short.
8. Repair or replace the faulty wiring, connectors, or components causing the short circuit. Ensure proper insulation and connection integrity.

It's important to note that finding a short circuit can sometimes be a complex and time-consuming process. If you're unsure or uncomfortable with performing these tests yourself, it's recommended to seek the assistance of a qualified automotive technician who has the necessary expertise and tools.

What is draining my car battery when it's off?

Several factors can contribute to a car battery draining when the vehicle is off. Some common causes include:

• Parasitic draw: This refers to the power consumed by certain electrical components even when the vehicle is turned off. It could be due to devices like clocks, alarms, remote start systems, or faulty modules that fail to enter a sleep mode.
• Faulty electrical components: Malfunctioning or improperly installed aftermarket accessories, such as stereos or alarm systems, can draw power even when the vehicle is not in use.
• Electrical shorts: Short circuits in the wiring or components can create unintended current paths and drain the battery.
• Battery issues: A battery that is old, damaged, or nearing the end of its lifespan may have reduced capacity and be more prone to draining.
• Charging system problems: A faulty alternator or voltage regulator may not properly charge the battery while the vehicle is running, leading to a drain when the engine is off.

If you consistently experience a drained battery, it's recommended to have your vehicle inspected by a qualified technician who can diagnose and address the underlying cause.

What is normal battery draw when the car is off?

The normal or acceptable battery draw when the car is off is typically very low, usually in the range of 20-50 milliamps (mA). However, the acceptable range may vary between different vehicle models and manufacturers. It's always best to consult your vehicle's owner manual or contact the manufacturer for specific information regarding your car's normal battery draw.

If the battery draw exceeds the recommended range, it indicates a parasitic draw or electrical issue that requires further investigation and resolution.

What would cause a draw on the battery?

There are several potential causes for a battery draw:

1. Parasitic draw: As mentioned earlier, certain electrical components, modules, or aftermarket accessories that consume power even when the vehicle is off can contribute to a battery draw.
2. Faulty switches or relays: Defective or stuck switches or relays may remain active and draw power from the battery.
3. Wiring issues: Damaged or frayed wiring can create unintended current paths, resulting in a battery draw.
4. Failed or malfunctioning components: Faulty alternators, voltage regulators, starters, or other electrical components can draw excessive power from the battery.
5. Interior or exterior lights left on: Forgetting to turn off headlights, cabin lights, or other interior/exterior lights can quickly drain the battery.
6. Battery issues: An aging or damaged battery may have reduced capacity, leading to quicker draining.

How do you check for parasitic draw on a battery?

To check for parasitic draw on a battery, follow these steps:

• Ensure that all electrical components in the vehicle are turned off, including lights, radio, and accessories.
• Disconnect the negative terminal of the battery.
• Connect a multimeter in DC amp mode (set to the appropriate range) between the negative terminal and the disconnected battery cable.
• Wait for around 20-30 minutes to allow the car's modules to go into sleep mode.
• Observe the multimeter reading. A normal parasitic draw should be within the range of 20-50 milliamps (mA). If the reading is significantly higher, there may be an excessive draw draining the battery.
• To pinpoint the source of the draw, start removing and reinserting fuses one by one while monitoring the multimeter reading. If the draw decreases significantly after removing a specific fuse, it indicates that the circuit connected to that fuse is responsible for the parasitic draw.
• Once you identify the circuit, consult the vehicle's wiring diagram to determine which components are connected to that circuit. Inspect those components for any signs of malfunction, wiring issues, or aftermarket installations that could be causing the excessive draw.
• Repair or replace any faulty components, repair damaged wiring, or address any issues found to resolve the parasitic draw.

Remember, troubleshooting parasitic draw can be a complex process, and if you're uncertain or uncomfortable with performing these tests, it's best to seek the help of a qualified automotive technician.

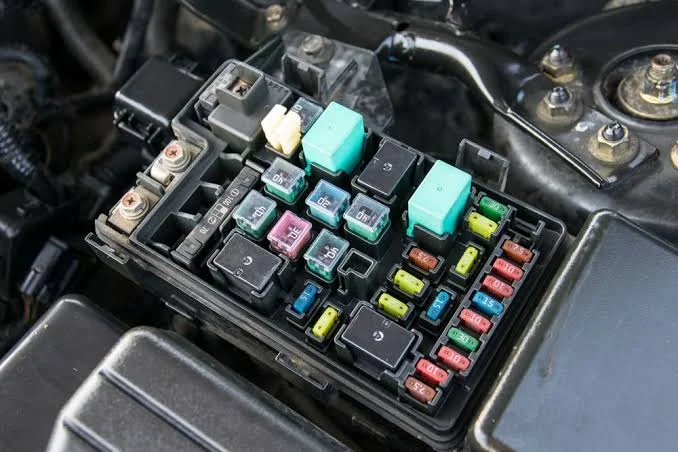

Can a bad fuse cause a battery drain?

In most cases, a bad fuse itself is unlikely to cause a battery drain. Fuses are designed to protect electrical circuits by breaking the connection when there's an electrical overload. However, a bad fuse can be an indication of an underlying issue within the circuit it protects.

If a fuse blows frequently or exhibits signs of damage, it suggests a problem in the corresponding circuit. This issue, such as a short circuit or a faulty component, can cause excessive current flow and result in a battery drain.

Therefore, while a bad fuse may not directly cause a battery drain, it signals the need for further investigation into the circuit and associated components to identify and address the root cause of the drain.

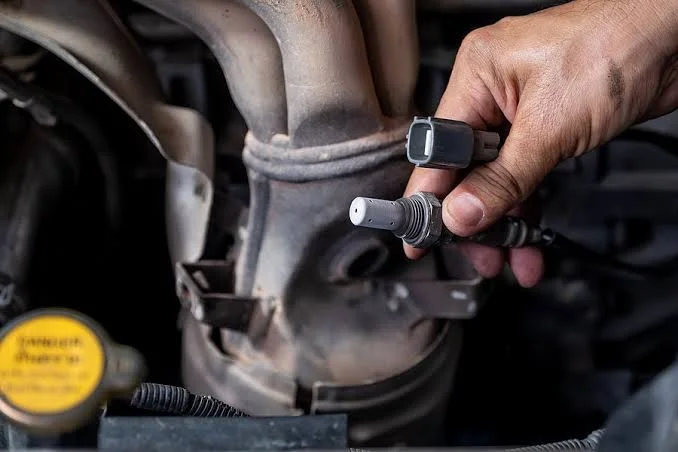

Can a bad sensor drain a battery?

Yes, a faulty sensor can potentially cause a battery drain. Sensors in a vehicle are connected to the electrical system, and if a sensor malfunctions, it may draw excessive power from the battery even when the vehicle is off.

For example, a malfunctioning oxygen sensor, coolant temperature sensor, or even a faulty security system sensor can cause an abnormal power draw and drain the battery.

If you suspect a faulty sensor is causing the battery drain, it's recommended to have the vehicle diagnosed by a qualified technician. They can use diagnostic tools to identify any sensor-related issues and determine the necessary repairs or replacements.

In conclusion, diagnosing and resolving battery drain issues can be challenging as multiple factors can contribute to the problem. By understanding the signs of a battery draw, performing appropriate tests, and seeking professional assistance when needed, you can identify the underlying causes and ensure your car's electrical system operates optimally.
