P0100 Code: Troubleshooting and Repair Guide for Mass Air Flow Circuit Malfunction

The P0100 code indicates a problem with the mass or volume air flow circuit in the vehicle's engine. It means that there is a malfunction or discrepancy in the airflow data being measured by the Mass Air Flow (MAF) sensor.

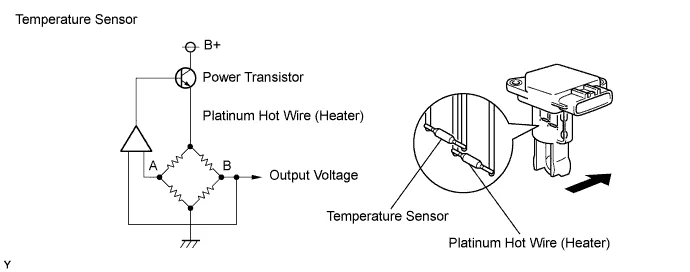

P0100 - Mass or Volume Air Flow Circuit Malfunction

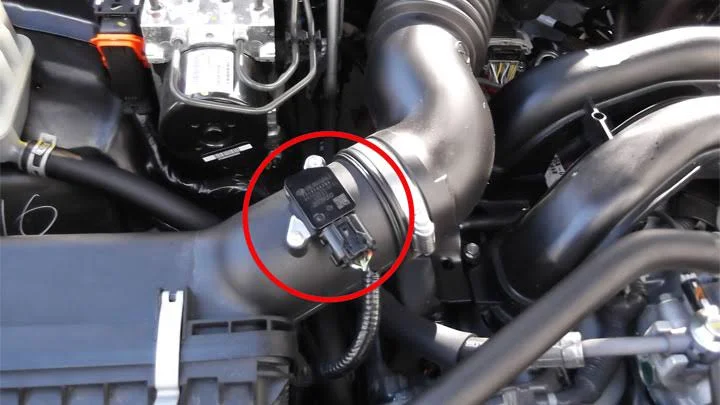

Causes:

Several factors can contribute to the P0100 code, including:

• Faulty MAF sensor: The MAF sensor may be dirty, contaminated, or malfunctioning, leading to inaccurate readings.
• Air intake system issues: Leaks, obstructions, or damaged air intake hoses can disrupt the proper airflow.
• Wiring or connection problems: Damaged wires, loose connections, or corroded terminals can affect the MAF sensor's signal.
• Faulty engine control module (ECM): The ECM, responsible for receiving and processing sensor data, may be faulty or experiencing software issues.

Read Also: Understanding the Mass Airflow Sensor: How It Works and Its Benefits

Troubleshooting:

To diagnose and address the P0100 code, follow these troubleshooting steps:

• Visual inspection: Inspect the air intake system for any leaks, obstructions, or damaged components.
• Check MAF sensor wiring: Inspect the wiring harness for any visible damage or loose connections.
• Clean or replace the MAF sensor: Clean the MAF sensor with a specialized cleaner or replace it if necessary.

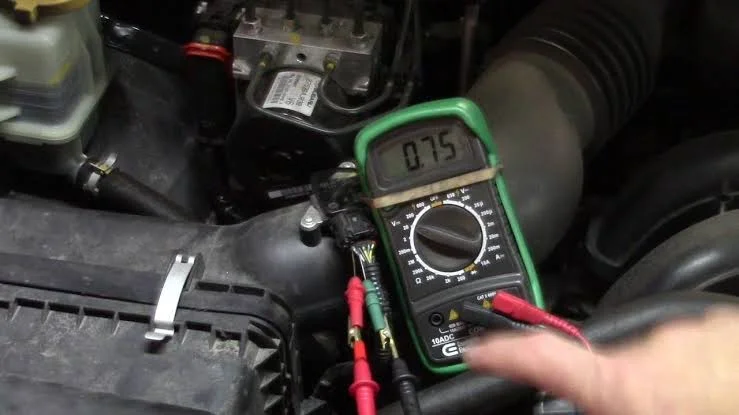

• Test the voltage signal: Use a multimeter to test the voltage output from the MAF sensor.
• Inspect the ECM: Perform a comprehensive check of the ECM and its connections for any signs of malfunction.

Read Also: How to Test the Resistance and Voltage of the Sensors, Actuator, and Valve

Repair:

The repair process for P0100 may involve the following steps:

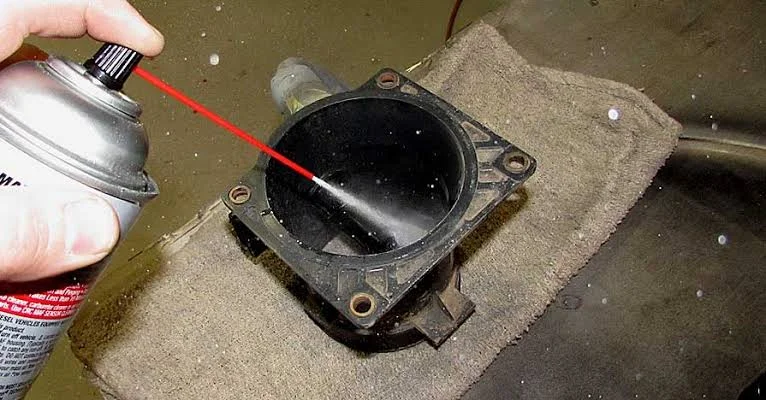

• Clean or replace the MAF sensor: Depending on the condition of the sensor, clean it with a suitable cleaner or replace it altogether.
• Repair or replace damaged wiring: If any wiring or connectors are damaged or corroded, repair or replace them as needed.
• Clear the trouble codes: After the repair is complete, clear the trouble codes using a scan tool.

Frequently Asked Questions:

Read Also: Engine Sensors: How They Monitor and Optimize Performance

Can a dirty air filter cause the P0100 code?

While a dirty air filter can affect engine performance, it typically does not directly trigger the P0100 code. However, a restricted air filter can contribute to MAF sensor issues over time.

Can I drive my vehicle with the P0100 code?

It is generally not recommended to drive with the P0100 code, as it can affect engine performance and fuel efficiency. It's best to address the underlying issue as soon as possible.

How often should I clean the MAF sensor?

Cleaning the MAF sensor is recommended as part of routine maintenance. However, the frequency may vary depending on driving conditions and the manufacturer's recommendations.

Can I replace the MAF sensor myself?

If you have the necessary tools and knowledge, you can replace the MAF sensor yourself. However, it's important to follow proper procedures and ensure the correct part is installed.

Please note that the information provided is for general guidance, and specific diagnostic and repair steps may vary depending on the vehicle make, model, and year. It is always recommended to consult a qualified automotive technician or refer to the vehicle's service manual for precise instructions and guidance.
