The Heart of Automatic Transmissions: A Closer Look at Torque Converters

A torque converter, a vital component in automatic transmissions, utilizes fluid coupling to transfer engine power to the transmission, enabling smooth and efficient power delivery for optimal vehicle performance.

A torque converter is a critical component in an automatic transmission system that allows the engine to transmit power smoothly to the transmission. Understanding how it works and the various parts involved can help in diagnosing and addressing potential issues. Here are some additional details about torque converters:

How does a torque converter work?

1.  Fluid Coupling: The torque converter uses a fluid coupling principle to transmit power. The impeller, driven by the engine, accelerates the transmission fluid, creating a flow that drives the turbine.
2. Fluid Momentum: As the transmission fluid flows from the impeller to the turbine, it transfers momentum and rotational force, effectively transmitting power from the engine to the transmission.
3. Torque Multiplication: The stator, positioned between the impeller and the turbine, redirects the fluid flow before it enters the impeller. This redirection improves torque multiplication, enabling the torque converter to enhance low-end torque and improve vehicle acceleration.

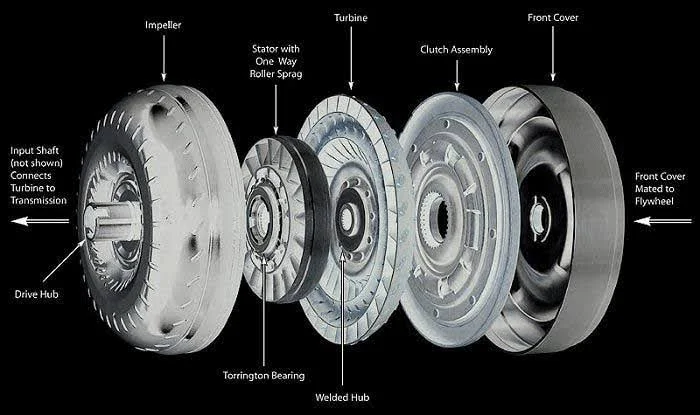

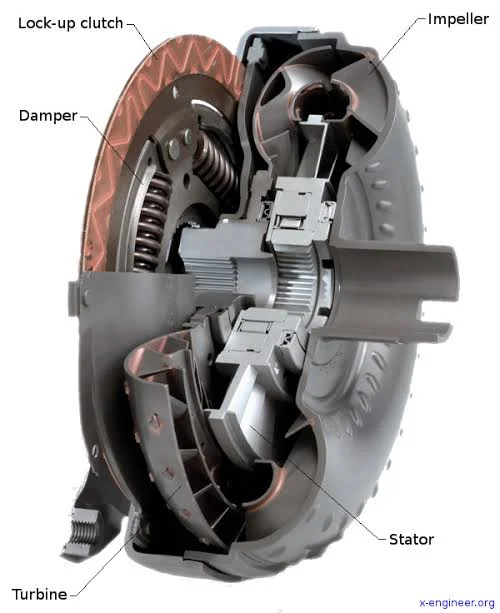

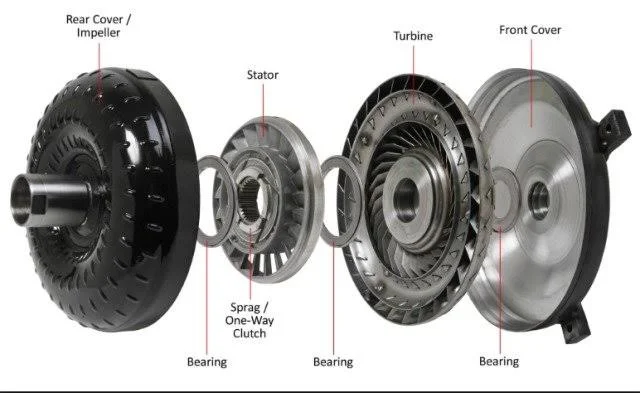

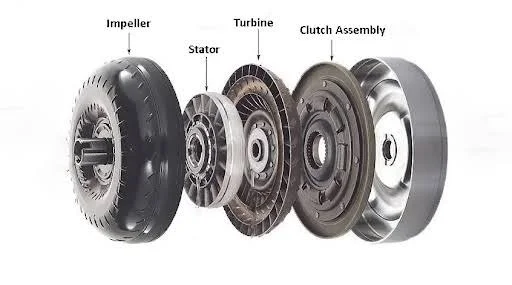

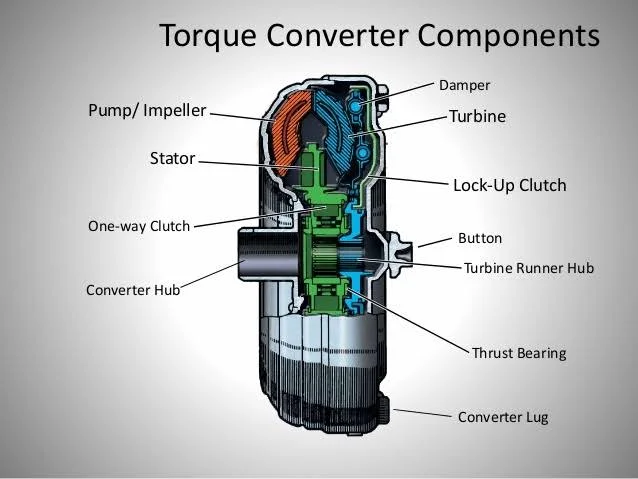

Main parts of a Torque Converter

1.  Impeller: The impeller is the driving member of the torque converter that is connected to the engine crankshaft. It is a turbine-like structure with curved blades that creates a suction force to draw in and accelerate the transmission fluid.
2. Turbine: The turbine is the driven member of the torque converter that is connected to the transmission input shaft. It is a similar structure to the impeller, but it is driven by the fluid flow from the impeller.
3. Stator: The stator is a stationary blade assembly located between the impeller and the turbine. It redirects the fluid flow to increase torque multiplication and improve efficiency.
4. Lock-up clutch: The lock-up clutch is a mechanism that connects the impeller and turbine directly to improve efficiency at higher speeds. It typically engages at speeds above 30-40 mph.
5. Transmission fluid: The transmission fluid is a special fluid that fills the torque converter and serves as the working medium for transmitting power between the impeller and turbine. It also provides lubrication and cooling to the internal components.
6. Damper: The damper is a spring-loaded mechanism that absorbs shocks and vibrations during operation. It helps to reduce wear on the internal components and provides a smoother driving experience.
7. Housing: The housing is the outer casing of the torque converter that encloses the internal components. It provides protection from the environment and also helps to dissipate heat generated during operation.
8. Input Shaft: The input shaft connects the torque converter to the transmission. It receives the rotational motion from the turbine and transmits it to the transmission gears.
9. Sprag or One-Way Clutch: Some torque converters feature a sprag or one-way clutch. This mechanism allows the torque converter to transmit power in one direction only, preventing the transmission from rotating backward during certain conditions, such as engine braking or sudden deceleration.
10. Torque Converter Clutch (TCC): The torque converter clutch is a feature found in many modern vehicles. It is an electronically controlled mechanism that engages or disengages the lock-up clutch, allowing for direct mechanical coupling between the engine and transmission, thereby improving fuel efficiency.

Common problems associated with torque converters:

1.  Slipping: A slipping torque converter can result in a loss of power transmission, causing the engine to rev without a corresponding increase in vehicle speed. This issue may be due to worn or damaged internal components or insufficient fluid pressure.
2. Overheating: Insufficient fluid cooling or inadequate fluid flow can lead to overheating of the torque converter. Overheating can cause damage to the internal components and result in reduced performance and potential transmission failure.
3. Shuddering or Vibrations: Excessive vibrations or shuddering during acceleration can indicate problems with the torque converter, such as worn bearings, damaged clutches, or an imbalanced converter assembly.
4. Lock-up Clutch Issues: Malfunctions in the lock-up clutch can prevent it from engaging or disengaging correctly. This can result in poor fuel efficiency, engine stalling at idle, or abnormal shifting behavior.
5. Fluid Contamination: Contaminated or degraded transmission fluid can lead to torque converter issues. Contaminants, such as dirt, debris, or metal particles, can cause internal damage and hinder proper fluid flow.

Maintenance and troubleshooting tips:

1.  Regular Fluid Service: Follow the manufacturer's recommended maintenance schedule for fluid changes and filter replacements to ensure proper torque converter function.
2. Fluid Level Check: Maintain the proper fluid level by regularly checking it using the dipstick. Low fluid levels can lead to torque converter problems.
3. Fluid Quality: Use the recommended transmission fluid specified by the vehicle manufacturer to maintain optimal performance and longevity of the torque converter.
4. Professional Inspection: If you experience symptoms like slipping, overheating, or unusual vibrations, have a qualified automatic transmission specialist inspect the torque converter for any potential issues.

Remember, a well-maintained and properly functioning torque converter is crucial for the smooth operation and longevity of your automatic transmission system. Regular maintenance, prompt diagnosis of issues, and timely repairs or replacements can help ensure optimal performance and avoid costly transmission problems in the long run.

Frequently Asked Questions (FAQs):

Can I drive my vehicle with a malfunctioning torque converter?

It is not recommended to drive with a faulty torque converter as it can lead to further damage to the transmission and other drivetrain components. Seek professional assistance for repairs.

How often should I change the transmission fluid in my vehicle?

The frequency of transmission fluid changes varies depending on the vehicle and driving conditions. Consult your vehicle's owner's manual or a qualified technician for specific recommendations.

Can a torque converter be repaired, or does it need to be replaced?

Depending on the extent of the damage, a torque converter can be repaired in some cases. However, severe damage or wear may necessitate a replacement for optimal performance and reliability.

What is torque converter lock-up?

Torque converter lock-up refers to the engagement of the lock-up clutch within the torque converter. When engaged, the lock-up clutch connects the impeller and turbine directly, eliminating the fluid coupling and creating a direct mechanical connection. This lock-up mechanism improves efficiency, reduces heat generation, and allows for more efficient power transmission at higher speeds.

How can I prevent torque converter problems?

Regular maintenance is key to preventing torque converter issues. Follow the manufacturer's recommended service intervals for fluid changes and filter replacements. Additionally, ensure that the transmission fluid is of the correct type and level. Avoid overheating the transmission by not towing or hauling beyond the vehicle's capacity and by avoiding prolonged heavy use in extreme conditions.

Are there any aftermarket upgrades available for torque converters?

Yes, there are aftermarket torque converters available that offer various performance enhancements. These upgrades can include improved lock-up clutch designs, modified stall speeds, and increased torque multiplication. However, it's important to choose reputable brands and consult with an experienced transmission specialist to ensure compatibility with your specific vehicle and application.

Can a torque converter cause transmission fluid leaks?

While the torque converter itself doesn't typically cause fluid leaks, issues such as worn seals or damaged input/output shafts can lead to fluid leaks. If you notice transmission fluid leaks, it's important to have the system inspected by a professional to identify and address the source of the leak.

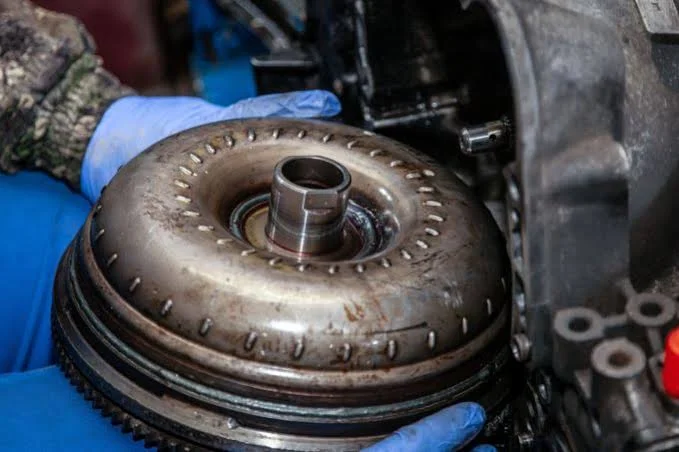

How can I tell if my torque converter is failing?

Signs of a failing torque converter include slipping or delayed engagement when shifting gears, overheating transmission, shuddering or vibrations during acceleration, unusual noises like grinding or whining, and a decrease in overall performance or fuel efficiency. If you experience any of these symptoms, it's recommended to have your vehicle inspected by a qualified automatic transmission specialist.

In conclusion, the torque converter plays a crucial role in the operation of automatic transmissions by efficiently transmitting power from the engine to the transmission. Understanding its function, components, potential problems, and maintenance requirements can help vehicle owners and enthusiasts ensure the longevity and optimal performance of their automatic transmission systems. Regular maintenance, prompt diagnosis of issues, and professional repairs or replacements when necessary will help keep your torque converter and transmission in excellent condition for a smooth and reliable driving experience.
