Mastering Fuel System Troubleshooting: Tips, Solutions, and FAQs

The fuel system is responsible for delivering fuel to the engine. Common problems include insufficient pressure, leaks, clogged injectors, and pump failure. Regular maintenance is crucial for optimal performance.

A well-functioning fuel system is essential for optimal engine performance and vehicle operation. Here, we will delve into fuel system troubleshooting, offering solutions to common problems and answering frequently asked questions.

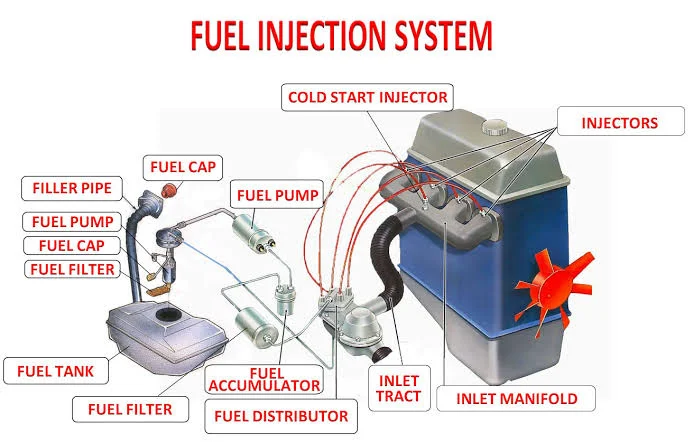

Parts of a Car Fuel System:

1.  Fuel Tank: Stores fuel until it is needed.
2. Fuel Pump: Draws fuel from the tank and delivers it to the engine.
3. Fuel Filter: Removes impurities and contaminants from the fuel.
4. Fuel Injectors: Spray fuel into the combustion chamber.
5. Fuel Pressure Regulator: Controls fuel pressure for optimal performance.
6. Fuel Rail: Distributes fuel to the injectors.
7. Throttle Body: Regulates airflow into the intake manifold.
8. Intake Manifold: Distributes the air-fuel mixture to the engine cylinders.

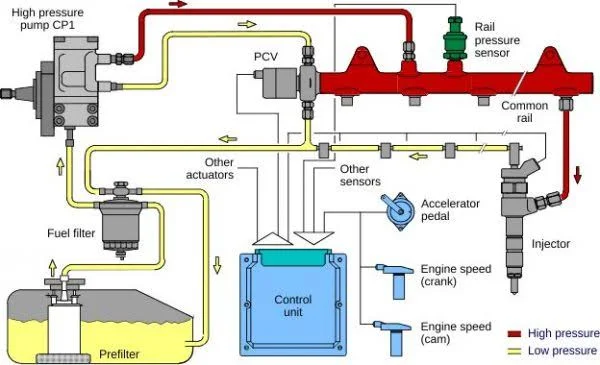

Fuel Injection and Engine Operation:

1. Fuel is drawn from the tank by the fuel pump.
2. The fuel passes through the fuel filter to remove impurities.
3. Pressurized fuel is sent to the fuel rail.
4. Fuel injectors spray a fine mist of fuel into the intake manifold or combustion chamber.
5. Fuel mixes with incoming air, creating an air-fuel mixture.
6. The mixture is ignited by the spark plugs, causing combustion and powering the engine.

Common Fuel System Problems and Diagnosis:

Insufficient Fuel Pressure

- Solution: Use a fuel pressure gauge to measure pressure at the fuel rail. Low pressure may indicate a faulty fuel pump, clogged fuel filter, or a malfunctioning fuel pressure regulator.

Fuel Leakage

- Solution: Inspect fuel lines, connections, and fuel injectors visually for signs of leaks or fuel odor. Replace any damaged or worn components.

Clogged Fuel Injectors

- Solution: Perform a fuel injector flow test or use a fuel system cleaner specifically designed to remove deposits and improve injector performance.

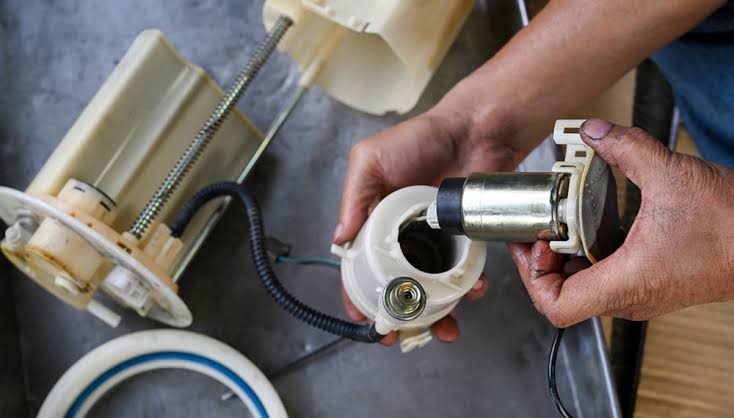

Fuel Pump Failure

- Solution: Listen for a humming noise from the fuel tank when the ignition is turned on. If the pump is silent, it may be faulty and require replacement.

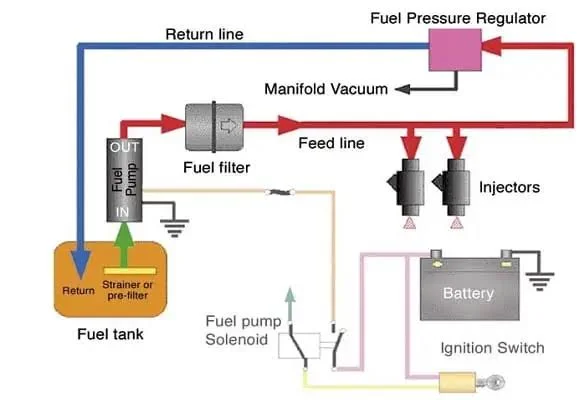

Dirty Fuel Filter

- Solution: Replace the fuel filter if it is clogged or dirty to ensure proper fuel flow and prevent contaminants from reaching the engine.

Problem 6: Engine Misfires or Stalling

- Solution: Use a scan tool to check for error codes related to the fuel system. Inspect fuel injectors for blockages, check fuel pressure, and examine the ignition system for potential issues.

Problem 7: Reduced Fuel Efficiency

- Solution: Monitor fuel consumption and calculate mileage to identify significant drops in fuel efficiency. Check for potential issues like clogged fuel injectors or a failing fuel pressure regulator.

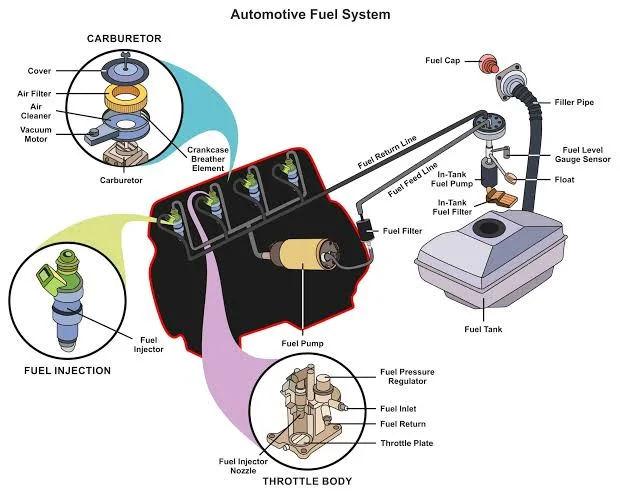

Common Diagnostic Trouble Codes (DTCs) associated with the fuel system:

1. P0171 - P0174: System Too Lean (Bank 1/Bank 2)

- Possible Solution: Check for vacuum leaks, inspect the mass airflow sensor, and ensure proper fuel pressure delivery.

2. P0172 - P0175: System Too Rich (Bank 1/Bank 2)

- Possible Solution: Examine the oxygen sensors, fuel pressure regulator, and intake manifold for potential issues causing a rich fuel mixture.

3. P0300 - P0312: Random/Multiple Cylinder Misfire Detected or Cylinder-Specific Misfire Detected

- Possible Solution: Inspect fuel delivery, spark plugs, ignition coils, and perform a compression test to identify the cause of misfires.

4. P0455 - P0442: Evaporative Emission Control System Leak Detected (Large/Small Leak)

- Possible Solution: Check for loose or damaged fuel vapor lines, inspect fuel filler cap for proper sealing, and examine the evaporative emission control system components for leaks or malfunctions.

5. P062D: Fuel Injector Driver Circuit Performance - Bank 1

- Possible Solution: Investigate the wiring, connectors, and the fuel injector driver circuit for any faults. Repair or replace components as necessary to ensure proper fuel delivery to the cylinders.

Frequently Asked Questions (FAQs) about Fuel System Troubleshooting:

How often should the fuel filter be replaced?

It is generally recommended to replace the fuel filter every 30,000 to 40,000 miles or as specified by the vehicle manufacturer. However, driving conditions and fuel quality can affect the lifespan of the filter.

Can a clogged fuel filter cause the engine to stall?

Yes, a severely clogged fuel filter can restrict fuel flow to the engine, leading to inadequate fuel supply and engine stalling. Regular maintenance and timely filter replacement can prevent such issues.

What are the symptoms of a failing fuel pump?

Signs of a failing fuel pump include difficulty starting the engine, decreased power or acceleration, engine misfires, and frequent stalling. A fuel pressure test can help confirm if the pump is faulty.

How can I improve fuel efficiency?

To improve fuel efficiency, maintain proper tire inflation, perform regular vehicle maintenance, use the recommended grade of fuel, avoid aggressive driving habits, and keep the fuel system clean by using high-quality fuel and periodic fuel system cleaners.

Is it necessary to clean fuel injectors?

Yes, over time, fuel injectors can accumulate deposits that can affect their performance. Regular cleaning or using fuel system cleaners can help remove these deposits and ensure proper fuel atomization and spray pattern.

Can a faulty oxygen sensor affect fuel economy?

Yes, a faulty oxygen sensor can disrupt the air-fuel mixture, leading to improper fuel combustion and decreased fuel economy. If the oxygen sensor is malfunctioning, it should be replaced.

How can I prevent fuel system issues?

Regular maintenance, including fuel filter replacement, using high-quality fuel, keeping the fuel tank above a quarter full to prevent sediment accumulation, and addressing any issues promptly can help prevent fuel system problems.

In conclusion, understanding fuel system troubleshooting is vital for maintaining the performance and efficiency of a vehicle. By diagnosing and addressing common fuel system problems, such as insufficient fuel pressure, fuel leakage, clogged injectors, or pump failure, drivers can ensure their vehicles operate smoothly. Regular maintenance, adherence to manufacturer recommendations, and prompt attention to any fuel system-related issues contribute to a reliable and efficient fuel system.
