Throttle Position Sensor (TPS): A Crucial Component for Engine Performance

A throttle position sensor (TPS) is an electronic sensor used in fuel-injected engines to monitor the position of the throttle valve.

The throttle position sensor (TPS) plays a vital role in fuel-injected engines by monitoring the throttle valve's position. This article provides a comprehensive overview of the TPS, its functions, and additional important information to consider.

Purpose and Function:

The primary purpose of the TPS is to determine the angle of the throttle plate or butterfly valve, regulating the airflow entering the engine. By providing essential input to the engine control unit (ECU), the TPS enables precise control of fuel injection, ignition timing, and other critical engine parameters.

Sensor Types:

The TPS is typically a potentiometer or a non-contact sensor, such as a Hall effect or magnetostrictive sensor. These sensors detect the throttle plate's position and translate it into an electrical signal that is transmitted to the ECU.

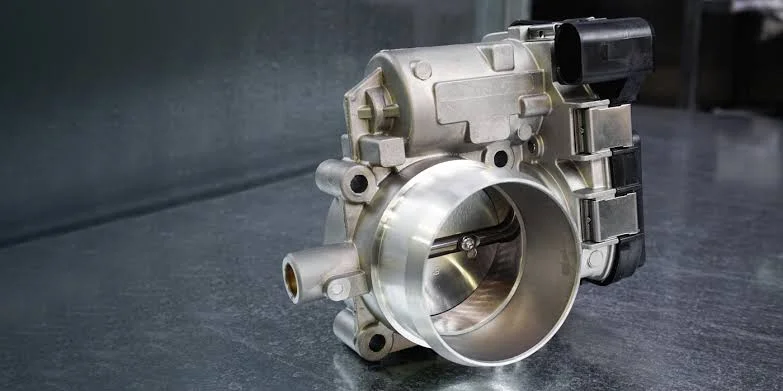

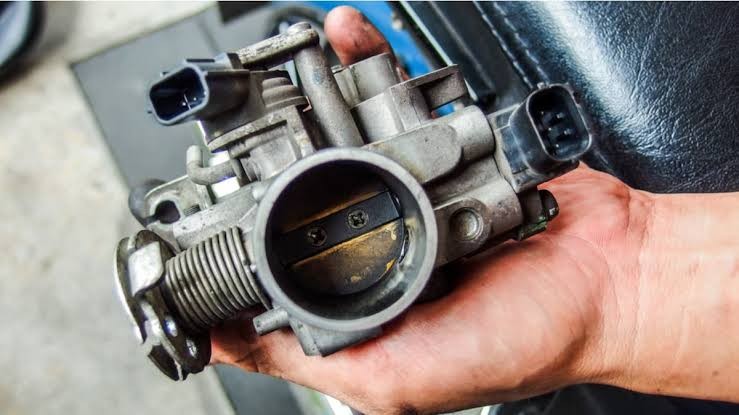

Electrical Link and Mounting:

Unlike traditional mechanical linkages, the TPS utilizes an electrical connection to relay the throttle position information to the ECU. The sensor is commonly mounted on the throttle body or attached to the throttle shaft for accurate detection and efficient communication.

Throttle Opening and Response:

When the driver presses the accelerator pedal, the TPS detects the movement and sends a corresponding signal to the ECU. In response, the ECU adjusts fuel injection and ignition timing, activating the throttle actuator motor. This electric motor physically opens or closes the throttle plate, boosting engine power and speed.

Diagnostic Trouble Codes (DTCs):

Various Diagnostic Trouble Codes (DTCs) are associated with TPS-related problems. These codes can vary depending on the vehicle and specific issues. Common TPS-related DTC codes include:

1. P0120 - Throttle/Pedal Position Sensor/Switch 'A' Circuit Malfunction.
2. P0121 - Throttle/Pedal Position Sensor/Switch 'A' Circuit Range/Performance Problem.
3. P0122 - Throttle/Pedal Position Sensor/Switch 'A' Circuit Low Input.
4. P0123 - Throttle/Pedal Position Sensor/Switch 'A' Circuit High Input.
5. P0220 - Throttle/Pedal Position Sensor/Switch 'B' Circuit Malfunction.
6. P0221 - Throttle/Pedal Position Sensor/Switch 'B' Circuit Range/Performance Problem.
7. P0222 - Throttle/Pedal Position Sensor/Switch 'B' Circuit Low Input.
8. P0223 - Throttle/Pedal Position Sensor/Switch 'B' Circuit High Input.

Additional Information:

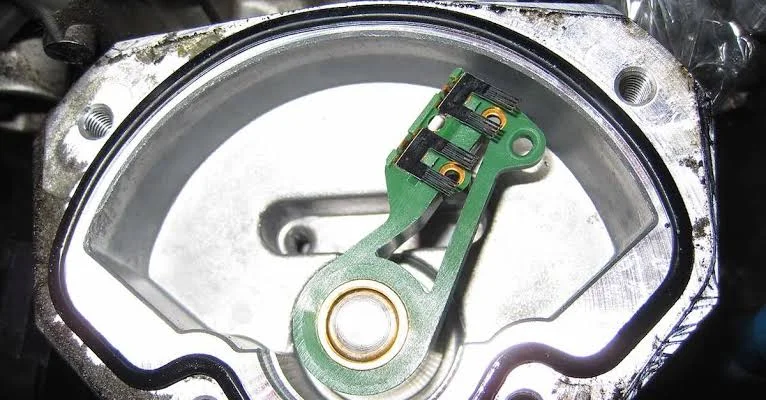

TPS Calibration and Adjustment:

Proper calibration of the TPS is crucial to ensure accurate throttle position readings. It guarantees that the TPS provides precise information to the ECU for optimal engine performance. Some TPS models allow for adjustment to fine-tune their readings, ensuring maximum efficiency.

Fail-Safe Mode and Redundancy:

Modern vehicles often incorporate fail-safe modes to handle TPS malfunctions or failures. These modes rely on redundant sensors and data to estimate the throttle position, allowing the engine to operate with reduced performance until the TPS issue is resolved.

TPS Wear and Failure Prevention:

Over time, the TPS can experience wear or develop faults that affect its performance. Common causes of TPS failure include contamination, electrical issues, or mechanical wear within the sensor. Regular maintenance, including cleaning and inspections, can help identify and mitigate potential TPS problems before they lead to significant engine issues.

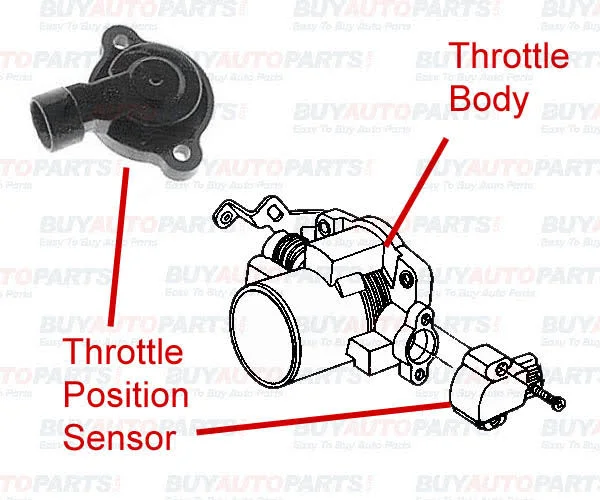

TPS Cleaning and Maintenance:

In some cases, TPS-related problems can be resolved by cleaning the sensor. Dirt, carbon deposits, or other contaminants can interfere with the TPS's ability to provide accurate readings. Cleaning the TPS with an appropriate cleaner can help restore its functionality. However, it's crucial to exercise caution to avoid damaging the sensor during the cleaning process.

Integration with Other Systems:

The TPS collaborates with various other systems within the vehicle. It shares information with the ECU, transmission control module (TCM), and other onboard systems to ensure seamless operation and coordination between different components. This integration allows for efficient engine performance and optimal driving experience.

Upgrading TPS:

In some cases, upgrading the TPS can offer improved performance and durability compared to the stock sensor. Aftermarket options provide enhanced features and precision, making them ideal for high-performance applications or situations where the stock sensor may be prone to failure. However, it is essential to select a compatible TPS and ensure proper installation for optimal results.

Ongoing Developments and Future Advancements:

The automotive industry is constantly evolving, and TPS technology is no exception. Manufacturers continue to research and implement advancements in TPS technology to improve accuracy, reliability, and responsiveness. These advancements aim to enhance overall engine efficiency, reduce emissions, and meet stricter environmental standards.

In conclusion, the throttle position sensor (TPS) is a crucial component in fuel-injected engines, providing vital information about the throttle position to the engine control unit (ECU). Its accurate readings enable precise control over fuel injection, ignition timing, and other engine parameters, resulting in optimal engine performance. Understanding the TPS and its functions, along with proper maintenance and troubleshooting techniques, is essential for ensuring the smooth operation of the vehicle's engine.
